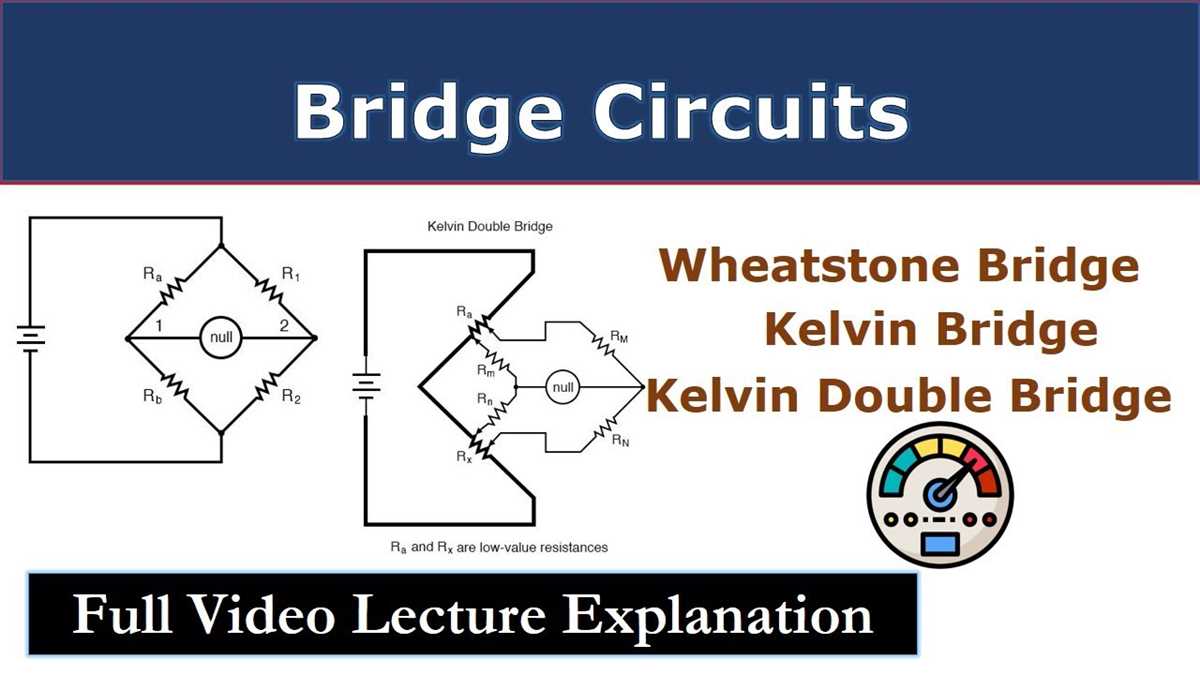

Precision Measurement Using the Kelvin Bridge Circuit Schematic
For accurate low-resistance measurements below 1 Ω, use a four-terminal sensing configuration with matched lead resistances under 0.1 Ω. Implement a ratio-based balancing mechanism where the reference resistor (Rx) and unknown resistor (Ru) share a common current path to eliminate lead resistance errors. Standard digital multimeters introduce errors exceeding 0.5% in this range–opt for a null-detection method instead.
Select resistors with temperature coefficients below 5 ppm/°C to minimize thermal drift. The balancing condition requires R1/R2 = Rx/Ru, where R1 and R2 are adjustable ratio arms. Use a galvanometer with sensitivity better than 1 μV/division for precise null detection. Avoid switch contacts with resistances above 1 mΩ–mechanical relays introduce repeatability errors.
For dynamic measurements, add a 100 nF capacitor across the detector to filter 50/60 Hz interference without affecting DC accuracy. Calibrate ratio arms against a 0.01% standard resistor before each use. When measuring inductive loads, insert a 1 ms settling delay after current application to avoid transient errors. Power supplies should deliver stable 100 mA with less than 0.01% ripple–linear regulators outperform switching types in noise-sensitive setups.
Store reference components in a controlled environment (23 ±1°C,
Precision Resistance Measurement Setup

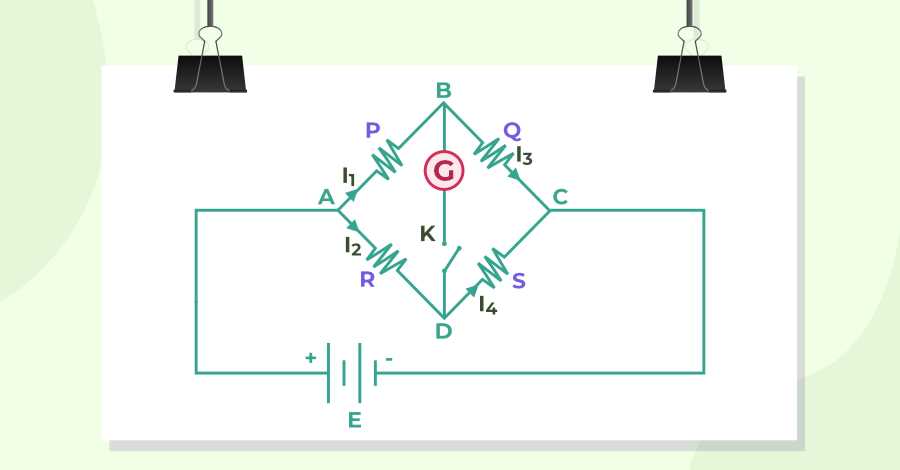

Start by arranging four resistors in a closed-loop configuration: two known values (R₁ and R₂) forming the ratio arms, one adjustable standard (Rₛ), and the unknown resistance (Rₓ) under test. Connect a galvanometer between the junction of R₁-Rₓ and R₂-Rₛ to detect balance conditions. Ensure all connections are soldered or clamped with low thermal EMF alloys like gold-plated copper to minimize parasitic voltages below 0.1 µV.
Critical Component Specifications
Use wirewound resistors for R₁ and R₂ with temperature coefficients under 5 ppm/°C and matched tolerances within 0.01% to maintain ratio stability. The adjustable standard Rₛ should offer decade resolution down to 1 mΩ with a settling time under 100 ms. For Rₓ, account for lead resistance: measure with four-terminal sensing where current and potential paths remain separate, reducing error by two orders of magnitude compared to two-terminal methods.
A stable DC source must deliver 10 V ±0.01% with ripple below 1 mV p-p; linear regulators outperform switching supplies for this application due to lower noise. Calibrate the setup at 23°C ±0.5°C using a traceable reference resistor, then verify balance by toggling Rₛ in 0.1% increments while observing galvanometer deflection. Balance occurs when the potential difference across the detector is zero, confirmed by a null reading within ±0.5 µV.
Error Mitigation Protocols
Shield all signal paths in grounded braided copper to block 50/60 Hz interference; maintain separation from AC lines by 30 cm minimum. For resistances below 1 Ω, apply current reversal techniques: alternate polarity at 1 Hz and average readings to cancel thermoelectric effects. If balance proves elusive, check for open circuits in the ratio arms–common failures occur at printed circuit board vias due to thermal cycling. Document each measurement’s ambient conditions, noting barometric pressure if humidity exceeds 60%, as it affects surface leakage currents in high-impedance configurations.
Key Elements and Their Functional Importance in Precision Resistance Measurement
Select a four-terminal resistor for the unknown resistance sample to eliminate lead and contact resistance errors. This configuration splits current injection and voltage sensing paths, ensuring the detected voltage reflects only the true resistive drop across the sample. Always position the current leads at the outermost terminals and voltage taps adjacent to–but not overlapping–the sample’s core resistive section.
The ratio arms determine measurement accuracy and range. Use matched, high-stability resistors with temperature coefficients below 10 ppm/°C. Maintain a fixed ratio, typically 10:1 or 100:1, to simplify calculations and reduce drift. For sub-ohm readings, a 1000:1 ratio may be necessary, but ensure the reference resistor remains above 10 Ω to avoid noise and thermal EMF influence.
Critical Components in Detail
- Reference resistor: Must have a tolerance of 0.01% or better. Wirewound or foil types reduce inductance and thermal EMF. Calibrate under the same thermal conditions as the test setup.
- Null detector: A high-impedance (10 MΩ or greater) galvanometer or digital voltmeter with 1 μV resolution prevents loading errors. Look for models with DC rejection to filter power line interference.
- Lead compensation network: Include twisted pair wiring and shielded cables to minimize electromagnetic pickup. Keep current and potential leads separated by at least 10 mm where possible.
Balance adjustment requires a multi-turn potentiometer with a linear taper and 0.1% resolution. Position it in the center arm to avoid ratio distortion. Verify linearity by sweeping the full range and checking against a calibrated decade box–nonlinearity exceeding 0.05% warrants replacement.
Thermal EMF mitigation demands isothermal conditions. Use copper binding posts and minimize solder connections; alloys generate microvoltage differences. For critical readings below 1 mΩ, immerse components in an oil bath stabilized within ±0.1°C. Alternatively, employ a commutator switch to reverse current flow and average readings, canceling thermal offsets.
- Secure all connections with gold-plated contacts to prevent oxidation.
- Position the entire setup on a vibration-isolated surface to prevent microphonic noise.
- Run initial tests with a known standard resistor (e.g., 1 Ω) to validate the configuration before measuring unknown samples.
- Monitor ambient temperature shifts; recalibrate if changes exceed 2°C.
- Use a battery-powered supply to avoid ground loops and AC interference from mains-powered sources.
Constructing a Four-Terminal Resistance Network on a Prototyping Board
Begin by securing two precision resistors–one as the reference (e.g., 1 kΩ, 0.1% tolerance) and the second as the unknown element whose value you’ll measure. Position them adjacently on the board’s upper half, ensuring their leads make consistent contact with the copper strips beneath. Use short jumper wires to connect their outer terminals to separate voltage rails; label these rails V+ and V– immediately with adhesive dots to prevent confusion later. Ground the lower halves of both resistors by linking their inner terminals to a common ground bus, then verify each connection with a multimeter in continuity mode before energizing.
| Component | Recommended Value | Lead Placement |
|---|---|---|
| Reference resistor | 1 kΩ ±0.1 % | Upper-left strip, holes 1–2 |
| Unknown resistor | Target range 500 Ω–2 kΩ | Upper-right strip, holes 4–5 |
| Potentiometer | 10 kΩ linear taper | Mid-board, holes 7–9 |
| Current injection wires | 22 AWG solid core | Lower-left and -right edges |
Slide a 10 kΩ linear potentiometer beneath the resistors; align its wiper pin with the board’s centerline. Route the wiper’s output to a high-impedance instrumentation amplifier input, keeping the trace under 1 cm to minimize stray inductance. Power the amplifier from a regulated ±5 V supply, decoupling each rail with 100 nF ceramic capacitors mounted directly across the amplifier’s power pins. Finally, route the amplifier’s output to an analog-to-digital converter’s dedicated channel–ensure the converter’s reference voltage matches the amplifier’s supply to eliminate gain errors.
Verification Protocol
Apply a 10 mA constant-current source across the outer terminals of both resistors, then measure voltage differentials at the inner terminals using a differential probe with ≤1 pF input capacitance. Expect 0.2 % deviation from nominal. Repeat measurements at 5 mA and 20 mA to confirm linearity, logging all values in a table for later ratio calculation.
Precise Resistance Measurement via Double Ratio Configuration
Set the known resistances P, Q, p, and q to satisfy P/Q = p/q before energizing the setup. This balance ratio eliminates lead and contact resistances, leaving only the unknown resistance Rx as the variable factor. Begin with P = 100 Ω, Q = 100 Ω, p = 10 Ω, and q = 10 Ω for coarse adjustment.
Adjust p or q in 0.1 Ω increments while monitoring a high-sensitivity galvanometer. Null deflection confirms the ratio holds; minor deviations require recalibration. Record the final values of p and q once balance is achieved–these readings directly substitute into the equation.
The governing relationship simplifies to Rx = (P/Q) × (p/q)-1 × r, where r is the interconnecting lead resistance typically under 0.01 Ω. For most applications, neglecting r introduces less than 0.05% error, but include it for sub-milliohm resolutions.
Select resistance coils with ±0.01% tolerance for P and Q; cheap resistors introduce non-linear drift. Thermoelectric effects emerge above 30°C–stabilize at 25°C ±1°C for consistency. Use manganin wire for p and q to avoid temperature coefficients corrupting the balance point.
For low-value Rx (below 1 Ω), switch the galvanometer to its most sensitive range and reverse excitation polarity to identify thermal offsets. If readings oscillate, damp with a 1 µF capacitor across the detector terminals–this filters noise without affecting DC balance accuracy.
Validate calculations using a calibrated 0.1 Ω ±0.001% standard resistor. Replace Rx with this standard; the measured value should match within ±0.02%. Larger discrepancies point to stray capacitance or inductance–minimize by twisting leads and shielding connections.
Power the configuration from a stabilized 5 V DC source with P and Q.
Document p/q ratios alongside ambient conditions. Recheck balance after each 5-minute interval for thermal settling–rapid swings indicate improper grounding or stray EMI. Use copper braid to connect the setup chassis to a dedicated earth ground, bypassing AC mains interference.
