Kenwood KMM BT332U Car Stereo Wiring Diagram and Connection Guide
Begin by locating the 16-pin harness on the back of your receiver–it’s the primary interface for all speaker and power inputs. Pin assignments follow this configuration: pins 1-4 (front left/right), pins 5-8 (rear left/right), pin 9 (ground), pin 10 (+12V constant), pin 11 (illumination), pin 12 (remote turn-on), and pins 13-16 (unused in most setups). Verify each connection with a multimeter before securing wires to avoid short circuits.
Critical steps for power delivery: The red (+12V switched) wire must link to an ignition-sourced fuse rated at least 10A–use a relay if tapping into an existing circuit to prevent voltage drops. The yellow (constant power) wire requires a direct battery connection with an inline fuse (15-20A) placed within 15 cm of the battery terminal to comply with safety standards. Failure to isolate these two power sources will drain the battery or damage the unit.
For speaker outputs, match impedances precisely–4Ω minimum for stable operation. If using aftermarket speakers, confirm their impedance rating against the unit’s output (typically 20W RMS per channel). Crossovers or amplifiers should be wired parallel to the head unit, not in series, to preserve signal integrity. Double-check polarity: reversing positive/negative leads causes phase cancellation and muddy audio.
Bluetooth module integration (if applicable) involves the 8-pin connector near the main harness. Pins are labeled: 1-2 (ground), 3-4 (left/right audio out), 5-6 (microphone), and 7-8 (+5V/control). Route the microphone wire away from power cables to prevent interference; twist signal pairs for noise reduction. Test connectivity by pairing a device before final installation.
Antenna connections use a standard Motorola-style female plug–ensure the ground tab is intact to avoid poor reception. If replacing the factory antenna, verify the coaxial impedance matches (usually 50Ω). For vehicles with poor signal, install an inline amplifier (+12V switched power) between the receiver and antenna. Avoid cheap adaptors; corrosion at these junctions degrades performance over time.
Final checks: Tape off unused wires to prevent shorts, zip-tie bundles away from moving parts (e.g., pedals, steering column), and secure the unit with a mounting kit compatible with your dash depth (45mm max overhang). Power on the system and confirm all channels respond–no pop tests–before reassembling trim panels. Miswiring at this stage voids warranties and risks permanent damage.
Automotive Media Receiver Connection Blueprint
Locate the ISO harness pinout for seamless integration with your vehicle’s electrical system. The power harness features an 8-pin connector: pins 1–4 (yellow, red, black, and blue/white) supply 12V constant, accessory-switched, ground, and remote turn-on respectively. Pins 5–8 (white, white/black, green, and green/black) handle front left and right speaker outputs. Match these wires precisely to your car’s factory harness to prevent short circuits or audio distortion.
For rear speakers, the grey and grey/black wires correspond to right and left channels, while the purple and purple/black wires connect to subwoofer or rear outputs if applicable. Use crimp connectors or solder joints–avoid twisting wires bare-ended. Verify connections with a multimeter before powering on; 12V should register on yellow and red wires with ignition off and on, respectively. Ground the black wire directly to chassis metal, ensuring zero ohms resistance for stable operation.
Bluetooth antenna and USB port require dedicated wiring: the blue/white wire (remote antenna) connects to an external antenna adapter if fitted, while the orange/white wire (illumination) syncs with dashboard dimmer settings. For parking brake safety bypass, link the pink wire to a switch or use a relay–failure risks disabling video output. Always fuse the yellow wire within 18 inches of the battery with a 10A fuse to prevent fire hazards.
Decoding Connector Hues and Pin Roles on the Multimedia Receiver

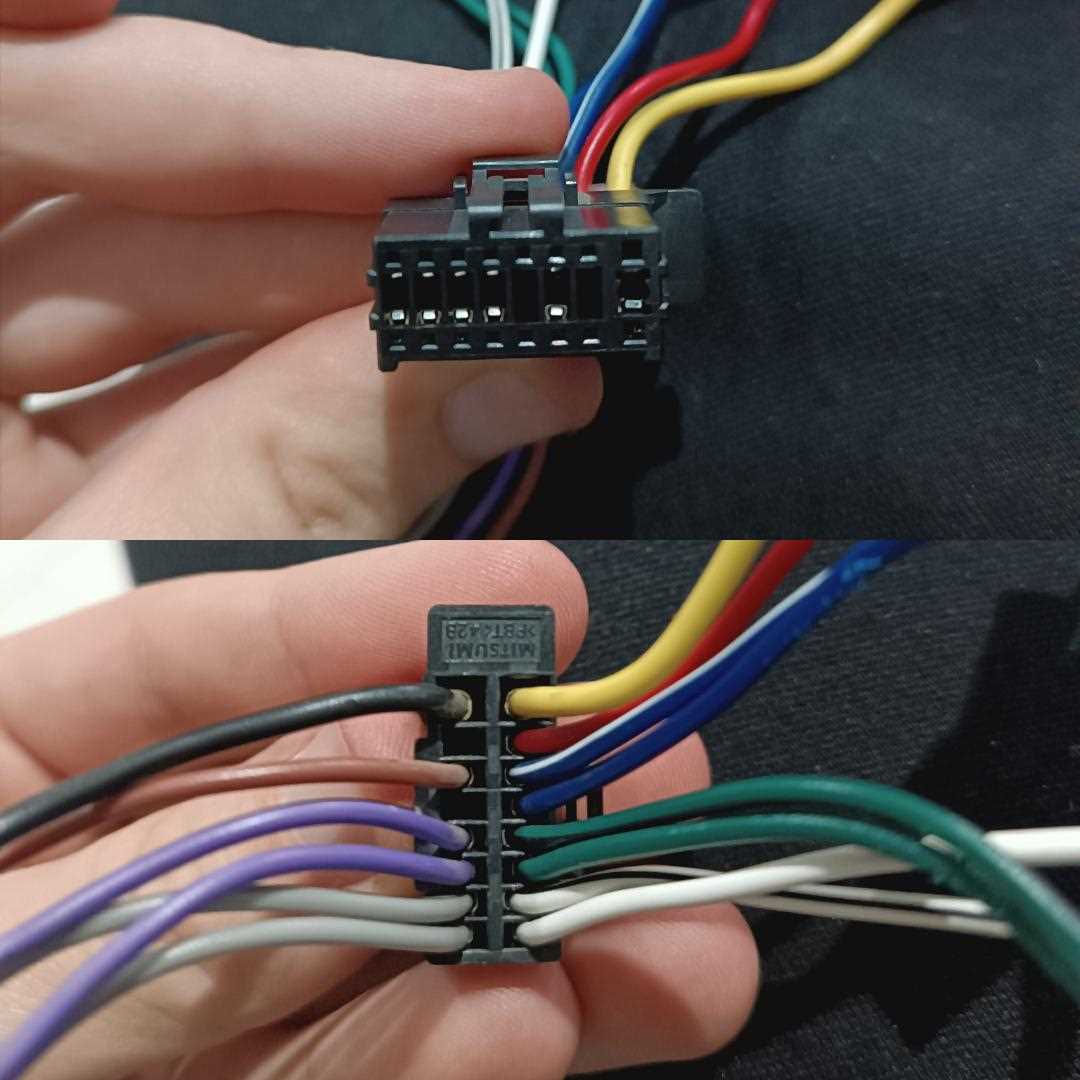

Start by locating the 16-pin ISO harness connector at the rear of the unit – this is the primary interface for vehicle integration. The color codes follow a standardized but manufacturer-specific logic: red delivers constant 12V fused power (typically 10A), yellow carries battery-sustained memory voltage, and black grounds the system. These three form the power triad; misrouting them risks unit failure or blown fuses. Verify connections with a multimeter – expected readings: 12V on red when ignition is off, 12V on yellow regardless of ignition state, and 0V on black relative to chassis ground.

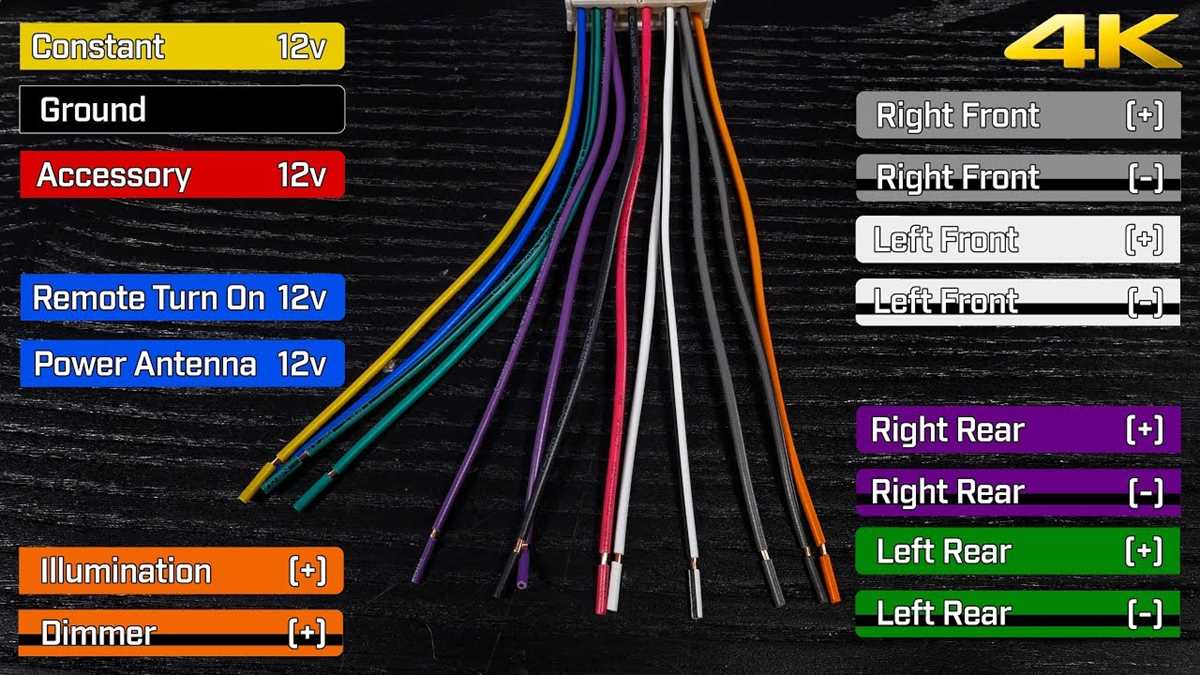

The speaker outputs adhere to a polarity-sensitive scheme: front-left channels are solid white (positive) and white-black stripe (negative), front-right solid gray and gray-black stripe, rear-left solid green and green-black stripe, rear-right solid purple and purple-black stripe. Swapping leads will invert phase, audibly flattening spatial imaging – test with a mono bass track to confirm correct imaging. Amplifier triggering uses a single blue/white stripe lead delivering 3–4 mA at 12V when audio is detected; connect this to the remote turn-on input of external amplifiers for synchronized operation.
- Orange – Illumination control (0–12V PWM, dims display in sync with vehicle dash lighting)
- Orange-white stripe – Speed-sensor input (pulse-per-mile signal, enables automatic volume levelling)
- Brown – Mute override (ground-to-mute for microphone call pickup)
- Pink – Reverse gear detection (12V present when vehicle is in reverse, triggers backup camera input)
- Light blue – Line-level subwoofer pre-out (1.5V RMS, filtered low-pass)
Verify each auxiliary lead with a 1 kΩ resistor pull-down to chassis; transient spikes on the reverse gear lead risk unit latch-up.
Ground loop isolation requires separating power and signal grounds – route the black chassis lead directly to the vehicle’s negative battery terminal, bypassing factory harness splices prone to noise. Avoid daisy-chaining to other audio components; even milliohms of shared impedance inject alternator whine. For microphone circuits, the brown mute lead doubles as a PTT override; tie it to the steering wheel control interface only after confirming no conflicting signals on the bus.
Step-by-Step Power and Ground Connection Guide
Locate the red (+12V) and black (ground) terminals on the back panel, marked with + and – symbols. Strip 8–10 mm of insulation from each 16-gauge wire, twist strands tightly, and crimp a ring terminal sized for 5 mm screws. Verify wire gauge matches device specifications–thicker wires prevent voltage drop under load.
- Secure the power lead to the + terminal first, tightening the screw until resistance stops rotation. Use a multimeter set to 20V DC to confirm 11.8–13.2V reading between + and chassis ground before proceeding.
- Attach the ground lead to the – terminal or bare metal chassis point, ensuring minimal resistance (
- Wrap exposed connections with adhesive-lined heat shrink tubing, heating evenly until tubing fully contracts. Test for short circuits by checking continuity between power and ground with the device powered off.
Critical Safety Checks
- Fuse the power lead within 15 cm of the battery connection, using a blade-type fuse matching the device’s 10A rating. Never substitute or omit.
- Route wires away from moving parts, sharp edges, and heat sources. Secure every 30 cm with automotive-grade cable ties or loom tubing.
- After finalizing connections, power on the device and monitor for 10 minutes–excessive heat or intermittent faults indicate incorrect polarity or poor grounding.
Connecting Front and Rear Audio Lines for Optimal Sound Deployment
Locate the dedicated binding posts on the rear panel–these are typically color-coded red (+) and black (–). Match each wire’s polarity precisely; even a single reversed pair can degrade spatial imaging. Front channels usually accept 16-gauge cables for distances under 4 meters, while rear channels benefit from slightly thicker 14-gauge to compensate for signal attenuation in longer runs.
Strip exactly 8 mm of insulation from each wire end; excess bare conductor increases short-circuit risk, yet insufficient exposure prevents secure clamping. Twist the stranded copper tightly before insertion to eliminate frayed strands that can scatter against adjacent terminals.
Secure each connection using the binding posts’ screw mechanism–finger-tighten first, then apply a ¼ turn with a non-magnetic screwdriver. Overtightening distorts the threads; under-tightening invites intermittent dropouts. Verify continuity with a multimeter set to 200 Ω range–readings above 0.5 Ω signal partial connection.
| Channel | Recommended Gauge | Max Safe Length | Impedance Range |
|---|---|---|---|
| Front | 16 AWG | 4 m | 4–8 Ω |
| Rear | 14 AWG | 8 m | 4–8 Ω |
Avoid routing cables parallel to power lines; maintain a minimum 30 cm separation to prevent inductive hum. If unavoidable, cross at 90-degree angles. For exposed runs, use split loom tubing–12 mm diameter accommodates both front and rear pairs without compression.
Label each cable with heat-shrink tubing: front-left (FL), front-right (FR), rear-left (RL), rear-right (RR). Burn the labels with a soldering iron for permanence. Remeasure all connections after 24 hours–thermal cycling can loosen initially tight posts.
If bi-amping is enabled via the unit’s settings, feed the front channels exclusively with high-pass filters set to 80 Hz; rear channels then handle subwoofer integration. Confirm crossover alignment through pink-noise testing–uneven frequencies at the listening position reveal miswired grounds.
