Step-by-Step Guide to Building a Knight Rider LED Circuit with Schematic

Start with a LM3914 dot/bar display driver as the core component for sequential LED illumination. Pair it with a 555 timer IC configured in astable mode to generate the necessary pulsed signal–this regulates the scanning speed of the LED array. Use 2N2222 transistors for current amplification if driving high-intensity LEDs; each transistor should handle a segment of the display chain to prevent voltage drops. Calculate resistor values (typically 1kΩ–10kΩ) for the 555 timer to achieve a 1–5Hz sweep frequency, matching the original effect.

The LED sequence should follow a chained connection, where each LED’s cathode links to the next anode in series. For a 10-LED setup, implement a voltage divider at the LM3914’s input to scale the analog signal–use a 10kΩ potentiometer to fine-tune responsiveness. Avoid common pitfalls: ensure ground paths are isolated from noisy circuits (e.g., microcontroller power rails), and add a 100nF decoupling capacitor across the LM3914’s power pins to stabilize operation.

For advanced functionality, integrate a PIC16F628A microcontroller to replace the 555 timer logic. Program it to control both the forward/reverse sweep and variable speed via PWM. Power the circuit with a regulated 5V–12V supply; a linear voltage regulator (7805) is recommended if using batteries to prevent flickering. Test each stage with an oscilloscope: confirm the sawtooth waveform at the LM3914’s input and verify LED current (max 20mA per segment) to avoid thermal damage.

Mount the LEDs on a perforated prototyping board in a linear or curved layout, mirroring the vehicle’s aesthetic. For durability, enclose the assembly in a diffused acrylic housing to soften the light output. If replicating audio feedback, add a piezo buzzer triggered by the microcontroller’s I/O–synchronize it with the LED sweep for an authentic touch. Debug potential issues by checking solder joints for cold connections and confirming IC pinouts: misaligned LM3914 configurations will disrupt the pattern.

Circuit Layout Analysis for LED Scanner Systems

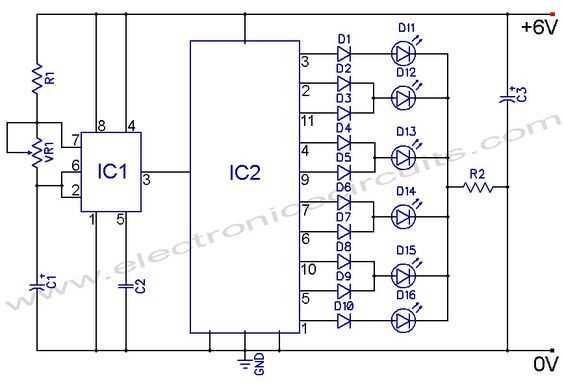

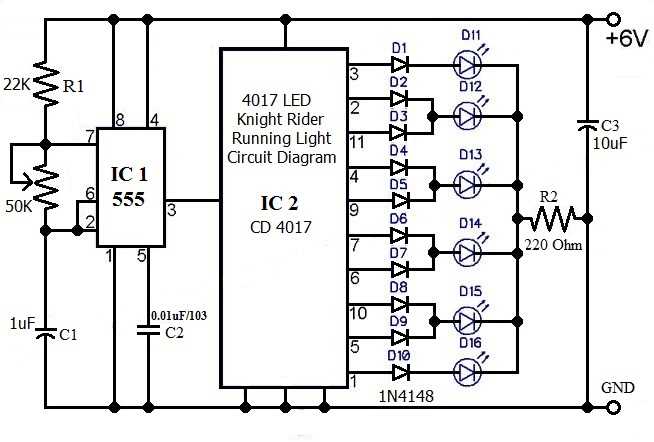

Begin with a 555 timer IC configured in astable mode to generate clock pulses. Set R1 = 1kΩ, R2 = 10kΩ, and C1 = 10µF for a ~1Hz output–ideal for smooth back-and-forth transitions. Route this signal to a 4017 decade counter IC, which will sequence ten outputs in a repeating loop. Ensure the RESET and CLOCK ENABLE pins are tied low for continuous operation. Decouple power supplies with 0.1µF capacitors near each IC to prevent erratic triggering.

For visual progression, connect each of the 4017’s outputs to a 2N2222 transistor base via a 470Ω resistor. This isolates the counter from LED current demands, which can exceed the IC’s 20mA rating. Use ten high-brightness LEDs (20mA, 2V forward voltage) with 220Ω current-limiting resistors in series. Arrange them linearly for the classic sweep effect, or in a circular pattern for alternative displays. Polarity matters–verify anode/cathode alignment before soldering.

To reverse the sequence, link the CARRY OUT pin of the 4017 to its CLOCK INHIBIT via a diode (e.g., 1N4148). This creates a bidirectional pattern by toggling the counter’s direction when it reaches the tenth LED. For a smoother fade between steps, insert a 10µF capacitor between the transistor base and ground–this softens the transition edges. Avoid connecting capacitors directly to the 4017 outputs, as this can disrupt timing.

Power supply requirements depend on LED count. A single 9V battery suffices for a 10-LED setup, but measure current draw–a typical assembly pulls ~200mA. For longer operation, use a 12V source with a 7809 voltage regulator to maintain stable output. Skip electrolytic capacitors >100µF on the regulator’s input/output; smaller values (10µF) are sufficient for filtering. Trace voltage drop across critical points (555 VCC, 4017 VDD) with a multimeter–dips below 4.5V cause erratic behavior.

For adjustable speed, replace R2 in the 555 circuit with a 50kΩ potentiometer. Label the dial for precise tuning. To add sound synchronization (e.g., engine-like tones), tap the 555 output into a small speaker via a 1µF coupling capacitor. Keep the speaker’s impedance ≥8Ω to avoid overloading the timer. For expandability, solder pin headers to the 4017’s outputs–this allows quick reconfiguration for 12-LED or chase patterns.

Common failures include flickering or stuck LEDs. Diagnose by probing the 4017’s outputs with an oscilloscope–missing pulses indicate a faulty connection. Cold solder joints on the transistor base resistors often cause intermittent operation; reheat joints with a clean iron tip. If LEDs remain dim, check forward voltage ratings–mismatched values (e.g., 3V LEDs on a 2V circuit) require resistor recalculation: R = (Vsource - VLED) / ILED.

For portable builds, minimize component footprint by using SMD parts (SOIC-16 for the 4017, SOT-23 transistors). Layout traces with ground planes to reduce noise interference, especially if combining with microcontrollers. Avoid routing high-current LED paths parallel to the 555’s timing capacitor–this introduces crosstalk and accelerates drift. Test each stage incrementally: verify clock pulses before LED connections, and confirm sequence order before finalizing enclosure designs.

• Use a perforated prototype board for initial testing–breadboards introduce parasitic capacitance that skews timing.
• For waterproofing, conformal coat exposed traces with acrylic spray; avoid enclosure gaps that trap moisture.
• Label IC orientations on the PCB silkscreen–reversing the 555 or 4017 damages the silicon.
• Replace potentiometers with digital trimmers (MCP4131) if remote control is needed.
• For RGB variants, replace single-color LEDs with WS2812 modules and drive via a microcontroller–simplifies wiring but increases cost.

Critical Elements of a Sequential Light Control Board

Start with a 555 timer IC configured in astable mode to generate a stable clock pulse–frequency between 1–10 Hz ensures smooth transitions. Use a 10kΩ resistor for R1, a 1µF tantalum capacitor for C1, and adjust R2 (47kΩ–1MΩ) to fine-tune speed; values beyond 470kΩ risk erratic oscillation. Pair the timer with a 4017 decade counter IC to distribute pulses sequentially–decouple both ICs with 0.1µF ceramic capacitors directly at VCC pins to prevent noise-induced glitches. For power, a 9V DC supply suffices, but add a 1N4007 diode in series if reverse polarity protection is needed. LED current-limiting resistors should target 15–20mA per channel; for 3mm LEDs with 2V forward drop, use 330Ω resistors (9V–2V)/15mA = ~470Ω, rounded down to 330Ω for brighter operation.

For extended patterns, daisy-chain multiple 4017 ICs, connecting the carry-out (CO) pin of the first to the clock-in (CLOCK) pin of the next–interrupt the chain with a manual reset switch on the MR pin to restart sequencing without power cycling. To eliminate flicker during transitions, add a 10µF electrolytic capacitor across the power rails near high-current LEDs; longer traces between ICs and LEDs should use twisted-pair wires to reduce EMI. Test each stage with an oscilloscope–clock pulses must rise/fall under 500ns, and counter outputs should swing rail-to-rail without overshoot. For outdoor use, substitute LEDs with WS2812 addressable modules and drive them via a microcontroller (e.g., ATtiny85) programmed for gamma-corrected fading, eliminating passive components entirely.

Step-by-Step Wiring Guide for LED Sequence

Begin by arranging LEDs in a linear pattern with identical spacing, ensuring each unit has a consistent voltage drop. Use 3mm or 5mm LEDs with forward voltages between 1.8V and 3.3V for predictable behavior. Confirm polarity: the cathode connects to ground, marked by a flat edge or shorter lead. Misaligned polarity disrupts sequencing.

Wire a 4017 decade counter IC to control progression. Power the IC with 5V DC–any fluctuation above 6V risks damaging internal logic. Connect the clock pin (CP0) to a 555 timer IC configured in astable mode at 2Hz. Adjust the timer’s resistor-capacitor pair for precise interval timing; 47kΩ and 10µF yield ~1-second delays.

Route the 4017’s outputs (Q0–Q9) to individual LEDs via 220Ω current-limiting resistors. Parallel connections shorten the sequence; series chains risk uneven brightness. Test each output with a multimeter in continuity mode–pulses should cycle through sequentially. Stray signals from loose connections cause erratic jumps, so secure all solder joints with heat-shrink tubing.

For bidirectional effects, add a second 4017 IC mirrored to the first. Cross-couple the reset pins (MR) using diodes (1N4148) to toggle direction. A toggle switch between the ICs’ clock inputs reverses the sequence. Without this, LEDs will only sweep forward and reset abruptly.

Power the circuit with a 9V battery or regulated wall adapter. Stabilize voltage fluctuations–especially during startup–with a 100µF electrolytic capacitor across the power rails. Higher capacitance smooths flicker but increases power draw. Monitor heat in the 555 timer: prolonged operation above 3Hz generates excess heat, requiring a small heatsink.

Expand the sequence by chaining additional 4017 ICs. Link each IC’s carry-out (CO) to the next unit’s clock input (CP1). Delays between segments adjust via separate resistor-capacitor pairs on the 555 timer. Label all connections during assembly; troubleshooting complex wire bundles without references wastes time.
