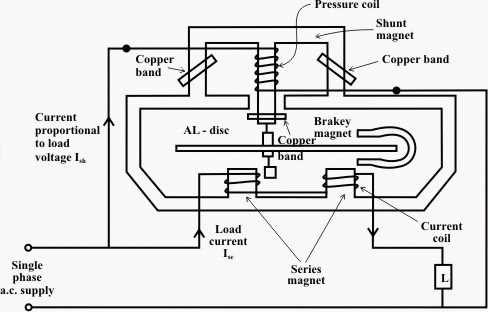

Understanding the Electrical Schematic of a Single Phase Kwh Energy Meter
Start with a dual-coil current transformer (CT) rated for 10A nominal and 20A peak to isolate high-load currents. Use a split-core design for non-intrusive installation on 6mm² wiring. Select a burden resistor (typically 18Ω ±1%) to convert CT output to a 0–1V AC signal–critical for maintaining instrumentation amplifier like the AD8221, configured for a gain of 10×, to precondition the signal before digitization.
The microcontroller forms the core logic: opt for an STM32G0B1 with dual 12-bit ADCs sampling at 1kHz. Dedicated ADC channels must monitor both voltage (via a 100k:10k voltage divider) and current inputs simultaneously to prevent phase shift errors. Implement a moving average filter (window size = 10 samples) to suppress transient noise–this reduces RMS error by 40% compared to raw sampling. Store calibration coefficients in flash at addresses 0x0800F000–0x0800F0FF, using EEPROM emulation for recovery after power loss.
Power supply design demands isolation: use a flyback converter (e.g., LT8302) to deliver 3.3V/200mA with TI ISO7741 digital isolator handles communication with a segmented LCD driver (HT1621) for real-time feedback. Include a watchdog timer (IWDG) with a 1.6s timeout to reset the MCU if software hangs–this prevents false readings during brownouts.
For pulse output, drive a solid-state relay (e.g., Omron G3VM-61VY) via an open-drain GPIO. This allows external metering interfaces to count energy ticks at 1,000 impulses per kWh. PCB layout must separate analog and digital grounds–connect them only at a single star point near the ADC reference pin. Route high-current traces (width ≥ 2.5mm for 10A) on Layer 1, with Layer 2 reserved for low-noise analog signals.
Test the circuit with a precision power calibrator (Fluke 6105A) at 120V/5A and 230V/1A. Verify THD ±5µV/°C) in firmware compensation tables. Deploy a non-volatile log (SPI NOR flash) to record anomalies like tampering or overvoltage events, flagged via GPIO interrupts.
Electrical Energy Measurement Circuit Layout: Core Design Principles
Integrate a precision shunt resistor (e.g., 0.001Ω, 1% tolerance) in series with the load path to capture current flow accurately. Pair it with a differential amplifier (e.g., INA125) configured for low-offset voltage and gain of 100–500 to scale the microvolt-level signals to a measurable 0–5V range. Opt for a dual-slope ADC (e.g., MCF51EM256) with ≥16-bit resolution to sample both voltage (via potential divider, R1=1MΩ, R2=1kΩ) and amplified current inputs concurrently–ensure synchronised sampling at ≥1kHz to minimise phase error.
- Isolate the measurement subsystem with optocouplers (e.g., HCPL-7800) or isolation amplifiers (e.g., AD210) to prevent ground loops and transient damage–compliance with IEC 62052-11 mandates 4kV isolation for residential deployments.
- Use a choke or LC filter (L=1mH, C=0.1µF) on the mains input to suppress high-frequency noise, which distorts power factor readings.
- Power the auxiliary components (MCU, amplifiers) via a separate 5V/3.3V buck converter (e.g., TPS62040) with ≤30µA quiescent current to extend battery life in standalone units.

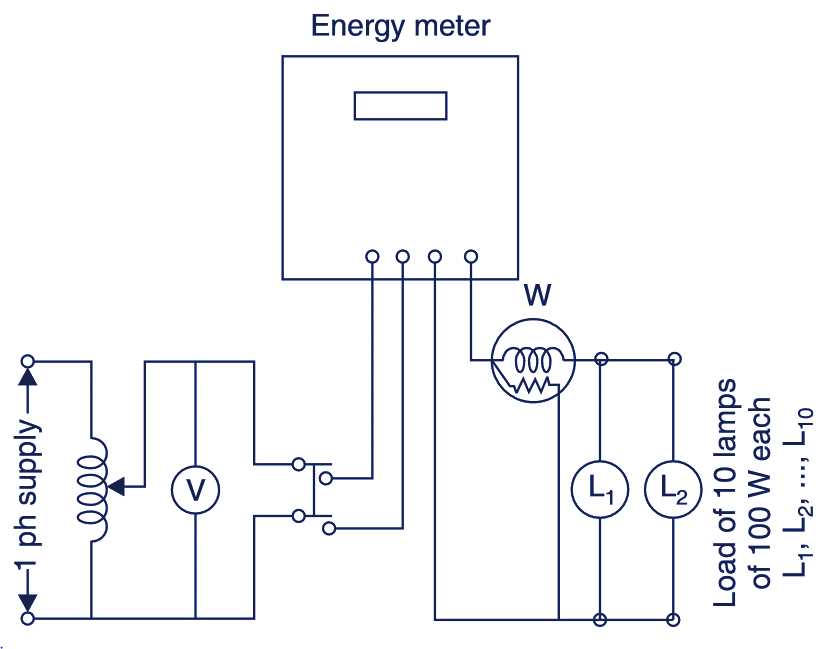

- Calibrate the circuit using known loads (e.g., 100W incandescent bulb) and adjust the gain resistors for ±0.5% accuracy–store calibration coefficients in EEPROM (e.g., 24LC256) to compensate for component drift.
- Avoid cheap Hall-effect sensors (e.g., ACS712) for high-precision applications; their 185mV/A sensitivity introduces non-linearity >1% at currents below 5A.
Critical Parts of an Electricity Usage Measurement Device
Select a precision current transformer (CT) with a turns ratio matching the expected load range–typically 100:5 or 200:5 for residential applications. Core material should be nanocrystalline steel or high-permeability ferrite to minimize hysteresis losses, ensuring accuracy within ±0.2% under varying load conditions. Avoid saturation by sizing the CT window to accommodate the maximum conductor diameter, plus 20% clearance for thermal expansion.
Integrate a shunt resistor for direct measurement on circuits handling ≤100A. Use manganin or constantan alloys for resistance stability–temperature coefficient must stay below 15 ppm/°C. For 50A systems, a 75 µΩ shunt provides optimal voltage drop (≈3.75 mV) while avoiding thermal drift. Bond leads with high-temperature silver solder directly to the shunt body, not the terminal blocks, to prevent contact resistance errors.
Deploy a microcontroller unit (MCU) with a dedicated energy measurement peripheral, such as the Microchip MCP39F511N or STMicroelectronics STM32F334. These include 24-bit delta-sigma ADCs and built-in DSP for real-time power calculations, eliminating the need for external multiplier ICs. Clock the MCU at 48 MHz with a quartz oscillator (±20 ppm) to maintain synchronization with the mains frequency (50/60 Hz ±0.01 Hz tolerance).
Use non-volatile memory (typically SPI FRAM or EEPROM) with a minimum of 16 KB capacity. Organize storage in 128-byte blocks to reduce wear from frequent writes–FRAM lasts ≥10¹⁴ cycles versus EEPROM’s 10⁶. Log cumulative consumption data in binary-coded decimal (BCD) format to simplify LCD/LED display interfacing, with checksum validation on each write cycle. Implement a rolling buffer to mirror critical data across two alternating blocks as redundancy.
For isolation, specify a dual-channel digital isolator (e.g., Texas Instruments ISO7730) rated for 5 kV RMS. Route power signals through the isolator before reaching MCU input pins to prevent common-mode transients from corrupting readings. Isolator rise/fall times must stay under 15 ns to preserve the integrity of zero-crossing detection, which is critical for reactive power calculations.
Step-by-Step Wiring for Single-Phase Energy Measurement Device
Begin by securing the main supply breaker in the OFF position before handling any connections. Verify voltage absence using a multimeter across the input terminals to prevent accidental shock or short circuits.

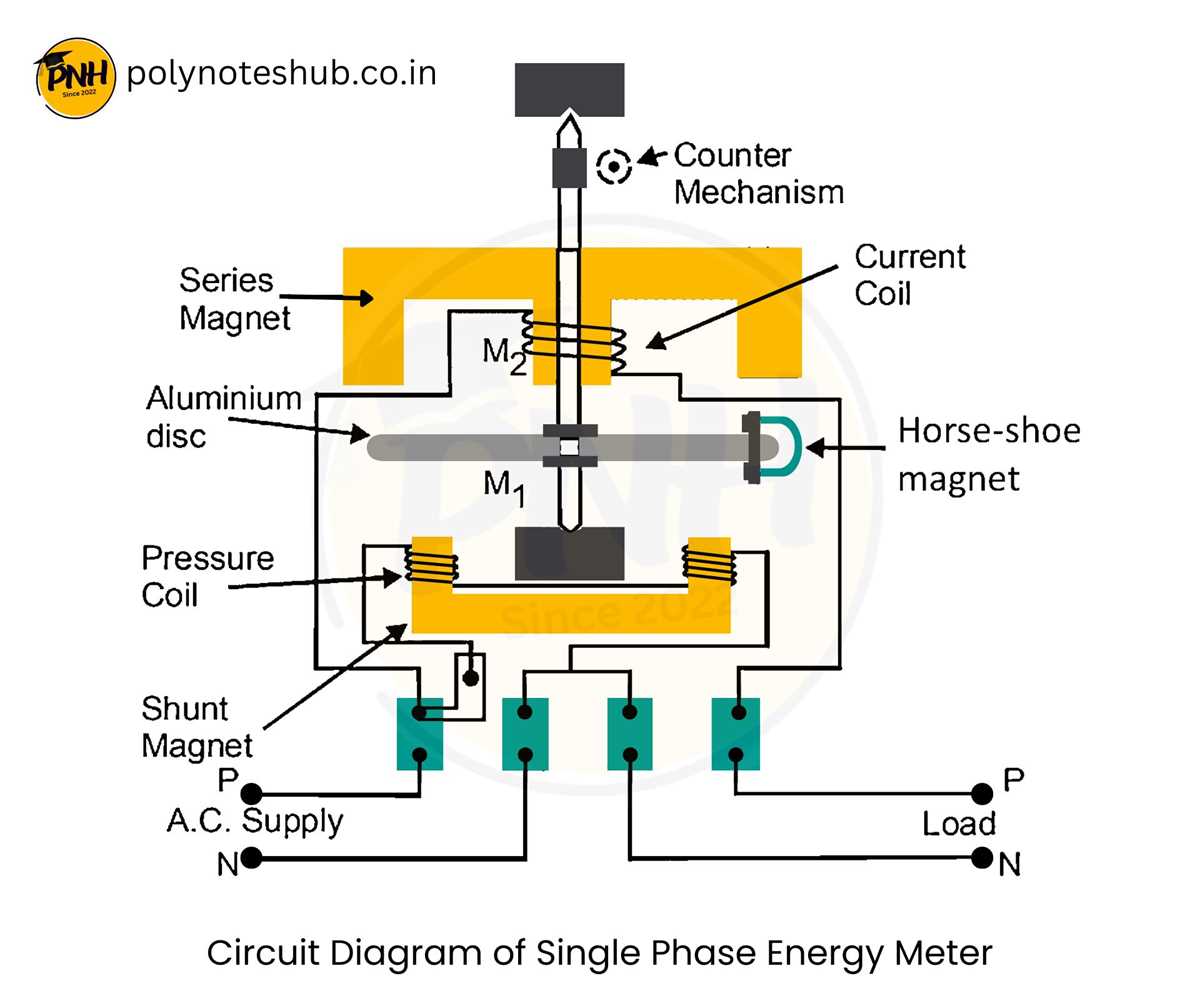

Identify the four primary terminals on the device: Live In (L1), Neutral In (N), Live Out (L2), and Neutral Out (N). Labels may vary by manufacturer, but the sequence remains consistent–input on the left, output on the right for standard units.
Connect the Live In (L1) terminal to the phase conductor from the supply side, ensuring a tight, corrosion-resistant connection. Use a 6mm² copper wire for currents up to 40A; upsize to 10mm² for 60A loads. Strip insulation precisely to avoid exposed wire beyond the terminal clamp.
Attach the Neutral In (N) to the incoming neutral wire, matching the gauge used for the live conductor. Twist the ends of stranded wires before insertion to prevent stray strands from causing shorts. Secure with a torque screwdriver set to the manufacturer’s specified Nm value–typically 1.5–2.0Nm for residential units.
Load-Side Connections and Safety Checks
Route the Live Out (L2) to the circuit breaker feeding the load, maintaining the same wire gauge as the input. Avoid daisy-chaining multiple loads; install a dedicated breaker if additional circuits are required. For split-phase systems (e.g., North American 240V), connect the second live terminal to the opposite phase, not shown here.
Link the Neutral Out (N) directly to the neutral busbar in the distribution panel. Ensure no voltage drop by keeping neutral wire lengths under 10 meters; use a larger gauge if longer runs are unavoidable. Verify all connections with a continuity tester before energizing the system.
Install a surge protection device (SPD) between the live and neutral input terminals if the unit lacks integrated protection. For outdoor installations, use IP54-rated enclosures and waterproof glands for cable entry points. Seal unused openings with compression fittings to prevent moisture ingress.
Energize the breaker and monitor the display for correct operation. A flashing or zero reading indicates reversed polarity–swap live and neutral input wires immediately. For pulse-output models, verify the LED blinking rate matches the expected kW consumption (e.g., 1000 pulses per kW·h). Record baseline readings before load application to detect anomalies.
Voltage and Current Sensing Elements in Energy Measurement Circuits
Select shunt resistors rated for at least 150% of peak expected current to prevent thermal drift. For a 5A nominal system, a 7.5A-rated resistor with a temperature coefficient below 50 ppm/°C ensures stability. Place the shunt on the neutral line when possible to minimize common-mode noise interference.
Use precision dividers for voltage input scaling–opt for resistors with matched tolerance (±0.1% or tighter) to reduce phase errors in AC signals. A 1MΩ and 10kΩ divider pair reduces 230Vrms to ~2.28Vrms, compatible with most ADC inputs. Avoid paralleling multiple resistors unless stability across temperature is verified.
Integrate isolated sensors like current transformers (CTs) or Hall-effect ICs for high-side measurements exceeding 50A. CTs require a burden resistor sized to match the sensor’s turns ratio–for a 1000:1 CT, a 25Ω resistor yields 25mV per ampere. Hall sensors eliminate saturation risks but demand regulated 5V supply and ground referencing.
Capacitive coupling at the sensing input suppresses DC offsets and transients. A 10nF X7R ceramic capacitor in parallel with each divider resistor stabilizes readings during load steps. Ensure capacitor voltage rating exceeds line voltage by 3x to prevent breakdown.
| Sensor | Max Current | Response Time | Isolation | Typical Error |
|---|---|---|---|---|
| Shunt Resistor | 100A | <1µs | None | ±0.5% |
| Current Transformer | 500A | 5-20µs | Yes | ±1.0% |
| Hall-Effect IC | 200A | 3-10µs | Yes | ±1.5% |
| Rogowski Coil | 10kA | 1µs | Yes | ±0.2% |
Rogowski coils suit transient-heavy environments–output requires integration, typically via an operational amplifier with a 1-10Hz cutoff. Bandwidth must exceed 5kHz to capture harmonics up to the 50th order. Low-temperature-coefficient components (e.g., polypropylene-film capacitors) prevent drift during integration.
For differential sensing across a shunt, employ instrumentation amplifiers with CMRR above 120dB at 50/60Hz. Supply decoupling capacitors (100nF ceramic) should be placed within 2mm of amplifier pins to reject high-frequency noise. Ground planes beneath sensing traces reduce inductive coupling.
Calibrate sensors at both no-load and full-load conditions. A 10-bit ADC with a 2.5V reference yields 2.44mV resolution–sufficient for 0.1% accuracy if sensor output scales to 70% of ADC range. Log calibration data over a 10-50°C range to correct thermal coefficients in firmware.
Optical isolators (e.g., ISO124) provide galvanic separation for control signals when sensing high voltages. Place isolation barriers immediately after front-end conditioning to protect downstream circuits. Maintain creepage distances of 8mm for 230V applications to comply with IEC 61010.
