Step-by-Step L6-30R Wiring Guide with Schematic and Installation Tips
Begin by verifying the circuit’s voltage rating–208V or 240V–before handling conductors. Locate the terminal markings on the receptacle: X (Line 1), Y (Line 2), Z (Line 3), and G (Ground). Use 10 AWG copper wire (minimum) for all connections, ensuring strands are tightly twisted and free of nicks. Secure each wire with a torque screwdriver–15 lb-in for hot terminals, 20 lb-in for grounding–to prevent loosening under load.
Strip 0.75 inches (19mm) of insulation from each conductor. Align the stripped ends with the terminal screws: brass for hot wires, green for ground. Bend the wire clockwise around the screw to match the tightening direction. Avoid wrapping more than 300°; excess material increases resistance. For stranded wire, use a ferrule crimped with a 10 AWG ratchet crimper to prevent fraying inside the terminal.
Test continuity with a multimeter before energizing. Set the meter to ohms (Ω) and probe between each hot terminal and ground–readings should be infinite. Check phase-to-phase (X-Y, Y-Z, Z-X): expect ~208V or ~240V, depending on system voltage. If readings deviate ±5%, re-examine connections for misaligned conductors or loose screws. Confirm the receptacle’s face orientation–ground pin at 6 o’clock–to ensure proper engagement with mating plugs.
Enclose the assembly in a NEMA 1 or NEMA 3R box, depending on environment. Seal unused knockouts with plastic closure plugs; leave no openings larger than 0.25 inches (6mm). Label the circuit at the breaker panel–bold, indelible ink–with the connected load’s details. For fixed equipment, add a disconnect switch within 6 feet (1.8m) of the receptacle, per NEC 430.102(B).
Understanding the NEMA L6-30 Receptacle Connection Layout
Begin by verifying the circuit breaker is rated for 30 amps at 250 volts–this lockable twist-lock outlet demands precise power handling. Use 10 AWG copper conductors for the line (hot), neutral, and ground connections, ensuring compliance with NEC Table 310.16 for ampacity. Label each conductor at both ends with heat-shrink tubing or self-adhesive markers to prevent miswiring during installation or future maintenance.
Connect the two line terminals (X and Y) to the brass screws on the receptacle, torquing to 15-20 in-lbs as specified in the UL listing. The neutral conductor attaches to the silver screw, while the green grounding screw secures the bare or green-insulated wire. Avoid back-stab connections– these reduce contact surface area and can lead to overheating under full load. Instead, loop each conductor clockwise around its screw before tightening.
Critical Verification Steps Before Energizing
| Checkpoint | Acceptable Reading | Tool Required |
|---|---|---|
| Continuity between X and Y | 0 ohms ± 5% | Digital multimeter |
| Neutral-to-ground resistance | > 1 megohm | Insulation tester (500V) |
| Line voltage (X-Y) | 228-252V AC | True RMS voltmeter |
After securing all connections, apply an insulating sleeve or non-conductive terminal cover over the exposed metal parts–this prevents accidental shorts when the outlet is installed in metal junction boxes. For surface-mounted installations, use a gasket between the receptacle and enclosure to maintain NEMA 3R weather resistance. Never substitute aluminum conductors; the terminal screws lack the necessary plating to prevent oxidation at the connection points.
Test the locking mechanism by inserting and rotating a mating plug–it should engage smoothly without requiring excessive force, which indicates misalignment of the internal contacts. If resistance is felt, disassemble the receptacle and inspect the rotary contacts for burrs or contamination, then lightly lubricate with dielectric grease. Document the installation with photos of the connection layout, torque values, and test readings for compliance audits.
For three-phase applications requiring split-phase power, derive the neutral conductor from the center tap of a delta transformer–never bridge the X and Y terminals, as this violates NEC 250.20(D) and creates a fire hazard under imbalanced loads. Ensure the enclosure is bonded to the grounding electrode system with a dedicated conductor, not relying solely on the conduit for fault current return.
Common Pitfalls and Corrective Actions
Intermittent power loss often stems from loose connections–retorque all terminals after the first 100 hours of operation, as thermal cycling relaxes the metal. If the outlet shows signs of arcing at the rotary contacts, replace the receptacle immediately; this model lacks self-cleaning contact design and cannot sustain prolonged arcing without degradation. For high-vibration environments, secure the conductors with cable clamps within 6 inches of the terminal to prevent conductor fatigue.
When extending circuits, use copper crimp sleeves with a listed compression tool– soldering violates UL 486A/B due to potential cold joints. For circuits exceeding 50 feet, upsize the conductors to 8 AWG to compensate for voltage drop, referencing NEC Informational Note 210.19(A) for calculations. Always disconnect both line conductors simultaneously when de-energizing–this 30-amp configuration can maintain hazardous voltages even with a single pole switched off.
Identifying Key Components of a 30-Amp Twist-Lock Outlet

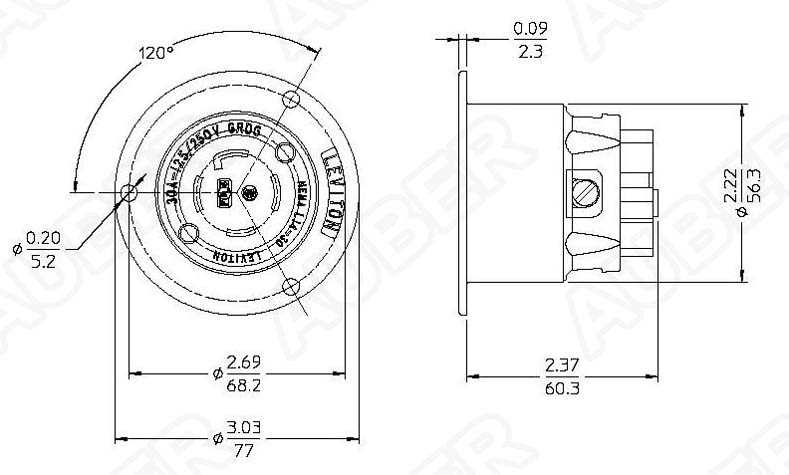

Examine the outlet face first. The NEMA configuration for this receptacle features three distinct slots: two parallel blades angled downward and a semicircular grounding prong positioned above or below. Verify the orientation–blades must align with corresponding terminals at 10 and 4 o’clock positions when installed upright. Measurements matter: blades span 6.35mm, while the grounding prong reaches 9.5mm wide. Avoid misalignment by confirming slot symmetry before securing the device.
Locate the terminal screws on the device’s rear. A copper-colored screw marks the ground connection, while brass screws designate hot terminals–these must accept 10 AWG wire. Observe torque specifications: tighten terminal screws to 15-18 lb-in to prevent loosening under load. Over-tightening risks stripping threads; under-tightening causes arcing. Label wires during disassembly to ensure polarity: black to brass, white to silver, green to copper.
Internal Mechanism Details
- Contact plates inside the receptacle use phosphor bronze for conductivity and corrosion resistance. Inspect for pitting–replace if plates show discoloration or wear.
- Insulating barriers separate hot terminals from ground. Check for cracks or melting, especially after high-load events.
- Strain relief clamps grip wire jacketing without cutting insulation. Adjust clamp tension to hold 12-14 AWG securely without deformation.
Test the locking mechanism. Rotate the plug clockwise 30 degrees to engage; a firm click confirms proper latching. If resistance feels loose, the cam may be worn–replace the outlet. Never force engagement; misalignment damages both plug and receptacle contacts. For frequent connections, apply dielectric grease to contact points to reduce oxidation.
Confirm voltage and current ratings before installation. This outlet supports 250VAC at 30A–exceeding either spec risks overheating. Use a multimeter to verify line voltage between hot terminals (208-240V expected) and between each hot and ground (120V potential). Absence of voltage suggests an upstream breaker issue. Always disconnect power at the panel before handling internal components.
Step-by-Step Connection Guide for NEMA L6-30 Connector Assembly
First, verify the circuit is de-energized by testing with a non-contact voltage detector. Confirm the absence of current on all conductors before proceeding. Failure to do so risks electrical shock or equipment damage.

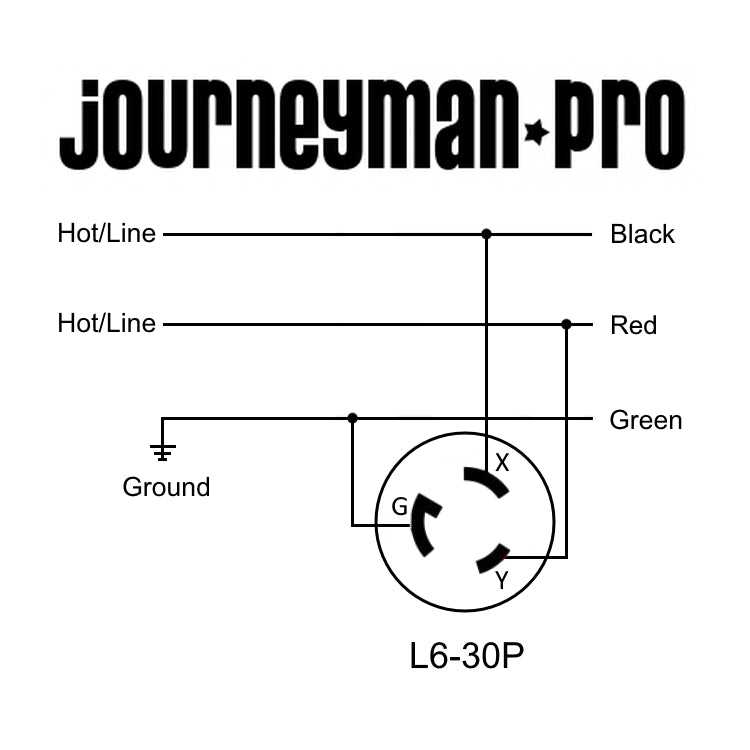

Identify the terminal screws on the plug and receptacle–most configurations label them X (hot, brass), Y (hot, brass), and G (ground, green). The hot terminals carry 250VAC between them, while ground ensures safety bonding. Use a multimeter to check continuity between the ground pin and metal chassis if available.
Preparing Conductors
- Strip each conductor back 3/4 inch (19mm) using wire strippers, exposing copper without nicking strands.
- Twist strands clockwise to prevent fraying and ensure solid contact.
- If crimping ring terminals, select size 10-12 AWG and compress with a ratcheting crimper for strain relief.
Loop each conductor around its terminal screw in a clockwise direction, matching the screw’s thread rotation. This prevents loosening under vibration. Tighten screws to 12-15 inch-pounds (1.36-1.7 Nm) using a torque screwdriver–over-tightening can strip threads or crack insulation.
- Attach the first hot conductor (X) to the brass terminal marked for phase A.
- Repeat for the second hot conductor (Y) on the remaining brass terminal.
- Secure the ground conductor (G) to the green terminal, ensuring it makes direct contact with the connector’s metal frame.
Inspect all connections for exposed copper–wrap each terminal with electrical tape or use heat-shrink tubing to isolate them. Avoid overlapping tape layers, as this can trap moisture. For outdoor or high-vibration applications, apply liquid electrical tape over the secured connections for additional insulation.
Final Checks
Reinstall the plug or receptacle cover to prevent accidental contact. Energize the circuit and verify voltage with a multimeter: measure 240VAC between the two hot terminals (X-Y) and 120VAC from each hot terminal to ground (X-G or Y-G). If readings deviate by more than 5%, recheck connections for loose screws or incorrect wire routing.
For fixed installations, anchor the cable within 6 inches (150mm) of the termination with a strain-relief clamp. Use cable ties every 12 inches (300mm) to prevent tension on terminals. In movable equipment, employ a flexible conduit or cord grip to protect conductors from abrasion or pull-out forces.
