How to Read and Repair a Laptop Keyboard Circuit Layout Guide

Start by locating the main controller chip–typically a microcontroller or embedded system-on-chip–positioned near the ribbon cable connector. Trace the communication lines (commonly I²C or USB HID protocols) from this chip to each switch contact pad. Verify continuity with a multimeter set to low-resistance mode, ensuring resistance values stay below 50 ohms for signal integrity.

Layered membrane designs require peeling back adhesive separators carefully. Note matrix grid connections: rows carry scan signals from the controller, columns return input states. Documentation often reverses this labeling–cross-check with board silkscreen. For backlit variants, LED anode/cathode paths run parallel to key switch traces. Look for series resistors (usually 100–470 Ω) in these lines to prevent current overload.

Common failure points include ribbon cable oxidation and broken traces at flex points near hinges. Repair damaged sections using conductive epoxy or jumper wires with 30 AWG copper wiring. Test repaired connections under load by pressing keys while monitoring voltage drops (≥2.5 V indicates healthy signal). Identify ghost inputs by scanning row/column intersections for unintended signal crossover.

Bypass built-in debounce circuits if rapid response testing is needed. Directly ground all other rows with a 1 kΩ resistor while pulsing each column successively. This isolates individual switch operation discrepancies. For low-level troubleshooting, decode raw matrix signals via logic analyzer set to 3.3 V logic threshold, comparing captures to expected scan patterns.

Understanding Portable Input Device Circuit Layouts

Start by locating the matrix grid on any portable input device circuit map–most layouts use a 6×18 or 8×20 configuration (rows as scan lines, columns as sense lines). Each intersection represents a key switch, typically a dome or membrane type, wired to a controller (often an EC microcontroller or Super I/O chip). Trace the ribbon cable connection points: pins 1-16 usually carry row signals, while 17-32 handle column inputs. Verify the presence of pull-up resistors (commonly 10kΩ) on sense lines to prevent floating states–missing resistors cause ghost keystrokes.

ESD protection lines appear along the outer traces, usually tied to diodes (BAV99 or similar) and capacitors (0.1μF) near the connector. Measure continuity from each key pad to the ribbon cable pads–resistance should read ; values above 5Ω indicate corrosion or broken traces requiring micro-soldering. For backlit variants, look for separate power traces (typically 3.3V or 5V) paired with PWM-controlled LEDs–these fail silently when the transistor driver (usually AO3400) shorts.

Use a multimeter in diode mode to test matrix isolation: probe adjacent row-column pairs–expected readings (0.4V–0.7V) confirm intact diodes; OL or 0V suggests a dead zone or short. For water-damaged boards, target the silver conductive tracks first–clean with 99% isopropyl alcohol and reflow suspect solder joints (63/37 Sn-Pb) under a microscope.

Critical Elements in a Portable Input Device Circuit

Begin by examining the membrane layer–its conductive traces form the backbone of signal transmission. Typical designs use three flexible sheets: two outer layers with printed carbon stripes and a middle spacer containing perforations aligned with key positions. When a user presses a key, the carbon contacts on opposing sheets complete the circuit, sending a unique scan code to the controller. Ensure these traces are free from corrosion or scratches, as even minor damage disrupts entire columns or rows.

Controller IC and Matrix Scanning

Locate the microcontroller unit, often an 8-bit or 16-bit IC like the HT68F001 or STM32, responsible for polling the matrix. The IC scans rows and columns in rapid succession–typical polling rates range from 100 to 200 Hz. If keystrokes register incorrectly or intermittently, measure voltage on each pin: active rows should toggle between 0V and VCC (usually 3.3V or 5V), while columns remain high until activated. Replace the IC if logic levels fail to stabilize after cleaning the surrounding solder joints.

Illumination components, if present, rely on small SMD LEDs arranged beneath translucent key caps or around the perimeter. These LEDs connect to a dedicated power rail, often 3.3V, controlled by a separate transistor or buck converter. Verify current-limiting resistors (typically 150–470Ω) to prevent LED burnout. For RGB backlighting, expect individual WS2812B drivers or a serial communication protocol like I2C–check the data line for clock signals using an oscilloscope.

• Flex PCB connectors: Use zero-insertion-force (ZIF) sockets or soldered ribbon cables. Inspect for bent pins or oxidation; reflow solder if resistance exceeds 0.5Ω.
• ESD protection: Look for diodes (e.g., BAT54) on signal lines. These clamp voltage spikes to ground–replace if continuity tests show open circuits.
• Anti-ghosting circuitry: N-key rollover implementations add blocking diodes (1N4148) to isolate keys. Test diode polarity with a multimeter in diode mode; forward voltage should read ~0.7V.

Capacitors near the controller stabilize power delivery–common values include 1μF ceramic for decoupling and 10μF tantalum for bulk storage. Bulging or leaking capacitors corrupt timing signals, causing delayed or missed inputs. Swap electrolytic caps if ESR (Equivalent Series Resistance) exceeds manufacturer specs, typically

Trace the ground plane–it should cover at least 60% of the PCB’s rear layer to minimize electrical noise. A weak or fragmented ground causes erratic key behavior. Reinforce traces wider than 0.2mm using copper tape or jumper wires if breaks are detected. For lateral key stability, silicone or rubber domes must maintain consistent actuation force (40–80g). Domed collapse or deformation leads to uneven tactile feedback–replace the entire dome sheet if individual keys feel mushy.

1. Measure resistance across membrane contacts: expected 1MΩ at rest.
2. Check firmware compatibility: some controllers require manufacturer-specific drivers (e.g., Lenovo’s Synaptics ICs).
3. Inspect for liquid damage: corroded traces often appear white (zinc oxide) or green (copper sulfate). Neutralize with isopropyl alcohol (90%+) and a fiberglass pen.

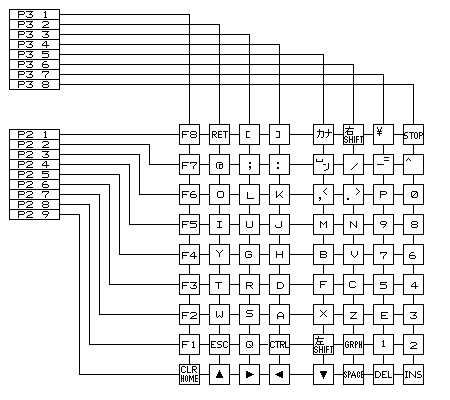

Decoding a Keypad Circuit Layout

Begin by identifying the grid structure at the core of the wiring map. Most layouts consist of rows and columns intersecting at junctions–each junction represents a contact point for a distinct input. Locate the row and column lines first; these are typically labeled as “ROW_0” to “ROW_N” and “COL_0” to “COL_M”. Count the total lines–this reveals the matrix size, directly correlating to the number of possible signal combinations. For example, an 8×18 grid supports 144 unique intersections, though not all may be used.

Trace the path from the controller unit to the first row and column. The main chip (often an 8051 variant or custom MCU) outputs signals sequentially down the columns, checking each row for a return pulse. If a key at intersection ROW_3/COL_5 is pressed, the circuit completes, sending a signal back to the controller. Use a multimeter in continuity mode to verify connectivity; probe the row and column pins while pressing the corresponding input to confirm the closed loop.

Note diode placement on the circuit map–these small components prevent ghosting by blocking reverse current. They appear as black rectangles or lines with an arrow pointing away from the row line. Without diodes, pressing multiple inputs simultaneously could trigger unintended connections. Test each diode with a diode checker; a functional unit shows ~0.6V drop in one direction and infinite resistance in the other.

Examine labels adjacent to each switch icon. Some maps denote inputs with keycodes (e.g., “K12” for F12), while others use hex values or direct ASCII references. Cross-reference these labels with the firmware documentation–mismatches here cause mapping errors during signal interpretation. For custom layouts, create a lookup table pairing each intersection with its intended function before modifying the controller firmware.

Work backward from a known input to the controller pins. Select a frequently used key (like space bar), follow its row and column traces on the board, and identify which MCU pins they connect to. Mark these on the layout–this pinout is critical for troubleshooting or desoldering components. If the trace disappears under a component, reference the PCB’s silkscreen or use a continuity probe to follow the path through vias.

Simulate the scanning process manually. Power the board with a 3.3V or 5V source (depending on the controller’s spec) and use jumper wires to short row-column intersections. Monitor the controller’s response with a logic analyzer or serial output–this confirms the matrix’s functionality before integrating it with the full assembly. If no signal registers, recheck the diode orientation or look for cold solder joints at the intersection points.

Common Microswitch and Trace Patterns in Portable Input Devices

For matrix-based input panels, arrange traces in a grid with row and column intersections at each switch point. Use 0.15mm copper traces for signal lines and 0.3mm for power delivery where possible–this balances flexibility and conductivity in thin-profile designs. Polyimide film (typically 0.075–0.125mm thick) serves as the base layer, offering durability while allowing tight bend radii near hinge zones.

Two dominant trace layouts exist: radial and serpentine. Radial patterns extend switches outward from a central controller, reducing cross-talk but increasing trace density near the hub. Serpentine designs route signals in parallel loops, which minimize signal skew across the panel but require careful shielding between adjacent traces to prevent parasitic capacitance (keep 0.2mm spacing or greater).

Layout Type	Max Trace Density (per cm²)	Signal Propagation Delay (ns/cm)	Typical Use Case
Radial	18–22	0.8–1.2	Compact hub designs
Serpentine	25–30	1.1–1.5	Linear key clusters

Switch types dictate trace termination: dome-over-circuit designs often use gold-plated contacts (3–5μm thickness) with carbon ink pads for mechanical compliance, while mechanical switches typically rely on 3–4mm copper pads with solder mask-defined apertures. For low-power devices, use diode isolation at each switch node (1N4148 or similar) to prevent ghost keys during rollover events.

Trace routing near flex connectors demands attention: avoid 90° turns–use 45° chamfers with 0.2mm corner radii to reduce stress concentrations. Ground planes should be stitched with vias (0.3mm diameter, 0.8mm pitch) around high-frequency signal areas to provide EMI shielding. For backlit variants, route LED traces beneath switch layers, ensuring 0.1mm clearance from conductive elements to avoid short circuits during pressure-sensitive operations.

Common failure points include trace delamination at fold points–reinforce these zones with an additional polyimide overlay (0.05mm) or adhesive-backed copper tape (0.1mm). For membrane-backed panels, ensure conductive adhesive overlaps switch pads by at least 0.3mm to maintain reliable contact under thermal cycling. Test continuity with a 100Hz–1kHz square wave signal; impedance should remain below 5Ω for signal traces and 1Ω for power traces under 5N actuation force.

When designing for water resistance, apply a silicone conformal coating (0.03–0.05mm thick) post-assembly, excluding switch contact zones. For rollover optimization, route columns and rows orthogonally with no more than 6 switches per line on a single trace–this limits parasitic loading and allows reliable N-key rollover in gaming-focused configurations. Use a pull-up resistor (4.7kΩ) on each column line to stabilize floating states during partial matrix scans.
