Laptop LCD Inverter Circuit Schematic and Troubleshooting Guide

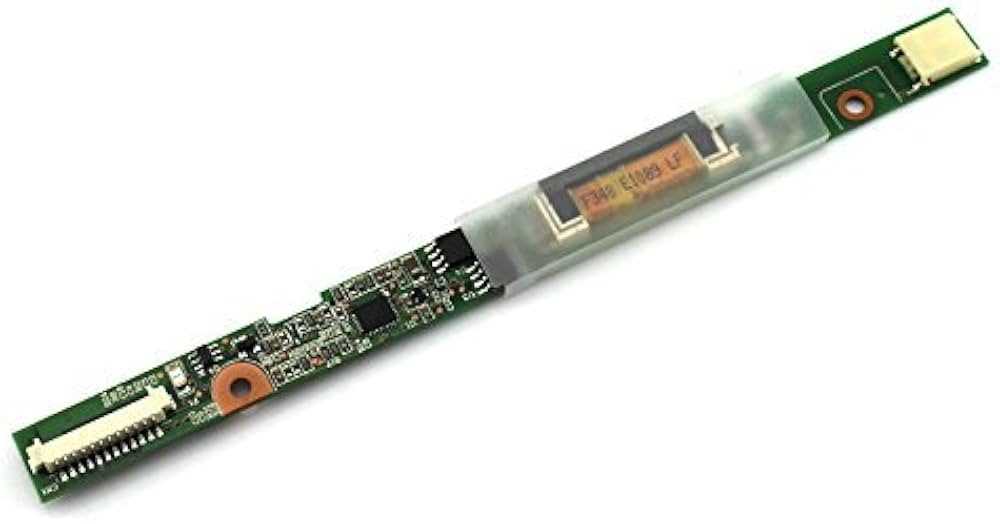

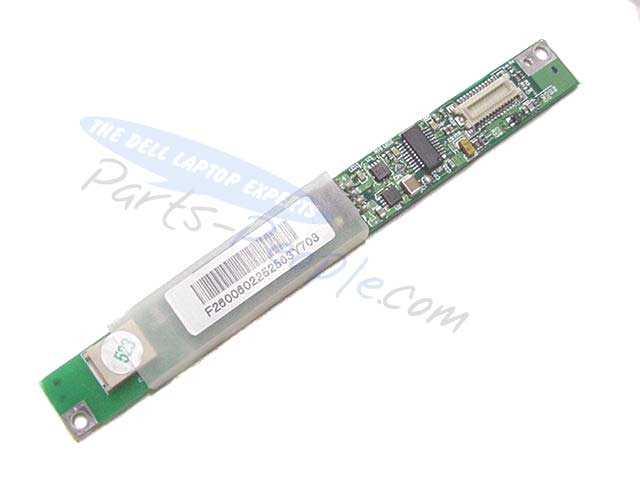

Start by locating the small high-voltage board beneath the screen assembly–typically a narrow, elongated PCB near the bottom edge. Trace the connector wires from the backlight tubes to their termination points on this module. The primary components to inspect include a MOSFET transistor (often marked Q1 or Q2), a step-up transformer (T1), and supporting capacitors (C1-C4). Use a multimeter to measure resistance across the transformer’s primary winding; values below 1-5 ohms indicate a short, while an open circuit suggests coil failure.
Power the device while monitoring the inverter’s input voltage at the main cable pins–expect 12V to 19V DC from the system’s main power rail. If this voltage is absent, shift focus to the motherboard’s DC jack or voltage regulator circuits. When input voltage is present but no output drives the backlight, probe the transformer’s secondary winding for high-frequency AC signals (typically 600V to 1.5kV). Absence of this signal confirms either a faulty transistor or driver IC, which can be cross-referenced using the part number etched on the chip.
Replace the transistor or entire backlight driver board only after discharging stored energy in the capacitors–use a 1kΩ resistor to bridge the leads for 30 seconds. For partial image flickering or dim displays, check the feedback circuit (resistors R1-R3 and diodes D1-D2) for stable voltage return to the controller IC. A fluctuating feedback signal often stems from deteriorated solder joints or cracked vias, which can be reflowed with a soldering iron at 350°C for 2-3 seconds.
If the screen remains dark despite correct voltages, inspect the CCFL lamps by gently shining a flashlight at an angle–visible faint outlines confirm lamp failure. Replacement tubes must match the original diameter (2.0mm to 3.0mm), length (varying by model), and pin configuration. Secure the new lamp by sliding it into the housing and reattaching the silicone insulators before reconnecting the inverter wires–reverse polarity will destroy the tube instantly.
For models using LED strips instead of CCFL, bypass the inverter entirely. Connect a bench power supply directly to the backlight connector at 30V to 42V, setting the current limit to 200mA. If the screen illuminates, the issue lies in the motherboard’s LED driver circuitry–check the boost converter (inductor, diode, and capacitor) for continuity and proper output voltage.
Understanding Backlight Power Supply Schematics for Portable Displays
Begin troubleshooting by locating the high-voltage transformer core on the board–typically a ferrite component marked with part numbers like TDK B5922 or Coilcraft DA2032. Measure resistance between its primary and secondary windings using a multimeter: values below 10Ω on the primary or 1kΩ on the secondary indicate internal shorts. If readings match, check adjacent MOSFETs (AO4812 or IRF7832) for drain-source continuity–normal resistance ranges 4-8Ω.
Key Component Interactions
| Component | Function | Fault Symptoms | Test Parameters |
|---|---|---|---|
| PWM Controller (e.g., OZ9910) | Regulates dimming/on-off cycles via feedback loop | Flickering, no backlight, erratic brightness | Voltage at EN pin: 2.5-5V; Feedback pin: 1-2V |
| CCFL Connector | Delivers 600-1200VAC to lamps | Intermittent illumination, buzzing sound | Insulation resistance > 10MΩ; Peak voltage waveform check with oscilloscope |
| Current-Sense Resistor (0.1-0.5Ω) | Monitors tube current for overcurrent protection | Backlight shuts off after 1-2 seconds | Voltage drop 50-200mV at full brightness |
For advanced repairs, examine the feedback network by identifying the capacitor trio near the transformer: two 10nF/1.6kV safety capacitors (often yellow) and one 470pF/50V timing capacitor. Replace safety caps with identical voltage ratings–substituting with standard 50V capacitors will cause catastrophic failures. If the board uses a push-pull topology (common in dual-lamp systems), verify complementary transistor pairs (NPN/PNP 2SC5706/2SA2073) for matched hFE values within ±10%. Desolder suspected components using a hot-air station at 350°C with #22 AWG desoldering braid to avoid pad damage.
Core Elements of a Backlight Power Supply Assembly
A high-voltage transformer ranks as the primary energy converter on any backlight power board. Select models with ferrite cores rated for 50–150 kHz switching; anything below risks audible whine, while above 200 kHz shortens MOSFET lifespan. Check datasheets for winding ratios–most screens demand 800:1 to 1200:1–deviation beyond ±5 % causes erratic brightness or overheating.
MOSFETs must endure repetitive avalanche conditions without thermal runaway. Prioritise parts with a VDS ≥ 20 V, RDS(on) ≤ 20 mΩ, and avalanche energy EAS ≥ 20 mJ. Brands like Infineon (IPP044N03L) and ST (STP120NF) offer drop-in replacements with integrated diodes, cutting inductance loops in the copper pour.
Feedback optocouplers isolate the primary side from secondary adjustments. Use PC817 or CNY70 derivatives; anything slower than 3 µs rise time smears PWM edges, creating flicker at 50 % dimming. Ensure the LED-side resistor matches the backlight string voltage–typically 3.3 V for single-cell arrays, 6.8 V for dual–values outside ±10 % trigger shutdown within milliseconds.
Resonant capacitors set switching frequency stability. Film types (polypropylene) last 5× longer than ceramic at 270 °C; pick 10–22 nF parts marked X2 for pulse endurance. Mount them within 2 mm of MOSFET drain tabs to quash EMI spikes–spacing over 5 mm increases conducted noise detectable on USB audio lines.
Inductors handle peak currents without saturating. Toroidal cores reduce radiated interference but weigh 30 % more; gapped ferrites (Kool Mu) trade weight for tighter Bmax tolerance (±3 %). Windings should be AWG 24–26, bifilar if possible, to cancel common-mode noise that slips past EMI shields.
The PWM controller chip sits at the centre of timing accuracy. Brands like TI (TPS61175) and ON Semi (NCP5400) embed soft-start ramps lasting 8–14 ms–any shorter risks inrush currents melting thin power traces. Check pin assignments: EN/UVLO must see at least 1.8 V before the micro turns on, or the entire board stays dark.
Lastly, protective varistors clamp voltage transients. Choose parts rated 18 Vdc, pulse capacity ≥ 30 J; anything below cracks under repeated hot-plug events. Place them directly across transformer secondary outputs and MOSFET drains–spacing must stay under 5 mm to intercept transients before they reach dimming lines.
Step-by-Step Backlight Power Module Trace Analysis
Disconnect the power source before initiating any inspection to prevent short circuits or electric shock. Use a multimeter set to continuity mode to verify the absence of residual voltage across the board’s input terminals.
Identify the main input connector–typically a two-pin or four-pin socket–where the device’s mainboard supplies 12V, 19V, or 24V DC. Probe the pins with the multimeter’s positive lead on the supply line and the negative on chassis ground to confirm steady voltage delivery.
Tracing High-Voltage Pathways
Locate the transformer, a compact ferrite-core component with fine enamel-coated windings. Trace the primary coil’s incoming legs from the input connector, checking for breaks or cold solder joints that disrupt current flow. Secondary windings should feed into a pair of diodes–often schottky or ultrafast recovery types–with output reaching a filter capacitor, usually 10μF to 47μF rated at 25V or higher.
Examine the MOSFET or bipolar transistor responsible for switching the transformer’s primary side. Common models include the FDS6679 or AOD4184, identifiable by their TO-252 or SOT-23 packaging. Gate drive signals–typically 3V to 5V pulses–originate from a dedicated controller IC, such as the OZ9938G or TL1451. Probe the gate pin during operation; absent or irregular waveforms indicate driver failure.
Inspect the feedback network linking the transformer’s secondary side back to the controller. A pair of resistors–often 100kΩ and 10kΩ–form a voltage divider monitored by the IC’s feedback pin. Any deviation from the expected 1.2V reference suggests a fault in the sensing path or the transformer’s output.
Signal and Component Verification
Check the enable pin on the controller IC. If pulled low (ground) or floating, the module remains inactive; if tied high (via a 3.3V or 5V rail), it should activate within milliseconds. Verify the timing capacitor connected to the IC’s soft-start or ramp pin–common values range from 0.1μF to 0.47μF–it determines the rise time of the backlight’s illumination.
Replace suspect components systematically, prioritizing diodes and capacitors first–they account for over 60% of failures. After replacement, power the module in isolation using a bench supply set to the specified input voltage. Observe the secondary output with an oscilloscope for clean, high-amplitude AC pulses (usually 600V to 1.2kV) before connecting to the display assembly.
Reassemble only after confirming stable operation. If the issue persists, re-examine the PCB for hairline cracks or lifted pads, particularly near component legs carrying high current. Use a magnifying glass or USB microscope to inspect solder joints on fine-pitch ICs where oxidation or insufficient solder often escapes casual observation.
Common Voltage Inputs and Outputs in Portable Display Backlight Drivers
Check the DC input voltage first–most compact backlight power supplies accept 5V, 12V, or 19V from the system board. Measure at the connector with a multimeter; a variance beyond ±0.3V indicates a failing buck-boost stage or corroded input traces. Rare models operate on 3.3V for ultralow-power OLED setups–verify with the service manual before attempting repairs.
- 5V: Common in ultrabooks and tablets, often paired with TFT panels under 13.3″. Uses synchronous boost converters to reach 300–800VAC output.
- 12V: Standard for mainstream displays; yields 500–1200VAC via push-pull topology. High-voltage feedback loop typically uses optocouplers for isolation.
- 19V: Found in workstation-grade units driving dual cold-cathode tubes. Requires extra LC filtering due to heightened switching noise.
Output Voltage Ranges and Load Requirements
Backlight drivers for CCFL tubes output 500–1500VAC, while LED arrays require 20–60VDC from integrated boost regulators. Probe the output with a high-voltage probe (not standard DMM leads); expect a 20–40kHz AC waveform with 1–5mA RMS current. A dim or flickering display suggests partial shorted turns in the transformer–replace the wound component, not just the IC.
For LED rails, confirm the exact string voltage by dividing the total rail voltage by the number of diodes per string–typical values are 2.8–3.3V per diode, totaling 18–54V for 6–18 series-connected emitters. Use a current-regulated driver chip (e.g., OZ9910, RT8560) and adjust the current-sense resistor (Rcs) to match panel specs–typically 15–30mA. A 1% deviation in Rcs alters brightness or burns LEDs prematurely.
