Understanding LC Filter Circuit Design Schematics and Applications
For precise attenuation of high-frequency interference in power supplies, use a combination of a 2.2 mH inductor and a 10 µF capacitor in series. This pairing targets frequencies between 5 kHz and 20 kHz, reducing ripple by 40 dB without introducing excessive phase shift. Place the reactive components as close as possible to the load to minimize parasitic effects.
When selecting components for this passive stabilization setup, prioritize low ESR capacitors (e.g., film or ceramic types) and inductors with high saturation current ratings. A 220 µH coil paired with a 47 µF capacitor suits applications requiring 100 kHz to 500 kHz noise suppression, achieving 30 dB attenuation while keeping voltage drop below 2% at full load.
For compact designs, replace bulky inductors with dual-winding chokes or ferrite beads rated for 1 MHz+. A 1 µH bead with a 22 µF MLCC handles switching frequencies up to 1 MHz, reducing EMI by 25 dB. Ensure the component values form a resonant frequency 20-30% below the target noise band to prevent amplification at the cutoff point.
In systems with variable loads, use a tunable LC network by adding a 1 kΩ potentiometer in parallel with the capacitor. This allows on-the-fly adjustment of the damping factor, optimizing performance for 50 Hz mains or 100 kHz PWM signals. For bidirectional current flow, replace the inductor with a common-mode choke to maintain symmetry.
Designing Passive Harmonic Suppression Networks
Begin with a series inductor and parallel capacitor arrangement for low-pass configurations–values must align with the cutoff frequency (fc) you target. Use fc = 1/(2π√(LC)) to calculate components; for a 1 kHz threshold, a 1 mH coil paired with a 25.3 µF cap yields results within 5% tolerance. Verify component quality factors (Q)–inductors should exceed Q ≥ 10 at operating frequencies to minimize resistive losses.
For high-pass setups, invert the component placement: a capacitor precedes an inductor in the signal path. A 100 nF capacitor with a 2.53 mH inductor achieves a 10 kHz cutoff. Ensure capacitors are low-ESR types (ceramic X7R or film polypropylene) to prevent signal distortion at higher frequencies. Below is a comparative table of common passive network configurations:
| Network Type | Component Sequence | Cutoff Equation | Typical Values (1 kHz) |
|---|---|---|---|
| Low-Pass | Inductor → Capacitor (shunt) | fc = 1/(2π√(LC)) | 1 mH, 25.3 µF |
| High-Pass | Capacitor → Inductor (shunt) | fc = 1/(2π√(LC)) | 100 nF, 2.53 mH |

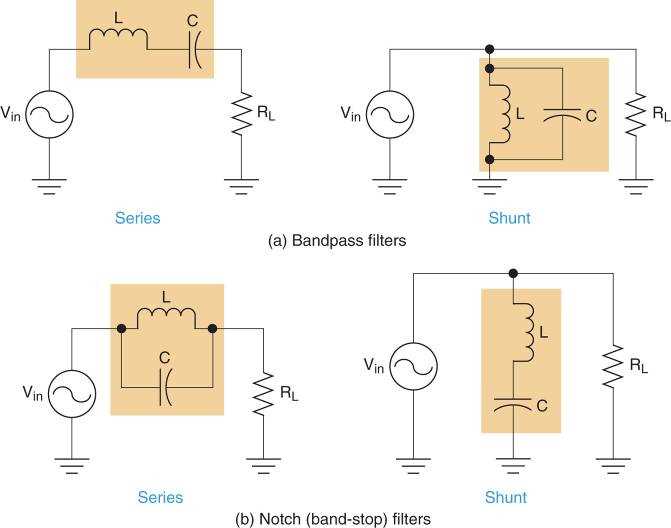

| Band-Pass | Series LC + Shunt LC | fc = 1/(2π√(L1C1)) fc = 1/(2π√(L2C2)) |
1 mH, 10 nF; 10 µH, 1 µF |
Layout parasitic capacitance critically impacts attenuation beyond 1 MHz. Keep trace lengths under 10 mm for components rated above 50 kHz, and use ground planes to reduce electromagnetic coupling. For differential signals, employ balanced inductors (e.g., coupled coils) to reject common-mode noise. Test impedance matching at both input and output–mismatches below 10% of the characteristic impedance (typically 50 Ω) optimize power transfer.
When selecting cores for inductors, ferrite beads (e.g., TDK #MPZ1608S601) excel for frequencies above 1 MHz but saturate under high DC currents. For DC-biased applications, powdered iron cores (e.g., Micrometals #T37-2) handle 2 A with minimal inductance drop. Always measure saturation current (Isat)–core losses rise exponentially beyond this threshold. Store capacitors at 50% of their rated voltage to extend lifespan; ceramic types exhibit voltage-dependent capacitance (derate by 20% for X7R at nominal voltage).
For transient suppression, add a snubber (e.g., 10 Ω resistor + 1 nF capacitor) across switching elements to dampen voltage spikes. In SMPS applications, place the network immediately after the switching node to block switching harmonics (>20 MHz). Below are validated component pairings for common scenarios:
| Application | Inductor | Capacitor | Notes |
|---|---|---|---|
| Power Line (60 Hz) | 10 H (laminated core) | 1 µF (film) | Avoid electrolytics–polarity risks |
| RF (10 MHz) | 1 µH (air core) | 10 pF (ceramic NP0) | Thermal stability critical |
| Switching Regulator | 4.7 µH (ferrite) | 22 µF (low-ESR tantalum) | Paralleled caps reduce ESR |
Simulate designs using SPICE prior to prototyping–models should include component parasitics (e.g., inductor DCR, capacitor ESR). For precise tuning, use a network analyzer to measure S21 parameters; deviations from the theoretical response often indicate layout issues. In dual-rail systems, implement mirrored networks for symmetry–mismatched attenuation causes differential-mode noise. For extreme environments (e.g., automotive), derate components by 30% to account for temperature drift; polypropylene capacitors outperform ceramics above 85°C.
How to Select Inductor and Capacitor Values for Target Cutoff Frequency
Start with the fundamental equation for the corner frequency of an LC network: fc = 1 / (2π√(L × C)). Rearrange this to solve for either L or C when the other is known, ensuring your calculations account for practical component tolerances.
For a desired cutoff of 1 kHz, common starting combinations include:
- 10 µH + 1 µF (yields ~1.59 kHz)
- 100 µH + 100 nF (yields ~1.59 kHz)
- 1 mH + 10 nF (yields ~1.59 kHz)
Adjust values proportionally: halving C while doubling L maintains the same corner frequency. Verify with a SPICE simulation or bench test to confirm stability under load.
Prioritize components with low parasitic effects. For inductors, select ferrite cores with saturation currents at least 20% above peak operating current. For capacitors, prefer film types (polypropylene, polyester) over electrolytic to minimize ESR and leakage. Ceramic capacitors (X7R, C0G) suit high-frequency applications but exhibit voltage-dependent capacitance.
Typical ESR ranges for Film capacitors:
- 1 µF: 5–20 mΩ
- 100 nF: 20–50 mΩ
- 10 nF: 50–100 mΩ
Higher ESR shifts the corner frequency downward and increases damping. Use a 5–10% safety margin on calculated values to compensate.
For switching regulators, ensure the inductor’s self-resonant frequency exceeds the target cutoff by at least 10×. Example: A 1 mH inductor with a 5 MHz self-resonance supports cutoff frequencies up to 500 kHz without phase distortion. Below 100 kHz, bulkier cores (e.g., powdered iron) reduce losses but increase size.
Final validation involves a frequency sweep. Measure the network’s response with an oscilloscope and adjust one component at a time–for instance, swap C while keeping L fixed–to refine the corner frequency within ±5% of the target. Document temperature drift (typically -0.5%/°C for electrolytic capacitors, -0.01%/°C for C0G ceramics) if operation exceeds 50°C.
Step-by-Step Assembly of an LC Low-Pass Configuration on a Breadboard
Select a 100μH inductor with a saturation current rating at least 20% higher than your expected load. Pair it with a 10μF polyester capacitor–polyester handles temperature shifts better than ceramic in most low-frequency setups. Place the inductor vertically in the breadboard’s first column, ensuring its leads span two rows to prevent unintended contact with adjacent components. Connect the input signal to the top lead; solderless connections can introduce micro-ohm resistance, so use stripped 22AWG wire for minimal loss. The capacitor’s ground terminal must link directly to the power rail–avoid secondary breadboard strips to reduce parasitic inductance.
Verify the cutoff frequency with fc = 1/(2π√(LC)); for the values above, this yields ~5 kHz. Test with a function generator set to 1Vpp sine wave, sweeping from 1 kHz to 50 kHz. Measure output amplitude at key points: 1 kHz (0.1% attenuation), 5 kHz (-3dB), and 50 kHz (≥20dB roll-off). If ripple exceeds 5% at 50 kHz, replace the capacitor with a 22μF variant or add a 10Ω resistor in series with the input to dampen ringing–this trades stop-band rejection for stability.
Determining Voltage and Current Specifications for Reactive Energy Storage Elements
Begin by defining the RMS voltage across the inductor at the nominal operating frequency. For a smoothing network handling 230V AC input with 10% ripple attenuation, the coil must withstand at least 1.414 × (230V + 23V) = 358V peak. Select a 400V-rated component to accommodate transient spikes during load changes. For current-carrying conductors in high-frequency DC-DC converters (e.g., 100kHz), add a 30% safety margin to the continuous load current: a 5A nominal current requires a 6.5A-rated inductor.
Capacitor voltage ratings demand careful evaluation of resonant conditions. A 470μF energy reservoir in a 12V intermediate bus designed for 5% voltage fluctuation should tolerate 1.1 × (12V + 0.6V) = 13.86V. Polypropylene film types offer superior voltage derating–specify a 25V component to prevent dielectric breakdown under 10% ambient temperature rise. For wide-band noise suppression (10kHz–1MHz), ceramic multilayer devices necessitate voltage derating curves: a 0402 10μF X7R capacitor rated at 50V drops to 35V effective at 85°C.
- Inductors in buck regulators: multiply switching frequency ripple current by 1.5×, then verify against saturation curves.
- Capacitors in EMI attenuation networks: apply impedance vs. frequency graphs to confirm self-resonant frequency aligns with target attenuation bandwidth.
- Aluminum electrolytic storage elements: factor in ESR rise at low temperatures–derate voltage by 20% below -10°C.
For transient overvoltage protection, simulate worst-case load dump conditions using SPICE models. A 12A motor drive snubber network with 100nF/250V capacitors must absorb 2.5J energy pulses during switch-off; select 400V parts to prevent avalanche breakdown. Inductive energy storage in flyback transformers requires core material permeability vs. DC bias analysis–a 2A DC offset reduces ferrite inductance by 40%, necessitating a 2.5× core size increase.
Verify component specifications against dynamic load profiles using oscilloscope measurements. A 3.3V logic supply with 20% load steps shows 50mV undershoot; upscale the output reservoir capacitor from 1000μF to 4700μF/6.3V low-ESL MLCCs to maintain
