Automatic Light Dependent Resistor Day Night Switch Circuit Guide

Start with a photoresistor (5mm GL5528 or equivalent) paired with a 10kΩ resistor to form a voltage divider–this configuration ensures stable detection across ambient brightness levels from 10 lux (moonlight) to 10,000 lux (direct sunlight). For precise sensitivity, use a 1MΩ potentiometer in series with the photoresistor to fine-tune the threshold without recalibrating the entire setup. Avoid cadmium sulfide (CdS) sensors if RoHS compliance is required; opt for silicon-based alternatives like the SILONEX NSL-19M51 for consistent performance.

Power the comparator stage with a single-supply op-amp (LM358 or TLC272) running at 5V–this eliminates the need for dual rails while maintaining accuracy within ±0.1V of the set point. Connect the voltage divider output to the non-inverting input and a reference voltage (derived from a 1kΩ trimmer) to the inverting input. Add a 10µF capacitor across the op-amp power pins to suppress transients from fluorescent lighting, which can induce false triggers at 100–120Hz.

For relay control, drive a 5V bistable module (HFD27/005-S) via a 2N2222 transistor, limiting base current to 5mA with a 1kΩ resistor. This setup reduces coil heating and extends relay lifespan beyond 100,000 cycles. If using a mechanical relay, add a flyback diode (1N4007) in parallel to absorb back-EMF spikes. For silent operation, replace the relay with a solid-state switch (AQV251G) rated for 3A at 240V, though note the 1.2V forward drop in resistive loads.

Test the response time by simulating twilight conditions–transition the sensor from 500 lux to 50 lux in 10-second intervals. The op-amp output should swing high-to-low (or vice versa) within 100ms; delays beyond 200ms indicate excessive hysteresis. Adjust the feedback resistor (100kΩ to 1MΩ) to balance noise immunity and responsiveness. For outdoor use, waterproof the sensor with a clear epoxy dome (e.g., NOA61) to prevent condensation while preserving spectral sensitivity (400–700nm).

Automatic Photoresistor-Based Light Control Blueprint

Begin with a 10KΩ resistor paired directly with the photoresistor to form a voltage divider. This setup ensures stable readings across varying ambient conditions, reducing false triggers caused by transient shadows or sudden light fluctuations. Position the photoresistor facing upward or toward the primary light source, avoiding obstructions like leaves, dust, or structural overhangs that may skew sensitivity.

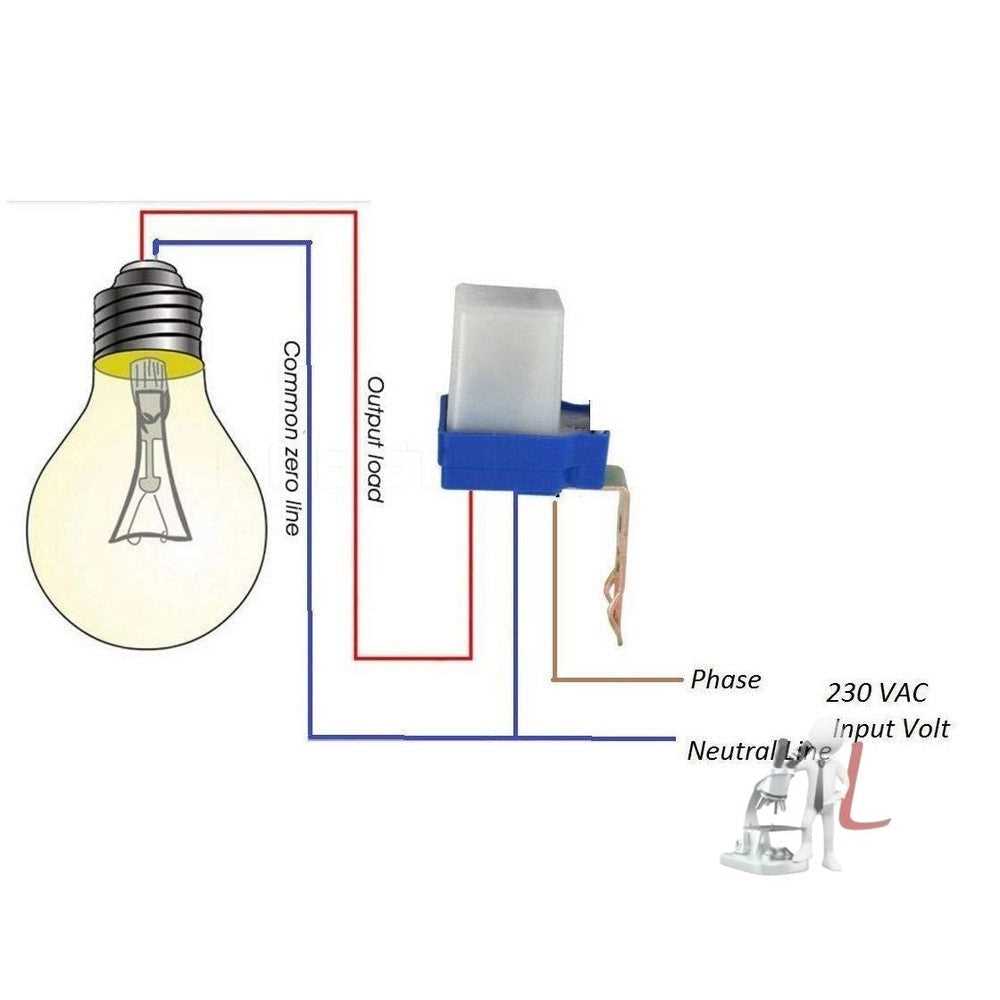

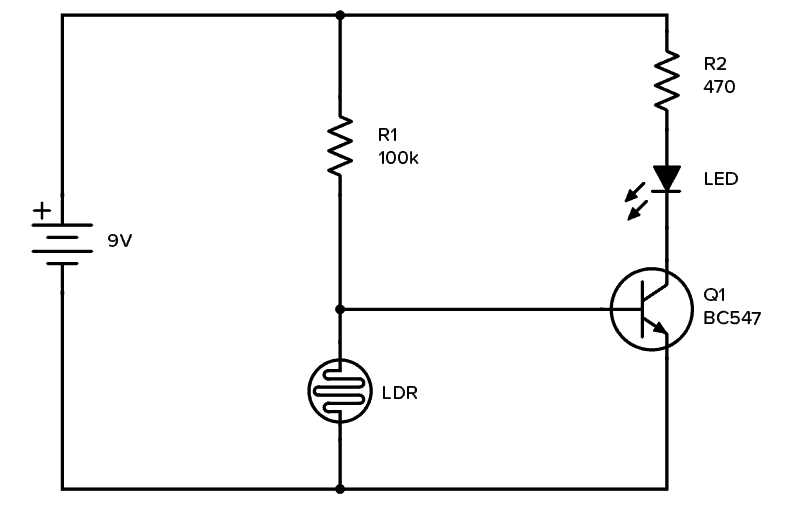

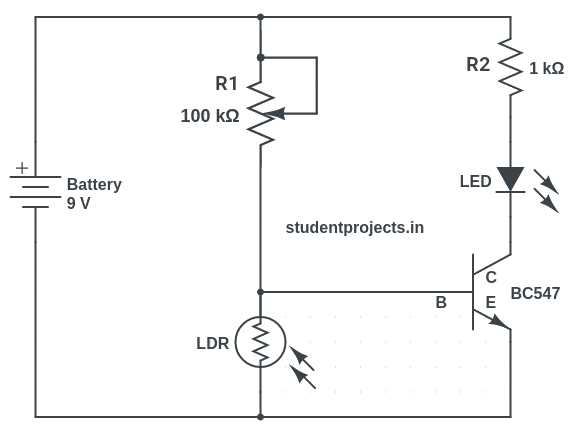

Select a BC547 transistor as the switching element for low-power loads like LEDs or relays under 100mA. For heavier loads, substitute with a TIP120 Darlington pair to handle currents up to 5A. Ensure the transistor’s base resistor is calculated using the formula R = (Vin - 0.7V) / Iload, where Vin is the divider output voltage. Typical values range from 1KΩ to 4.7KΩ.

• Use 100nF ceramic capacitors across the power supply rails to suppress noise, particularly if the control is near motors or fluorescent lighting.
• Avoid placing the control near infrared-emitting devices (e.g., remote controls, security cameras) as they may interfere with the photoresistor’s response.
• For outdoor applications, enclose the photoresistor in a transparent acrylic dome to shield it from moisture while maintaining sensitivity.

Calibrate the trigger threshold by adjusting the voltage divider’s resistor value. A 10KΩ potentiometer simplifies fine-tuning during installation. Test by simulating the desired ambient conditions–measure the divider output voltage at the transition point (typically 2V–4V for most photoresistors) and set the comparator or transistor base accordingly.

For precision, integrate an LM393 comparator with hysteresis. Connect the photoresistor divider to the non-inverting input and a reference voltage (set by a second potentiometer) to the inverting input. Hysteresis prevents rapid toggling; add a 1MΩ resistor between the comparator’s output and non-inverting input to create a 0.5V–1V deadband.

1. Power supply: 5V–12V DC (regulated for consistency; avoid unfiltered sources like cheap wall adapters).
2. Load compatibility: LEDs (with appropriate series resistors), relays (use a flyback diode for inductive loads), or small solenoids.
3. Failsafe: Add a manual override switch in parallel to the photoresistor for testing or emergency bypass.

For high-reliability applications, replace the passive circuit with a microcontroller (e.g., ATtiny85). Sample the photoresistor voltage via ADC, implement software hysteresis, and control the output via PWM for dimming or gradual transitions. This approach allows features like time delays (e.g., hold the load on for 30 seconds after darkness is detected).

Troubleshooting: If the control erratically toggles at dusk/dawn, check for stray capacitance in long wiring (use twisted pairs) or ground loops (isolate the power supply). For outdoor setups, apply conformal coating to the PCB to prevent corrosion from humidity. Logical voltage levels–Vhigh ≥ 4.5V and Vlow ≤ 0.5V–must be maintained for consistent operation.

Selecting the Optimal Photoresistor for Ambient Light Control Systems

Begin with a cadmium sulfide (CdS) photoresistor rated for 5–10 kΩ under standard indoor lighting (100–300 lux). Models like the GL5528 or VT90N offer a compact package (5 mm diameter) and rapid response under 20 ms–a critical spec to prevent flickering in high-frequency applications. Verify the spectral response curve aligns with your target light source; GL5528 peaks at 540 nm, making it ideal for white LED compatibility, while VT90N extends slightly into infrared (700 nm), better suited for incandescent filters.

Prioritize photoresistors with a wide resistance range–minimum 100:1 ratio between illuminated (10 lux) and dark conditions (0 lux). The NSL-32SR2 meets this criterion with a 1 kΩ–10 MΩ swing, ensuring stable triggering thresholds without hysteresis. Check the tolerance (±20% is typical; ±10% for precision setups). For outdoor use, confirm UV stability; inexpensive units degrade 15% resistance after 1,000 hours of direct sunlight–opt for hermetically sealed variants like the PDV-P9003 if longevity is critical.

Noise sensitivity dictates suitability for low-light environments. Select units with 50 pF); it introduces lag in dynamic scenarios like motion-activated floodlights.

Mounting constraints influence selection. Through-hole photoresistors dominate for prototyping, but SMD options like the ALS-PT19-315C reduce PCB footprint by 60% and eliminate lead inductance. For angled installations (e.g., streetlights), choose models with lensed tops (e.g., Hamamatsu P12266) to narrow the 60° typical field of view to 20°, minimizing interference from adjacent light sources. Ensure packaging complies with RoHS if regulatory adherence is required.

Cost-to-performance tradeoffs demand scrutiny. A GL5516 (0.05 USD) suffices for basic on/off transitions, but lacks temperature compensation–its resistance drifts 0.3%/°C. For temperature-critical deployments, invest in a Vishay NORPS-12 (3.50 USD) with a targeted TCR of ±0.05%/°C between -40°C and +85°C. Logistical considerations: bulk purchases from authorized distributors (e.g., Mouser, Digi-Key) guarantee traceable datasheets, whereas marketplace sellers often provide untested counterfeits with ±50% resistance tolerances.

Step-by-Step Assembly of the Photoresistor-Based Trigger on a Prototyping Board

Begin by placing the light-dependent resistor in the top-left corner of the breadboard, ensuring its legs span the central groove. Insert one leg into hole E5 and the other into F5–this isolates the sensor from adjacent components while allowing easy access for jumper wires. Avoid bending the leads excessively; a gentle 45-degree angle at the base prevents breakage during adjustments.

Connect a 10kΩ pull-down resistor between the same row as the photoresistor’s output leg (hole F5) and the ground rail. Use F10 for the ground connection to maintain vertical alignment with the sensor. This configuration creates a voltage divider, where the output node (F5) delivers a signal between 0V and the supply voltage based on ambient illumination levels.

Attach the signal wire from F5 to the base of an NPN transistor (e.g., 2N2222) via a 1kΩ current-limiting resistor. Route this wire horizontally across the board to C15 to keep the layout compact. The transistor should sit near the right edge of the board, with its emitter tied directly to ground (D20) and its collector left open for the load connection.

For power, link the photoresistor’s remaining leg (E5) to the positive rail using a red jumper. Verify the voltage rail spans the entire breadboard length to simplify future expansions. A 5V regulated supply works optimally–higher voltages risk saturating the transistor or damaging low-power components like LEDs used in testing.

Testing and Calibration

Before energizing, double-check all connections with a multimeter in continuity mode. Probe the ground rail against each transistor leg to confirm no shorts exist. Once powered, cover the photoresistor with a thick material (e.g., electrical tape) to simulate darkness; the output at F5 should drop below 0.7V, cutting off the transistor. Gradual exposure to light should increase the voltage linearly until the transistor switches fully on.

Fine-tune sensitivity by swapping the 10kΩ resistor for values between 4.7kΩ and 47kΩ. Lower resistances reduce the trigger threshold (activating earlier in dim conditions), while higher values delay response until brighter environments. For precision applications, solder a 100kΩ potentiometer in place of the fixed resistor, allowing real-time adjustments without rewiring.

Load Integration

Connect the load–an LED with a 220Ω series resistor–between the transistor’s collector (E20) and the positive rail. Observe behavior under controlled lighting: the LED should extinguish in darkness and illuminate at preset brightness thresholds. For inductive loads (e.g., relays), add a flyback diode (1N4007) across the coil to suppress voltage spikes, with the cathode oriented toward the positive supply.
