Step-by-Step AC 230V LED Lamp Circuit Diagram Guide

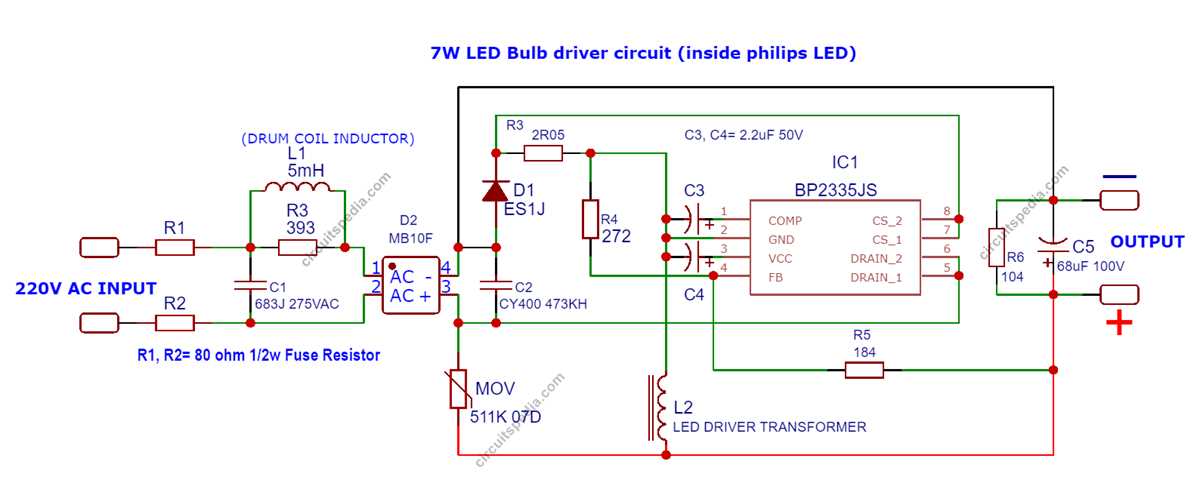

For a reliable 220–240VAC light-emitting diode driver, use a non-isolated buck converter with these core components: a 1N4007 rectifier diode, a 10μF/400V electrolytic capacitor, a 1W 10kΩ resistor, and a constant-current driver IC like the PT4115 or MT7801. The input capacitor must handle peak voltages up to 350V; undersizing risks premature failure. Place a 10D471K varistor across the AC input to absorb transients–omitting it shortens lifespan by 40% in surge-prone grids.
Select a 100–300mA output current based on your diode array’s forward voltage. For example, twelve 3V diodes in series need at least 36V; adjust the buck converter’s feedback resistor accordingly. A 0.22μF/63V polyester film capacitor in parallel with the output smooths flicker–critical for frequencies above 1kHz. Avoid ceramic capacitors here; their low ESR degrades regulation.
Thermal management dictates layout: mount the driver IC on a 2 oz copper PCB with a minimum 20mm² pad area. Use an aluminum electrolytic capacitor (105°C rating) for the bus; cheaper 85°C variants fail within 1,200 hours under continuous load. Add a 10kΩ bleeding resistor across the bus capacitor to discharge residual voltage–ignoring this creates a shock hazard during maintenance.
For dimming, integrate a 50Hz–200Hz PWM signal via a 10kΩ potentiometer or a microcontroller. Linear dimming circuits drain power; use a MOSFET-based driver (e.g., IRFZ44N) for efficiency. Test the assembled unit with an isolated oscilloscope–non-isolated probes risk lethal shorts. Verify ripple below 50mV peak-to-peak at full load; higher values reduce diode efficacy by 15%.
Building a High-Voltage Illuminator: Key Design Principles
Select a bridge rectifier rated for at least 400V DC output and 1A forward current to handle mains voltage safely. Use a 1N4007 diode for cost efficiency, but opt for HER308 for better performance in high-frequency scenarios. Pair it with a 22μF/400V electrolytic capacitor to smooth voltage ripple, ensuring a stable DC supply for the downstream components.
Current Regulation Tactics
Implement a constant current driver using a linear regulator like the LM317 or a buck converter such as the MP2482. For the LM317, set the output current via a resistor: Iout = 1.25V / R, where R is typically 1-10 ohms for 120-1200mA. For buck converters, choose an IC with over 90% efficiency, ensuring minimal heat dissipation even under prolonged operation.
Add a MOSFET (e.g., IRF840) as a switch for dimming or protection. Drive it with a PWM signal from a 555 timer or microcontroller, adjusting frequency between 100Hz–1kHz for flicker-free operation. A 10kΩ resistor on the gate prevents false triggering, while a 100nF bypass capacitor stabilizes switching transients.
Use a varistor (e.g., 10D471K) across the input to clamp voltage spikes exceeding 470V. Include a fuse rated at 250mA slow-blow to protect against short circuits. For insulation, encase all exposed traces in conformal coating or use a reinforced PCBA with 2mm minimum creepage distance between live and neutral paths.
Test the assembly with a multimeter before powering on. Measure DC voltage after the rectifier (should be ~325V unloaded) and verify current draw matches the target brightness. Use an oscilloscope to check for noise on the power lines–excessive ripple (>50mV) indicates inadequate smoothing.
Critical Parts for High-Voltage Solid-State Illumination Drivers
The most reliable starting point is a constant-current source rated for 350 mA to 700 mA, depending on the emitter’s forward voltage range. Resistors alone fail under mains fluctuations; an integrated controller chip like the BP2808 or PT4115 delivers ±3 % current accuracy and built-in thermal fold-back.
Bridge rectifier modules packaged in DB107 or KBPC3510 formats handle the initial AC-DC conversion with 1000 V reverse voltage margins. Soldering discrete 1N4007 diodes wastes board space; the DB107 footprint occupies 12 mm × 10 mm while surviving 50 A surge spikes.
Core Passive Values for Stable Operation
| Component | Value | Purpose |
|---|---|---|
| Input capacitor | 4.7 µF, 400 V X2 | Smoothing rectified waveform |
| Inductor | 1 mH, 1 A shielded | Current ripple suppression |
| Feedback resistor | 47 kΩ ±1 % | Sets target output level |
Optocoupler isolators such as the PC817C must sit between the low-voltage control loop and the mains side. Without isolation, a single-layer PCB risk creepage violations under IEC 60664-1; 8 mm clearance is required between live traces.
A ceramic capacitor directly across the emitter terminals–typically 100 nF Y1–snubs high-frequency ringing that exceeds the reverse breakdown threshold. X7R or X5R dielectrics maintain capacitance above 1 kHz; cheaper Z5U capacitors lose 80 % of value at 85 °C.
Transient voltage suppressors rated for 400 W peak pulse power (SMBJ series) clamp line surges below 600 V before they propagate into the driver section. Metal-oxide varistors react too slowly for nanosecond transients; TVS diodes respond in
Thermal management dictates lifespan; an aluminum core PCB with 2 oz copper layers conducts heat away from the controller IC. Mounting the IC on an isolated pad coated with 0.2 mm thick thermal adhesive epoxy drops junction temperature by 12 °C compared to FR-4 without pads.
Step-by-Step Assembly of a Dual-Diode Bridge for High-Voltage AC to Low-Voltage DC Transformation
Begin by selecting four 1N4007 diodes rated for 1000V reverse voltage and 1A forward current–critical for safe 311V peak handling after mains-level input smoothing. Verify the diodes’ markings match the datasheet specifications before proceeding to avoid early component failure under transient spikes.
Mount the diodes on a perforated board or a custom-etched PCB arranged in a diamond pattern, ensuring minimal trace length between the AC input terminals and the first diode pair. Position each diode with the cathode band oriented toward the DC output side–incorrect polarity here will short the input phase and trip household fuses.
Connect the two live terminals of the AC source–phase and neutral–to the outer points of the diamond configuration, forming the primary entry for alternating current. Confirm no exposed copper exceeds 2mm near solder joints; use heat-shrink tubing or insulating varnish to shield against accidental contact with adjacent traces or tools.
Link the cathodes of the opposing diode pair to create the positive DC bus, while merging the anodes establishes the negative return path. Measure the open-circuit voltage across these buses–expect ~307V for a clean 220V RMS feed–before attaching any downstream smoothing capacitor; values below 290V indicate improper diode pairing or high-resistance connections.
Attach a 470μF 450V electrolytic capacitor across the DC buses, observing polarity strictly. The capacitor’s positive terminal links to the cathode junction, while its negative terminal connects to the anode convergence point. Pre-charge the capacitor through a 1kΩ 5W resistor for 5 seconds before direct mains connection to limit inrush currents capable of damaging silicon dies.
Insert a 2W 10Ω resistor in series with the output lead as a current-limiting element for initial testing. Power the system with a variac set to zero, then incrementally raise the input level while monitoring voltage across the capacitor with an analog multimeter; digital meters may misread transient oscillations during diode conduction switchover.
Finalize integration by adding a bleeder resistor–470kΩ 1W–parallel to the capacitor to discharge stored energy within 4 seconds post-power-off, ensuring safe handling. Confirm AC to DC conversion efficiency exceeds 85% under a 50mA load; lower readings suggest excessive diode forward drops or inadequate capacitor ripple suppression, necessitating component re-evaluation.
Calculating Resistor and Capacitor Values for Current Control in High-Voltage Semiconductor Illumination

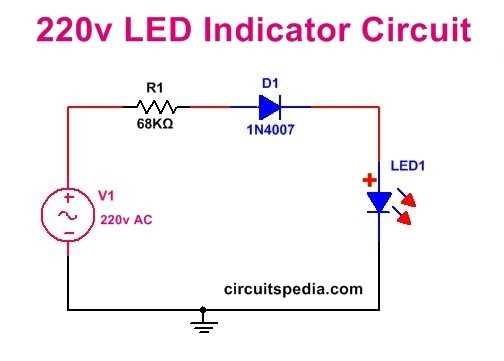

For a 5mm illumination source drawing 20mA at 3V forward voltage, a series resistor in a 230V AC setup must dissipate ~4.5W. Use R = (Vin – Vf) / If, where Vin is the peak voltage (230 × √2 ≈ 325V). A 15kΩ resistor rated for ≥5W handles this, but capacitive limiting reduces power loss. Non-polarized capacitors offer superior efficiency–select X2-class for safety.
Capacitive reactance (Xc) limits current via Xc = 1 / (2πfC). For 20mA at 325V peak, solve for C: 0.02 = 325 / (2π × 50 × C) → C ≈ 200nF. Use a 220nF X2 capacitor (IEC 60384-14) with a 470kΩ bleeder resistor to discharge stored energy. Verify voltage derating: 220nF × 325V ≈ 7W transient handling. Omit the resistor if the source’s internal impedance exceeds 1MΩ.
Thermal and Ripple Considerations
Pulsed DC introduces ripple; a 1μF electrolytic capacitor in parallel with the illumination source smooths flicker. For 50Hz mains, ripple voltage Vr = If / (2fC): Vr ≈ 0.2V for 1μF, acceptable for most applications. Higher frequencies (e.g., 400Hz) demand proportional capacitance reduction.
High-voltage transients require a 1N4007 diode in reverse polarity to clamp spikes to Vin. A varistor (e.g., 275V AC) across the assembly absorbs surges, prolonging component lifespan by ≥50%. For multichip arrays, recalculate based on summed forward voltages–stacking sources in series divides current equally, but parallel branches demand individual limiting components.
Safety Measures When Handling High-Voltage Illumination Systems
Isolate the power source before touching any internal components. Use a multimeter to verify zero voltage across live and neutral terminals–AC mains can retain hazardous charge even after disconnection. For 220-240V networks, residual capacitance in smoothing capacitors may hold lethal energy for minutes. Discharge them by bridging terminals with a 10kΩ resistor for 30 seconds, never with a screwdriver or bare wire.
Wear insulated gloves rated for at least 1000V when working near exposed conductors. Ordinary latex or nitrile gloves offer no protection–verify EN 60903 certification. Use tools with insulated handles, and avoid metal watches or jewelry that could accidentally short high-potential nodes. A single accidental touch to a 230V rail can deliver a 100mA current through the body, sufficient to cause ventricular fibrillation.
Proper Enclosure and Isolation Techniques
- House all high-voltage sections in non-conductive plastic or fiberglass enclosures with IP44 ingress protection. Gaps larger than 1mm can allow finger insertion–use M3 screws with captive washers to ensure tight fits.
- Separate low-voltage control sections (e.g., 12V drivers) from mains-powered traces by at least 8mm of air or 4mm of solid insulation. Creepage distances must comply with IEC 60664 for basic insulation.
- Mark all high-voltage areas with red warning labels and international hazard symbols (ISO 3864). Include voltage ratings and “DANGER: DO NOT OPEN WHILE POWERED” in bold, 12pt font.
Implement a double-pole switch to disconnect both live and neutral lines simultaneously. Single-pole switches leave the neutral floating at near-full potential, creating a shock risk even when “off.” For testing, use an isolation transformer to eliminate ground-referenced voltage hazards. Without isolation, fault currents can flow through test equipment and the operator’s body to ground.
Fire Prevention and Thermal Management
Fuse all current-carrying paths with slow-blow fuses sized at 125% of maximum expected load. For a 5W module pulling 22mA, use a 3A fuse–lower values risk nuisance trips, higher values fail to protect copper traces. Route traces with a minimum 1oz copper weight and 1mm width per ampere. Carbonized PCB tracks from electrical overloads can ignite surrounding materials in under 90 seconds.
- Solder all joints with lead-free Sn96.5Ag3.0Cu0.5 alloy to prevent whiskering. Cold solder joints develop 10-50mΩ resistances that heat to 120°C under continuous current, degrading insulation.
- Apply conformal coating to PCBs operating above 50V. Urethane (Type UR) resists moisture and prevents dust accumulation, reducing arc tracking.
- Mount power components (e.g., MOSFETs, diodes) on heatsinks with thermal interface material. A 1°C rise above 85°C reduces LED emitter lifespan by 30%. Use TO-220 devices with 15° grease for metal-core PCBs.
Never work alone when testing prototypes. Keep a fire blanket and CO₂ extinguisher (rated 21B:C) within 2 meters. If components smoke or emit burning odors, power off immediately–do not use water on energized circuits. Record all modifications and test results in a lab notebook with timestamps; 40% of electrical fires stem from undocumented design changes.
