Simple 9V LED Circuit Design and Wiring Guide for Beginners

For a reliable low-voltage solid-state emitter configuration, use a 220Ω resistor with a standard silicon diode rated at 3mm or 5mm. A 9V alkaline battery powers this arrangement efficiently, delivering consistent radiance without flicker. Avoid exceeding 20mA per element–most miniature bulbs tolerate 15mA for prolonged operation. Direct coupling without current limiting risks thermal runaway, reducing lifespan by 60%.

Position the dropping component in series with the anode. For reverse voltage protection, incorporate a junction diode (1N4001) parallel to the component array, cathode toward the positive terminal. Test continuity with a multimeter: expect 1.8–2.2V across the emitter, 7–7.2V across the resistor. Deviations suggest incorrect component values or forward voltage mismatch–swap for a 150Ω or 330Ω resistor if intensity fluctuates.

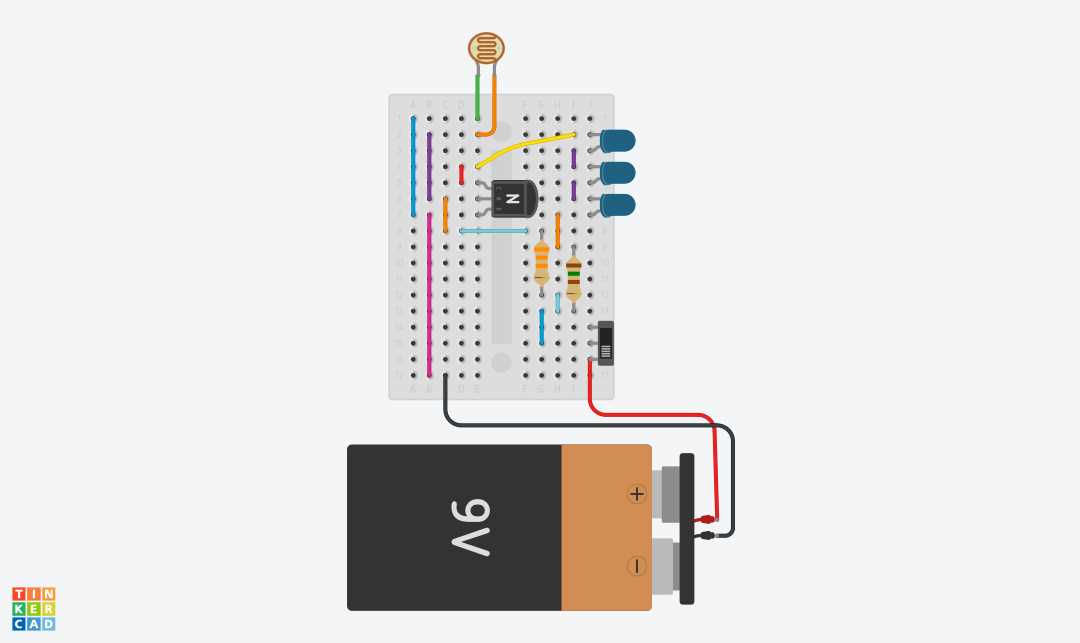

Stripboard or protoboard layouts simplify assembly. Keep trace lengths under 5cm to minimize resistive losses. For multi-emitter setups, wire individual branches with separate resistors; current sharing becomes uneven beyond three elements on a single 9V source. Clip excess leads flush after soldering to prevent shorts–inspect under magnification before applying power. Store unused components in anti-static bags; electrostatic discharge can degrade junctions silently.

Field-test brightness with a lux meter: target 20–30 lux at 30cm for indoor indicators. Dim outputs often trace to weak battery charge–replace if voltage dips below 8.3V under load. Swap alkaline for lithium batteries in high-drain applications; they maintain 8.9V longer but cost 3x more per watt-hour. Log measurements after each modification–comparative data reveals gradual performance drift before failures occur.

9V Battery-Powered Illumination Setup Guide

Start with a 220Ω resistor for standard 5mm emitters drawing 20mA at 2V forward voltage. Connect the resistor in series to the positive terminal, then link the emitter’s anode to the resistor and cathode to the battery’s negative terminal. This arrangement ensures stable operation without exceeding the component’s current limits. For brighter variants (e.g., 3V forward voltage), reduce the resistor to 150Ω to maintain consistent brightness.

Component Selection and Safety

Verify the emitter’s datasheet for exact specifications–some high-efficiency models tolerate 15mA, allowing a 330Ω resistor for extended battery life. Avoid exceeding 9V input with unregulated designs; heat dissipation in small enclosures can degrade performance. For parallel strings, calculate individual resistors per branch to prevent current imbalance. Use a multimeter to confirm voltage drops across each emitter before finalizing connections.

For pulsed operation, add a 10µF capacitor across the battery terminals to smooth voltage fluctuations. This stabilizes flicker-sensitive applications like indicators or low-speed animation. Ensure the capacitor’s voltage rating exceeds 10V to handle transient spikes. Polarized electrolytics require correct orientation–reverse polarity risks failure. Non-polarized options (e.g., ceramic) simplify assembly but offer lower capacitance.

Advanced Configurations

Integrate a BS170 MOSFET switch for simple on/off control. Gate connected to a microcontroller or push-button, drain to the emitter string, and source to ground. This isolates high-current loads from control signals, reducing power loss. For dimming, PWM at 1kHz avoids visible flicker while enabling smooth intensity adjustment. Test PWM duty cycles beyond 80%–some emitters exhibit nonlinear brightness responses.

Replace the fixed resistor with a 10kΩ potentiometer for manual brightness tuning. Wire it as a variable resistor in series with the emitter to avoid accidental short circuits. Confirm the potentiometer’s wattage rating–1/4W suffices for most 9V setups, but higher values prevent overheating during prolonged use. Always secure connections with soldered joints or screw terminals; loose wires introduce intermittent failures.

Core Elements for Building a 9V Illumination Setup

A high-quality current-limiting resistor ranks first. For a single standard emitter rated at 20mA and 3.2V forward voltage, calculate resistance using Ohm’s law: (9V – 3.2V) ÷ 0.02A = 290Ω. Opt for the nearest E24-series value–300Ω–ensuring ±5% tolerance for consistency. Metal film resistors dissipate heat better than carbon variants, reducing drift over prolonged use. Always verify power rating: 0.125W minimum (300Ω × 0.02A²), though 0.25W provides headroom for fluctuations.

Emitter selection dictates performance. Narrow-beam diodes (15–30° viewing angle) concentrate output, ideal for focused tasks, while wide-angle variants (120°) suit ambient glow. Check luminous intensity in millicandelas (mcd); 5,000–10,000 mcd suits general use, while 20,000+ mcd suits high-visibility needs. Thermal management matters–emitter packages labeled “high-power” dissipate heat via metal cores, but 9V setups rarely require them unless clustering multiple units. Stick to through-hole or surface-mount (SMD) 3528/5050 for balanced efficiency and ease.

A stable power source eliminates flicker. Alkaline 9V batteries deliver 500–600mAh, sufficient for intermittent use; rechargeable NiMH offer 200–300mAh but sag under load. For continuous operation, swap the battery for a regulated 9V adapter–look for 1A output to prevent voltage drop. Embed a diode (1N4007) in series to block reverse polarity, protecting the setup from accidental miswiring. Capacitors aren’t mandatory but smooth transient spikes–add a 100µF electrolytic across the supply terminals if the emitter stutters during switching.

Mechanical reliability hinges on connection methods. Breadboard prototypes work for testing, but solder joints endure stress better. Use lead-free solder (Sn96.5Ag3Cu0.5) for RoHS compliance; flux-cored variants simplify wetting without extra layers. For off-board connections, 22–24 AWG stranded copper wire resists breakage, while solid core suits fixed installations. Heat-shrink tubing or liquid electrical tape insulates exposed junctions–avoid PVC tape, which degrades under thermal cycling.

Advanced Control Options

Pulse-width modulation (PWM) enables dimming without sacrificing spectral purity. A 555 timer IC at 1–2kHz avoids perceptible flicker; adjust the duty cycle via a 100kΩ potentiometer for precise control. For automated solutions, a microcontroller (ATTiny85 or STM32) lets you program dynamic effects–fade sequences, strobes, or adaptive brightness. Keep traces short to minimize interference, and decouple the IC with a 0.1µF ceramic capacitor near its power pins. Battery-powered PWM setups benefit from a low-dropout regulator (LF33CV) to maintain 5V gate drive as the source depletes.

Overcurrent protection extends lifespan. Polyfuses (resettable) trip at 250mA, preventing damage from short circuits, while a 100mA PTC fuse fits low-power configurations. For irreversible failsafes, a blown fuse (5×20mm, 100mA) is cheaper but requires replacement. Place protection near the power input, upstream of any switching components–never downstream, where transients could bypass it. Combine with a varistor (MOV) if the setup interfaces with inductive loads or shared power rails.

Environmental sealing may be necessary. Outdoor or high-humidity deployments demand conformal coating (acrylic or urethane) over all exposed conductive elements. Silicone-based sprays penetrate gaps better than brush-applied coatings but cure slower. For submersion, epoxy potting (e.g., MG Chemicals 832) offers full encapsulation–ensure no air bubbles remain, as they trap moisture. Temperature extremes (−40°C to 85°C) require diodes with wide operating ranges (e.g., OSRAM Duris S 10), as standard units degrade at 60°C+ junction temperatures.

Diagnostic tools simplify troubleshooting. A multimeter checks forward voltage drop–0.7V deviation indicates degradation. Use a non-contact thermometer to verify resistor surface temperature; sustained readings above 60°C necessitate lower resistance or better heat sinking. For PWM setups, an oscilloscope confirms waveform integrity–ringing or overshoot suggests inadequate grounding. Keep a spare resistor assortment (100Ω–1kΩ) and a handful of emitters on hand; thermal stress often manifests as intermittent failures rather than outright burnout.

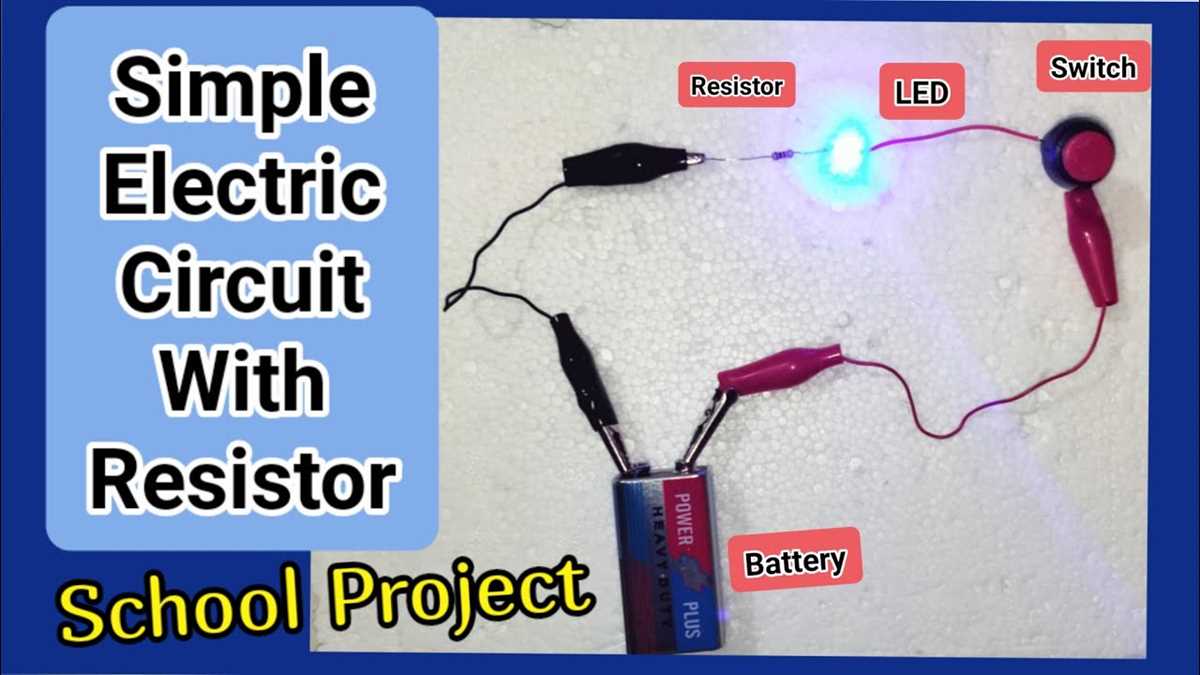

Step-by-Step Assembly of a Single Illuminator with 9V Power Source

Select a standard 20mA forward current emitter with a 2.0–3.2V drop to match the 9V supply. Avoid high-power variants exceeding 50mW dissipation for this setup.

Connect a 330Ω resistor in series to limit the current to ~21mA, calculated as (9V – 2.1V) ÷ 0.021A ≈ 328Ω. Use the nearest standard value (330Ω) for consistency.

Trim the resistor leads to 5mm and solder them directly to the emitter’s anode (longer leg) and cathode (shorter leg). Double-check polarity–reverse connection will prevent activation.

Attach the free resistor lead to the battery snap’s positive (+) terminal and the emitter’s cathode to the negative (–) terminal. Secure connections with shrink tubing or electrical tape to prevent shorts.

Test the setup by briefly engaging the battery. A faint glow confirms correct assembly. If dim or absent, recheck resistor value, polarity, and solder joints.

For longer runtime, add a 100nF capacitor across the power source to smooth voltage spikes. Place it near the emitter’s legs to minimize noise interference.

Enclose the assembly in a non-conductive casing (polycarbonate tube or 3D-printed sleeve) to protect components. Drill a 3mm aperture for light output, ensuring it’s aligned with the emitter’s lens.

Avoid prolonged exposure without heat dissipation–even a 20mA emitter can overheat at 9V if enclosed improperly. Monitor temperature during initial tests; discontinue use if superfluous warmth exceeds 40°C.
