Guide to Connecting LED Trailer Lights Step-by-Step Wiring Setup
Connect the primary power feed directly to the tow hitch’s 12V terminal using 12-gauge heat-resistant cable. This bypasses the factory harness’s voltage drops, ensuring consistent brightness even under load. Secure all splices with heat-shrink tubing and military-grade crimp connectors–standard butt splices will corrode within months.
Route the ground return separately to the chassis frame, avoiding shared paths with brake controllers. A single corroded ground point can cause erratic flashing or complete signal loss during wet conditions. Use a star-pattern distribution: attach four ground wires (one per corner) to a single bolt welded to the frame, not the body sheet metal.
For multi-function assemblies (stop/turn/marker), wire in parallel–not series–to prevent cascade failures. The turn circuit should handle 4.5 amps, the stop circuit 6 amps, and clearance lamps 1.5 amps each. Install a 20-amp fuse within 18 cm of the power source; exceeding this length risks under-protection during short circuits.
Polarity-sensitive modules require direct diode coupling. Skip universal replacement plugs–most aftermarket units reverse the factory wiring order. Verify with a multimeter before installation: red (+) should show 12V, black (-) should read 0V relative to chassis. Reverse polarity will destroy the internal driver within seconds.
For vehicles with PWM tail circuits, add a load resistor (2 ohm, 20W) across the input terminals to prevent hyper-flashing. Standard LED modules lack sufficient resistive load, causing the BCM to trigger error codes. Install the resistor inline with the original bulb socket to maintain compatibility.
Connecting Signal Indicators for Towing Rigs: A Practical Schematic
Use a minimum 18-gauge copper core cable for all exterior connections to prevent voltage drop over runs longer than 5 meters. Ground each module separately to the frame using 22-gauge tinned copper braid–avoid daisy-chaining back to a single terminal. For 7-way connectors, assign pin 2 (12V+) exclusively to brake controllers; pins 4 and 5 carry left/right turn pulses, while pin 6 handles auxiliary stop engagement. Seal all splices with heat-shrink splices pre-filled with adhesive to block moisture ingress, especially below the bumper level where road spray accumulates.
Test every circuit with a 12V pulsed load tester before final securing. Brake circuits demand minimum 3 amps, marker modules require 0.5 amps, and reverse engagement needs 1 amp. If wiring spans exceed 8 meters, insert inline voltage stabilizers (25W, 12V) every 6 meters. Match color codes strictly–brown for marker feeds, yellow for left pulses, green for right, white remains chassis ground.
How to Pinpoint the Right Connector Setup for Your Towing Vehicle’s Signal Circuits

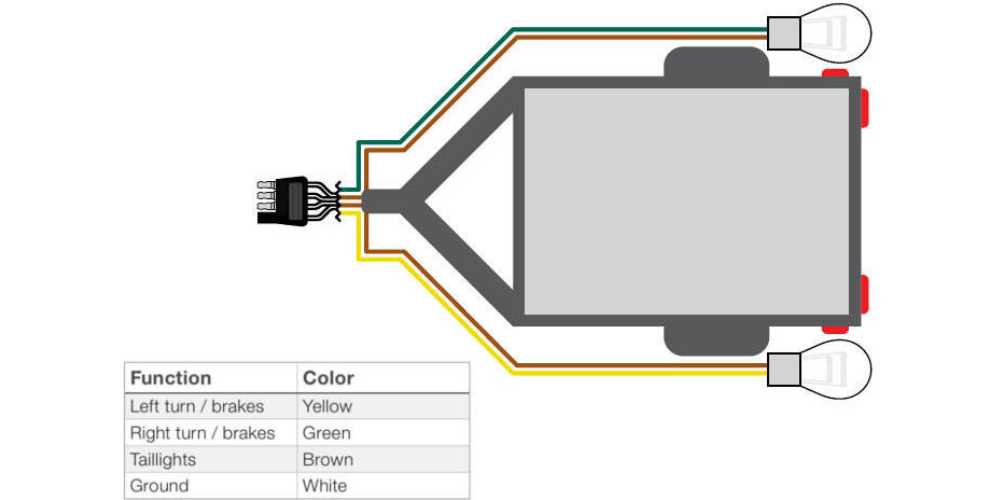

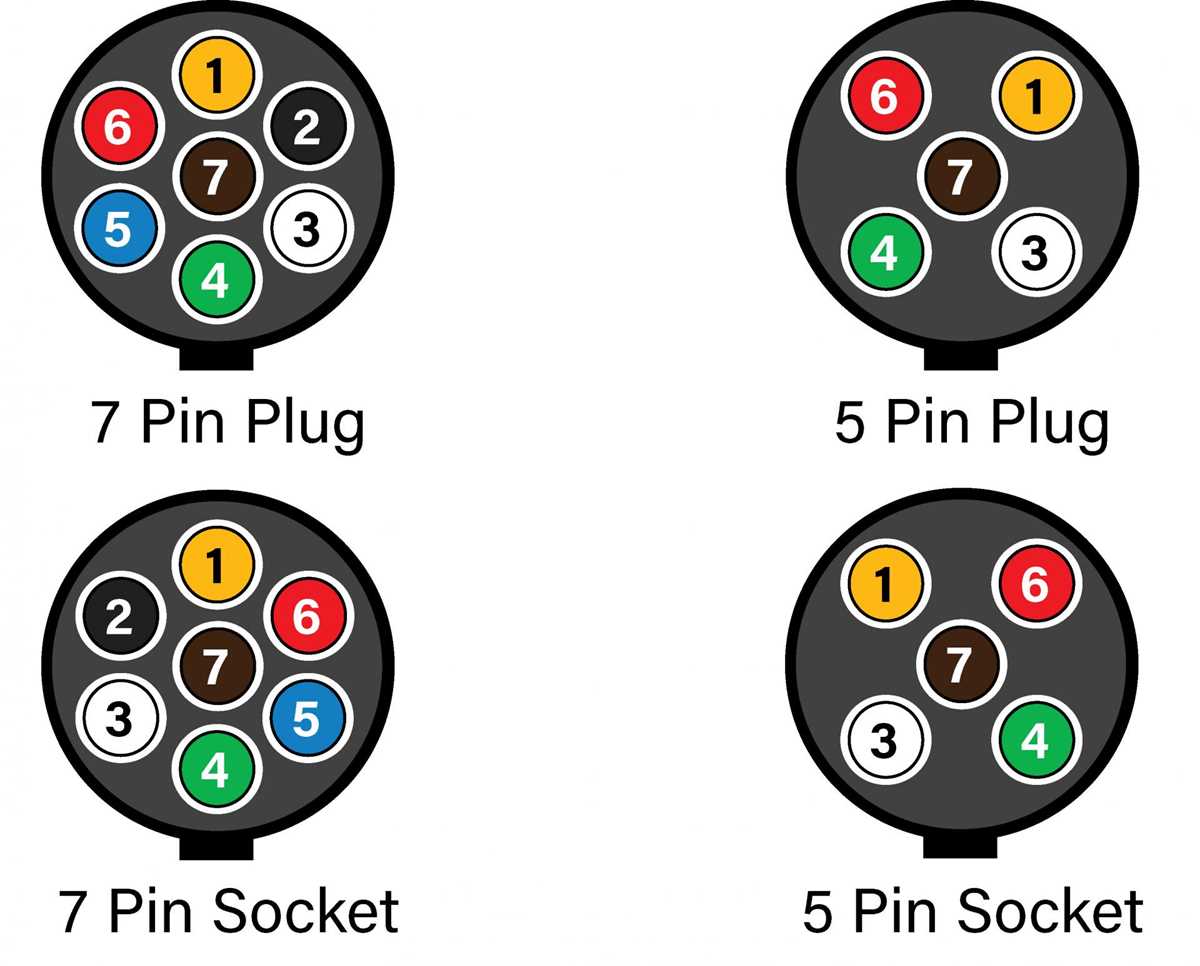

Begin by examining the existing plug on your haulage rig’s rear. Most configurations follow a standardized pin layout, though regional variances exist. North American 4-pin flat connectors use the following assignments: brown (tail markers), yellow (left indicators), green (right indicators), and white (ground). For 7-pin round connectors, add blue (braking system), red (auxiliary power), and black (constant 12V). Verify these against your current setup–mismatched colors often signal the need for adapters.
Check voltage compatibility. Draw a multimeter and test each terminal while activating the corresponding function (e.g., hazard flashers). A reading below 11V suggests insufficient power delivery, often traced to corroded pins, undersized gauge cables, or a struggling alternator. Investigate further if readings fluctuate–intermittent signals point to poor connections that will accelerate connector failure over time.
| Connector Type | Pin Count | Typical Usage |
|---|---|---|
| Flat 4-pin | 4 | Basic utility haulers |
| Round 7-pin (SAE) | 7 | Heavy-duty trailers, RVs |
| Round 13-pin (ISO) | 13 | European caravans |
Trace the existing harness route under the chassis. Look for chafe points where cables run too close to exhaust manifolds, sharp edges, or suspension components–areas notorious for insulation wear. Secure loose sections with zip ties spaced every 18 inches. Replace any sections where copper strands appear frayed; these will introduce resistance and voltage drop, compromising visibility.
Match the number of auxiliary circuits needed. Brake controllers, interior illumination, and refrigeration units demand dedicated power feeds beyond standard marker circuits. Select a harness with enough spare capacity–adding circuits later requires repulling wires, an avoidable hassle. For reference, 16 AWG suffices for marker bulbs, while 12 AWG handles high-draw accessories like electric winches.
Inspect modular connectors for weatherproofing ratings. IP67-rated plugs withstand temporary submersion, critical for off-road rigs or coastal hauling where moisture intrusion corrodes terminals quickly. Apply dielectric grease to both male and female ends during installation–this prevents oxidation without interfering with conductivity.
Prioritize wiring harnesses with pre-attached grommets for factory-like installs. These protect the point where cables penetrate the haulage rig’s body, preventing water seepage into the cab. If none exist, seal entry points with silicone-based sealant after ensuring a tight fit.
Test continuity before finalizing installation. Reconnect each function individually, observing the towed unit’s behavior. Delayed response or flickering often stems from weak grounds–relocate these to unpainted metal surfaces, preferably near the frame rail rather than bolted-on components. Double-check all connections with the multimeter set to continuity mode; a solid beep confirms proper contact.
Adapting Non-Standard Systems

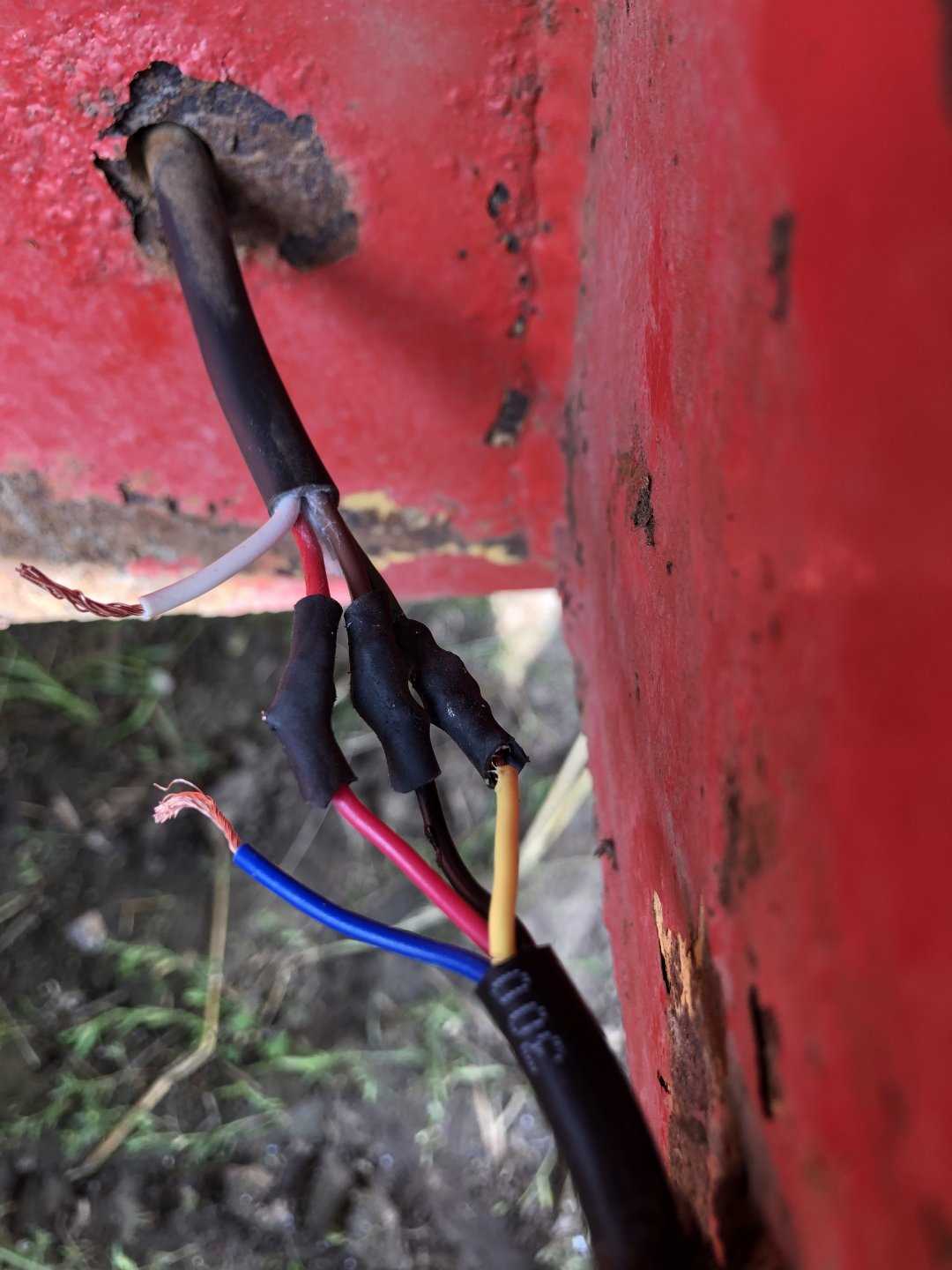

Convert mismatched connectors using universal adapters or splicing. Document each wire’s function with heat-shrink labels–future troubleshooting relies on clarity. For temporary fixes, butt connectors work, but soldered joints with adhesive-lined heat shrink offer durability. Avoid twist-and-tape methods; tape degrades under UV exposure, inviting shorts.
Precise Installation Guide for Vehicle Signal Modules Error-Free

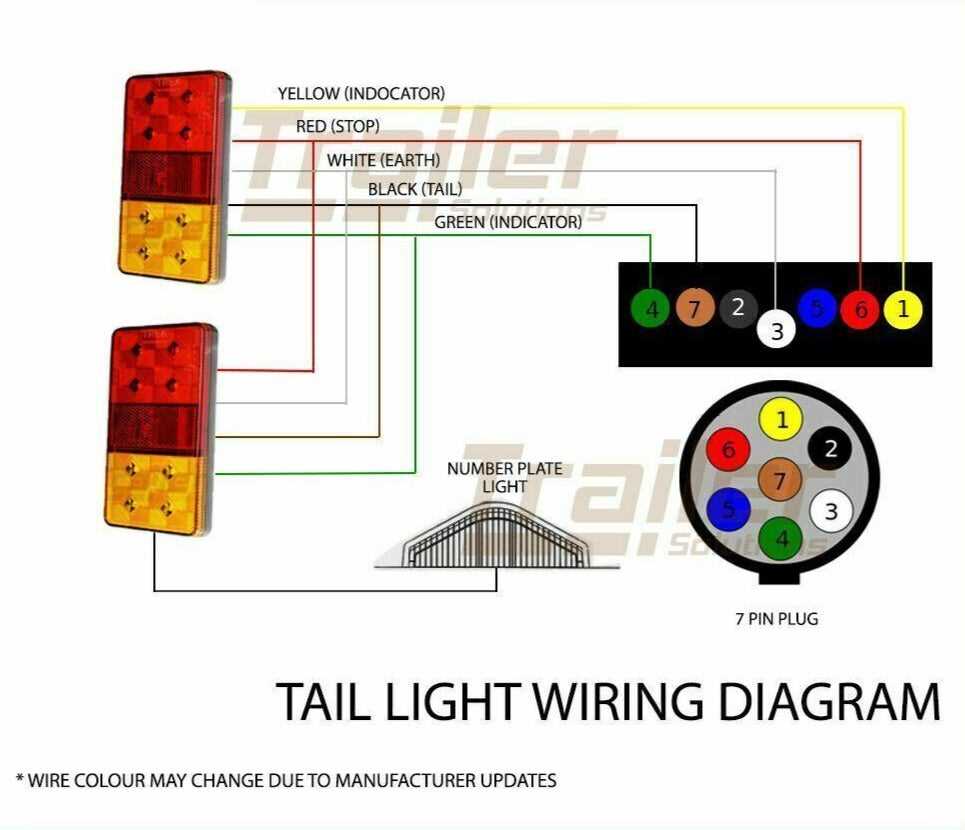

Verify voltage compatibility first. Most aftermarket clusters operate at 12V DC, but confirm this against the manufacturer’s specs using a multimeter. Match the harness connector pins to the schematic–ground (white), brake (red), turn (yellow/amber), and marker (brown)–or risk short circuits. Strip 6mm of insulation from each wire, twist strands tightly, and apply heat-shrink tubing before soldering. Avoid butt connectors; they loosen under vibration.
Grounding and Testing Sequence
- Attach a 14-gauge ground wire directly to the chassis using a stainless-steel bolt–paint-free metal ensures conductivity.
- Activate the vehicle ignition and test functions individually: depress the pedal (brake output), toggle left/right indicators, and switch on side markers.
- If flickering occurs, check for voltage drops (>0.5V at the connector) or corroded terminals–clean with a wire brush and dielectric grease.
Secure all connections with spaced zip ties every 15cm along the conduit, avoiding sharp edges. For multiplexed systems, install a bypass resistor if hyper-flashing persists. Re-test after securing the assembly to confirm no wires chafed during handling–even minor abrasion can disable signals mid-traffic.
Standard Conductor Hues and Their Roles in Vehicle Signal Systems
Use brown as the primary ground return for all running and clearance markers. This conductor carries the negative charge back to the tow vehicle’s battery, completing the circuit without interference. Verify its continuity first–corrosion or poor crimps here can dim or flicker side markers even when bulbs are intact. Splice brown wires with inline crimped connectors rated for 20 amps; soldering risks heat damage to thin-stranded automotive cables.
Green handles the right-turn and brake signals, combining both functions into a single wire. On late-model harnesses it may also feed amber side repeaters. Isolate green at the connector block during diagnostics: a multimeter should read 12 volts when the turn signal lever is toggled right or the brake pedal is pressed. If voltage fluctuates, inspect the flasher relay inside the tow vehicle’s fuse box–replace it if clicks are irregular or absent.
Yellow mirrors green’s functionality but serves the left-side circuits. Expect the same 12-volt pulses during left turns or braking; dual-function bulbs connected to yellow must meet SAE J586 Class 1 photometrics. When retrofitting older rigs, replace any yellow-and-black striped wire–it may indicate an obsolete combined turn/brake signal that modern controllers misinterpret, causing hyper-flash or lamp burnout.
White always designates the main chassis ground, distinct from brown’s auxiliary return. Terminate white wires directly to bare metal surfaces free of paint, rust or undercoating; star washers improve conductivity. For trailers exceeding 20 feet, run a dedicated white conductor from the rear cross-member back to the coupler to prevent voltage drop that dims rear clusters during simultaneous brake and turn activation.
Blue delivers power to reverse lamps, typically 12 volts when the tow vehicle’s gear selector is in reverse. Some European-market trailers merge blue with a pink auxiliary conductor for additional clearance lighting. Keep blue circuits isolated from yellow, green or brown–accidental shorts here can illuminate reverse bulbs while braking, confusing following drivers and failing roadside inspections.
