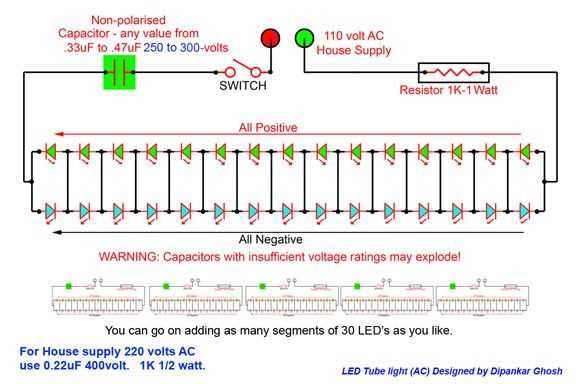

Complete Guide to Wiring LED Tube Lights with Clear Diagrams

Start by isolating the circuit. Turn off power at the main breaker and verify absence of voltage using a multimeter before handling any conductors. Typical installations use 120V or 277V single-phase supplies–confirm the rating on the fixture’s label to avoid mismatches. For direct retrofits, bypass the ballast by cutting its input and output wires, stripping 6–8 mm of insulation from each conductor.

Connect the line voltage wires to the lamp’s input terminals. Most fixtures have labeled leads: L (Live) typically pairs with a black or red wire, N (Neutral) with white, and G (Ground) with green or bare copper. Use twist-on wire connectors rated for the conductor gauge–usually 18–14 AWG. Insulate connections with electrical tape or heat-shrink tubing to prevent short circuits.

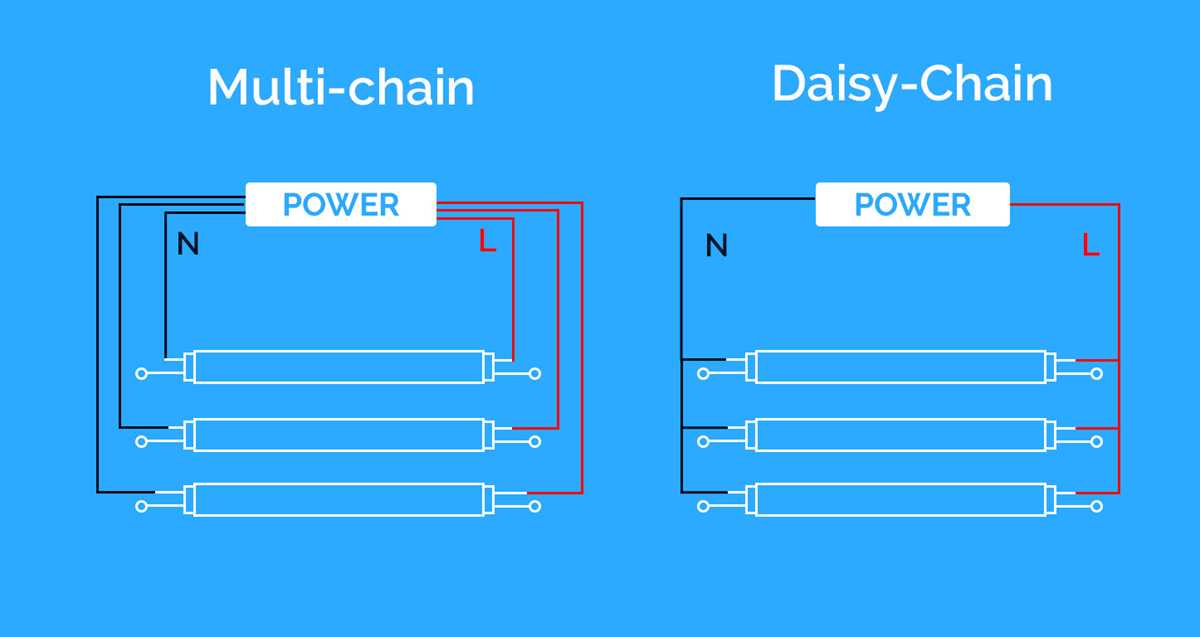

For non-shunted sockets, ensure the tombstones match the lamp’s pin configuration–G13 (dual-pin) is standard. If reusing existing sockets, check for continuity between contacts; corrosion or pitting may require replacement. When wiring parallel circuits, daisy-chain neutrals but run live wires individually to each fixture to maintain equal voltage distribution.

Test the installation before finalizing. Restore power and measure voltage across the lamp terminals–expect within ±5% of nominal supply. If flickering occurs, verify connections for cold solder joints or loose wire nuts. For installations in damp locations, use waterproof connectors and seal entries with silicone-based caulk.

Connecting Linear Illumination Devices: A Direct Guide

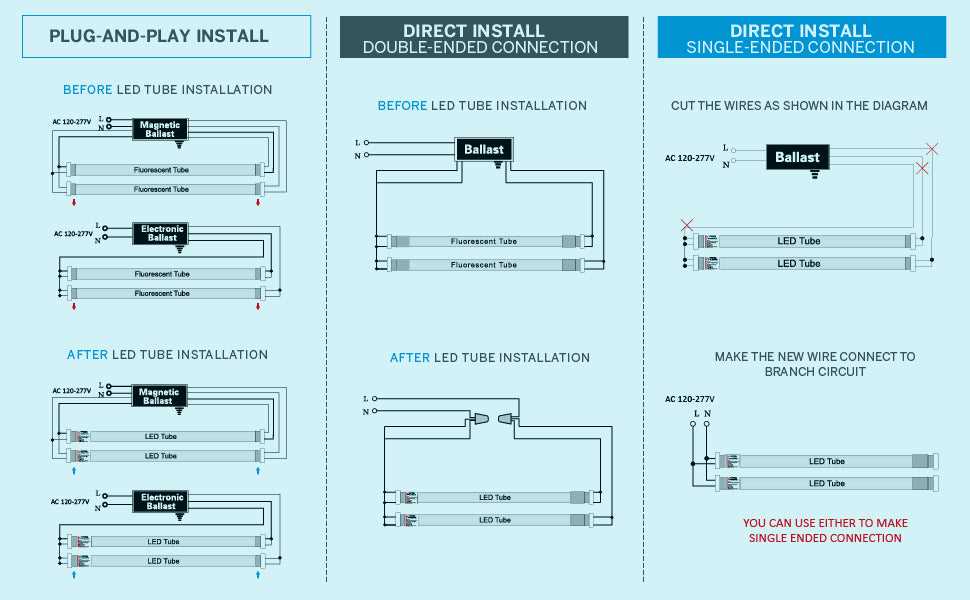

Start by verifying the fixture’s compatibility with the existing ballast. Most modern linear sources operate on direct 120-277V AC input, bypassing outdated ballast systems entirely. If the luminaire lacks integrated drivers, seek retrofit kits labeled “Type A” (ballast-compatible) or “Type B” (ballast-bypass). Type B setups require disconnecting and capping ballast wires, typically black (hot) and white (neutral), before attaching them directly to mains power. Consult the manufacturer’s data sheet–incorrect polarity or voltage mismatch can reduce lifespan by 40% or trigger flickering.

For installations with electronic ballasts, cut all wires connected to the ballast, including any auxiliary red or blue leads, which often serve as rapid-start or preheat circuits. Strip ½ inch of insulation from the mains leads and connect them to the corresponding luminaire terminals using twist-on wire connectors or lever nuts rated for the load. A common mistake involves leaving conductive remnants–inspect terminals with a non-contact voltage tester before restoring power. Ground connections must be bonded to the fixture’s metal housing; failure risks EMI interference and voids UL certification.

When retrofitting T8 or T12 sockets, replace them with shunted sockets if using a Type B setup to prevent high-voltage arcing. Non-shunted sockets work with single-ended power, where hot and neutral enter the same end of the linear device. For two-ended configurations, ensure both ends receive proper polarity–reversal causes instant failure or dim performance. Measure socket-to-socket continuity with a multimeter; resistances above 2 ohms indicate corroded contacts requiring cleaning or replacement.

Label each connection point with heat-shrink tubing or permanent marker to simplify future maintenance. In industrial settings, utilize conduit-compatible fittings and seal junction boxes to meet NEC Article 314.16 requirements. For outdoor or damp locations, apply silicone-based dielectric grease to connections to prevent oxidation. Keep leads as short as possible–excess wire increases capacitive coupling, leading to premature driver degradation.

After installation, energize the circuit and verify operation with a lux meter. Output should stabilize within 30 seconds at ≥90% of rated lumen value. If flickering persists, recheck ballast removal and confirm mains voltage matches the driver’s input range (±10%). Lumen depreciation beyond 7% per 1,000 hours signals incompatible ballast remnants or poor thermal management–ensure the fixture dissipates no more than 1.2W per inch of length at steady-state conditions.

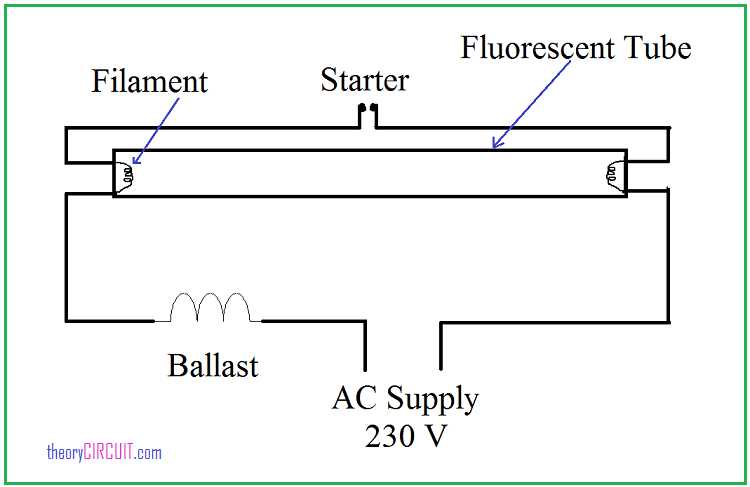

Essential Parts for Fluorescent Linear Fixture Installation

Begin with a compatible electronic driver rated for the fixture’s wattage. Check the input voltage range–most drivers accommodate 100-277V AC, but verify specs against your local supply. For dual-ended setups, choose a non-shunt socket to prevent current bypass. Single-ended configurations require a shunt-compatible base; mismatches cause flickering or failure.

Select a thermally conductive housing. Aluminum extrusions with vented designs improve heat dissipation, extending component lifespan. Avoid plastic housings unless rated for high-temperature use; they trap heat, degrading emitter performance.

Use stranded, 18-20 AWG copper wire for connections. Solid wire risks breakage under vibration or repeated bending. Insulation should be rated for 90°C minimum–standard PVC degrades at typical operating temperatures, leading to shorts. Silicone-jacketed wire is ideal for high-heat environments.

Install a dedicated surge protector if the circuit lacks one. Transients from faulty ballasts or grid fluctuations can destroy drivers. A 500V MOV protector provides adequate safeguarding for most residential and commercial applications.

For dimmable setups, pair the driver with a compatible dimmer. Triac dimmers work poorly with electronic drivers–opt for 0-10V or DALI controllers instead. Verify the driver’s dimming protocol before purchasing; incompatibilities cause erratic behavior or complete shutdown.

Common replacement bases and their specs:

Type	Voltage Rating	Current Capacity	Compatibility
G13 Bi-Pin	600V	2A	Dual-ended, non-shunt
R17d Single Pin	400V	1.5A	Single-ended, shunt
Fa8	250V	1A	Miniature fixtures

Ground the fixture to the chassis. Use a green or bare copper wire, minimum 16 AWG, connected to the housing’s metal frame. Floating grounds risk EMI interference, manifesting as audible hum or visible flicker in nearby audio/video equipment.

Test continuity after installation. Use a multimeter on the 200Ω scale–readings above 1Ω indicate loose connections or oxidized contacts. Re-terminate if resistance exceeds 0.5Ω; higher values cause voltage drops and reduced output.

How to Install a Linear Illumination Fixture: Practical Steps

First, disable power at the circuit breaker to prevent electric shock. Confirm absence of voltage using a non-contact tester or multimeter on the intended connection points–readings should show zero before proceeding.

Identify the existing fixture’s ballast type: magnetic, electronic, or ballast-free. Magnetic models require removal; electronic ones may work with shunted or non-shunted tombstone sockets. Check manufacturer specifications–some illumination strips are designed to bypass ballasts entirely, simplifying installation.

Remove the cover or diffusing lens from the housing. Disconnect wires from the ballast if present, labeling them for reference (e.g., “red–hot,” “blue–neutral”). For ballast-dependent setups, cut wires exiting the ballast, leaving ½ inch of insulation exposed for secure splicing.

Connecting the Fixture Directly

For ballast-bypass configurations, connect the live (typically black or red) input wire to one end of the socket’s tombstone and the neutral (white) to the opposing end. Use twist-on wire connectors (e.g., Ideal 72B), ensuring no exposed copper remains. If tombstones are shunted, clip the jumper wire between contacts before attaching leads.

Ground the fixture if the housing is metallic. Attach a green or bare grounding wire to the chassis using a pre-drilled screw hole, then bond it to the circuit’s ground wire with a crimp connector or grounded wirenut. Verify torque on connections–loose joints generate heat and reduce longevity.

Final Assembly and Testing

Secure the fixture into the housing, aligning mounting clips or screws. Reattach the lens, ensuring it sits flush to prevent dust ingress. Restore power at the breaker and test functionality. Use a lux meter to confirm output matches datasheet values–deviations may indicate reversed polarity or poor contact.

If flickering occurs, recheck tombstone connections and ensure all wirenuts are fully tightened. For dimmable variants, verify compatibility with the existing dimmer–most require a 0–10V controller or trailing-edge dimmer. Label the breaker panel with the new circuit assignment for future reference.

• Tools needed: wire strippers, non-contact voltage tester, 6-in-1 screwdriver, lineman’s pliers.
• Materials: twist-on connectors, heat-shrink tubing (optional), grounding pigtail.
• Safety: rubber-soled shoes, insulated gloves (rated for 600V), and a fiberglass ladder if working overhead.

Record the model number and installation date on a tag affixed inside the housing–this simplifies troubleshooting or retrofits. For outdoor or damp-rated units, apply dielectric grease to connections to prevent corrosion.

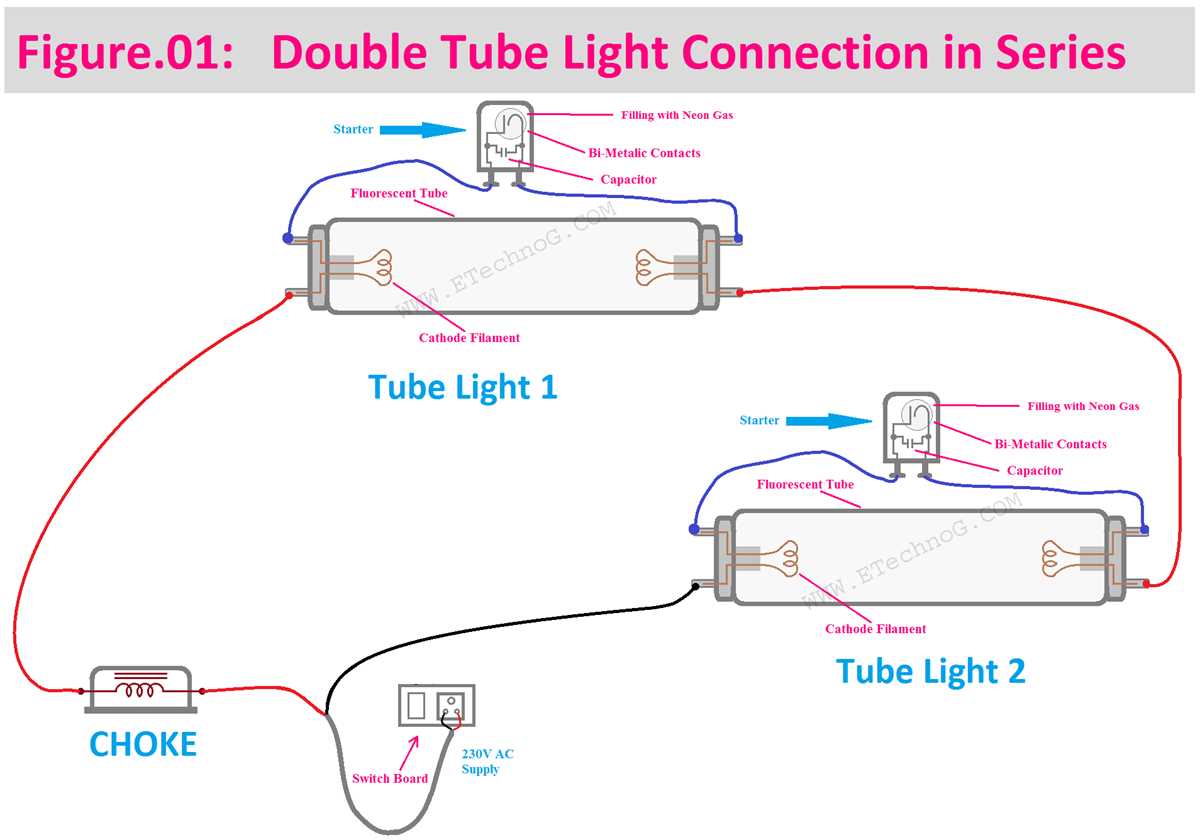

Connecting Multiple Linear Illuminators in Sequential Circuit

Ensure each fixture in the chain receives identical voltage by verifying the total forward voltage drop aligns with the supply’s output. Calculate the cumulative drop by multiplying the required volts-per-unit (typically 12V to 48V) by the number of connected units–exceeding the power source’s capability will dim or disable downstream components. Use a driver rated for 10–20% higher wattage than the combined load to compensate for resistive losses in conductors and connections.

Strip insulation from both ends of each interconnecting cable, exposing 6–8 mm of copper per terminal. Twist strands tightly before crimping ring or spade terminals, then solder for corrosion resistance. Route cables through conduit if ambient conditions include moisture or mechanical stress, securing junctions with waterproof heat-shrink tubing or junction boxes rated IP65 or higher. Avoid daisy-chaining more than 10 units in a single run; instead, split into parallel branches fed from a centralized distribution block.

Supply and Safety Measures

• Select a constant-voltage driver with overcurrent protection (e.g., UL Class 2) to prevent thermal runaway.
• Install a 1A fuse on the positive leg within 15 cm of the first fixture to isolate faults rapidly.
• Test continuity between the ground wire and each metal housing before applying power–resistance should read below 0.5 ohms.
• Maintain separation of at least 25 mm between low-voltage conductors and any 120V/230V lines to prevent induced noise.

1. Polarity reversal during installation can permanently damage internal circuits; mark (+) and (–) terminals with adhesive dots.
2. For dimming compatibility, choose fixtures with integrated PWM circuits and pair them with a 0–10V or DALI controller.
