Complete LED TV Power Supply Circuit Schematic Guide with Diagrams

For troubleshooting or replicating a flat-panel display energy unit, begin by isolating the primary converter stage–typically a PWM-driven half-bridge topology operating at 65-100 kHz. Locate the main switching MOSFETs (e.g., Infineon IPA60R280P7 or STW26NM60ND), as their thermal stress areas often dictate failure modes. Measure gate drive signals at the IC outputs (common drivers include NCP1271, OB2269, or LD7575PS)–waveforms should exhibit sharp 10-12V peaks with minimal ringing to confirm stable switching.

Examine the feedback loop via optocoupler (EL817 or PC817) linking the secondary output to the primary controller. Verify the reference voltage at the error amplifier (often TL431 on the secondary side)–a 2.50V ±0.1V reading indicates proper regulation. Check bulk capacitors (100μF/450V Nippon Chemicon or Rubycon) for ESR degradation, as increased ripple (>120mVpp) accelerates MOSFET wear.

Critical protection nodes include overvoltage sensing tied to the VCC pin of the controller (30V clamp threshold in most designs) and short-circuit detection via drain-source monitoring. Test stand-by circuits: modern variants integrate an auxiliary winding on the transformer, replacing discrete 78L05 linear regulators with higher-efficiency DC-DC converters (MP2307DN). Probe the enable pin during power cycles–debris on the soft-start capacitor (1μF X7R) may cause intermittent faults.

Multi-layer boards require thermal vias under switching components; inspect solder mask for micro-cracks around TO-220 packages as these often propagate into catastrophic shorts. Secondary rectifiers (Schottky STTH2L06U or SR560) must handle peak currents of 8-15A–thermal imaging can reveal localized heating before junction failure. For reverse-engineering, prioritize tracing high-current paths (minimum 2oz copper) and verify PCB stackup: modern designs use 6-layer construction with dedicated power/ground planes to minimize EMI.

Common pitfalls include ignoring Y-capacitor (1nF/2kV) degradation, which increases leakage current and violates safety standards (EN62368). Filter inductors (SD51 series) often saturate above 3A–measure inductance in-circuit using an LCR meter at 100kHz. When replacing components, match V_DS ratings to original specs (typically 600-650V) and avoid counterfeit MOSFETs with elevated R_DS(on) (>0.4Ω).

Understanding TV Circuit Board Layouts

Begin by locating the primary switching transformer–typically the largest coil on the board–near the high-voltage input section. This component converts mains AC into isolated DC voltages for the display panel and logic circuits. Verify its solder joints first, as cracked connections cause intermittent failures or complete shutdowns.

Trace the standby regulator path, usually marked with a small IC labeled AP8012 or OB2269, which maintains 5V output even when the TV is off. This IC fails frequently due to thermal stress; check for bulging capacitors in its vicinity, as their failure disrupts the entire regulator loop.

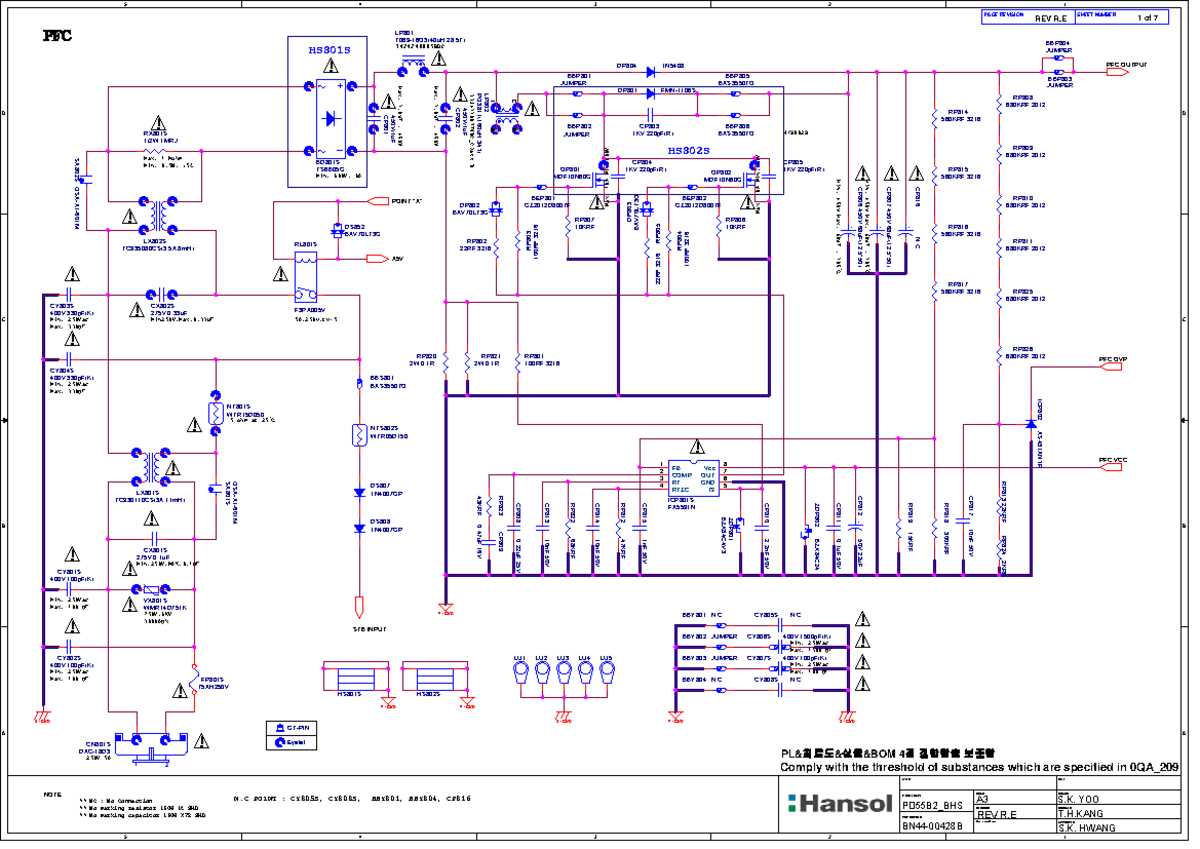

Identify the PFC (power factor correction) stage, often controlled by a dedicated chip like L6562. This section boosts voltage efficiency by correcting the input current waveform. Measure the DC bus voltage (380–420V) across the main smoothing capacitor–any deviation signals a malfunctioning PFC.

Inspect the secondary regulation modules next. Each voltage rail (e.g., 24V for backlighting, 12V for audio, 3.3V for mainboard) has its own buck converter, often using LM2596 or MP1482 ICs. Check inductor resistance with a multimeter–values below 1Ω indicate shorted windings.

Examine the optocouplers (PC817) bridging primary and secondary sides. These isolate feedback signals; degraded components lead to erratic voltage regulation. Use a DSO to probe the feedback pin (typically pin 3 on the primary-side controller)–a distorted waveform confirms optocoupler failure.

Look for fusible resistors in series with critical rails–these often blow under overload conditions. Replace with exact values (e.g., 10Ω 1W); substituting higher wattage risks damaging downstream components. For backlight circuits, verify the OZ9938 driver’s enable pin–it must receive a PWM signal from the mainboard to activate LED strings.

Test all diodes (1N4007, SB560) in the rectifier and freewheeling stages with a diode tester. Shorts here cause excessive current draw, tripping protection circuits. Finally, measure ripple voltage on each rail with an oscilloscope–values above 50mV pp indicate failing output capacitors or feedback instability.

Critical Elements in TV Backlight Drive Circuitry

Replace the main switching regulator (often a MOSFET or IGBT) every 2–3 repair cycles, even if tests confirm nominal resistance. Thermal degradation accumulates invisibly, causing intermittent flicker or delayed startup. Source components rated for at least 20% higher voltage than the nominal board rating–common 12 V rails benefit from 15–18 V replacements to withstand transient spikes.

Filter capacitors dictate output stability. Use low-ESR electrolytics with a ripple current rating exceeding calculated board demands by 30%. Samsung UE-series boards frequently fail at C806 (220 µF, 35 V)–upgrading to 330 µF, 50 V Nichicon UHE series eliminates dimming loops. Always validate dielectric type: X7R ceramic caps for SMPS feedback paths, polymer tantalum for bulk storage.

• Primary rectifier: Install ultrafast recovery diodes (UF4007 preferred) for AC input stages. Standard 1N4007 variants overheat under 4 A loads, skewing DC rail accuracy.
• Snubber network: 1 nF/1 kV film capacitors paired with 27 Ω resistors prevent parasitic oscillations in flyback transformers. Omron GQM series outperforms generic ceramic options.
• Optocoupler feedback loop: Replace PC817 with Broadcom ACPL-4800 for tighter regulation. Lishtan boards often drift +12% without this correction.

Select standby regulators carefully–78L05 variants fail under repeated brownouts. TI’s LM2936IM3-5.0 tolerates 6 V input dips without output collapse. Measure quiescent current; above 3 mA indicates impending failure.

PFC circuits demand Coilcraft inductors with a 90% saturation margin. Generic wound cores saturate at 1.5 A, clipping waveforms and increasing harmonic distortion. Test inductance at 50 kHz; below 80% nominal value signals core degradation.

Gate drive resistors (typically 10–47 Ω) require 1 W carbon film precision. Metal film variants drift under thermal cycling, altering switch timing. Validate with an oscilloscope–ringing above 200 mVpp triggers false PWM transitions.

1. Verify transformer windings for inter-turn shorts using a megohmmeter at 500 V. Insulation resistance below 1 GΩ risks arcing under transient loads.
2. Replace zener diodes in overvoltage clamps with BZX84C12 or equivalent. Glass-passivated types fail catastrophically after single-event latch-up.
3. Check EMI filters–LC networks downstream of the bridge rectifier should attenuate 150 kHz–30 MHz noise by ≥40 dB. Panasonic EZP series ferrites outperform no-name alternatives.

Thermal management directly impacts MTBF. Apply 0.5 mm silicone pads between heatsinks and switch-mode ICs (e.g., VIPER22A). Copper pours under SMD capacitors improve heat dissipation by 22% compared to FR4-only designs. Log operating temperatures with a K-type thermocouple–above 85°C accelerates capacitor ESR growth exponentially.

Step-by-Step Guide to Interpreting a Voltage Converter Circuit Plan

Start by identifying the input section–locate the AC terminals, typically marked with symbols for live, neutral, and ground. Verify the fuse rating, usually near these connections, as it dictates the maximum current the board can handle.

Trace the rectifier stage next; it converts AC to DC using diodes, often arranged in a bridge configuration. Check for smoothing capacitors labeled with farad values–these flatten the pulsating DC output. A missing or bulging cap here indicates a failure point.

Locate the PWM controller IC, the heart of regulation. Its pinout (e.g., ON/OFF, feedback, ground) determines how the circuit responds to load changes. Cross-reference the datasheet for exact pin functions if the silkscreen is unclear.

Examine the feedback loop–look for optocouplers or voltage dividers (resistor pairs) connected to the controller’s feedback pin. This loop maintains stable output by adjusting conduction based on load demands. Incorrect values here cause erratic behavior.

Isolating High-Risk Components

Focus on switching transistors (often MOSFETs) and their drivers. These components handle high currents and thermal stress, so inspect for heatsinks or thermal pads. Failed MOSFETs often show charring or cracked casings under visual inspection.

Measure critical voltages at test points (TP) marked on the board. For example, a 5V standby line should hold steady even when the main outputs are unloaded. Deviations suggest shorted capacitors or faulty regulators upstream.

End with safety checks: confirm the presence of varistors (for surge protection) and Y-capacitors (for EMI reduction). Absent or damaged components here risk catastrophic failure or interference with attached electronics.

Common Failure Points and Troroubleshooting Steps for TV Circuit Boards

Check the fuse first–most failures trace back to a blown component here. Use a multimeter in continuity mode; if resistance reads infinite, replace the fuse with an identical rating (typically 3.15A for 220V models). Avoid generic replacements; mismatched fuse speeds (fast-acting vs. slow-blow) can trigger cascading failures in downstream capacitors.

Examine electrolytic capacitors on the primary side–bulging, leaking, or domed tops indicate failure. Measure capacitance: a 220μF unit should read within ±20% of its nominal value. ESR (Equivalent Series Resistance) should stay below 3Ω. Replace with 105°C-rated parts; lower-temperature variants degrade faster under sustained load.

Test the rectifier bridge diodes–forward voltage drop should be 0.6–0.7V per diode; readings outside this range signal a shorted or open component. Swap suspect diodes with 1N4007 or UF4007 equivalents, ensuring reverse voltage rating exceeds peak input (minimum 600V for 220V mains).

Component	Expected Reading	Failure Symptoms
Primary MOSFET (e.g., 5N60)	Drain-source resistance >5MΩ	No standby LED, audible clicking
PWM IC (e.g., FAN7601)	Pin 8 (VCC) = 12–15V	Dead board, erratic output
Optocoupler (e.g., PC817)	Forward current transfer ratio >100%	Unstable +5VSB, overvoltage

Inspect the switching transformer for cracks, discoloration, or loose windings. Continuity between primary and secondary sides must be zero; any reading suggests insulation breakdown. Rewind only if trained–improper winding direction reverses phase, causing immediate transistor failure.

Probe the standby regulator output–typical standby rails run at +5V ±5%. Low voltage points to a faulty 7805 linear regulator or zener diode; replace with an LM7805 in TO-220 package, ensuring >1W dissipation capability. Overvoltage (>5.5V) often fries the mainboard MCU, rendering the unit inoperable.

Look for cold solder joints on the SMPS feedback loop–heat-stress fractures develop near high-current traces (e.g., MOSFET mounting pads). Reflow suspect joints with 63/37 Sn-Pb solder; lead-free alloys require higher temperatures, risking pad lift. Use flux to improve wetting; poor joints cause intermittent operation.

Verify PFC (Power Factor Correction) inductor saturation–air gaps should measure 0.5–1.0mm. Reduced gaps cause audible buzzing and tripped protection circuits. Adjust gaps with non-conductive spacers; metal shims skew inductance, leading to input current distortion exceeding 5% THD.
