Complete Guide to Designing a Li Ion BMS Circuit Schematic
Begin with a 12-channel analog front-end configured for 4-series cells to ensure balanced monitoring. The primary IC–common choices include Texas Instruments BQ76920 or Analog Devices LTC6804–must handle undervoltage thresholds at 2.5V and overvoltage cutoffs at 4.2V per cell, with a tolerance of ±20mV. Route sensing traces as differential pairs, keeping trace lengths under 5cm to minimize noise pickup. Use a 100nF decoupling capacitor within 2mm of the IC’s power pin to stabilize readings.
For current sensing, deploy a shunt resistor (1mΩ, 1% tolerance) placed on the high-side return path. Amplify the signal with a precision op-amp (INA219 or custom discrete solution) set to a gain of 50V/V, ensuring resolution down to 10mA. Thermal protection requires a NTC thermistor (10kΩ at 25°C) mounted on the battery pack’s hottest cell; configure the ADC input for 10-bit resolution with a 3.3V reference to detect temperatures above 60°C within 0.5s.
Implement dual-level protection: the first stage triggers FETs (e.g., NXP BUK9Y12-40E) at 90% of fault thresholds, while the second stage cuts power entirely via a hardware latch (recoverable only by disconnecting the load). Use a dedicated microcontroller (STM32G0 or PIC16F18325) for state monitoring, polling cell voltages at 10Hz. Store configuration in EEPROM to retain settings after power loss.
Grounding demands a star topology, with the battery’s negative terminal serving as the central reference. Isolate digital and analog grounds using a common-mode choke (10μH) to suppress high-frequency noise. For communication, opt for I2C with pull-up resistors (4.7kΩ to 3.3V) or isolated CAN for longer distances. Include a mosfet-based precharge circuit to limit inrush current to 2A when connecting loads.
Testing requires a 4-wire Kelvin connection for cell voltage measurements and a 6½-digit multimeter (Keysight 34465A) to verify ADC accuracy. Simulate overcurrent conditions with an electronic load set to 50A, ensuring FETs remain cool (ΔT DS3231).
Practical Guide to Lithium Cell Protection System Schematics
Start with a precise layout of balancing resistors connected directly across each cell group–values between 100Ω to 1kΩ at 0.5W minimum power rating prevent thermal runaway during passive balancing. Use MOSFETs rated for 30V or higher with low RDS(on) (under 10mΩ) to handle charging currents up to 5A without excessive heat buildup. Arrange components in a linear sequence: current sensors before the main power path, followed by cell voltage monitors, then the protection switches.
Integrate a bi-directional current shunt (e.g., INA226) positioned at the negative terminal to measure both charge and discharge flows. Ensure the shunt’s resistance stays below 1mΩ to minimize losses–calculate dissipation: P = I² × R. For a 10A system, this translates to 100mW, keeping thermal drift negligible. Connect the shunt’s voltage output to an MCU via a low-pass filter (1kΩ + 10µF) to eliminate noise from switching transients.
| Cell Count | Balancing Current (mA) | MOSFET Selection | Shunt Resistance (mΩ) |
|---|---|---|---|
| 3–4 | 20–50 | SiR480DP (8mΩ) | 0.5–1 |
| 6–8 | 50–100 | CSD17506 (5mΩ) | 0.3–0.7 |
| 10+ | 100–200 | BUK7Y12-55B (4mΩ) | 0.2–0.5 |
Isolate analog reference grounds from digital returns using a star-point topology–connect all sensing lines to a single node near the battery’s negative terminal. Route data traces (I²C/SPI) away from high-current paths, keeping trace lengths under 5cm to avoid induced noise. For MCUs, prioritize models with built-in 12-bit ADCs (e.g., STM32G0 series) to capture ±5mV cell voltage variations accurately.
Implement over-temperature protection with NTC thermistors (10kΩ at 25°C) placed near the center cell–thresholds should trigger at 60°C for warning and 75°C for shutdown. Use a window comparator (LM393) to avoid false trips from transient heat spikes. For undervoltage cutoff, set thresholds at 2.5V per cell with hysteresis (typically 200mV) to prevent oscillation during recovery.
Test the system under cold-start conditions (-20°C)–ensure MOSFET gate drivers deliver adequate voltage (typically 10V–12V) to maintain low RDS(on). For high-power applications, add a pre-charge resistor (10Ω, 5W) to limit inrush current to the capacitors. Verify balancing efficiency by logging cell voltages over a 24-hour charge cycle–deviations beyond ±10mV indicate inadequate resistor sizing or poor thermal management.
Use soldermask-defined vias (not tented) for high-current traces (>5A) to improve heat dissipation–each via adds ~0.5mΩ resistance; aim for 4–6 vias per cm of trace width. For the PCB, select 2oz copper with a 1mm minimum trace width for currents above 10A. Add thermal relief pads to cell connections but omit them for power MOSFETs to ensure direct heat transfer to the ground plane.

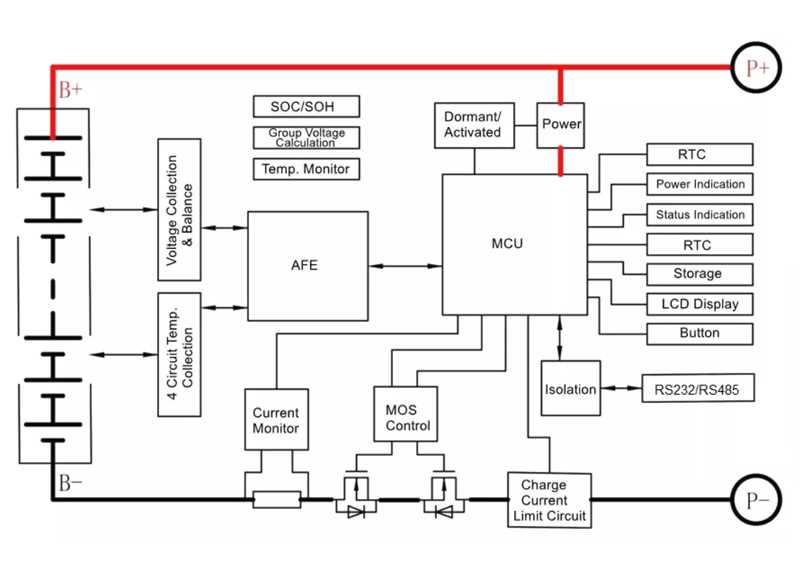

Key Elements of Lithium-Based Protection Systems and Their Roles
Integrate a high-precision cell voltage monitor (e.g., Texas Instruments’ BQ76952) capable of ±1 mV accuracy across 0–5 V range to eliminate drift errors. Pair it with a bidirectional MOSFET array (such as Infineon’s OptiMOS BSC0905ND) rated for 20 A continuous current and 100 µs turn-off time to prevent overcharge-induced thermal runaway. Ensure the current sense amplifier (Analog Devices’ AD8418) has a 2 µV/°C max offset drift and 1 MHz bandwidth to detect microsecond-level short circuits. For temperature protection, deploy NTC thermistors (Vishay NTCLE350) with a 10 kΩ ±1% tolerance at 25°C and a dedicated low-power microcontroller (STMicroelectronics’ STM32G030) with hardware watchdog timer to execute shutdown within 50 ms of exceeding 80°C.
Data Communication and Redundancy
Implement isolated CAN FD transceivers (NXP TJA1044GT) for noise-resistant pack-to-host communication, ensuring 5 Mbps data rates and ±58 V fault tolerance. Add a dual-channel EEPROM (Microchip 24AA025) for storing 30-day historical logs of voltage, current, and temperature anomalies, enabling post-failure diagnostics. Include a hardware-based redundant protection IC (Renesas ISL94212) with independent comparators to override primary control if the main processor fails–specifically configured for 4.25 V overvoltage and 2.5 V undervoltage thresholds, with a 3 A hysteresis to prevent false trips.

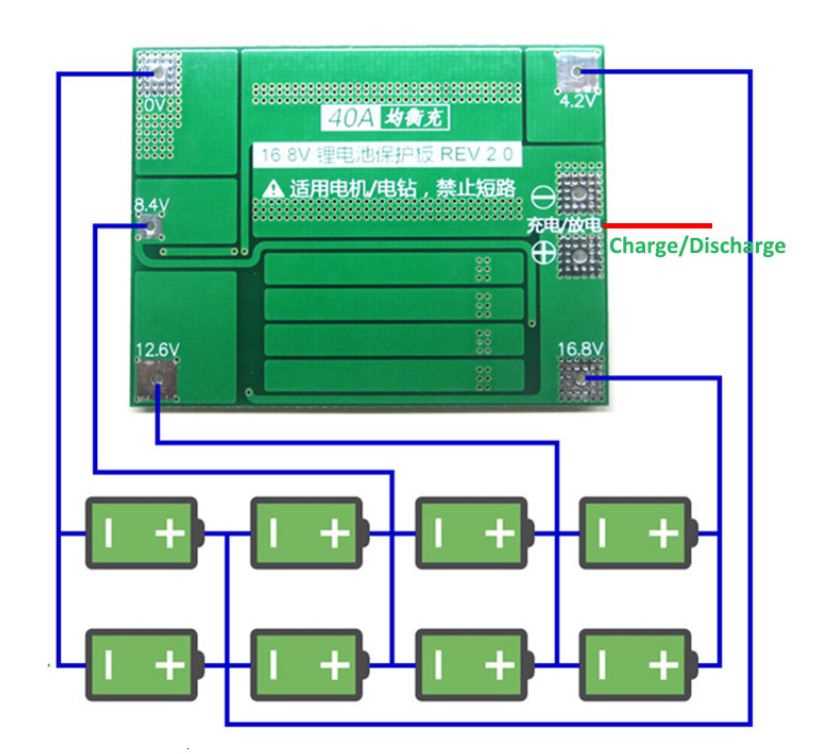

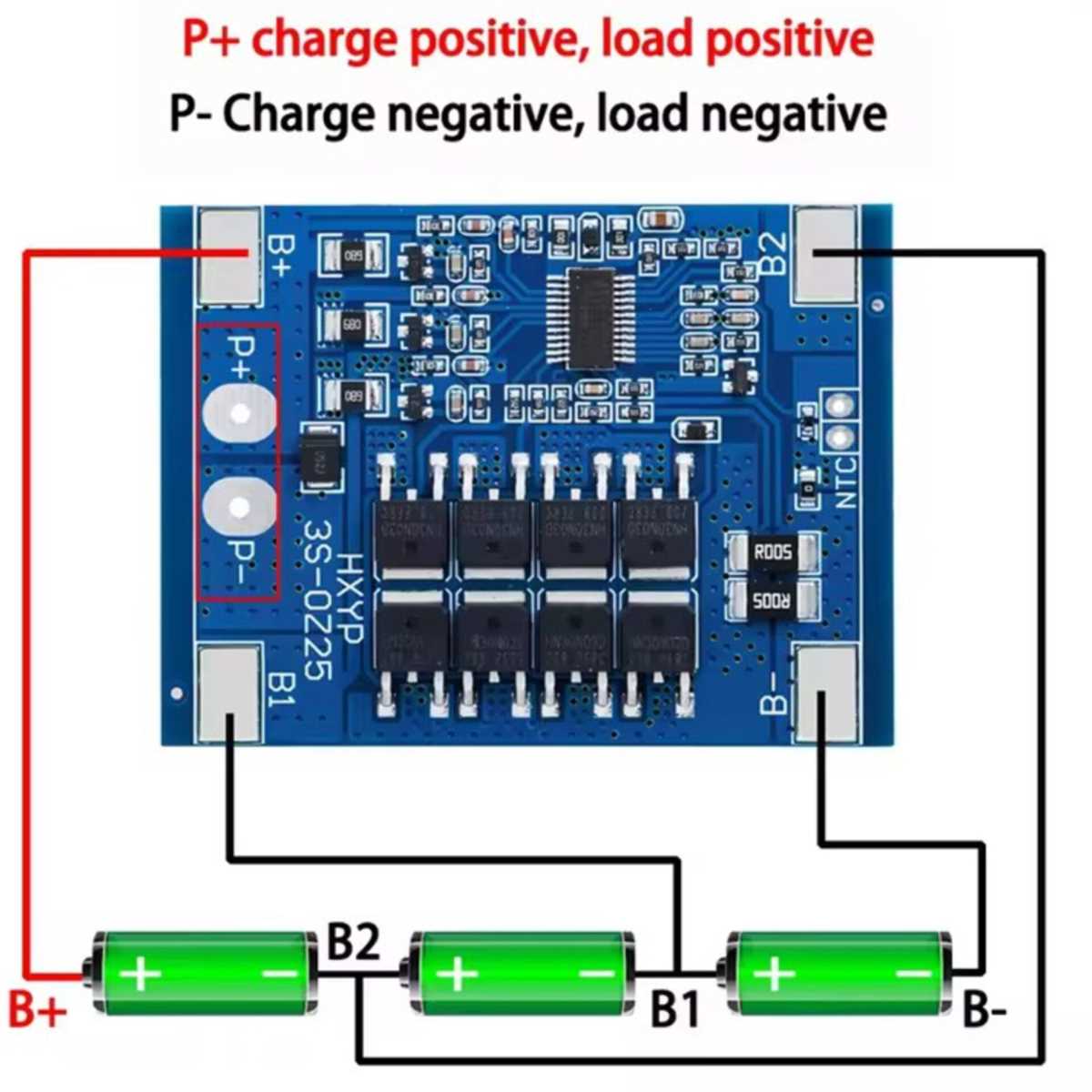

Step-by-Step Wiring Guide for a 4-Cell Lithium Battery Protection System
Begin by positioning the control board centrally between the battery stack and the load. Ensure the board’s thermal pad faces downward if using a metal enclosure to prevent short circuits.
Connect the negative terminal of the first cell to the B- pad on the board using 12 AWG silicone wire. Solder directly or use a high-current connector rated for at least 20A. Repeat this process for the positive terminal of the last cell, linking it to P+ with identical wire gauge.
For balancing leads, strip 6mm of insulation from each cell’s midpoint wire (typically 22-24 AWG). Attach the first cell’s negative tap to the B1 terminal, the second cell’s tap to B2, continuing sequentially to B4. Verify polarity with a multimeter–mistakes here will disable balancing.
Use a 5A fuse inline between P+ and the load’s positive input. For 4S configurations, the fuse should be sized to 1.2x the maximum continuous discharge rate (e.g., 15A for a 12A system). Avoid blade-style fuses for high-vibration applications; opt for ceramic or polymer types instead.
- Check the board’s datasheet for temperature sensor requirements–some models require a 10k NTC thermistor soldered to T- and T+ pads.
- If the system includes a charging input, wire the charger’s positive to C+ and negative to B-, ensuring voltage matches the board’s specs (typically 16.8V–17.2V for 4-cell stacks).
- For communication protocols, locate the UART or I2C pads if monitoring via microcontroller–default baud rate is often 9600bps.
Before final assembly, power the system with a benchtop supply at 2V below nominal voltage (e.g., 12V for 4S). Observe the board’s status LED: a solid light indicates normal operation, while rapid blinking suggests a fault (check cell voltage with a multimeter).
Secure all connections with adhesive-lined heatshrink tubing, overlapping wire entries by 10mm to prevent moisture ingress. For high-power applications, apply thermal paste to the board’s underside if mounting to a heatsink–even passive cooling extends lifespan.
Test under load by drawing 50% of the system’s rated current for 10 minutes. Measure voltage at P+ and B-–a drop exceeding 0.1V indicates undersized wiring or loose connections. Repeat balancing by charging to 4.1V per cell and monitoring equalization over 30 minutes.
Common Pitfalls in Battery Protection System Design and Corrective Measures
Neglecting thermal runaway prevention through inadequate current sensing resistors leads to catastrophic failure. Specify shunt resistors with a tolerance no worse than ±1% and a temperature coefficient below 50 ppm/°C. Avoid soldering shunts directly to the PCB–use threaded terminals for high-discharge applications, as solder joints degrade under cyclic thermal stress. Position the sensing traces on the same copper layer as the shunt to eliminate thermocouple effects, which can introduce millivolt-level errors at elevated temperatures.
- Overlooking parasitic inductance in balancing traces: route active equalization paths with controlled impedance, keeping loop area under 1 cm² to limit induced voltages during switching transients. Use Kelvin connections for passive balancing resistors to eliminate lead resistance errors.
- Assuming uniform cell degradation: integrate a coulomb-counting algorithm with temperature-compensated voltage thresholds. Replace linear look-up tables with quadratic interpolations for state-of-charge estimation, reducing errors from 8% to below 2% across a −20°C to 60°C operating range.
- Ignoring ground bounce: separate analog and digital grounds via star topology, connecting at a single point near the microcontroller’s power pin. Use ferrite beads on digital lines to suppress high-frequency noise, particularly in designs with switching regulators.
Underestimating sleep-mode power draw drains backup batteries within months. Select microcontrollers with sub-microamp standby currents and disable unused peripherals via hardware registers. Implement a wake-on-change interrupt tied to cell voltage, avoiding polling loops that waste power. Test prototypes with a precision ammeter under real-world temperature cycles–many datasheet values are optimistic at best.
