How to Build and Read a Light Switch Wiring Diagram Step by Step

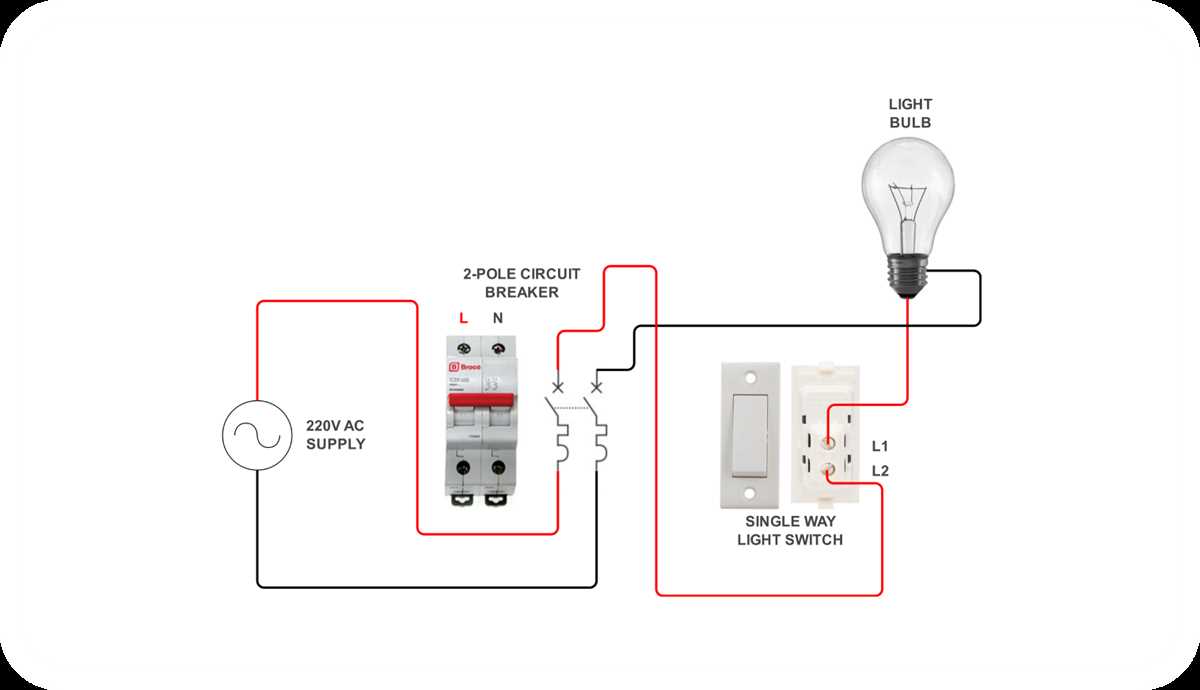

Start by identifying the power source voltage–typically 120V or 230V AC for residential setups. Use a double-pole breaker rated for 15A or 20A to isolate both live and neutral lines. Connect the incoming supply wires to the breaker terminals, ensuring tight screws to prevent arcing. Label each conductor with heat-shrink tubing for clarity.

Select a two-way toggle mechanism or a momentary pushbutton based on application needs. For basic on/off functions, a single-pole configuration suffices. For multi-location control, integrate intermediate relays or use cross-over wiring. Place the control element near the entrance or in an accessible spot, avoiding locations with moisture or direct sunlight.

For low-voltage setups (under 50V DC), opt for solid-state relays or optocouplers to isolate high and low voltage sections. Use 18AWG wire for signal paths and 14AWG for load circuits. Ground all metallic components to the main panel’s grounding bus to prevent stray currents. Test continuity with a multimeter before energizing.

Incorporate a fuse or resettable circuit protector rated 125% of the expected current draw. For inductive loads like motors, add a flyback diode or snubber circuit to suppress voltage spikes. Mark all connections with numbered tags or color-coding following local electrical codes (e.g., NEC, IEC).

For dimming applications, use a triac-based controller with a neutral reference. Ensure compatibility with LED or incandescent loads–some dimmers require minimum wattage. If integrating smart controls, include a dedicated neutral wire for reliable power to microcontrollers or radio modules.

Avoid daisy-chaining multiple devices on a single circuit; distribute loads across separate branches to prevent overload. Keep wire runs under 50 feet to minimize voltage drop. Secure connections with crimp terminals or solder, then cover with heat-shrink tubing or electrical tape.

Electrical Toggle Wiring Blueprint Essentials

Begin by ensuring the circuit breaker is off before handling any connections. Use a multimeter to verify the absence of voltage at the feed terminals–0V confirms safety. Standard residential toggles (SPST or SPDT) require a neutral wire in modern installations (NEC 404.2(C)); omit this only in pre-2011 retrofits where local codes permit. For single-pole setups, connect the live wire (black or red) to the brass screw, the neutral (white) to the silver screw if present, and the ground (bare/green) to the green screw. For three-way configurations, use 14/3 or 12/3 cable between toggles; the “traveler” wires (red and black) must link the dark-colored screws on each unit, while the common screw (marked or black) receives the live feed or output to the fixture.

• Wire Gauge: 14 AWG for 15A circuits, 12 AWG for 20A.
• Terminal Torque: 12–15 in-lbs for brass screws to prevent loosening.
• Smart Controls: Ensure compatibility with the fixture’s wattage; most dimmers support 600W incandescent or 150W LED.
• GFCI Protection: Required within 6 feet of sinks or outdoors (NEC 210.8).
• Junction Box: Minimum 18 cubic inches for 14 AWG wires (NEC 314.16).

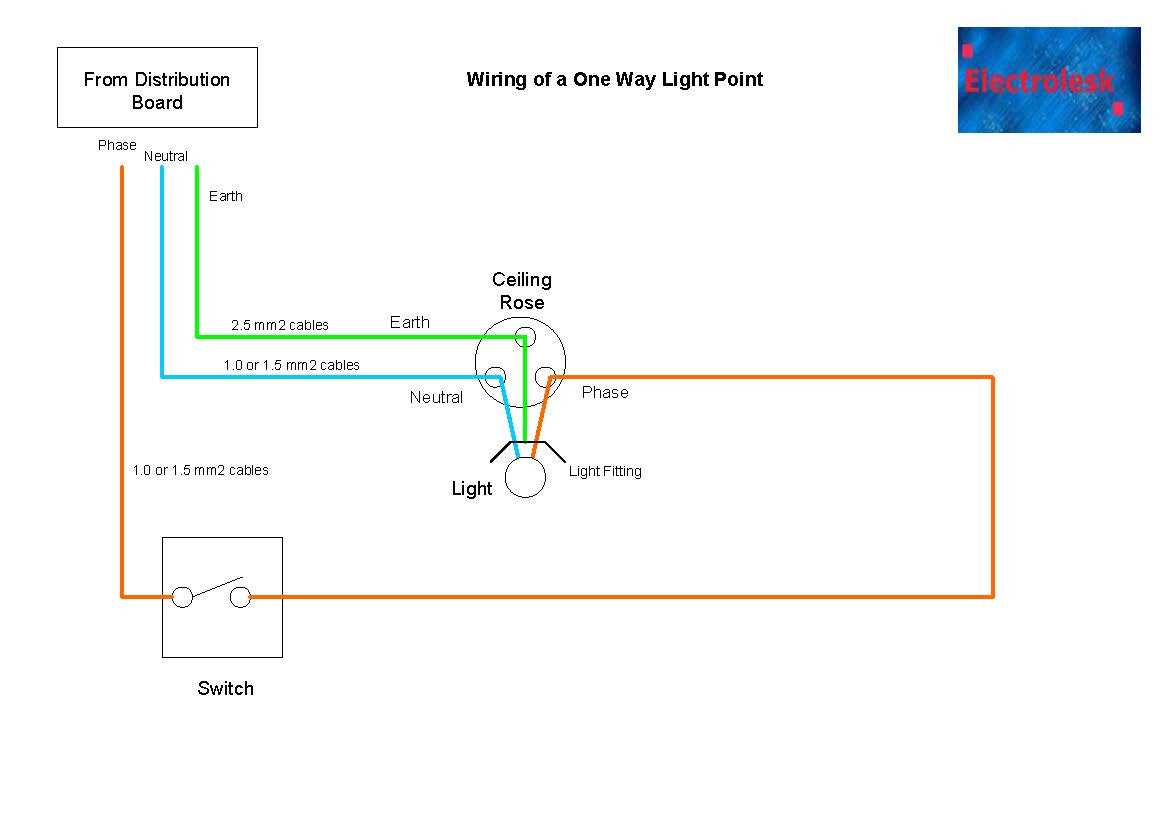

Key Elements of a One-Way Control Device Wiring Layout

Begin by sourcing a 15-ampere rated toggle mechanism, ensuring the ampacity aligns with the conductor gauge–14 AWG copper wires for 15A circuits, 12 AWG for 20A. Verify the manufacturer’s UL listing to confirm compliance with NEC or local electrical codes. Non-metallic sheathed cables (NM-B) are standard, but armored variants (AC) may be required in exposed or damp locations.

Select a wall-mounted box rated for the intended load. Plastic junction enclosures (PVC) are cost-effective for dry interiors, while galvanized steel boxes offer superior grounding and durability in commercial settings. Ensure the box depth accommodates the wiring slack–minimum 18 cubic inches for two 14 AWG conductors plus one device. Surface-mounted boxes simplify retrofits; flush-mounted types reduce protrusion but demand precise wall-cutting.

Integrate a grounding conductor, even if the circuit includes a neutral. Copper ground wires must bond to both the metallic box (if used) and the control’s grounding terminal. For plastic boxes, attach the ground directly to the device’s screw. Omit ground-only pigtails unless required by local amendments–NEC permits an exception for existing systems where retrofitting is impractical, but this risks equipment damage during faults.

Use twist-on wire connectors (e.g., Ideal Wing-Nut) for splicing, matching the connector size to the combined wire fill. For 14 AWG, yellow connectors suffice; red for 12 AWG. Pre-twist strands clockwise before applying connectors to prevent loosening under vibration. Avoid back-wiring clamps–terminal screws provide more reliable contact, especially in aluminum conductors prone to cold creep.

Label conductors at both ends for maintenance. Hot wires (typically black or red) terminate at the brass screw; neutral (white) bypasses the device unless a dual-function neutral is required. Mark switched neutrals with tape to avoid misidentification. Test continuity with a multimeter before energizing: 0 ohms across closed contacts, infinite resistance when open.

Secure cables within 12 inches of the box using cable staples or straps, spaced no farther than 4.5 feet apart. Frayed sheathing demands replacement–electrical tape repairs are temporary. For overhead installations, support runs every 6 feet to prevent sag-induced stress on terminals. Use arc-fault circuit interrupters (AFCIs) for bedroom or living area circuits–NEC Section 210.12 mandates them in most residential new builds.

Step-by-Step Wiring Guide for a Standard Wall Control

Before touching any wires, turn off power at the circuit breaker for the specific room or zone you’re working in. Verify the absence of current using a non-contact voltage tester on both terminal screws of the existing device. A single-pole unit typically has two brass screws–one for the incoming hot conductor (usually black) and one for the outgoing feed to the fixture (often red or another black). If present, ground should connect to the green screw or bare copper wire.

Strip ½ inch of insulation from each conductor using wire strippers, ensuring clean cuts without nicks. Loop the exposed end clockwise around the corresponding screw, matching the original orientation to avoid reversing polarity. Tighten screws firmly–6-8 inch-pounds of torque–using a small flathead screwdriver; overtightening can strip threads or damage copper strands. For push-in connections, insert straight ends fully until a mechanical click confirms secure seating, though screw terminals are generally more reliable.

Position the assembled device into the electrical box, carefully folding wires to fit without crushing insulation. Align mounting holes with box ears and secure with two 6-32 screws, snug but not overtightened. Snap on the faceplate and restore power at the breaker. Test functionality by toggling the actuator–if the connected load fails to energize, recheck wire connections for correct screw placement, loose strands, or improperly seated conductors.

For a three-way setup (two actuators controlling one load), identify the common terminal–marked with a darker screw–connecting the incoming hot to one unit and the outgoing travelers (red/black) to the remaining terminals. Pair wires consistently between both controls; miswiring results in erratic operation. Label all conductors during disassembly to simplify reassembly, especially in boxes with multiple circuits.

Common Errors in Circuit Representation Drafting

Avoid omitting polarity markers on connectors, even in simplified drafts. Failing to label “+” and “-” on power rails leads to reversed component installation during prototyping, causing immediate failure or damage. For bipolar transistors (BJTs), ensure the emitter, base, and collector are correctly positioned–mislabeling these terminals alters expected behavior entirely. Always cross-check symbol orientation against datasheets before finalizing the draft.

Resistors, capacitors, and semiconductors must retain consistent scaling relative to one another. Drawing a 10kΩ resistor the same size as a 22pF capacitor creates visual confusion and misleads during assembly. Use a logarithmic scale for passive components where physical size correlates with value–smaller symbols for lower values, larger for higher. If software lacks this feature, manually adjust sizes before exporting.

Ground symbols scattered without logical grouping disrupt readability. A single ground cluster near each functional block reduces tracing effort and prevents “signal maze” issues. Furthermore, distinguish signal ground from chassis ground using distinct symbols: a downward triangle for signal, a three-line variation for chassis. Mixed grounds in sensitive analog circuits introduce noise and unpredictable glitches.

Verify every connection endpoint before rendering. Floating wires–lines that terminate without joining another element–are overlooked in digital tools’ auto-routing but become critical during PCB etching. Enable grid snap at 0.1″ or 0.05″ intervals to ensure alignment; misaligned pins on IC sockets or DIP packages force manual wire-bending, risking short circuits. Export drafts as DXF or Gerber files, then re-import to confirm no gaps exist between pads and traces.

How to Decode Control Device Symbols in Electrical Blueprints

Identify standard symbols first–most toggle actuators follow recognized IEC or ANSI conventions. A simple break contact (normally open) appears as two parallel lines with a gap, while a make contact (normally closed) shows an intersecting diagonal. Momentary pushbuttons add an arrowhead or curved line to indicate spring return. Components like relays, timers, or rotary selectors carry distinct markers: coils (zigzag), delayed contacts (clock symbol), or positionally indexed circles. Always cross-reference ambiguous marks with the legend or manufacturer datasheets.

Trace circuit paths from power source to load without skipping auxiliary elements. Series connections form unbroken chains; parallel paths branch at T-junctions or nodes. Color-coded lines (red for hot, black for neutral) simplify tracing, though not all prints include them. Verify voltage ratings: switches rated for low current may explode if handling industrial amperages. High-voltage isolators often mirror breaker symbols but add arc suppression icons–look for arc-shaped lines near contacts.

Symbol Variant	Function	Common Applications
Two lines + gap	Single-pole, single-throw (SPST)	Basic on/off toggles
Three lines T-shaped	Single-pole, double-throw (SPDT)	Selector between two loads
Arrow + circle	Momentary pushbutton	Start/stop controls
Zigzag + contacts	Relay coil	Automation, remote switching

Pay attention to orientation–vertical or horizontal alignment can denote actuator movement direction. Latching devices show a latch lever symbol intersecting the contact paths. Multi-position selectors stack multiple circles or arcs, each labeled with position codes (e.g., 1-2-3). Pressure-sensitive pads use dashed lines linking external squares. For polarized components, “+” and “-” labels mark terminal polarity; reverse wiring risks failure or fire.

Check for hidden annotations–small text flags indicate fused contacts, surge suppression, or thermal overload protection. Older blueprints use squiggly lines (thermal cutoff) or capacitor symbols (snubber circuits). Validate footprints: incompatible symbols between North American and European standards require conversion. If in doubt, measure continuity with a multimeter–schematic accuracy always trumps assumption.
