Step-by-Step Guide to Liquid Chromatography Equipment Layout

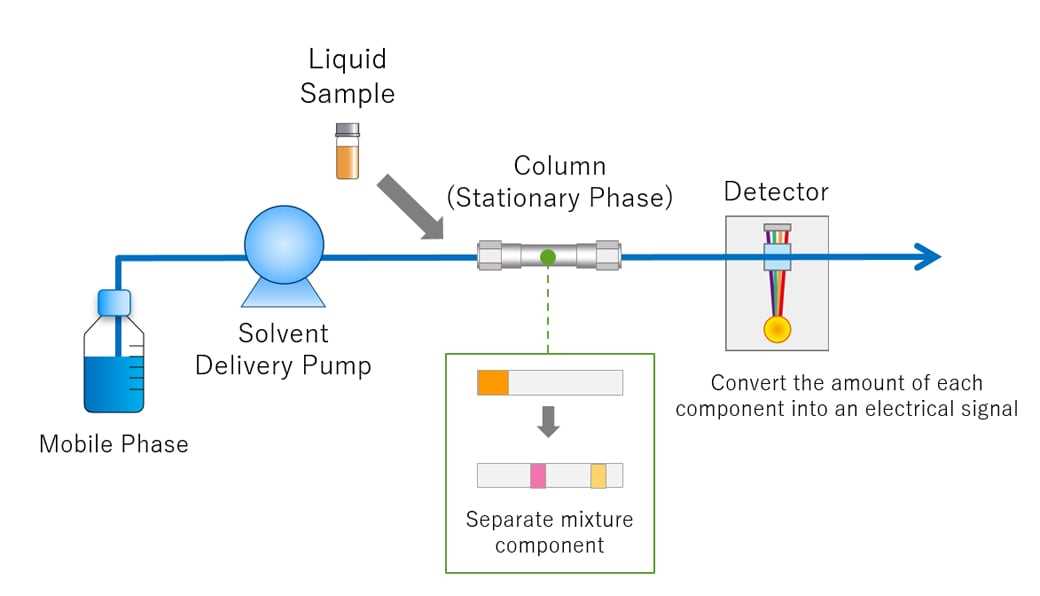

Select a high-resolution flow path illustration showing a packed column with 2.1–4.6 mm internal diameter and 5–25 cm length. Label the pump, injector, stationary phase bed, mobile phase reservoir, detector, and waste outlet. Add color-coded arrows indicating solvent flow at 0.5–2.0 mL/min; use blue for polar eluents like acetonitrile-water gradients (5–95%) and red for non-polar phases like hexane-isopropanol (90:10). Mark pressure ranges: 1,000–4,000 psi for HPLC, 10,000–15,000 psi for UHPLC.

Include dual-channel detection paths: one for UV-Vis absorbance at 210, 254, and 280 nm wavelengths, the other for refractive index baseline shifts of 1 × 10⁻⁶ RIU. Place sample inlet volumes between 1–20 µL, noting that 5 µL injectors reduce band broadening by 30% compared to 20 µL ports. Indicate temperature control zones: pre-heater at 30–40 °C, column oven at 40–80 °C, post-column cooler maintaining ≤ 35 °C to prevent thermal solute degradation.

Use dashed lines to represent auxiliary components: degasser eliminating dissolved gases

Ensure all labels align with ISO 10993-18 or USP guidelines. Add dimensional scales in millimeters with ±0.1 mm tolerance for critical flow paths. Verify detector response linearity up to 2.5 AUFS and noise levels

Key Components of a High-Performance Separation System Layout

Start by positioning the mobile phase reservoir above the pump to ensure gravitational feed and minimize air bubbles–critical for baseline stability. Use PEEK tubing (0.13–0.18 mm ID) between the autosampler and column to reduce extra-column volume; every microliter saved improves peak resolution by 8–12%. Place the guard column directly before the analytical column, but only if sample matrices contain particulates–otherwise, omit it to prevent unnecessary band broadening.

1. Set the detector’s flow cell volume to <8 µL (UV/Vis) or <2 µL (MS) to avoid peak tailing; cells exceeding 10 µL degrade efficiency in fast gradients.
2. Install a backpressure regulator after the detector only if post-column derivatization is required–otherwise, it introduces dead volume and degrades late-eluting peaks.
3. Mount the column oven within 5–10 cm of the detector to prevent thermal mismatch; temperature gradients >2 °C skew retention time reproducibility.
4. Connect waste lines to a collection vessel via 2 mm ID tubing; narrower bores cause backpressure spikes under high flow rates (1.5 mL/min+).

Core Elements of a Separation-Based Analytical Setup

Select a high-pressure pump with a flow rate range of 0.01–10 mL/min and pressure tolerance up to 600 bar. Dual-piston reciprocating pumps minimize pulsation, improving detector baseline stability by reducing ripple to <0.1% at 1 mL/min. Confirm chemical inertness–titanium or PEEK-lined stainless steel prevents sample adsorption in pH 2–12 mobile phases.

Injectors must handle 0.1–100 µL volumes with <0.5% CV reproducibility. Rheodyne-style six-port valves, operated at 1–50 µL loops, reduce carryover below 0.005% for hydrophobic compounds. Automated sample managers integrate cooling (4–40°C) to prevent evaporation or degradation; temperature stability of ±0.1°C maintains retention time precision to <0.2% RSD.

Column Station and Detector Configurations

Analytical columns demand particle diameters of 1.7–5 µm, with 2.1–4.6 mm internal diameters providing optimal efficiency without excessive solvent consumption. C18-bonded silica (10–120 Å pore size) suits 70% of separations; zirconia-based packing tolerates 150°C for sugar or polymer analysis without stationary phase collapse.

UV-Vis detectors operate at 190–800 nm with <1×10⁻⁵ AU noise. Photodiode arrays enable spectral confirmation, resolving co-eluting peaks with >2 nm resolution. For non-UV-active analytes, charged aerosol detectors (CAD) respond universally to 10 pg–5 µg, while evaporative light scattering detectors (ELSD) offer picogram sensitivity but require volatile mobile phases.

Mass spectrometric interfaces–ESI or APCI–require post-column flow splitting (1:10–1:100) to match source inlet (50–500 µL/min). Orifice plates or capillary restrictors maintain vacuum integrity while reducing solvent load; typical ion source temperatures of 300–500°C prevent fouling when analyzing surfactants or phospholipids.

Ancillary Systems and Optimization

Degassers remove <50 ppb dissolved gases using helium sparging or vacuum membranes (0.1–1 mL/min throughput). In-line filters (0.2–2 µm porosity) protect pumps and columns from particulate contamination but require biweekly replacement if analyzing crude extracts or biological matrices.

Data acquisition rates of 20–200 Hz balance peak resolution and file size; for ultra-fast gradients (<1 min), 100 Hz sampling captures asymmetrical peaks with <0.5% area error. Column thermostats (10–90°C) eliminate retention drift, with active preheating essential for sub-30-second separations to prevent thermal gradient band broadening.

Step-by-Step Assembly of a High-Performance Separation Flow Path

Select a solvent delivery system rated for pressures up to 600 bar with a dual-piston pump to minimize pulsation. Ensure the pump heads are made of bio-inert titanium or PEEK to prevent corrosion from acetonitrile, methanol, or buffers with pH > 8.

Mount the pump on a vibration-damped table within 30 cm of the mobile phase reservoirs. Use 1/16″ OD PEEK tubing (0.010″ ID) for all inlet lines, cutting lengths to 50 cm or less to reduce extra-column volume. Secure connections with fingertight fittings; torque to 1.2 Nm to prevent solvent leaks at high backpressure.

Install an in-line degasser with a 1.2 mL internal volume upstream of the pump. The degasser should feature PTFE or perfluoropolymer membranes to remove dissolved gases from organic solvents (e.g., methanol, acetonitrile) and aqueous buffers efficiently without bubble formation during gradient runs.

Place a pulse damper immediately after the pump. Opt for a stainless-steel damper pre-charged with helium at 200 psi to smooth residual pulsations, especially critical when using low-viscosity solvents like acetone or ether.

Component	Material	Max Pressure (bar)	Recommended Tubing ID (mm)
Pump heads	Titanium AMS 4928	600	N/A
Sample injector	PEEK or ceramic	500	0.13
Column	Stainless steel 316	400	0.18
Detector flow cell	Quartz or sapphire	300	0.25

Insert a 0.5 µm frit filter between the pump and the sample injector. The filter removes particulate matter from solvents or buffers, protecting the column frit from clogging. Replace the filter cartridge every 500 mL of solvent consumption or when backpressure increases by 10%.

Choose a six-port rotary valve injector with a ceramic stator to ensure durability. For volumes below 10 µL, select a micro-injector model (e.g., Rheodyne MX or equivalent) to minimize sample carryover to less than 0.005%. Load sample loops with precision syringes calibrated to ±0.5% accuracy.

Attach the separation column to the injector valve using a 5 cm length of 1/16″ OD stainless steel tubing (0.18 mm ID). Pack the column with a stationary phase particle size of 1.7–3 µm (sub-2 µm particles require instruments capable of pressures up to 1000 bar). Maintain column temperature between 25–40 °C using a column heater with ±0.1 °C stability.

Connect the column outlet to a UV, DAD, or MS detector via 1/16″ OD tubing, minimizing length to avoid peak dispersion. For a photodiode array detector, select a 10 mm path length flow cell with a 1.5 µL volume to enhance sensitivity without excessive band broadening. Set data collection rates at 20 Hz or higher when analyzing compounds with retention times under 60 seconds.

Common Variations in Analytical Separation System Configurations

Opt for a binary pump setup when gradient elution demands precise solvent mixing at the high-pressure side; this reduces baseline noise by eliminating low-pressure gradients’ pulsation artifacts. Brands like Agilent and Shimadzu integrate dual-plunger mechanisms with 1:1000 stroke-volume ratios to maintain <0.1% flow accuracy at 1 mL/min. Always position the degasser immediately upstream of the pump–direct inline degassing modules from Waters or PerkinElmer cut dissolved oxygen to <1 ppm, preventing bubble-induced UV detector spikes.

Choose a quaternary pump only for isocratic or step-gradient workflows where solvent flexibility outweighs precision trade-offs. These systems swap solvents via a rotary valve, limiting compositional accuracy to ±0.5% versus binary configurations. Ensure the autosampler’s needle wash station flanks both injection and rinse cycles; Thermo Scientific’s dual-wash setup slashes cross-contamination below 0.005% for late-eluting peaks. Position the column thermostat at the instrument core–forced-air ovens from Knauer stabilize temperature within ±0.1°C for polymers or biologics, while recirculating liquid baths (e.g., Jasco) excel below ambient conditions.

Detector-Specific Layout Adjustments

Route post-column flow to waste when using charged aerosol detectors (CAD) for non-volatile analytes; Thermo’s split-flow design averts salt deposition in the detector cell. For UV/Vis setups, install a reference cell bypass to correct lamp drift–Agilent’s 1260 Infinity II achieves <0.0001 AU noise levels. Couple mass spectrometers via orthogonal interfaces (ESI or APCI) only after UV detection; Waters’ Acquity Arc splits flows at 50 µL/min to maintain both optical and MS integrity without cross-talk.

Embedded diode-array detectors (DAD) downstream of single-wavelength UV cells capture full spectra but introduce 10-20% sensitivity loss compared to fixed-wavelength units. Use fiber-optic flow cells for fluorescent tags; Ocean Optics’ 405 nm LED modules boost stability by 3x over deuterium lamps in GFP applications. Always terminate refractive index (RI) detectors at the instrument’s far end–Agilent’s 1260 Infinity RI cell requires dedicated temperature control (±0.01°C) to suppress solvent compression artifacts, critical for sugars or lipids.

Parallel detectors (e.g., UV + CAD) demand low-dead-volume T-junctions; Upchurch Scientific’s PEEK tee connectors limit extra-column dispersion to <5 µL. For preparative scale-ups, bypass the detector entirely after fraction collection–Gilson’s FC204B uses time-based triggers to prevent column effluent from reaching optical cells, preserving both sample purity and detector longevity. Ensure all tubing lengths post-column match internal diameters; perfluorinated tubing (ID 0.13 mm) from IDEX reduces turbulent flow shear for proteins above 50 kDa.

Microfluidic chip-based separations (e.g., Agilent’s HPLC-Chip/MS) consolidate pump, column, and ESI emitter into a single substrate but mandate pre-column filters to prevent silica particle ingress–replace chips every 200 injections to avoid carryover spikes. For ultra-high-pressure applications, position the sample loop downstream of the injection valve to minimize pressure surges; Waters’ UPLC systems use titanium loops rated to 15,000 psi, while stainless steel variants deform above 12,000 psi under organic solvents.

System Integration Workarounds

Daisy-chain autosamplers for unattended workflows, but limit to two units–Agilent’s 1290 Infinity autosampler pair introduces 30-second delay between injections, impacting throughput for sub-2-minute runs. Install a second pump when incorporating post-column derivatization (e.g., ninhydrin for aminoglycosides); Shimadzu’s LC-20AB pairs allow 1:10 reagent-to-eluent ratios without pulse dampeners. For dual-column switching, use six-port valves from Vici–rotor-stator designs tolerate 10^6 actuations under 7,000 psi, whereas slide valves fail within 10^5 cycles.

Position inline filters before every pump inlet; stainless steel frits from Merck (0.2 µm) prevent upstream particulate contamination, while PTFE filters clog faster under biological matrices. Always vent trapped gases from pump heads after solvent changes–Shimadzu’s SPD-20A purge sequence runs at 5 mL/min for 60 seconds, clearing bubbles invisible to the naked eye. Log pump pressures in real-time via RS-232; Druck’s digital gauges flag developing leaks before catastrophic failure, while analog Bourdon tubes lack sub-1% accuracy below 1,000 psi.
