Step-by-Step Guide to Building a Lithium Battery Charging and Protection Circuit

Implement a dual MOSFET (NMOS) arrangement in series for charge-discharge control. Place the components on opposite sides of the cell stack to minimize trace resistance–aim for <1 mΩ total across copper pours 2 oz/ft² or thicker. Gate drive resistors (1 kΩ–5 kΩ) reduce EMI during switching transients; bypass with 10 nF ceramic caps close to IC pins.

Thermal monitoring requires NTC thermistors bonded directly to electrode tabs using conductive epoxy. Locate the sensors at both ends of the current path; log temperatures every 100 ms with 10-bit ADC resolution. Over-temperature thresholds should trigger shunt activation within 5 ms, diverting charge via 50 A solid-state relays.

Balance circuits demand precision resistors (0.1 % tolerance) in the feedback loop of operational amplifiers. Configure the op-amps as differential amplifiers with gain set to 1.5 V/V; use 16-bit DACs for voltage trimming across cells. Avoid ground loops by isolating the sense lines with optocouplers (CTR > 200 %).

Fast-acting fuses (250 VAC, 10 A) must be placed within 2 cm of the main power leads. Select fuses with rupture time < 1 ms at 5× nominal current. Parallel TVS diodes (1.5 kW peak) clamp transient voltages to <30 V to protect logic gates during fault conditions. Keep transient paths short–ideal trace length <1 cm.

Communication interfaces should use isolated CAN FD with 3 kV isolation barriers. Route CAN traces as differential pairs (120 Ω impedance) with guard traces spaced 0.5 mm apart. Store calibration data in FRAM (10¹² write cycles) to retain settings across power cycles. Implement watchdog timers with 8 ms timeout; reset logic via dedicated GPIO line.

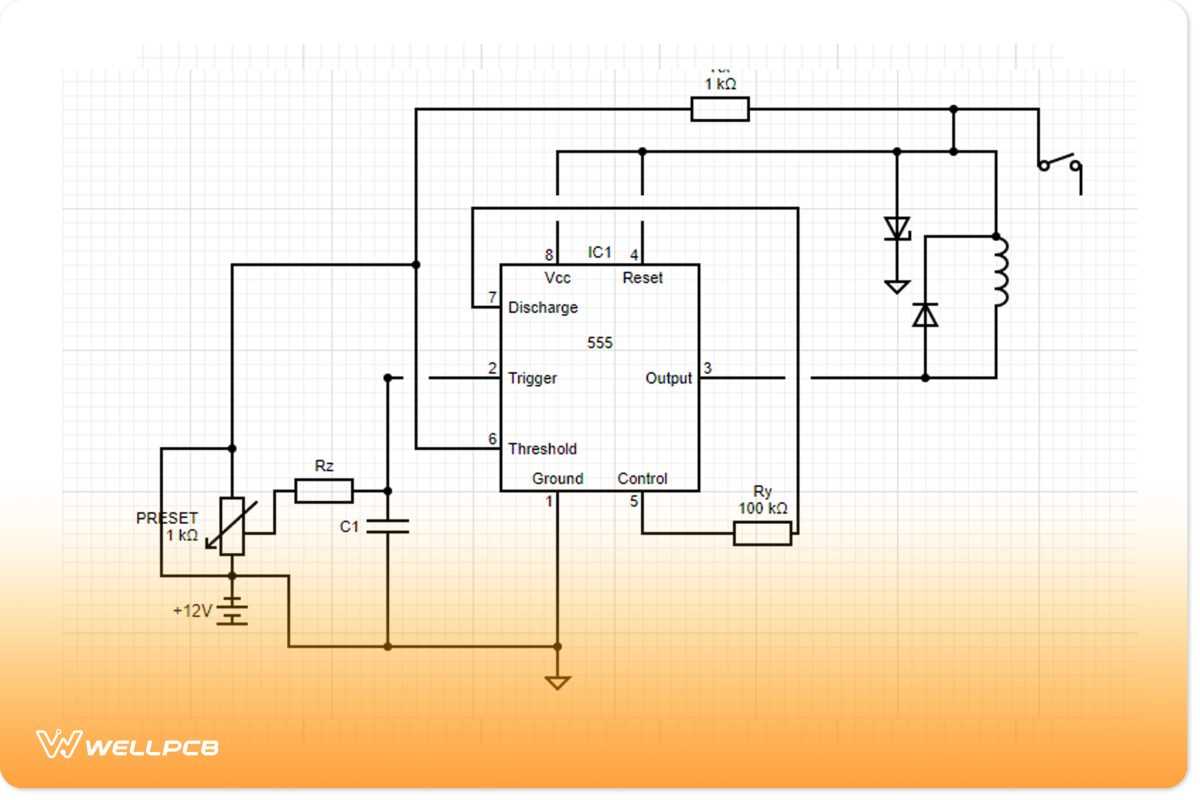

Designing Safe Energy Storage Schematics

Start by integrating a dedicated protection IC into your power cell layout. Select a component like the BQ297xy series or NXP MC33771 for multi-cell configurations. These chips monitor voltage levels, prevent overcharging, and isolate faulty cells without requiring external relays. Ensure the IC’s quiescent current stays below 10μA to maximize idle efficiency.

Use low-resistance MOSFETs (e.g., Infineon BSC052N03MS) for switching elements. Place them on the negative terminal side to minimize heat dissipation and reduce voltage drops during high-current loads. Verify the MOSFETs’ R_DS(on) rating matches your peak discharge requirements–typically under 2mΩ for 10A+ applications.

Incorporate a PTC resettable fuse in series with the positive lead. Choose a model with a hold current 150% above your maximum expected load (e.g., Bourne LR4 for 5A continuous). Avoid thermal fuse alternatives–they fail irreversibly and complicate field repairs.

Add a balancing resistor network for series-connected cells. Use 100Ω–300Ω resistors per cell to equalize voltages during float charging. For passive balancing, ensure resistors can dissipate at least 0.5W per cell. Active balancing ICs (e.g., LTC3300) reduce energy loss but increase BOM costs by ~30%.

Route traces with 2oz copper thickness for currents exceeding 5A. Keep trace lengths under 5cm between the storage unit and load to minimize inductance. For high-discharge applications (e.g., e-bikes), use parallel traces or bus bars to halve resistance per unit length.

Isolate the power path with a hall-effect current sensor (e.g., ACS723). Position it on the negative lead for bidirectional current measurement. Calibrate the sensor’s output (typically 185mV/A) to match your ADC’s input range. Avoid shunt resistors–they introduce voltage drops and require precise amplification.

Include a TVS diode (e.g., SMCJ22A) across input terminals to clamp transient voltages. Select a breakdown voltage 10% above the maximum storage unit voltage (e.g., 24V TVS for an 18.5V nominal system). Place it as close as possible to the source to absorb spikes before they reach other components.

Validate the schematic with thermal simulation tools like ANSYS Icepak before prototyping. Focus on hotspots near MOSFETs, balancing resistors, and PCB traces carrying >5A. Use via stitching (10–12 vias per cm²) for heat dissipation in high-current areas. Test prototypes under worst-case conditions: 0°C ambient with 1.2× nominal charge voltage.

Core Design for a Single-Cell Energy Storage Charging Module

Use a dedicated charging IC like the MCP73831 for precise control–it handles constant-current (500 mA) and constant-voltage (4.2 V ±1%) phases automatically. Connect the input via a 5 V USB source with a 1 A fuse for protection. Place a 1 µF ceramic capacitor on the input and output to filter transients. The IC’s PROG pin determines charge current via a resistor (R_PROG = 2 kΩ for 500 mA), while STAT and PG pins provide charge status indication.

Add a P-channel MOSFET (e.g., Si2305) between the charger and the cell to prevent reverse leakage when no power is applied. Ensure thermal monitoring with a 10 kΩ NTC thermistor placed near the storage unit–this halts charging if temperature exceeds 45°C or drops below 0°C. For overvoltage safeguards, incorporate a TVS diode (SMBJ4.3A) across the cell terminals to clamp spikes above 6 V.

For optimal performance, use a 4-layer PCB with 2 oz copper traces (minimum 25 mil width for current paths) to minimize resistance losses. Ground the IC’s thermal pad directly to the PCB’s internal ground plane for heat dissipation. Test the assembled unit with a dummy load (10 Ω, 1 W) to verify output stability before connecting a live cell.

Keep component placement compact: the IC, MOSFET, and thermistor should be within 5 mm of the cell’s positive terminal. Avoid routing high-current traces near sensitive signal lines. Validate the design with an oscilloscope during charging–ripple should not exceed 50 mV peak-to-peak at full load.

Critical Elements in a 3.7V Cell Guardian Module

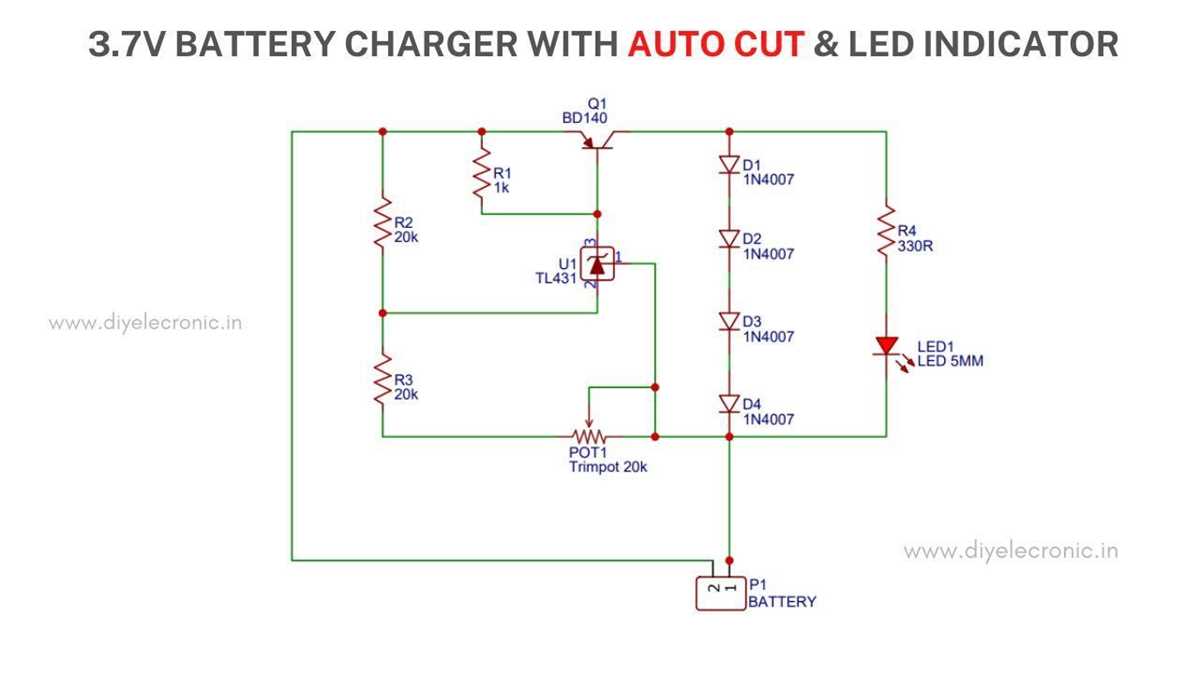

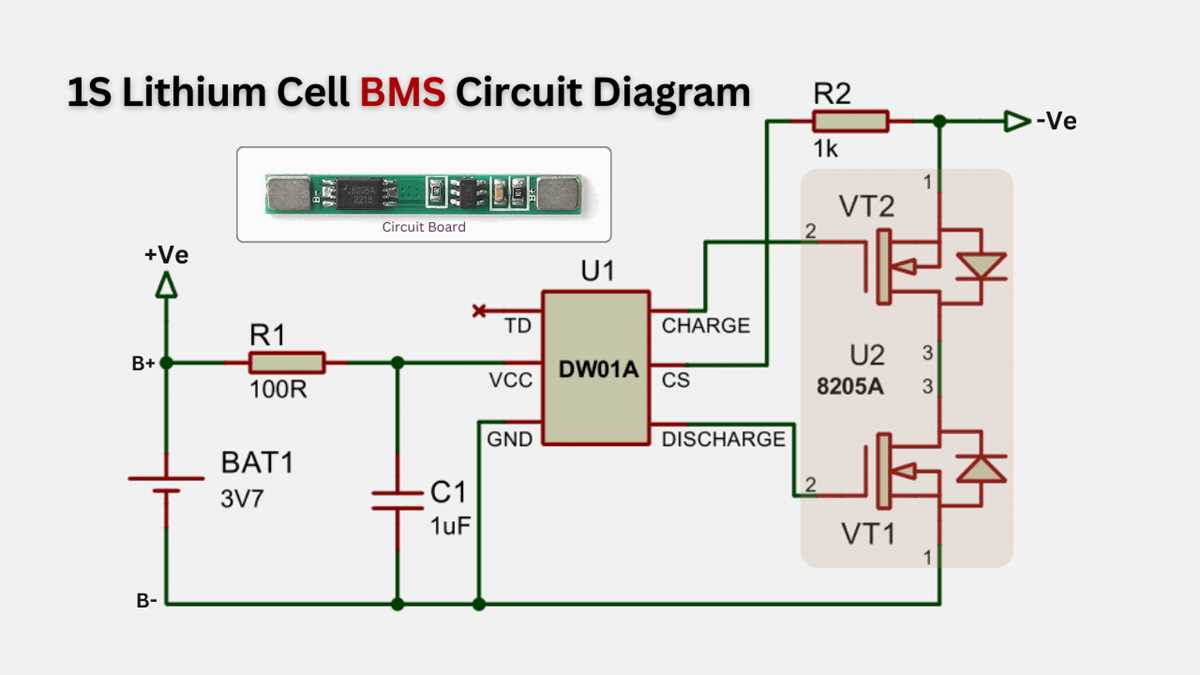

Integrate a dedicated overcharge safeguard IC like the DW01 or AP9101C–these components halt charging at 4.2V ±50mV, preventing thermal runaway. Pair them with dual MOSFETs (e.g., AO4407A) capable of handling 6A continuous drain; lower R_DS(on) values under 30mΩ reduce heat buildup during cutoff events.

• Opt for ceramic capacitors (10µF X5R) for noise filtering near the control IC–electrolytic alternatives degrade over 1,000 cycles.
• Thermistors (NTC 10kΩ) must be mounted within 2mm of the core’s center for accurate thermal monitoring; readings above 80°C trigger shutdown.
• PCB traces carrying >3A require 2oz copper weight with 4mm width to avoid voltage drops exceeding 50mV.

Short-circuit detection demands sub-microsecond response times. Select protection ICs with embedded delay logic (e.g., S-8261) to distinguish between transient loads and fatal shorts–this avoids false trips during motor startups.

Balancing resistors for multi-stack assemblies should target 0.1% tolerance; 47kΩ values create 3mA leakage paths, ensuring tracking within 10mV across cells. Avoid carbon-film resistors–precision metal-film units maintain stability beyond 10,000 hours.

Firmware-controlled reset thresholds must differ from hardware limits. Set recovery at 2.9V (vs 2.5V hardware cutoff) to prompt user alerts before irreversible deep discharge occurs. Use a secondary MCU pin to monitor IC health at 1Hz intervals.

1. Test guardrails with a 150% load pulse for 10ms–valid MOSFETs stay below 50°C junction temp.
2. Replace generic fuse links with PTCs (e.g., PolySwitch RXEF065) rated for 1.5× nominal current; they reset after overload without replacement.
3. Seal components in conformal coating (ARC-3100, 25µm thickness) if humidity exceeds 60% RH–corrosion on uncoated copper traces increases resistance by 0.8%/year.

Step-by-Step Wiring for a Balanced Multi-Cell Energy Storage Assembly

Begin by isolating the cells to prevent accidental shorting. Place each 3.7V nominal unit in a non-conductive tray and verify voltage readings with a multimeter–deviations beyond ±0.05V indicate imbalance and require individual conditioning. Label connections with heat-resistant tape before soldering to maintain clarity throughout the process.

Connect cells in series to achieve the target voltage: for a 12S configuration, solder the positive terminal of the first cell to the negative of the second, repeating until the 12th unit. Use 16AWG silicone wire for currents below 20A or 12AWG for higher loads, ensuring insulation resistance exceeds 500V. Twist wires tightly and apply flux before soldering to minimize resistance; avoid overheating cells beyond 80°C during joining.

Integrate a balance lead harness between cells. Each tap should be soldered to the junction of consecutive cells, using wire gauges as follows:

Current Load	AWG	Insulation Rating
<10A	22	300V
10–30A	20	600V
>30A	18	1000V

Attach the harness to a balancing module capable of handling 5A per channel. Select a board with active balancing if the assembly will undergo frequent deep discharges; passive units suffice for float charging applications. Route balance leads through grommets to prevent abrasion against sharp edges.

Secure the main discharge leads: connect the positive terminal of the entire stack to a 40A rated fuse, then to an ON/OFF switch with a 25A contact rating. The negative terminal should bypass all interruptions for safety. Verify total stack voltage matches the 12S specification (44.4V nominal) before proceeding–deviations suggest miswired taps or damaged cells.

Test thermal stability by monitoring temperature rise during a 1C discharge cycle. Use K-type thermocouples at the midpoint and ends of the stack; acceptable readings remain below 50°C. Install a 10k NTC thermistor on the third cell for critical applications, integrating its output with a protection board or programmable controller. Position the assembly in a ventilated enclosure if ambient temperatures exceed 35°C.

Finalize connections by encasing exposed joints in heat-shrink tubing, selecting dual-wall adhesive-lined tubing for high-vibration environments. Reinforce stress points with silicone strain reliefs, particularly at the switch and fuse terminals. Perform a last full-charge cycle with the balancer active to confirm equalization–individual cell voltages should converge within 0.02V.
