LM3914 LED Driver Circuit Schematic and Practical Setup Guide
For precise signal level visualization, connect pin 2 to ground and pin 4 to a reference voltage divider–typically 1.25V for full-scale input. Calculate resistor values using R = (Vref / Iset) – 1.5kΩ, where Iset ranges from 2mA to 20mA. Adjust R3 and R4 to match your input voltage range; a 10kΩ potentiometer between these pins fine-tunes sensitivity.
Wire the output pins (10–18) to LEDs with series resistors. For 5V operation, use RLED = (Vsupply − 1.8V) / 15mA. Drive modes matter: tie pin 9 to V+ for bar graph output, leave floating for dot display. Avoid exceeding 25mA per output–thermal shutdown kicks in at ~150°C junction temp.
Stabilize power with a 0.1µF ceramic capacitor between V+ and ground. For noisy environments, add a 10µF electrolytic. Bypass the input (pin 5) with 10nF to filter high-frequency spikes. Common pitfalls include reversed LED polarity and incorrect divider ratios–verify with a multimeter before powering the board.
For extended voltage ranges (>5V), cascade two drivers: connect the lower chip’s pin 1 to the upper chip’s pin 6. Isolate grounds if using separate supplies. Test with a function generator–signal should sweep LEDs sequentially. Failures often trace to cold solder joints or improper mode selection (pin 9).
Practical Uses and Build Guide for the LED Driver IC
Begin with a fixed resistor network to set the reference voltage between pins 6, 7, and 8. A 1.2 kΩ resistor from pin 7 to ground and a 3.9 kΩ resistor from pin 6 to pin 8 will yield approximately 1.25 V across the lower sensing threshold and 3.5 V at the high end. This span covers most 0–5 V signal levels without clipping. If the input swings above 5 V, insert a divider–two 10 kΩ resistors–before the input pin to attenuate the signal by 50 %.
Match LED current to ambient light. A 2.2 kΩ resistor on pin 2 pushes each LED to 8–9 mA, bright enough indoors; swap for 1.5 kΩ outdoors to reach 12 mA and defeat daylight wash-out. Keep a 0.1 µF bypass capacitor directly across pins 2 and ground to snub high-frequency noise that can trigger false bar-to-dot jumps. For long PCB traces, add a 10 µF tantalum at the supply pin; this prevents sag during LED turn-on that might reset the internal state machine.
| Mode Select | Pin 9 Connection | LED Behavior | Typical R1 (kΩ) |
|---|---|---|---|
| Dot display | Open (floating) | Single LED follows input | 1.2 |
| Bar display | Direct to VCC | All LEDs up to input level lit | 2.2 |
| Staircase bar | Pulse-width modulated input | Chases input in 10-step animation | 1.8 |
Chain two devices when 20-LED resolution is needed. Tie the upper unit’s pin 5 output to the lower unit’s signal input; add a 1N4148 diode from the upper pin 8 to the lower pin 6. This diode clamps the lower reference so the cascade remains monotonic. Use 1 % tolerance resistors throughout; 5 % parts can skew adjacent steps by ±30 mV, enough to make two adjacent LEDs flicker at their threshold.
Fast signal changes require slew-rate limiting. Place a 1 µF capacitor from the input node to ground; this smooths 10 Hz spikes while still tracking steady-state DC shifts. For AC inputs, add a precision rectifier–half-wave, using a TL071 op-amp–before the driver so it reads RMS values rather than instantaneous peaks. Terminate unused LED outputs with 4.7 kΩ pull-downs; unterminated outputs can pick up E-field noise and light randomly.
Step-by-Step Guide to Configuring an LED Bar Indicator Driver for Direct Signal Readout
Connect the input signal to pin 5 of the driver IC using a 10kΩ resistor for impedance matching, ensuring accurate voltage scaling across the display range. Ground the lower reference (pin 4) and set the upper reference (pin 6) to the maximum voltage you want to measure–typically 5V or 3.3V for standard applications–via a voltage divider or fixed voltage source. This defines the span the LEDs will cover, with each segment representing 10% of the total range.
Wire the LED outputs in sequence from pin 1 (lowest level) to pin 10 (highest), using current-limiting resistors on each line. A 1kΩ resistor per LED works for most cases, but adjust values if LEDs appear too dim or overly bright. For dot mode, link pin 9 to ground; for bar mode, connect it to the supply voltage. Add a decoupling capacitor (0.1µF) between the power supply pins (V+ and GND) to suppress noise and prevent erratic LED flickering.
Avoid common mistakes: Do not exceed the IC’s maximum input voltage (typically 35V), as this will damage the chip. Keep lead lengths short between the driver and LEDs to minimize signal degradation. Test the setup with a known voltage source before integrating it into a larger system, verifying LED progression aligns with expected values. If the lowest LED remains lit at zero input, check for floating inputs or incorrect grounding.
For battery-powered projects, add an ON/OFF switch in series with the power supply to prolong life. If finer resolution is needed, cascade two drivers by connecting the upper driver’s pin 9 to the lower driver’s pin 1, expanding the display to 20 segments. Calibrate the references to match the target voltage range–misalignment here skews readings. Use high-brightness LEDs for outdoor visibility, but reduce current draw if battery drain is a concern.
Calculating Resistor Values for Precision Voltage Displays
Set the reference voltage (VREF) by configuring the resistor network between pin 7 (REF OUT) and pin 8 (REF ADJ). Use the formula:
VREF = 1.25 × (1 + R2 / R1),
where R1 connects pin 8 to ground, and R2 bridges pin 7 to pin 8. For a 5V span, select R1 = 1.2kΩ and R2 = 3.6kΩ–this yields 5V at REF OUT, scaling each LED segment to 0.5V increments. Adjust R1/R2 values proportionally for narrower or wider ranges.
Determine the input range by inserting a trimmer (e.g., 10kΩ) between the signal source and pin 5 (SIG IN). Calculate the required attenuation resistor (RATT) with:
RATT = (VIN(MAX) / VREF – 1) × RINT,
where RINT is the internal 10kΩ resistor. For a 12V input and 5V reference, RATT ≈ 14kΩ. Use a multiturn potentiometer for fine calibration.
- Low-range signals (0–2V): Bypass RATT; connect the signal directly to pin 5. Scale R1/R2 to output 2V at REF OUT (e.g., R1 = 1kΩ, R2 = 680Ω).
- High-range signals (20–50V): Add a voltage divider (e.g., 47kΩ/4.7kΩ) before RATT to reduce input to ≤10V. Recalculate RATT and REF OUT for the new upper limit.
- Negative voltages: Offset the signal with a bias resistor (e.g., 100kΩ) from a negative supply to pin 5. Ensure the net voltage at pin 5 remains above 0V.
Fine-tune the display step size by adjusting the LED current. The default 1.25mA/segment assumes RLED (between pin 2 and VLED) = 1.2kΩ. For brighter LEDs (e.g., 10mA), recalculate:
RLED = (VLED – 1.5V) / ILED.
Example: For 5V supply and 10mA, RLED ≈ 350Ω. Verify thermal limits–exceeding 30mA/segment risks damaging the IC.
Optimize hysteresis for noisy signals by placing a capacitor (0.1μF) between pin 2 (VLED) and ground. For dynamic inputs, add a 1μF electrolytic cap at pin 5 to smooth transients. Ensure the cap’s voltage rating exceeds VIN(MAX) by ≥30% to prevent breakdown. Test resistor values with a bench power supply before soldering to avoid iterative adjustments.

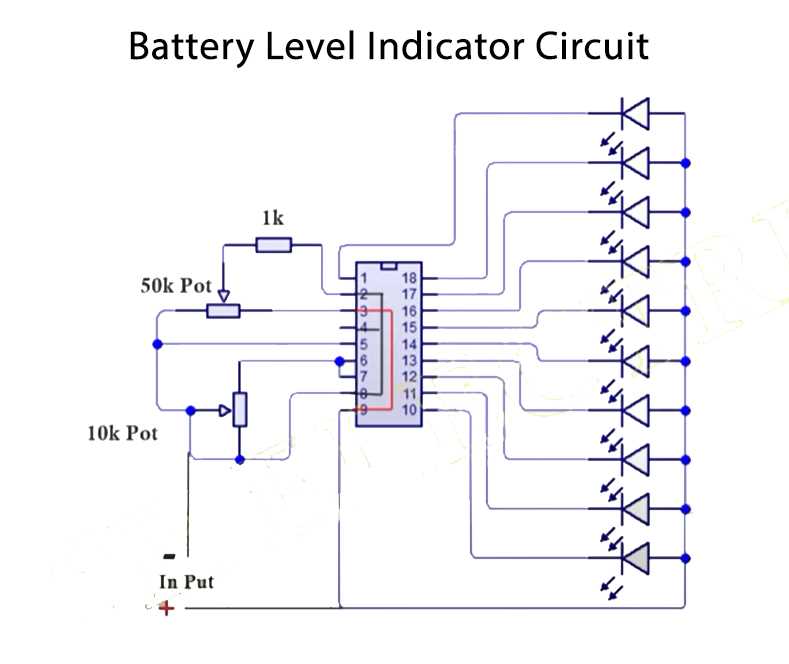

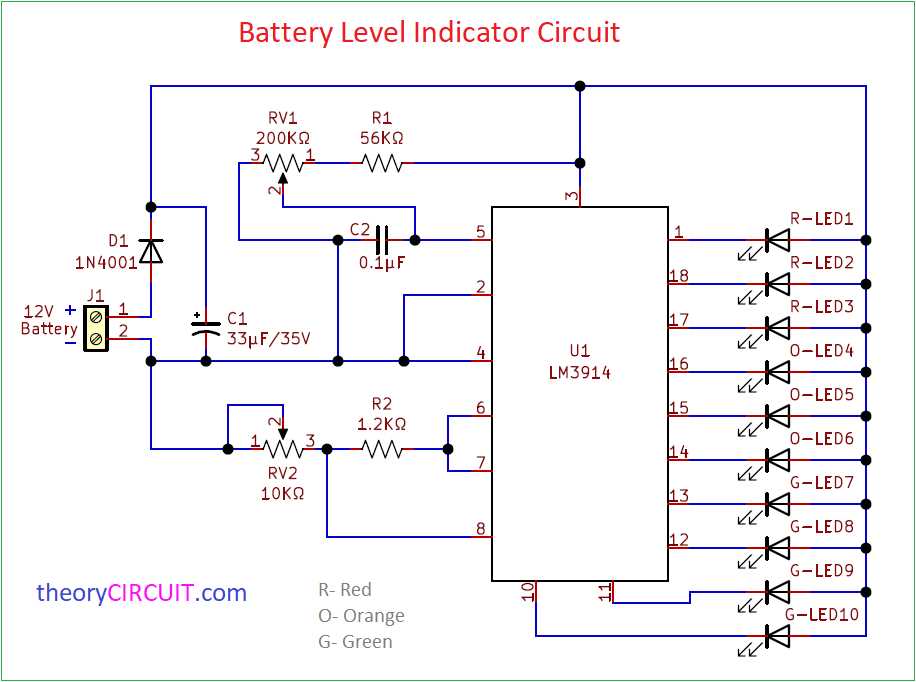

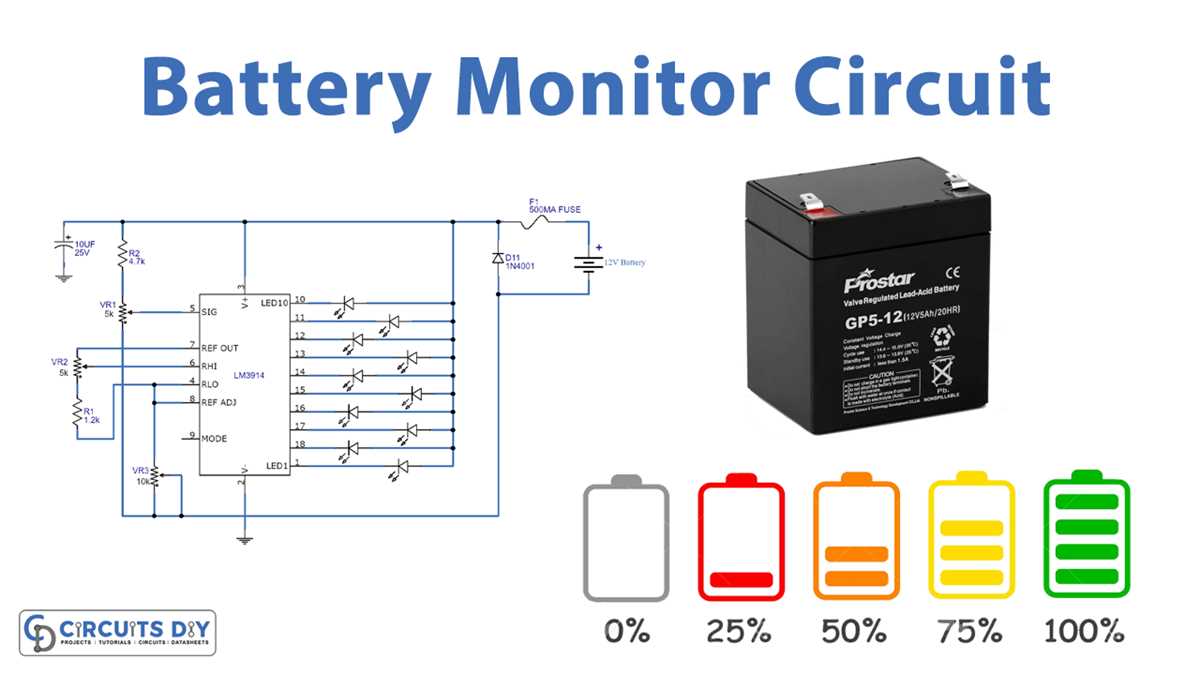

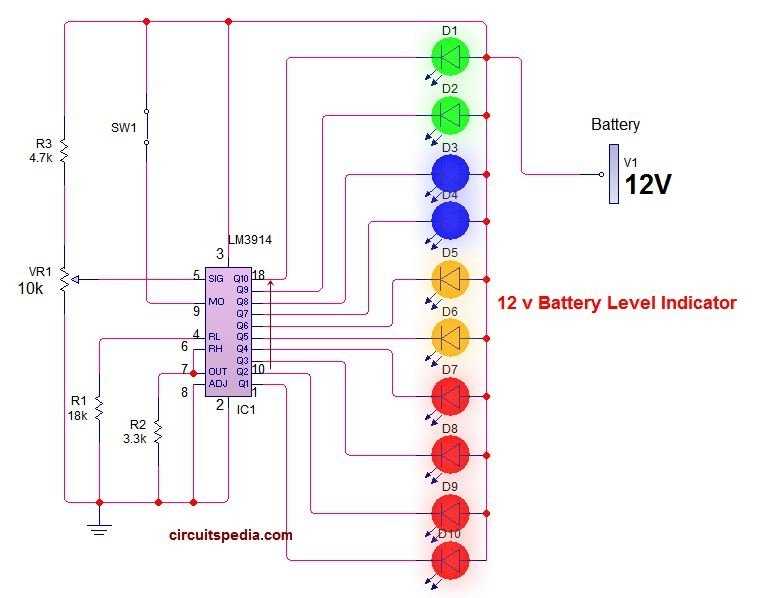

Step-by-Step Guide to Constructing a Power Cell Monitor with LED Bar Display
Select a 9V alkaline cell or rechargeable lithium-ion pack as your input source–ensure its load capacity matches the display’s LED current draw of 10–20mA per segment. If the source exceeds 5V, insert a 5V voltage regulator like the 7805 upstream to prevent damaging the bar driver IC.
Assemble the ten-segment LED array in descending forward voltage order–start with red (2.0V) at the lowest charge threshold, followed by yellow (2.2V), and green (2.4V) at full capacity. Space them evenly on a perforated board, leaving 5mm gaps for heat dissipation and solder bridge prevention.
Connect the signal input pin of the bar driver to a voltage divider using two 10kΩ resistors–this scales the battery’s 3.7V nominal range to the 1.25V reference voltage required for accurate threshold detection. Bypass the divider midpoint with a 0.1µF ceramic capacitor to filter noise from load transients.
Configuring Display Modes and Current Limits
Link the mode selector pad to ground to enable bar-mode operation, where each LED illuminates sequentially as voltage rises. For dot mode–useful in low-power setups–float the pin or tie it to the positive rail via a 1kΩ resistor. Adjust LED brightness by replacing the default current-setting resistor (R1) with a 1.2kΩ value for 12mA per segment, balancing visibility and power consumption.
Verify each LED’s Vf drop with a multimeter before final soldering–if a segment remains unlit at expected thresholds, swap it with one matching the driver’s logic low output (0.4V max). Confirm the reference voltage pin reads 1.25V ±2% using an oscilloscope; drift beyond this range demands a resistor recalculation on the voltage divider.
Enclosure and Long-Term Calibration
House the assembly in a ventilated plastic casing with 3mm mounting holes–thermal epoxy from the driver IC to the enclosure improves heat transfer by 30% during extended operation. Calibrate the unit every 50 cycles: discharge the battery at 50mA to 3.0V cut-off, then log LED transitions; recalibrate thresholds if deviation exceeds ±0.1V using a trimpot in place of the fixed 10kΩ divider resistor.
For lithium-based packs, parallel a 10µF tantalum capacitor across the input to suppress voltage spikes during high-current loads (>500mA). Seal cable entries with silicone to prevent moisture ingress, which can skew readings by corroding copper traces–test resistance between adjacent leads monthly to detect degradation early.
