Practical Guide to Designing and Analyzing Load Circuits in Electrical Systems

Begin by selecting components with precise tolerances–resistors rated at ±1% and capacitors with X7R dielectric reduce operational variability. For power delivery, prioritize traces wider than 1.5mm for currents exceeding 3A, ensuring copper weight of at least 2oz/ft². Ground loops disrupt signal integrity; separate analog and digital grounds, connecting them at a single star point near the power source.

High-frequency layouts demand controlled impedance traces. For 50Ω single-ended signals on FR4, maintain a trace width of 0.15mm with 0.2mm spacing to adjacent traces. Use vias sparingly–each introduces ~0.5nH inductance and ~0.2pF capacitance, skewing edge rates. For switching regulators, keep the input capacitor within 10mm of the IC to minimize voltage drops.

Thermal management dictates longevity. Place thermal vias under power devices, with ≥0.3mm diameter and 0.5mm pitch, filled with solder to enhance heat dissipation. Avoid placing temperature-sensitive components near hot spots–NTC thermistors should be ≥20mm away from heat sources to prevent false readings. For connectors, choose gold-plated contacts for corrosion resistance, especially in humid environments.

Signal integrity hinges on decoupling. Place 0.1µF ceramic capacitors within 2mm of each IC power pin, with 10µF bulk capacitors near power entry points. For USB 2.0, maintain 90Ω differential impedance–deviation by even 5Ω increases bit error rates. Always validate layouts with time-domain reflectometry (TDR) to detect impedance discontinuities before fabrication.

Safety compliance isn’t optional. Isolate high-voltage sections with ≥8mm creepage for 250VAC and ≥4mm clearance for 60VDC. Use PTC fuses for overcurrent protection, selecting trip currents 20% above nominal. For ESD-sensitive ICs, incorporate TVS diodes with clamping voltage ≤1.5× operating voltage to prevent latch-up.

How to Interpret Electrical Schematics for Power Systems

Start by identifying the main components in the schematic using standardized symbols. ANSI/IEEE and IEC symbols differ–ANSI uses rectangular shapes for resistors while IEC employs zigzag lines. Cross-reference with a symbol guide if unfamiliar. Highlight critical paths like power rails, ground references, and signal lines first to avoid misreading the flow.

Trace current paths systematically: follow the positive voltage source through each node, noting switches, fuses, and protective relays. For AC systems, distinguish between phase (L), neutral (N), and earth (E). A common mistake is confusing N and E–neutral carries return current, earth serves as safety backup only. Use colored highlighters (red for L, blue for N, green for E) to mark paths.

Calculate expected voltage drops at key points. Use Ohm’s Law (V = I × R) for resistors and P = V × I for power dissipation. Example: A 10Ω resistor with 2A current drops 20V and dissipates 40W. Verify these values against the schematic’s annotations; discrepancies often reveal errors in design or component ratings.

• Check component values: Capacitors (μF), inductors (mH), resistors (Ω). Mismatched values cause instability.
• Verify polarity: Diodes, electrolytic capacitors, and batteries must align with the current direction.
• Test switching logic: Confirm that relays and transistors activate under specified conditions.

Assess protective measures. Fuses should blow at 125% of nominal current (e.g., a 10A fuse for an 8A system). Circuit breakers must trip within milliseconds of overload. Label these elements clearly–failure here risks equipment damage or fire. Include surge suppressors for sensitive components like microcontrollers (TVS diodes or MOVs).

Common Pitfalls in Schematic Analysis

Overlooking hidden connections in multi-layer boards causes confusion. Use a multimeter in continuity mode to confirm traces between pads. Ground loops introduce noise–star grounding is preferred over daisy-chaining. For high-frequency designs, minimize trace lengths to reduce inductance (aim for

1. Cross-check with PCB layouts: Schematics may omit parasitic elements (e.g., stray capacitance).
2. Simulation validation: Tools like LTspice reveal oversights before prototyping.
3. Document revisions: Note changes directly on the schematic (e.g., “R5 changed from 1kΩ to 2.2kΩ”).

Key Elements and Standardized Symbols in Power Schematic Representations

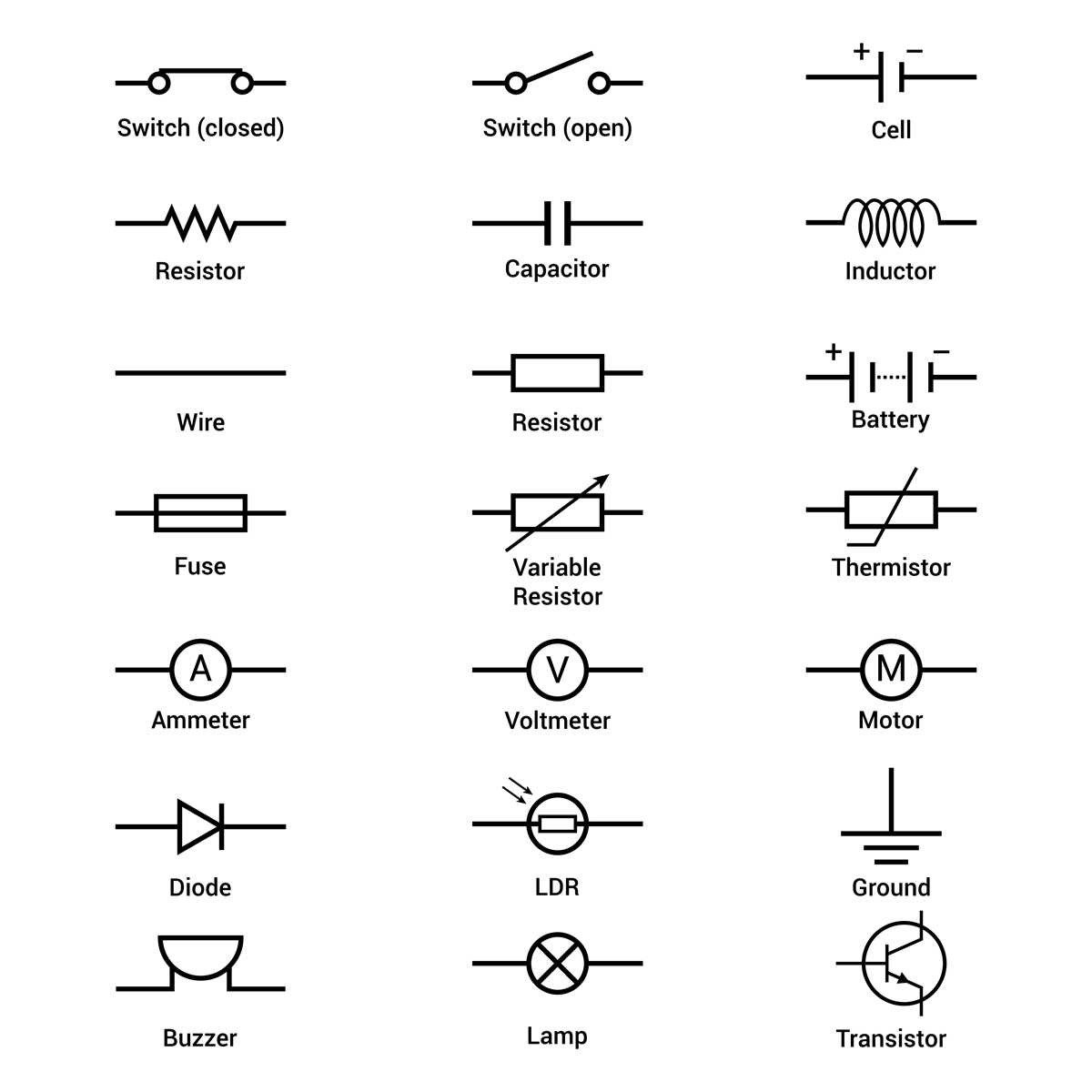

Begin by memorizing core graphical notations to decode wiring blueprints accurately. Apply consistent visual markers to prevent misinterpretation: resistors display as a zigzag line or rectangle (IEC standard), capacitors appear as parallel lines–solid for polarized, curved for non-polarized. Batteries use alternating long and short lines, with the longer line indicating the positive terminal. Switches differentiate by mechanism: toggle switches show a simple break, pushbuttons feature a circle on a line, while relays incorporate a coil symbol adjacent to switching contacts. Fuses adopt a straight line with a perpendicular break or a rectangle enclosing a wave. Use these exact conventions to eliminate ambiguity when tracing current flow or troubleshooting faults.

• Resistors: Fixed (zigzag/reclangle), variable (same with diagonal arrow), rheostat (arrow crossing resistor)
• Inductors: Single coil loop, double loops for transformers, ferrite core marked with parallel lines
• Semiconductors: Diode (triangle + line), LED (same with arrows), transistor (T-shape or circle enclosing emitter/base/collector)
• Sources: DC (long/short parallel lines), AC (sine wave in circle), earth (three descending lines)
• Connections: Solid dots for junctions, no dot for crossed but unconnected wires

For rapid diagnosis, highlight high-failure components (e.g., fuses, transistors) with color-coding during drafting. Label every symbol with reference designators (R1, C2, Q3) and include nominal values directly on the schematic. Confirm adherence to IEEE Std 315 or IEC 60617 to ensure cross-team compatibility–regional standards vary (ANSI vs. European), and deviations cause costly misreadings.

Step-by-Step Guide to Sketching an Electrical Schematic from Zero

Gather the core components first: power source (battery or DC supply), conductors (wires), resistive elements (lamps, motors, or heaters), and control devices (switches or relays). Arrange them mentally in a logical flow–source to control to output–before putting pen to paper. Use standardized symbols for each part (IEC or ANSI standards) to ensure clarity across teams.

Begin with a rough layout on graph paper or digital tool, spacing elements far enough apart to avoid clutter. Draw the power source at the top left, with its positive and negative terminals clearly labeled. Extend lines horizontally from the terminals, ensuring no overlaps until branching occurs. Vertical connections should only split at junctions to prevent confusion.

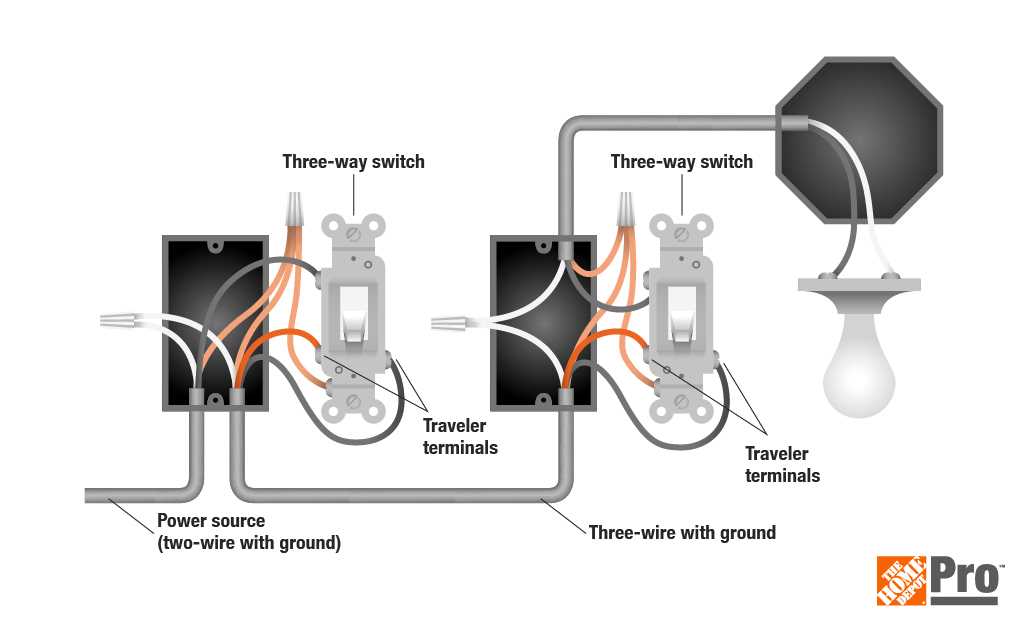

Insert switches or relays near the power source to control current flow. Use a simple toggle symbol (a break in the conductor with a diagonal line) for manual switches, or a coil with contacts for relays. Label each switch (e.g., “S1”) to reference in calculations. Ensure the open/closed state is unambiguous–position switches in their default state at startup.

Add resistive elements next, connecting them in series or parallel based on design requirements. For series paths, draw a single continuous line with components end-to-end. For parallel branches, split the conductor into two or more paths, rejoining them after the last element. Number each branch (e.g., “R1”, “R2”) and specify values if known (e.g., “100Ω”).

Tracing Current Paths

Verify the schematic by tracing every possible current route from source to return. Start at the positive terminal, follow each switch, resistor, and branch, confirming the path terminates at the negative terminal without dead ends. If a branch feeds multiple outputs (e.g., a motor and lamp), model it as a parallel split with equal voltage across each.

Include safety devices like fuses or circuit breakers in-line with conductive pathways, placing them near the power source. Use a fuse symbol (rectangle with intersecting line) and label current ratings (e.g., “5A”). If ground connections are needed, add a ground symbol (three horizontal lines decreasing in size) and link all ground points to a single reference point.

Annotate the drawing with critical details: voltage ratings, current limits, and component specifications. Use arrows to indicate flow direction if ambiguous. For digital tools, leverage layers to separate power, signals, and annotations, toggling visibility to simplify editing. Export in vector format (SVG or PDF) to maintain scalability.

Review the schematic against the intended function–does each component fulfill its role without unintended interactions? Simulate short circuits by tracing paths with switches closed or resistors bypassed. Correct any anomalies by adjusting connections or adding clarification. Finalize by comparing against industry standards to ensure compliance with safety and readability norms.

Critical Errors in Power Path Design and How to Prevent Them

Avoid neglecting thermal dissipation in high-current paths; even a 0.5°C temperature rise per ampere can degrade silicon components within 10,000 hours of continuous use. Use copper pours at least 2 oz/ft² thick for traces carrying over 5A, and extend thermal vias under power devices spaced no farther than 2mm apart.

Failing to account for inductive kickback in switching regulators causes voltage spikes exceeding 50V, damaging downstream components. Include a freewheeling diode rated for at least 1.5× the maximum input voltage or a snubber network with a 10Ω resistor and 100nF capacitor to clamp transients to safe levels.

Overlooking trace impedance mismatches in high-frequency designs leads to signal reflections and EMI exceeding FCC Part 15 limits. Maintain consistent trace widths–calculate impedance using the formula Z₀ = (87/√(εᵣ + 1.41)) × ln(5.98h/(0.8w + t))–and route differential pairs with ≤0.1mm length mismatches.

Using undersized connectors for power delivery introduces contact resistance greater than 10mΩ, generating heat that melts insulation or causes intermittent failures. Select connectors with at least 3× the nominal current rating, and ensure gold-plated contacts for corrosion resistance in humid environments.

Ignoring transient response in voltage regulation destabilizes sensitive analog front ends. Size output capacitors at 10µF per ampere of load current for linear regulators, and add a 1µF decoupling cap within 5mm of each IC power pin to filter high-frequency noise below 10mVpp.

Routing control lines parallel to high-current paths couples noise into logic signals, causing false triggers. Separate analog, digital, and power planes with minimum 5mm clearance, and use ground stitching vias spaced ≤λ/10 apart to reduce loop area and magnetic flux coupling.

Assuming ideal behavior in passive components hides real-world losses; ceramic capacitors lose 30% capacitance at 10VDC bias, and wirewound resistors exhibit parasitic inductance >50nH. Derate components by 50% for voltage and current, and verify datasheet curves under actual operating conditions to prevent silent failures.
