Building and Analyzing a Practical Low Pass Filter Circuit Design

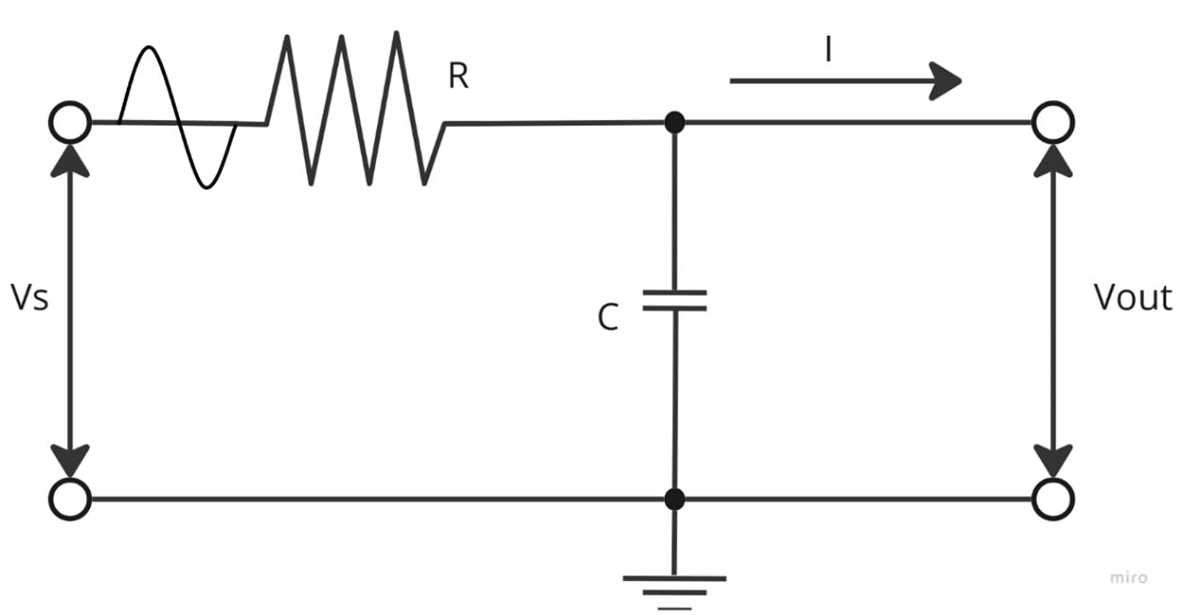

For immediate noise suppression in analog signals, an RC configuration remains the most reliable choice. Begin with a resistor directly in series with the input and a capacitor to ground–this forms the core of any high-frequency attenuation network. Values should be calculated using the cutoff formula f_c = 1 / (2πRC), where f_c defines the threshold frequency. Aim for a resistor between 1kΩ and 100kΩ, paired with a capacitor from 1nF to 10µF, depending on the desired roll-off slope.

For precision applications, select film capacitors over ceramic due to lower dielectric absorption and better stability. A 10% tolerance on both components is acceptable for general use, but tighter tolerances (5% or better) reduce variability in critical systems. To minimize parasitic effects, keep lead lengths short–surface-mount components are ideal for high-frequency suppression. Always place the capacitor as close as possible to the load to prevent stray inductance from degrading performance.

Avoid cascading multiple stages unless necessary; each additional stage increases phase shift and signal delay. If steeper attenuation is required, consider adding a second-order network but account for reduced gain near f_c. For DC-coupled applications, ensure the resistor’s power rating matches the expected current–standard ¼W resistors suffice for most low-power scenarios. Test the arrangement with a function generator and oscilloscope, sweeping frequencies above and below f_c to verify the –3dB point and roll-off characteristics.

For power-line noise rejection, pair this circuit with a ferrite bead or inductor in series ahead of the resistor to enhance attenuation above 1MHz. Ground the capacitor’s return path directly to the reference plane, not through a shared trace, to prevent ground loops. If thermal stability is critical, use a polypropylene capacitor and a metal-film resistor to maintain consistent behavior across temperature variations.

Essential Circuit Design for Signal Smoothing

Begin with a first-order RC network to attenuate frequencies above the cutoff point. For a target frequency of 1 kHz, select a 160 nF capacitor and a 1 kΩ resistor: this yields a 3 dB roll-off at approximately 1 kHz. Ensure the capacitor’s voltage rating exceeds the input signal’s peak by at least 20% to prevent dielectric breakdown.

Layout guidelines demand minimal parasitic inductance. Place the resistor directly adjacent to the capacitor’s ground pad, and route the output trace no longer than 1.5 cm from the junction to avoid stray high-frequency pickup. Use a ground plane on the opposite layer for return paths, keeping the loop area under 5 mm².

Component tolerances critically affect performance. Reject capacitors with leakage currents exceeding 1 nA/μF at 25°C; prefer C0G (NP0) dielectric for temperature stability ±30 ppm/°C. Metal film resistors with ±1% tolerance ensure predictable roll-off characteristics across batches.

• Cutoff frequency formula: fc = 1 / (2πRC)
• Attenuation slope: 20 dB/decade for single pole designs
• Phase shift: 45° at f_c, approaches 90° at ten times f_c

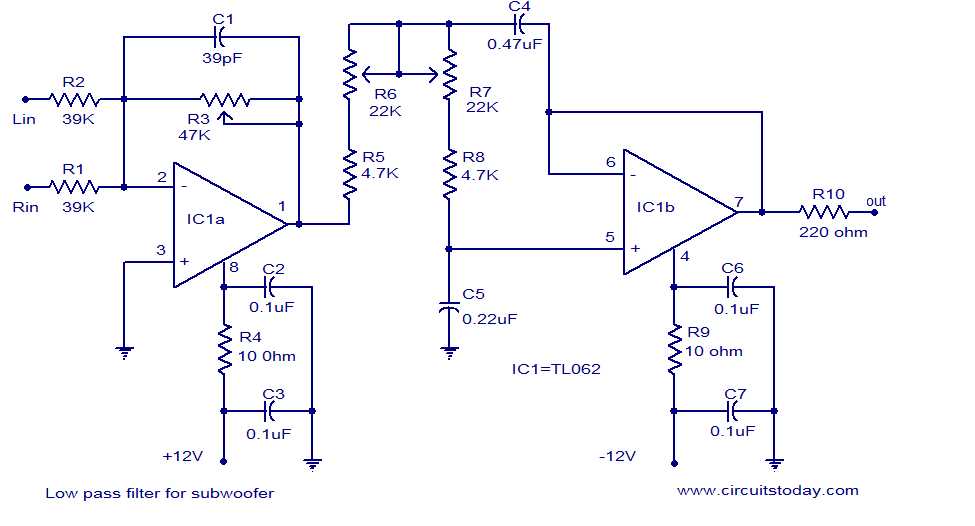

Increase order by cascading stages with inter-stage buffering. A two-pole Sallen-Key configuration raises attenuation to 40 dB/decade; use unity-gain buffers with 100 MHz GBW op-amps to prevent loading distortions. Maintain a 5:1 frequency spacing between poles to avoid peaking artifacts.

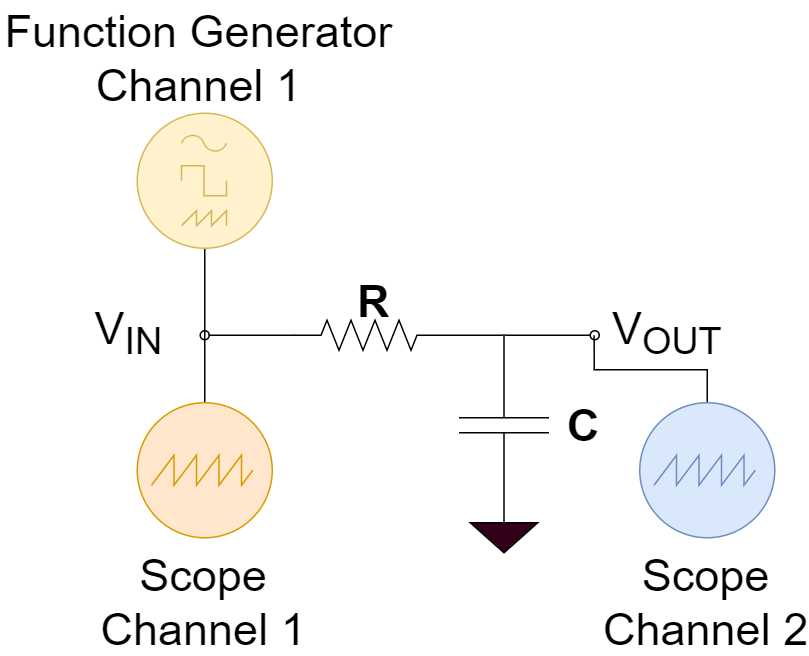

Test verification requires a sweep generator and oscilloscope. Inject a 1 Vpp sine wave at 100 Hz, 1 kHz, and 10 kHz; record the output amplitude ratio. At 10 kHz, expect ≤–20 dB relative to 100 Hz. Phase measurements should show progressive lag, never exceeding 180° total for stable operation.

Thermal effects alter cutoff by shifting resistor values. Use thick-film resistors with a TCR of ±50 ppm/°C or better, or place the circuit in a temperature-controlled enclosure if ambient swings exceed ±10°C. For circuits handling >10 Vpp, derate capacitor voltage by 30% to preserve reliability.

1. Fabricate prototype on a two-layer FR4 board (ε_r=4.5) with 1 oz copper
2. Validate gerber files for trace impedances ≤5 Ω/mil at 1 MHz
3. Apply conformal coating to prevent moisture-induced drift
4. Measure ESR of capacitors; reject units >0.1 Ω

Core Elements and Their Functions in a Frequency Attenuation Network

Select a resistor and capacitor pairing where the capacitor’s reactance drops inversely with signal frequency. For a cutoff at 1 kHz, pair a 1.6 kΩ resistor with a 100 nF capacitor; the intersection defines the transition band. Keep lead lengths under 5 mm to minimize parasitic inductance, which distorts phase response above 10 kHz.

Incorporate a decoupling stage by placing a 10 µF electrolytic capacitor across the power rails adjacent to the active component–this suppresses high-frequency noise injected by the supply. For precision applications, add a 1 nF ceramic capacitor in parallel; the ceramic handles transients faster, while the electrolytic smooths steady-state ripple.

For active variants, use an operational amplifier with a gain-bandwidth product exceeding 10 MHz–common choices like the LM358 or OPA2134 ensure minimal phase shift below the cutoff. Feed the feedback loop directly from the output node; any trace longer than 2 cm introduces capacitive loading, skewing the frequency response.

Mount components on a ground plane to reduce EMI; route input and output traces orthogonally, separated by at least 3 mm. Terminate unused op-amp sections with a 1 kΩ resistor to ground–this prevents oscillations. Test stability by injecting a 1 Vpp sweep from 10 Hz to 100 kHz; overshoot above 5% indicates excessive peaking, requiring a smaller feedback capacitor.

Step-by-Step Assembly of a Passive RC Signal Attenuator

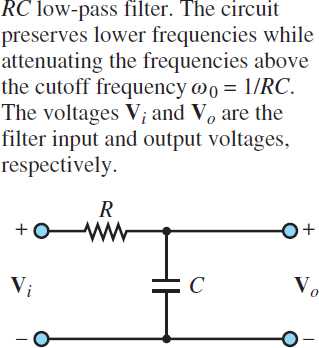

Select a resistor and capacitor with values yielding the desired cutoff frequency f_c = 1/(2πRC). For general audio applications, a 10 kΩ resistor paired with a 10 nF capacitor sets f_c ≈ 1.6 kHz, effectively blocking higher frequencies. Ensure components tolerate the circuit’s peak voltage; ¼ W resistors and X7R ceramic capacitors handle up to 50 V reliably.

Orient the resistor vertically on a breadboard, inserting one lead into the positive rail and the other into an adjacent row. Connect the capacitor’s negative terminal to the same row as the resistor’s loose end, then ground the capacitor’s positive lead to the negative rail. This arrangement ensures minimal parasitic inductance, critical below 50 kHz where stray capacitance degrades performance.

Verify connections with a multimeter in continuity mode–probe the resistor-capacitor junction against ground; a brief tone confirms a solid solderless bond. Apply a sine wave from a function generator at the input, matching the intended f_c, and measure output amplitude; a 3 dB drop at f_c confirms proper operation. Swap the capacitor if attenuation deviates by >0.5 dB, as tolerance (±5%) affects roll-off slope.

Transfer the circuit to a perfboard using 22 AWG tinned copper wire, spacing components ≥2 mm apart to avoid coupling. Secure the board with standoffs inside a shielded enclosure, grounding the enclosure to the negative rail. Input and output wires must be ≤5 cm to prevent EMI pickup above 10 MHz, where even 1 pF stray capacitance alters the response.

Calculating Cutoff Frequency: Formulas and Practical Examples

Determine the corner frequency (f_c) using f_c = 1 / (2πRC) for passive circuits. For resistors in ohms (Ω) and capacitors in farads (F), this formula yields precise results. A 1 kΩ resistor paired with a 100 nF capacitor yields f_c = 1.59 kHz. Always verify component tolerances–±5% resistors and ±10% capacitors introduce variability, shifting calculated values by up to ±15%. For active designs, substitute R and C with equivalent impedance values from the op-amp configuration.

For second-order stages, use the universal equation f_c = 1 / (2π√(L₁C₁)) when inductors are present. A 10 mH choke with a 47 nF capacitor results in f_c ≈ 7.34 kHz. Below is a reference table for common combinations:

Inductor (mH)	Capacitor (nF)	Corner Frequency (kHz)
1	10	50.33
10	47	7.34
47	100	0.73

In switched-capacitor networks, derive f_c from the clock frequency (f_clk) and capacitance ratio: f_c = f_clk / (π × (C₁/C₂)). For f_clk = 1 MHz and C₁/C₂ = 10, f_c ≈ 31.83 kHz. Accuracy hinges on maintaining stable f_clk–jitter exceeding ±0.1% degrades performance.

Multistage attenuators require cascaded calculations. For identical stages, divide f_c by √(2^1/n – 1), where n is the stage count. Two matched sections with f_c = 10 kHz produce an aggregate f_c ≈ 6.43 kHz. Mismatched components demand individual stage analysis–summing derived poles yields the composite response.

Frequent Errors in Circuit Blueprints for Frequency-Selective Networks

Avoid reversing the positions of resistive and reactive components in RC-type attenuators. Placing the resistor before the capacitor alters cutoff behavior unpredictably, especially in high-impedance sources. Consistency in layout prevents phase shifts and ensures the intended roll-off slope. Verify component ordering with simulation tools like SPICE before finalizing board traces.

Neglecting parasitic inductance in capacitor leads skews measured response. Lead lengths exceeding 2mm introduce series inductance, distorting attenuation below 50kHz. Use surface-mount components for sub-100kHz designs, or trim leads meticulously. Verify actual capacitance with an LCR meter, as marked values often deviate ±5%.

Grounding Pitfalls

Creating ground loops through shared return paths corrupts signal integrity. Each stage of a multi-section design requires a dedicated star-point connection to the main reference plane. Avoid daisy-chaining grounds between cascaded sections, as this couples noise between stages. Measure impedance between ground points–values above 100mΩ indicate problematic routing.

Mislabeling cutoff frequency formulas misleads calculations. For first-order RC types, the formula is f_c = 1/(2πRC), yet many mistakenly swap R and C or omit the π term. Double-check units: kilohms convert to ohms, microfarads to farads. Cross-reference with online calculators, but manually verify at least three points along the intended spectrum.

Omitting load impedance in design assumptions causes unexpected attenuation. Real-world loads differ from theoretical infinite impedance, typically 1kΩ–10MΩ for consumer circuits. Include load impedance in transfer function equations by treating it as a parallel element. Test prototypes with representative loads before finalizing component values.

Using incorrect scaling for cascaded sections distorts intended response. A Butterworth three-section design requires each stage’s cutoff at f_c × 0.891 for flat passband, not equal frequencies. Deviations greater than 2% cascade into ripples or altered roll-off slopes. Simulate each stage individually, then combine, checking phase alignment at cutoff transitions.
