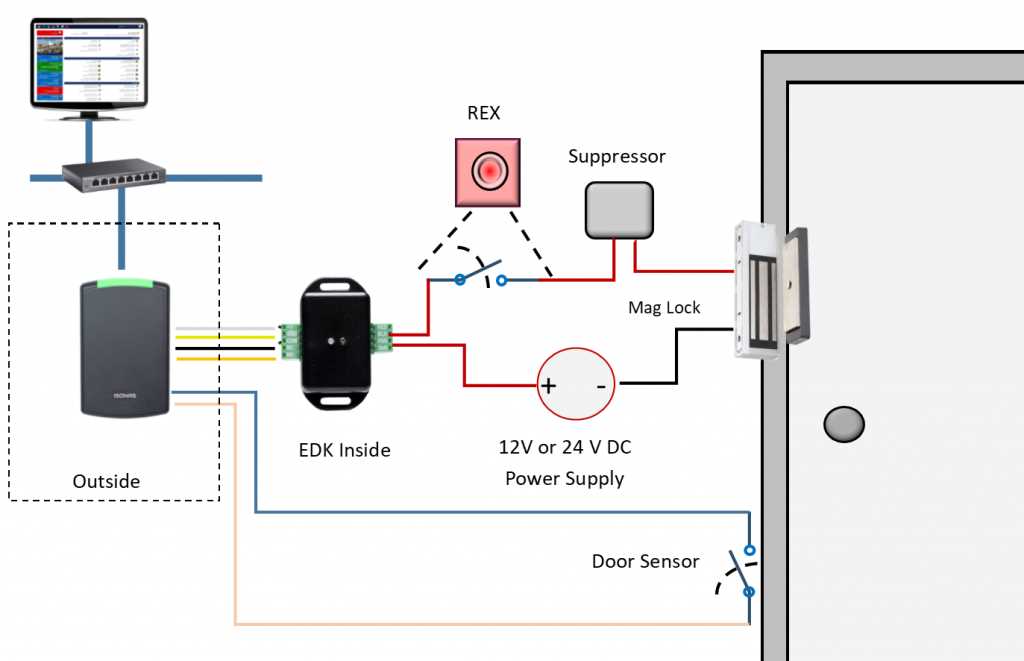

How to Wire a Push to Exit Button with a Magnetic Lock Guide
Start by connecting the fail-secure electromechanical latch’s common terminal to the positive side of a 12V or 24V DC power supply. Use 18 AWG stranded copper wire for low-voltage circuits to prevent voltage drop across distances under 30 meters. Strip 8–10mm of insulation from each wire end and crimp with tin-plated ring terminals if terminating to screw-down lugs; solder joints degrade reliability under vibration.
Mount the momentary actuator near the egress side at a height of 100–120cm from finished floor level–this ensures compliance with ADA standards without requiring excessive reach. Secure with two M4 stainless steel screws into solid substrate; drywall anchors fail under repeated actuation. Connect the actuator’s normally open contacts in series with the latch’s release coil circuit; this interrupts power only while the switch is depressed, restoring security immediately upon release.
Add a flyback diode (1N4007) directly across the latch coil terminals, cathode toward the supply positive. This absorbs the 50–150V inductive kickback that occurs when the circuit opens, preventing damage to switch contacts or control relays. For environments with high ambient RF noise, include a 0.1µF ceramic capacitor between coil terminals to suppress transient spikes.
Label every conductor at both ends with heat-shrink tubing–red for positive, black for return, green/yellow for chassis ground–to prevent miswiring during maintenance. Route low-voltage wiring at least 15cm away from 120/240VAC conduits to avoid induced noise; cross at 90-degree angles if separation is impossible.
Test the assembly before closing walls: power the circuit, verify that the latch releases audibly when the switch is pressed, and confirm that the door relocks instantly upon release. Measure coil current with a clamp meter–typical draw is 180–250mA at 12V for standard commercial grade units. If current exceeds 300mA, the coil may have shorted turns, requiring immediate replacement.
Connecting Secure Egress Controls: Circuit Basics
Use a normally open (NO) momentary switch rated for 12–24V DC as the activation point. Connect one terminal directly to the positive (+) side of the power supply and the other to the control input of the keeper solenoid via a 1 A fuse. Include a freewheeling diode (1N4007) across the coil terminals, cathode to positive, to suppress voltage spikes when the circuit opens. For fail-safe operation, ensure the diode is oriented correctly–reversing polarity will instantly damage the diode and potentially the power supply.
- 22 AWG stranded copper wire for signal paths–minimum 300V insulation.
- Crimp-on spade connectors for all field terminals to prevent intermittent faults.
- Separate return path for NO switch; never share the ground with high-current keeper loads.
- Mount the activation switch within 150 mm of the door leaf edge at 900–1200 mm above finished floor.
- Adjust height if wheelchair access is required (800–900 mm).
Test the circuit under full load before securing the cover plate: apply 24V DC, trigger the switch, and verify the keeper releases within 200 ms. If delay exceeds 300 ms, inspect for undersized wiring, corroded connectors, or incorrect diode placement. Record current draw at rest (typically <50 mA) and during activation (80–150 mA) to baseline system health–deviations suggest impending coil failure or power supply degradation.
Identifying Key Components in an Electromagnetic Door Release System
Start by locating the power supply unit–typically a 12V or 24V DC transformer–mounted near the entry point. Verify voltage output with a multimeter: mismatched values will cause intermittent failures or overheating. Check the control relay, usually a DIN-rail-mounted SPDT device; its contacts must handle at least 5A for reliable operation. Inspect the door sensor (mechanical or optical type) for proper alignment–misplacement by as little as 2mm can prevent release signals. Ensure the emergency disconnect (often a latching switch) is wired in series with the relay coil to comply with safety codes.
Core Hardware Specifications
| Component | Standard Ratings | Critical Checks |
|---|---|---|
| Electromagnetic clasp (holding force) | 600 lbs / 1200 lbs (direct pull) | Surface flatness ±0.5mm; 3M double-sided tape for non-ferrous surfaces |
| Request-to-exit device | N.O. momentary contact, 2A max | Debounce interval |
| Power converter | 18AWG minimum input; 22AWG output | Class 2 UL listing; fuse 200% of load current |
Trace cables with a toner probe before cutting–label each conductor (positive, negative, signal) using heat-shrink tubing. For outdoor installations, use conduit rated for UL 6 and seal entries with waterproof glands. Test fail-secure setups by simulating power loss: doors must remain sealed during outages. Replace any corroded terminals (zinc-plated steel preferred) to prevent voltage drop exceeding 0.3V across connections.

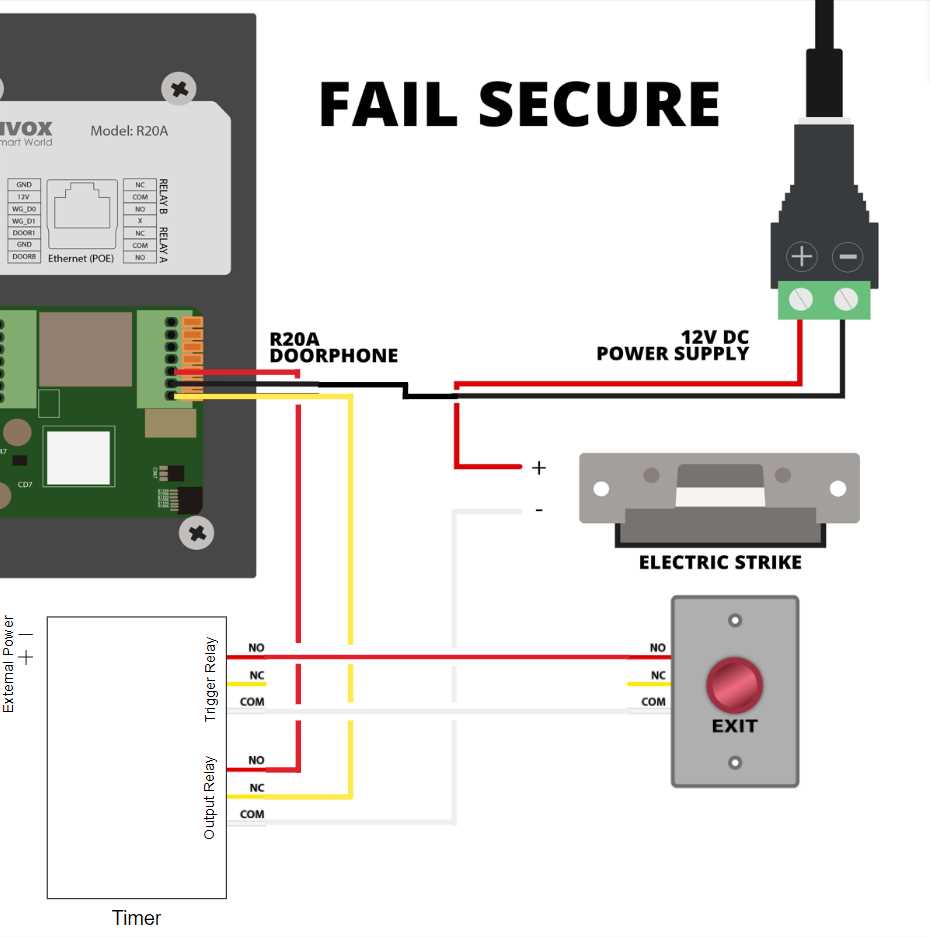

Direct Installation Guide for Release Mechanisms with Control Switches
Start by securing the power supply terminals: red (+12V or +24V DC) to the common (COM) terminal of the access control panel, and black (ground) to the negative (-) input. Verify the voltage rating matches the solenoid’s requirements–common models tolerate 12V–24V, but check markings to avoid damage. If using a regulated adapter, ensure it delivers at least 1A continuous current; undersized adapters may cause intermittent failures under load.
Connecting the Switch to the Solenoid
Attach the normally open (NO) terminal of the switch to the positive (+) input of the solenoid. Route the wire away from high-voltage lines to prevent EMI interference; use shielded 18–22 AWG cable for runs exceeding 10 meters. For fail-secure setups, connect the switch in parallel to an existing request-to-exit (REX) circuit if present–consult the panel’s manual for terminal designations (often labeled “REX” or “NO/NC”). Confirm polarity: reversing connections will disable the release mechanism entirely.
Test the setup by pressing the switch–audible clicks from the solenoid confirm activation. If absent, probe the voltage at the solenoid terminals with a multimeter: readings should drop to near zero when engaged. Persistent voltage indicates a wiring error or faulty switch. For bi-directional systems, bridge the NO and COM terminals temporarily to bypass the switch during diagnostics. Always power down the system before adjustments to avoid short-circuiting the circuit board.
Frequent Errors in Electromagnetic Release Interface Setup
Skipping polarity checks during installation guarantees malfunction. Most solenoid devices require strict adherence to positive and negative terminals on both the activator switch and the release mechanism. Reverse wiring triggers immediate failure–test continuity with a multimeter before securing connections. Factory-default labels often mislead; verify actual polarity against manufacturer schematics.
Underestimating current draw leads to unreliable operation. Low-grade cables or undersized conductors cause voltage drops, especially over runs exceeding 3 meters. Calculate wire gauge using 20% safety margin above device specifications–18 AWG suffices for 5A systems, while 16 AWG handles 7A reliably. Neglecting this risks intermittent disconnection during critical moments.
Incorrect Trigger Signal Configuration
Confusing normally open (NO) and normally closed (NC) circuit configurations forces rewiring. A NO setup keeps the circuit broken until pressed, whereas NC maintains connection until interruption. Security devices default to NO for fail-secure designs–using NC without adjustment locks users in during emergencies. Label all interfaces clearly to prevent mix-ups during maintenance.
Overlooking voltage compatibility between the control switch and holding device creates unintended side effects. A 12V activator cannot drive a 24V solenoid without a relay or voltage converter–direct connection burns components within minutes. Always match ratings or introduce isolation circuitry. Check datasheets for both parts before assembly.
Ignoring surge protection invites early failure. Transient spikes from power fluctuations or inductive loads damage unprotected circuitry. Install a flyback diode (1N4007) across the solenoid coil and a varistor (MOV) on power inputs. Without these, repeated operation degrades components faster than expected lifespan.
Securing wires improperly causes connection breaks under vibration. Twisted wires degrade at termination points if not crimped or soldered correctly. Use heat-shrink tubing on soldered joints and strain-relief connectors at junction boxes. Loose connections generate intermittent errors that complicate troubleshooting later.
Testing and Troubleshooting Access Control Egress Circuits
Verify circuit continuity first by disconnecting power and using a multimeter in resistance mode. Probe across the egress device terminals–readings should drop below 1Ω for a functional low-voltage loop. If resistance exceeds 5Ω, inspect junction boxes for corroded screws, loose crimps, or insufficiently stripped conductors. Test each segment separately: door contact, release solenoid bypass, and request-to-exit sensor. Replace any segment where resistance spikes under mechanical stress (e.g., pressing the device). For alternating-current models, confirm 24VAC at the transformer secondary before testing downstream components.
Diagnosing Voltage Anomalies
Measure voltage at the relay coil terminals during activation. Expect near-zero volts across the coil when the egress trigger is pressed–deviation indicates a stuck relay, miswired relay contacts, or a failed diode in parallel to the coil. Check for voltage sag by monitoring the supply during activation; drop below 18VDC suggests undersized wiring or excessive circuit length. Isolate surges by disconnecting peripheral devices–transients above 33VDC often originate from inductive loads like strike solenoids. Replace suppression diodes if diode testing reveals reverse leakage exceeding 0.1 mA.
