Step-by-Step Guide to Creating Clear Circuit Diagrams

Begin by selecting the right software for your project. KiCad is open-source and ideal for both beginners and professionals, offering robust libraries with over 10,000 predefined components. If you require industry-standard compatibility, Altium Designer provides advanced features like real-time collaboration and integrated Bill of Materials (BOM) generation, though it comes at a premium cost. For rapid prototyping, Fritzing simplifies the process with drag-and-drop functionality, but avoid relying on it for complex designs–it lacks precision in high-frequency applications.

When laying out symbols, prioritize clarity over aesthetics. Group related elements–power supplies, resistors, and ICs–into logical blocks, spacing them at least 0.5 inches apart to prevent visual clutter. Label every node with consistent naming conventions (e.g., VCC for power, GND for ground) and include net identifiers for signals. For analog designs, explicitly mark voltage rails (±12V, 5V, 3.3V) and current paths to avoid ambiguity. Use angled lines for cross-connections, but limit them to 45-degree angles to maintain readability.

Validate your schematic early and often. Run a Design Rule Check (DRC) to catch unconnected pins, duplicate references, or floating inputs–common errors that derail prototyping. For microcontroller-based designs, verify pin assignments against the datasheet; a single mismatch can render the board non-functional. Export a netlist and cross-reference it with your component database to ensure no parts are missing or mislabeled. If working with sensors, include test points for critical signals (e.g., I2C clocks, ADC inputs) to simplify debugging.

Consider thermal and electromagnetic constraints during planning. High-power components (e.g., MOSFETs, voltage regulators) should be placed near heat sinks with clear thermal vias annotated. For circuits operating above 1 MHz, separate analog and digital grounds to prevent noise coupling–use a star grounding topology. If space permits, add decoupling capacitors (e.g., 0.1 µF for digital ICs) as close as possible to each power pin. Annotate expected voltage drops across resistors and diodes to preempt measurement mismatches during testing.

Document assumptions and limitations upfront. If the design assumes ideal conditions (e.g., infinite input impedance, zero propagation delay), note potential deviations. For power supplies, specify tolerances (±10% for linear regulators, tighter for switch-mode). Include a revision history table to track changes–version 1.0 might omit a pull-up resistor, while 1.1 corrects it. When exporting for manufacturing, generate Gerber files alongside the schematic and verify layers (silk-screen, solder mask) to prevent misalignment errors.

Creating Accurate Electrical Schematics: Key Steps

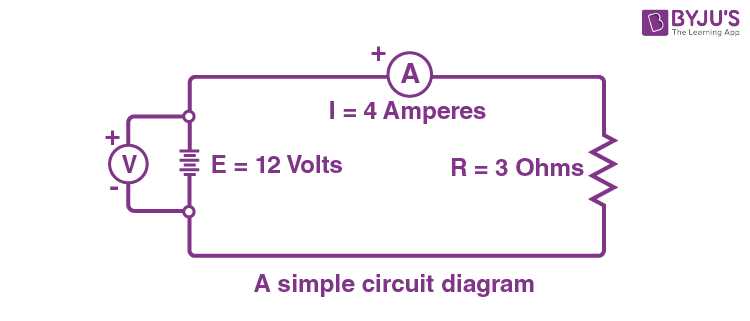

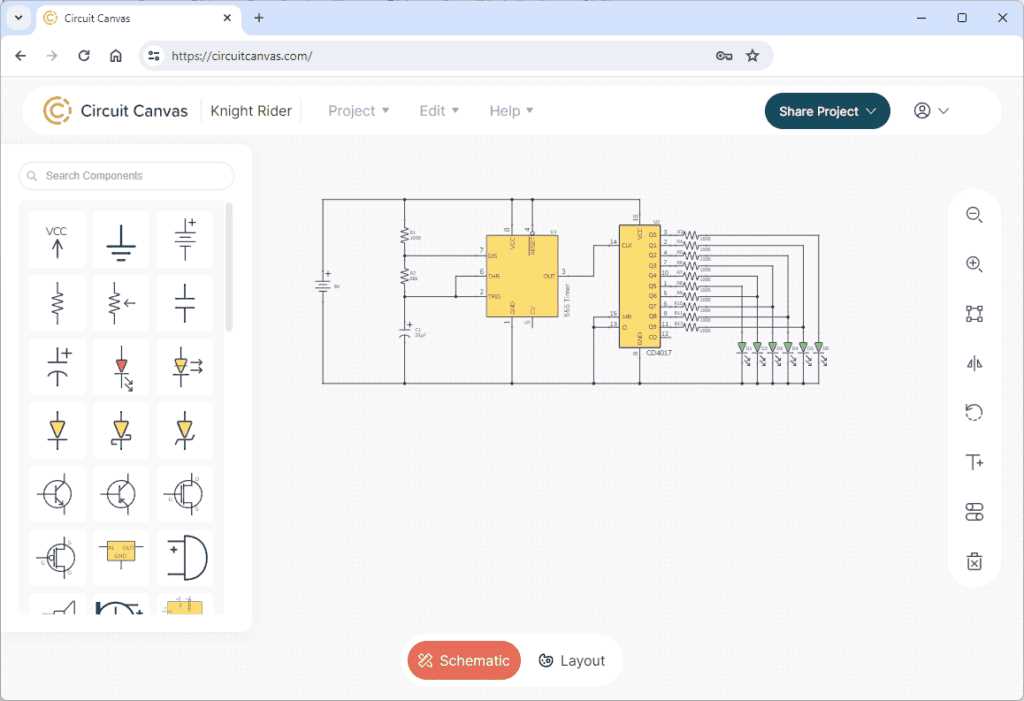

Begin by selecting specialized software tailored for electronic design. Tools like KiCad, Eagle, or Altium Designer offer libraries with pre-built components and automated validation. Free alternatives such as Fritzing or Tinkercad provide simplified interfaces for quick layouts, though they lack advanced features. Prioritize platforms with schematic-to-PCB export capabilities if physical prototypes are part of the workflow.

Organize components logically before placing them on the workspace. Group related parts–power supplies, resistors, ICs–into functional blocks to improve readability. Label each element with clear, standardized identifiers (e.g., *R1*, *C2*) and include values or part numbers directly on the drawing. Use net labels to connect distant nodes without cluttering lines, ensuring signal paths remain traceable.

• Keep wires horizontal/vertical; avoid diagonal lines to prevent confusion.
• Reserve ground symbols (⏚) for common references; avoid redundant connections.
• Use buses (thick lines) for multi-signal groups (e.g., data buses) but annotate each entry.
• Add reference designators near components–P1 for potentiometers, X1 for crystals–to match real-world layouts.

Error-Proofing Your Layout

Run design rule checks (DRCs) before finalizing the document. Most tools flag unconnected pins, duplicate references, or inconsistent net names. Manually verify critical paths–especially in power circuits–by toggling between schematic and PCB preview modes. For analog designs, check for unintended loops in ground returns that could introduce noise.

Export the drawing in multiple formats for collaboration. PDF preserves clarity for reviews, while SVG or DXF files allow edits in vector editors. Include a Bill of Materials (BOM) as a separate layer or table, listing quantities, manufacturer part numbers, and supplier links. For complex projects, attach a legend explaining custom symbols or non-standard abbreviations. Update revisions systematically, noting changes in version descriptions.

Choosing Schematic Design Tools for Precision Engineering

Opt for KiCad if budget constraints exist without sacrificing functionality. Its open-source nature removes licensing fees while providing PCB layout tools, SPICE simulation, and a comprehensive component library. For commercial projects requiring strict version control and team collaboration, Altium Designer delivers integrated workflows, real-time co-editing, and native Git support, justifying its $4,000/year cost. Professionals targeting RF or high-speed designs should prioritize Cadence OrCAD, which includes signal integrity analysis tools absent in most alternatives–critical for impedance-controlled traces and differential pair routing.

Key Decision Factors

Tool	Best For	Limitations	System Requirements
KiCad 7.0+	Hobbyists, education, rapid prototyping	Steep learning curve for custom footprints	2GB RAM, 500MB disk space
Altium Designer 23	High-complexity boards, enterprise teams	Overkill for simple designs	16GB RAM, OpenGL 4.2+ GPU
Cadence OrCAD 22.1	RF/analog circuits, signal integrity	No built-in mechanical CAD integration	8GB RAM, quad-core CPU

Avoid tools lacking schematic-to-PCB synchronization unless strict workflow separation is intended. Verify file export capabilities: KiCad exports Gerber X2 and DXF, while Altium supports IPC-2581 for automated assembly. Test drive interfaces using sample projects–drag-and-drop efficiency varies dramatically between platforms. For Linux users, options narrow to KiCad or web-based tools like EasyEDA, which runs in-browser but imposes cloud dependency. Prioritize tools with native netlist generation to streamline PCB layout handoff.

Standard Schematic Symbols: Precision in Electrical Design

Adopt resistor symbols with exact values–prefixed by “R” and followed by a number (e.g., R1 10kΩ)–directly adjacent to the symbol. Avoid generic labels like “Resistor” or “R” alone; specificity prevents assembly errors and simplifies troubleshooting during prototyping. For surface-mount components, append the package size (e.g., R2 4.7kΩ 0805) to ensure compatibility with PCB footprints.

Capacitors demand distinct symbols for polarized and non-polarized types. Use the IEC 60617 standard: two parallel lines for non-polarized (C1 100nF), and a curved line with a “+” for electrolytic or tantalum (C2 22µF). Label ceramic capacitors with temperature coefficients (e.g., X7R, NP0) if stability across temperature ranges is critical. Omit dielectric type only for decoupling capacitors where performance margins are wide.

Transistors require discrete symbols for BJTs, MOSFETs, and JFETs. For NPN/PNP bipolar devices, place the emitter arrow adjacent to the base lead (e.g., Q1 2N3904). Enhancement-mode MOSFETs use an interrupted channel line for N-channel (e.g., Q2 IRLZ44N) and a continuous line for P-channel. Always include a flyback diode across inductive loads driven by MOSFETs to suppress voltage spikes.

Integrate switches and relays with contact status indicators. A normally open (NO) switch uses two parallel lines without a crossbar; normally closed (NC) adds a diagonal slash. Label relay coils with coil voltage (e.g., K1 12VDC) and contacts with current ratings (e.g., 5A @ 250VAC). For momentary switches, add a dotted line connecting the mechanical actuator to the contact symbol to denote physical linkage.

Power sources split into voltage sources (circle with “+” and “-“) and current sources (circle with an arrow). For batteries, use a long line (positive) and a short line (negative); series connections stack symbols with total voltage labeled (e.g., 3xAA = 4.5V). Ground symbols distinguish between chassis (downward triangle), signal (three decreasing lines), and earth (three horizontal lines). Never merge ground types unless explicitly tied together at a single point.

Inductors and transformers use coils with optional core material annotations. A solenoid coil (L1 1mH) shows a helix; add dashed lines for air cores or solid lines for magnetic cores. Transformers separate primary and secondary windings with a vertical line (e.g., T1 120V/12V). For coupled inductors, use dot notation to denote phasing–critical for switch-mode power supplies where polarity misalignment causes failure.

Step-by-Step Guide to Sketching Conductive Paths and Junctions

Begin by selecting a consistent wire style for your schematic: straight lines for direct routes, 90-degree angles for clean turns, and 45-degree bends when avoiding overlapping traces. Avoid diagonal lines unless absolutely necessary–they complicate readability. Use a single pixel width for standard connections and double-width for power rails or ground lines to distinguish priority paths visually.

Key Rules for Junction Clarity

Place dots at every intersection where three or more conductive paths meet–this eliminates ambiguity about whether lines connect or cross. If paths merely overlap without electrical contact, omit the dot and add a small semicircle “jump” on one line to indicate a non-connection. Restrict dot diameter to 1.5x the wire width to maintain precision without cluttering the layout.

Label every segment with its intended signal name or voltage level immediately after drawing, using a sans-serif font sized between 8-10pt. Position labels above horizontal traces and to the left of vertical ones, ensuring consistent alignment across the entire drawing. For multi-page schematics, append sheet references (e.g., “CLK → Sheet 3”) to all off-page connectors at their endpoints.

Review intersections in batches: highlight each net with a distinct color temporarily, verify no unintended crossings exist, then revert to black-and-white for final output. Apply this method in sections–first power distribution, then signal paths–to catch errors early. Export the final version in vector format (SVG or PDF) to preserve sharpness at any zoom level, avoiding raster artifacts that obscure fine details.
