RS485 Communication Practical Circuit Design and Wiring Guide

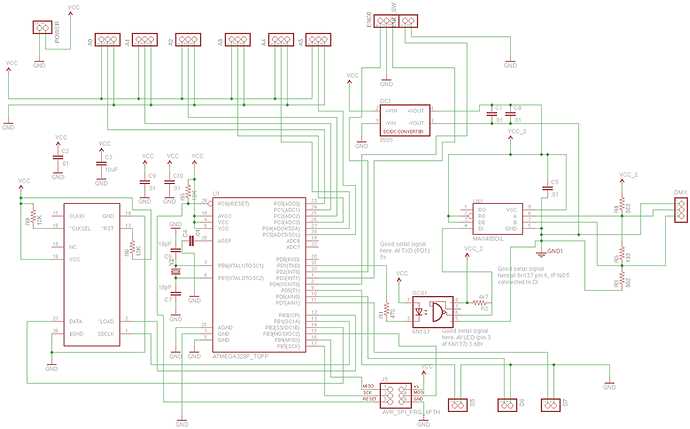

max485 circuit diagram

Begin with a single MAX485-compatible transceiver per node–each must have dedicated A and B signal lines. Terminate both ends of the bus with 120Ω resistors to prevent reflections; omit them if the cable length is under 10 meters. Power the transceiver with 5V; decouple it with a 0.1µF capacitor placed within 5mm of the VCC pin. Avoid using switching regulators near the interface–they introduce noise that corrupts differential signals.

Route the A and B traces with matched lengths–differences exceeding 20mm degrade signal integrity at baud rates above 19.2 kbps. Keep traces short; if longer than 100mm, use guard rings tied to ground to reduce crosstalk. Separate the differential pair from high-speed clocks by at least 2mm. Ground the shield of twisted-pair cables at one end only–connecting both causes ground loops and data errors.

Use failsafe biasing when the bus is idle: pull A to +0.3V via a 470Ω resistor and pull B to ground via another 470Ω resistor. This ensures a valid differential voltage (+200mV) when no driver is active. For half-duplex operation, connect the DE and RE pins of the transceiver to a single control line–high enables driving, low enables reception. Isolate these control lines with 1kΩ resistors to prevent spurious transitions.

Test the network with a 10-meter AWG 24 twisted-pair cable; verify signal amplitude (minimum ±1.5V) with an oscilloscope. Attenuation should not exceed -6dB at 1 MHz. If jitter exceeds 50ns at 115.2 kbps, shorten the cable or reduce the baud rate. Replace the transceiver if the input current exceeds 1.5mA–indicative of latch-up or ESD damage.

Practical RS-485 Interface Construction: Step-by-Step Wiring

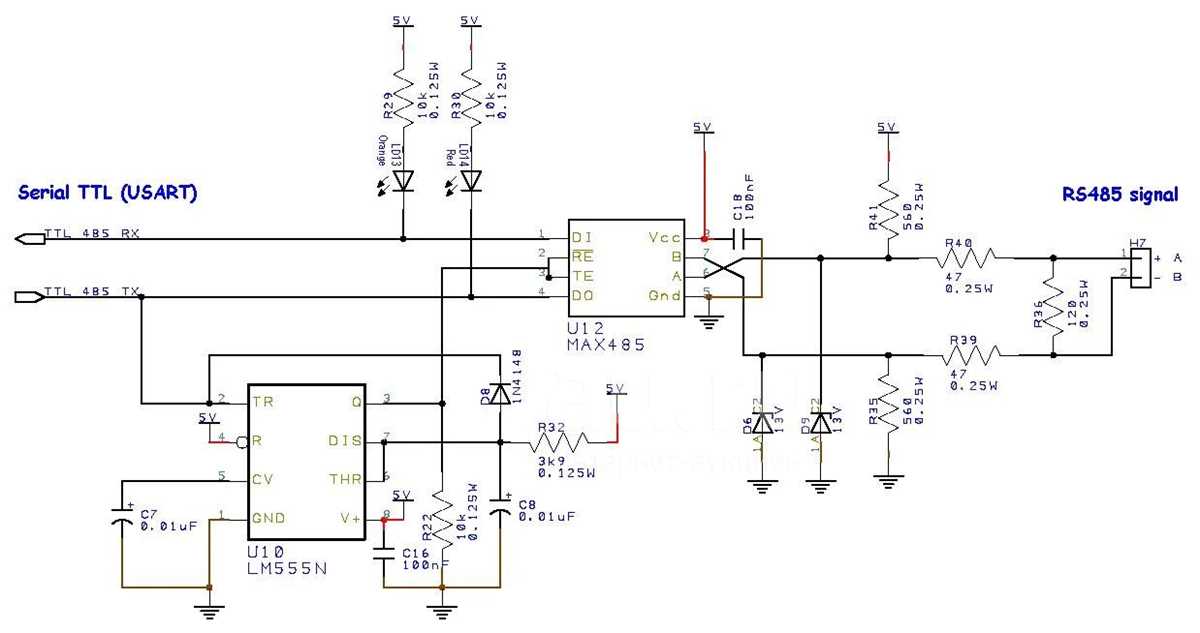

max485 circuit diagram

Begin by connecting the transceiver’s A/B terminals to a twisted pair cable, ensuring polarity consistency–swap lines if signal integrity degrades. Use 120Ω termination resistors at both ends of the bus to prevent reflections; omitting these in short runs under 50m risks sporadic data corruption. Power the IC with a regulated 5V source, adding a 10μF decoupling capacitor near the VCC pin to suppress noise spikes. For fault isolation, include a 10kΩ pull-up on the DE pin and pull-down on ~RE to default the transceiver to receive mode when unused.

Grounding and Signal Integrity Precautions

  • Star-ground all devices to a single point; floating grounds create voltage offsets up to 1.5V, violating RS-485’s ±200mV common-mode tolerance.
  • Route A/B traces at least 1mm apart on PCBs; crosstalk increases by 40% per cm of parallel run over 3cm.
  • Add transient suppression diodes (e.g., P6KE6.8CA) across A/B inputs if operating near inductive loads–surges above ±15V destroy unprotected transceivers.
  • Test impedance-matched cables only; Cat5e works for

For multi-drop networks exceeding 32 nodes, split the bus into segments with isolated repeaters–each segment must maintain ≤32 unit loads. UTP cables require shielding tied to ground at one end only; otherwise, ground loops introduce 50/60Hz hum. Probe differential signals with an oscilloscope using ×10 probes; ×1 probes distort measurements by capacitive loading.

Pin Configuration and Wiring for RS-485 Interface Modules

Connect the RO (Receiver Output) pin to the microcontroller’s UART RX input without additional resistors, as the module’s internal circuitry handles signal conditioning. For reliable data reception, ensure a direct path–avoid sharing this line with pull-ups, capacitors, or other peripherals that could distort the differential signal. Typical voltage levels on RO range from 0V to VCC (3.3V or 5V), so verify compatibility with your controller’s logic thresholds before wiring.

Critical Wiring Practices for Differential Lines

Twist A (non-inverting) and B (inverting) pairs tightly with at least 12 twists per meter to minimize electromagnetic interference. Use shielded twisted-pair cable for distances exceeding 50 meters–ground the shield only at one end to prevent ground loops. For half-duplex setups, link the DE (Driver Enable) and RE (Receiver Enable) pins together and drive them high/low synchronously via a GPIO to toggle between transmit and receive modes. Omitting this step risks bus contention or data corruption.

Power the module with a regulated 3.3V–5V supply, but note that exceeding 5.5V may damage the IC. Place a 0.1µF decoupling capacitor as close as possible to the VCC and GND pins to filter noise. If the bus spans long distances (e.g., 1200 meters), add 120Ω termination resistors at both ends of the A-B pair to match the cable’s characteristic impedance and prevent signal reflections. For point-to-multipoint topologies, terminate only the furthest nodes to avoid overloading the driver.

Troubleshooting Signal Integrity

Measure voltage between A and B with an oscilloscope during idle state–expect -200mV to -500mV (logical *1*) or +200mV to +500mV (logical *0*). If readings deviate, check for loose connections, missing terminations, or incorrect polarity. For robust operation, limit the number of nodes to 32 per segment to stay within the driver’s 1/8 unit load limit, unless using lower-load transceivers. Short A and B momentarily at node startup to confirm the differential voltage collapses to near-zero–persistent offset indicates a wiring fault or failed device.

Integrating RS-485 Transceivers with Arduino and STM32: Practical Implementation

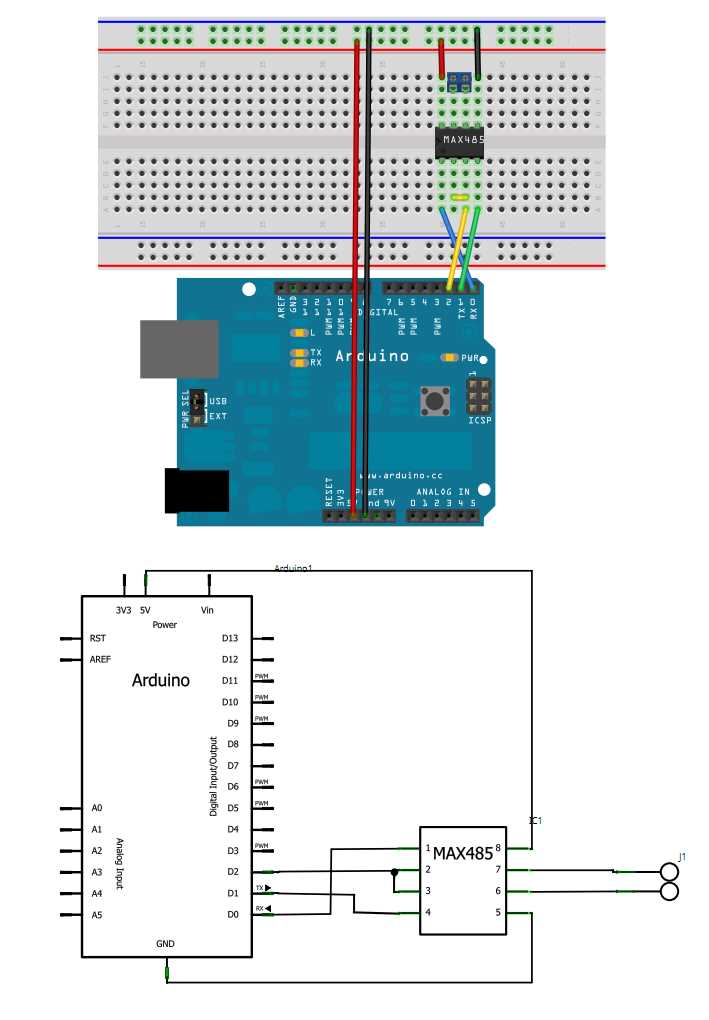

max485 circuit diagram

Begin by connecting the transceiver’s A (non-inverting) and B (inverting) pins to a twisted pair cable. For Arduino, use 120Ω termination resistors at both ends of the bus; STM32 setups may require lower values (100Ω) if cable runs exceed 100 meters. Avoid star topologies–linear bus configurations reduce signal reflections and maintain data integrity at baud rates above 9600.

For Arduino Uno/Leonardo, wire the transceiver’s DE/RE pins together and link them to a digital output (e.g., D2). Enable this pin HIGH for transmission and LOW for reception. STM32 boards (e.g., Blue Pill) offer hardware-supported UARTs–use USART1 with PA9 (TX) and PA10 (RX) for stable 115200 baud communication. Configure GPIO pins for DE/RE switching via HAL library functions like HAL_GPIO_WritePin().

  • Arduino:
    • Include <SoftwareSerial.h> if hardware UART is unavailable.
    • Set DE/RE pin HIGH 10µs before and LOW 50µs after transmission to prevent bus contention.
    • Use Serial.write() for raw data; avoid print() due to overhead.
  • STM32:
    • Initialize USART with HAL_UART_Init() and configure 8-N-1 mode.
    • Enable pull-up resistors on RX pin to mitigate noise in idle states.
    • Use DMA for bulk data transfer (e.g., HAL_UART_Receive_DMA()) to free CPU resources.

Ground loops introduce common-mode noise–isolate power supplies using DC-DC converters or optocouplers (e.g., PC817) for industrial environments. For battery-powered nodes, add a 10µF capacitor across VCC/GND to suppress transients during switching. STM32’s 3.3V logic tolerates ±15V differential signals, but Arduino’s 5V logic may require level shifters (e.g., TXS0104E) if interfacing with 3.3V transceivers.

  1. Arduino troubleshooting:
    • Erratic data? Check loop() timing–delay 2ms between transmissions.
    • No response? Verify DE/RE pin logic; invert polarity if using active-low transceivers.
    • Corrupted packets? Reduce baud rate to 19200 for long cables (>150m).
  2. STM32 troubleshooting:
    • Framing errors? Confirm correct USART clock settings (PCLK1/2).
    • DMA overflows? Allocate buffers 2× expected payload size.
    • Parity errors? Disable DMA and use interrupt-driven RX (HAL_UART_Receive_IT()).

STM32’s advanced UART features enable efficient multi-node communication. Implement RTU protocol using interrupt callbacks–trigger HAL_UART_RxCpltCallback() on byte receipt, then parse within a 5ms timeout. For Arduino, use circular buffers (e.g., RingBuffer.h) to manage continuous data streams. In both platforms, enforce strict packet validation: check CRC or checksum for Modbus RTU, and reject malformed frames by resetting the RX buffer.

Power-sensitive applications demand transceiver optimization. For Arduino, use sleep modes (SLEEP_MODE_IDLE) between transmissions, waking via external interrupt on RX activity. STM32 excels here–LPTIM or low-power UART (LPUART) maintains connectivity at

Scalability requires robust polling strategies. Arduino masters should use non-blocking code (millis()-based timing) to avoid delays during transmissions. STM32 masters benefit from FreeRTOS tasks–dedicate a 1KB stack to each slave query. For large networks (128+ nodes), implement binary exponential backoff: double the retry delay (starting at 10ms) after each collision until resolution. Critical systems should log failures (STM32: Flash wear-leveling; Arduino: SD card) to diagnose intermittent failures without halting operation.

Signal Termination and Bias Resistors for Noise-Free Data Transmission

Install 120Ω termination resistors at both ends of a half-duplex differential bus to match the characteristic impedance of twisted-pair cables. This elimination of signal reflections is critical for lines exceeding 10 meters or operating above 250 kbps. For shorter segments or lower data rates, omitting termination can reduce power consumption by up to 30%, but expect higher susceptibility to noise.

Use 470Ω pull-up and pull-down resistors on the A (non-inverting) and B (inverting) lines respectively to maintain a defined idle state. This prevents floating lines that induce random bit errors. In noisy environments, increase these values to 1kΩ to reduce current draw while still suppressing spurious signals caused by electromagnetic interference.

Differential receivers exhibit hysteresis of approximately ±200 mV, requiring a minimum differential voltage of ±200 mV for reliable switching. Without bias resistors, common-mode noise can shift the signal baseline beyond this threshold, causing false transitions. Calculate resistor values using the formula Vidle = VCC × (Rpull-down / (Rpull-up + Rpull-down)) to ensure a stable >200 mV differential.

For multi-node topologies, enable termination only on the farthest endpoints of the bus. Intermediate nodes connected via stubs shorter than 5 meters need no termination, as reflections from these stubs are typically negligible. In electrically harsh conditions (e.g., industrial motors, welders), opt for slew-rate limited transceivers to further attenuate high-frequency noise without additional components.

Grounding and Power Supply Considerations

Avoid ground loops by connecting all nodes to a single-point ground at the controller or PSU, not daisy-chained. Isolate the communication ground from power grounds using a 10Ω resistor or ferrite bead if shared power sources are unavoidable. For 5V systems, decouple each transceiver with a 0.1µF ceramic capacitor within 5 cm of the power pin to suppress transient voltage spikes.

When connecting nodes over 100 meters apart, use twisted-pair cable with foil shielding and ground the shield at one end only. For transient protection, add TVS diodes (e.g., P6KE6.8CA) across the A/B lines, rated for twice the bus voltage. Test the setup with an oscilloscope: the idle voltage between A and B should settle at ~2.5V ±0.2V for a 5V system, confirming proper bias and termination.
