Complete Micromax Phone Circuit Diagrams and Repair Schematics Guide

Start by visiting specialized forums where hardware technicians exchange technical documentation. Platforms like XDA Developers, GSM Forum, and Electro-Tech-Online host dedicated threads for discontinued and entry-level device repairs. Search using model numbers–e.g., “Q338 service manual PDF” or “Infinity-Box files for J2 Prime”–to uncover direct download links shared by verified users. Prioritize archives updated within the last 12 months, as older versions may omit critical revisions.

Avoid generic file-sharing sites like Mega or MediaFire unless the source is a trusted schematics distributor. Legitimate providers include AllGSMSolution, SchematicsDownload, and GSMHelpful, which require nominal subscriptions but guarantee unmodified, virus-free downloads. Always cross-reference files with hardware tear-down guides on iFixit or RepairWiki to confirm component placement before soldering.

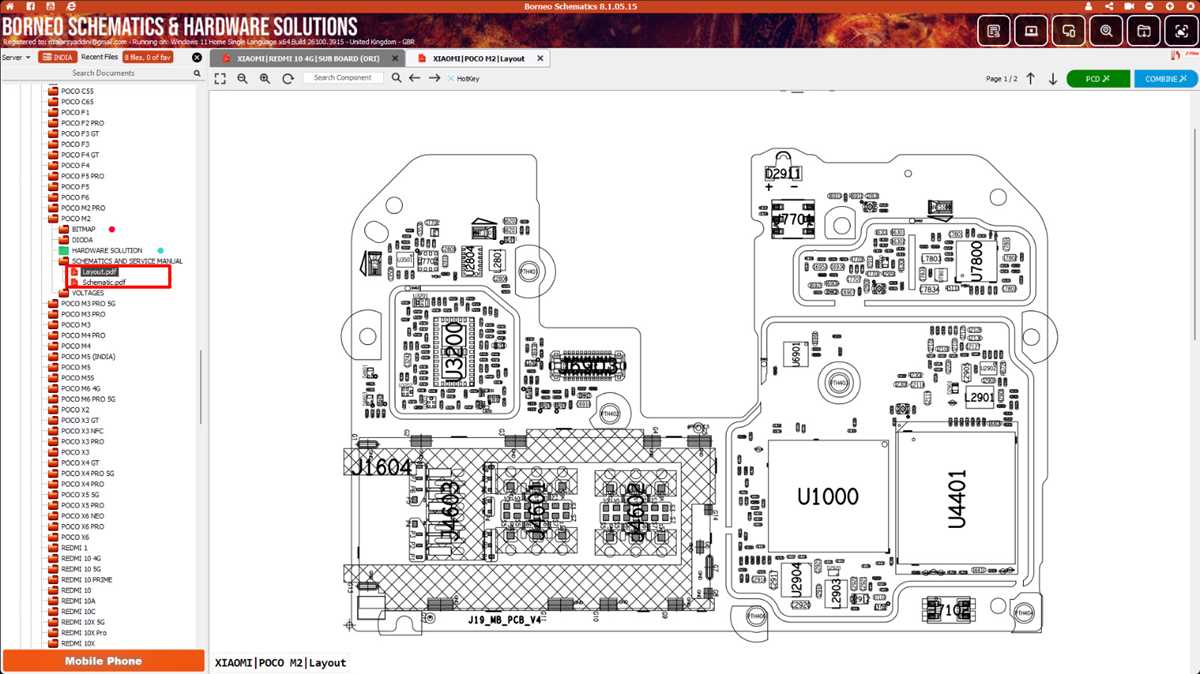

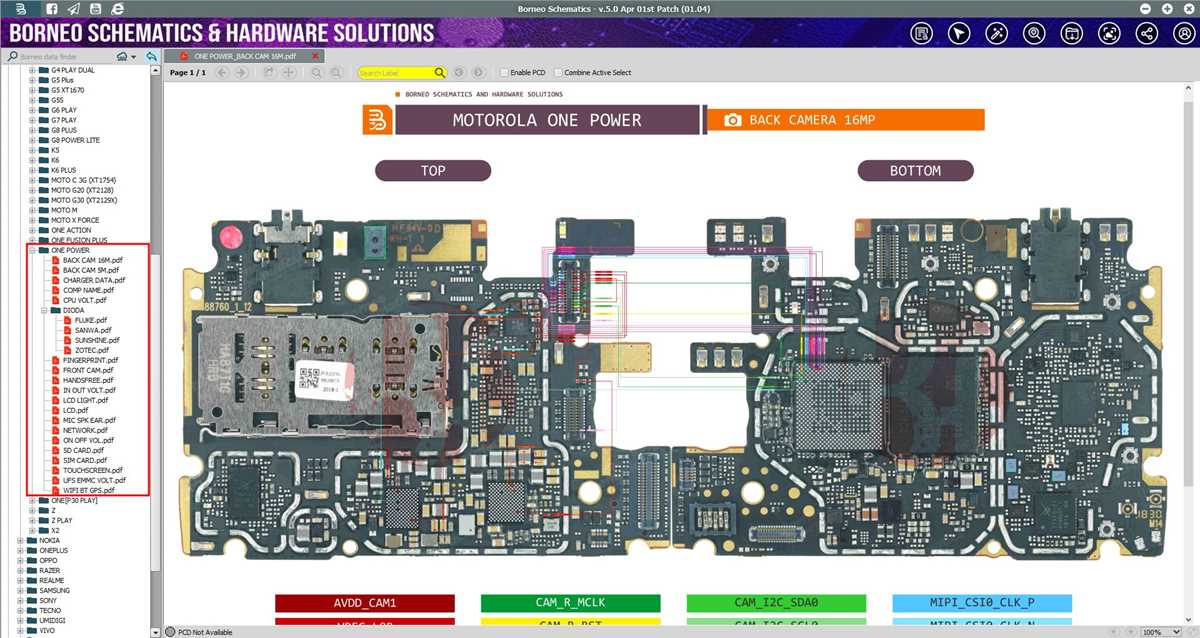

For offline access, use ZXW Tool or UFI Box software–they store compact libraries of PCB layouts for over 2,000 budget handset variants. Their interfaces highlight test points, power rails, and common failure zones (e.g., charging IC pinouts, RF PA paths). If a board file is missing, request it via the tool’s official Telegram support channel; responses typically arrive within 48 hours.

When probing circuits, equip your multimeter with EM3220 probes–their fine tips prevent accidental shorts on densely packed flex boards. For SMD components under 0402 size, use a rework station preheater set to 120°C to prevent thermal shock. Replace blown regulators (e.g., MT6323, PM6819) only with identical marking codes, as pin-compatible alternatives often have mismatched power sequencing.

Key Components in Device Circuit Layouts

Begin by identifying the power management IC (PMIC) on the board–typically marked with labels like “MTK” or “Qualcomm” followed by a model number (e.g., MT6359, PM6150). Trace its connections to the battery terminals, charging port, and voltage regulators. The PMIC’s datasheet will list output voltages for each rail (common values: 1.8V, 3.3V, 5V); verify these with a multimeter in continuity mode. If rails are dead, check for blown fuses near the USB-C port or shorted capacitors–use a thermal camera to spot overheating components.

Signal Path Debugging

For baseband processing issues, focus on the modem chip (e.g., MT6873) and its memory interface (LPDDR4X). Probe the clock signals on the crystal oscillator pins (32.768 kHz and 26 MHz)–absence indicates a faulty crystal or damaged traces. Examine the RF section by locating the PA (power amplifier) near the antenna switch; measure impedance with a network analyzer. Common fault points include:

• Corroded solder joints under the SIM card slot (reflow with flux if resistance exceeds 1Ω).
• Burst capacitors on the camera connector (replace if bulging).
• Broken flex cables between the display and mainboard (test with a known-good panel).

Use a schematic viewer like “EasyEDA” to cross-reference pinouts–download the PDF for exact signal names and test points.

Trusted Sources for Genuine Handset Blueprints and Service Manuals

Start with the manufacturer’s official support portal. Brands often host authorized repair documents under dedicated sections for technicians. Look for links labeled “Service Center Resources,” “Technical Documentation,” or “Firmware & Schematics” within device-specific pages. While access may require registration, this is the safest route to avoid counterfeit or outdated files.

Electronics repair forums like XDA Developers and AllFix provide verified circuit layouts shared by experienced technicians. Search for threads tagged “board view,” “PCB maps,” or model-specific disassembly guides. Members frequently attach ZIP archives containing high-resolution scans directly from factory service manuals. Always check thread ratings and user feedback before downloading.

Third-party repositories such as GSMHosting and EDAboard compile repair manuals across multiple brands. Navigate to sections like “Schematic Files” or “Hardware Repair” and filter by brand prefix (e.g., “MMX” or model number). These platforms often include user-uploaded archives with OCR-enabled PDFs, allowing quick keyword searches for component details. Verify file integrity by cross-referencing SHA-256 hashes when provided.

Paid Platforms with Guaranteed Authenticity

Subscriptions to professional databases like Z3X, Infinity Box, or Octoplus Box include proprietary hardware layouts as part of their software packages. These tools bundle verified reference materials for supported models, often updated alongside firmware flashes. While costly, they eliminate risks associated with unverified downloads and provide direct support for troubleshooting.

Specialized distributors such as CellphoneRepairParts.com or RepairUniverse sell individual service manuals in digital format. Prices typically range from $5 to $15 per manual, with samples previewing the document’s quality before purchase. Opt for sellers offering instant downloads and money-back guarantees to mitigate fraud.

For offline access, visit regional electronics markets known for supplying repair centers. Shops in Delhi’s Nehru Place, Shenzhen’s Huaqiangbei, or Manila’s Greenhills often carry USB drives with curated collections of hardware blueprints. Negotiate for updated batches–vendors frequently refresh these archives every few months.

Use torrents as a last resort, searching for magnet links tagged with “factory service manual,” “engineering diagram,” or “full PCB scan.” Prioritize torrents with comments confirming authenticity, such as mentions of specific test points or calibration procedures. Pair downloads with a VPN and scan files using VirusTotal to detect malicious payloads often embedded in pirated archives.

Key Components Highlighted in Device Circuit Blueprints

Examine the power management integrated circuit (PMIC) first–it regulates voltage distribution across subsystems like the application processor (AP), baseband, and peripherals. Reference designs from Qualcomm’s PM8xxx series show dedicated rails for: VCORE (1.1V–1.5V), VIO (1.8V), and VSIM (3V). Verify decoupling capacitors (typically 0.1μF–10μF) near each rail; missing or wrong-value caps cause instability under load. For MediaTek platforms, look for MT63xx PMIC variants where LDOs replace buck converters–check the BOM for inductor footprints even if unpopulated.

Component	Typical Value	Failure Symptoms	Quick Test
Buck Converter (Inductor)	1μH–4.7μH, 2A–4A	Reboots under 70% load	Measure DC resistance <0.2Ω; scope ringing <100mV p-p
ESD Protection Diode	SOD-523, 5V standoff	Port failure post-static event	Diode check in-circuit, forward drop ~0.6V
Flash Memory (eMMC)	BGA-153, 8GB–128GB	Bootloop at OS stage	Read ID command via JTAG; valid response starts with 0x7E

Trace the antenna matching network next–expect a pi-network with components C1 (2.2pF), C2 (3.3pF), and L1 (1.5nH). Values shift per band (LTE Band 5 requires C2=4.7pF), and misalignment drops TX power by 6dB. For Broadcom Wi-Fi/Bluetooth modules, locate the FEM (Front-End Module); ensure the Tx/Rx switch path mirrors datasheet diagrams, typically marked ANT→SP4T→PA→LNA. Signal integrity hinges on ground stitching via 0Ω resistors–measure continuity, not just presence.

Step-by-Step Guide to Reading Handset Circuit Board Layouts

Locate the power management IC (PMIC) first–it’s typically near the battery connector or charging port, marked with labels like “MT6359” or “PM8150B.” Trace its input/output lines to identify key components: buck converters (for CPU/GPU voltage), LDO regulators (for memory or RF sections), and fuel gauge circuits (BQ27Z561). Use a multimeter in continuity mode to verify connections between the PMIC and decoupling capacitors (0402/0603 packages, usually ceramic 1µF–10µF), ensuring no broken traces or cold solder joints.

For signal flow, follow the main processor’s ball grid array (BGA) pins outward. High-speed lanes (MIPI DSI, CSI, or USB 2.0/3.0) appear as clustered vias with differential pairs–confirm impedance matching by checking trace width (typically 5–8 mils) and spacing (3–5 mils). RF paths (LTE/Wi-Fi) require shielding cans; note the grounding vias around matching networks (π-networks with inductors/capacitors) and antenna feed points. Cross-reference the layout with the BOM to identify part numbers for critical passives like SAW filters (e.g., WFH1552) or EMI capacitors (X5R/X7R dielectrics).

Troubleshooting Hardware Failures with Electronic Blueprints

Check power delivery paths first when diagnosing charging faults. Follow the VBAT line from the battery connector through PMIC (Power Management IC) and look for voltage drops at test points. A 0.2V drop between the charger port and PMIC input indicates corroded contacts or a broken trace. Use a thermal camera to spot overheating components–often a sign of shorted capacitors near the charging coil.

For no-display issues, verify the display connector pinout against the board layout. Common failures include oxidized pins (clean with isopropyl alcohol) or misaligned flex cables causing open circuits. Test continuity from the GPU output to the LCD driver IC. If signals reach the driver but the screen remains black, replace the driver or check the backlight enable line for 3.3V.

RF and Signal Path Defects

Locate antenna switch modules (ASM) and trace RF lines to identify signal loss. Measure impedance at key junctions–normal values range 45–55 ohms. If Wi-Fi or cellular signals drop, test antennas for physical damage or loose connections. Replace the RF transceiver if transmitter bias voltages (TX_BIAS) are absent but all preceding components show correct readings.

Audio failures often stem from blown amplifiers. Check for continuity on the speaker output lines and measure DC voltage at the audio codec. Common values: 1.8V on IN+, 0V on IN– (differential inputs). If resistance exceeds 10 ohms between pins, resolder or replace the codec. Verify MIC_BIAS at 2.2V for microphone functionality.

Overheating shortly after boot usually points to a shorted inductor near the CPU. Use a multimeter in diode mode to check for grounded components. If resistance reads below 5 ohms, inspect adjacent decoupling capacitors. Replace any swollen or discolored components–these often fail under thermal stress.

For intermittent reboots, examine reset circuitry. The PWRKEY line should hold 3.0V when pressed. If voltage fluctuates, test the power button connector and ESD protection diodes. Use an oscilloscope to monitor the reset pulse from the PMIC–duration should be 100–120ms. A missing pulse confirms a faulty PMIC requiring replacement.
