Complete Guide to MicroSD Card Pinout and Circuit Design Details

Start with a minimal interface: four mandatory data lines (D0-D3), a clock input (CLK), and a command channel (CMD). Include power connections for VCC (3.3V) and GND–ensure decoupling capacitors (0.1µF) sit within 2mm of the pins. For high-speed operation, add pull-up resistors (10-50kΩ) on DAT0 and CMD to prevent floating states during initialization.

Route traces with controlled impedance (50Ω ±10%) for lines longer than 5cm. Keep clock and data paths symmetrical; mismatched lengths introduce timing skew. Use 4-layer PCB stacks to isolate signal layers between ground and power planes. Avoid vias on high-frequency lines–each via adds 0.5-2pF capacitance, degrading signal integrity at >25MHz.

Implement ESD protection on all external pins: bidirectional TVS diodes (6V clamping voltage) with capacitance. Place series resistors (22-51Ω) on data lines to dampen reflections. For card detect, use a mechanical switch or GPIO with a 100kΩ pull-up–debounce signals in firmware to avoid false triggers.

Verify power delivery: 3.3V ±5% with ≤50mV ripple at 200mA peak. Use LDO regulators for clean supply or bypass switching converters with π-filters. Test at temperature extremes–-25°C to 85°C–to ensure margins for cold-start and thermal throttling scenarios.

For debugging, assign test points for CLK, CMD, and DAT0. Add a JTAG header for embedded controllers. Document termination requirements: 47pF capacitors on CMD and DAT lines when driving long cables (>10cm).

Electrical Connection Blueprint for Miniature Flash Storage

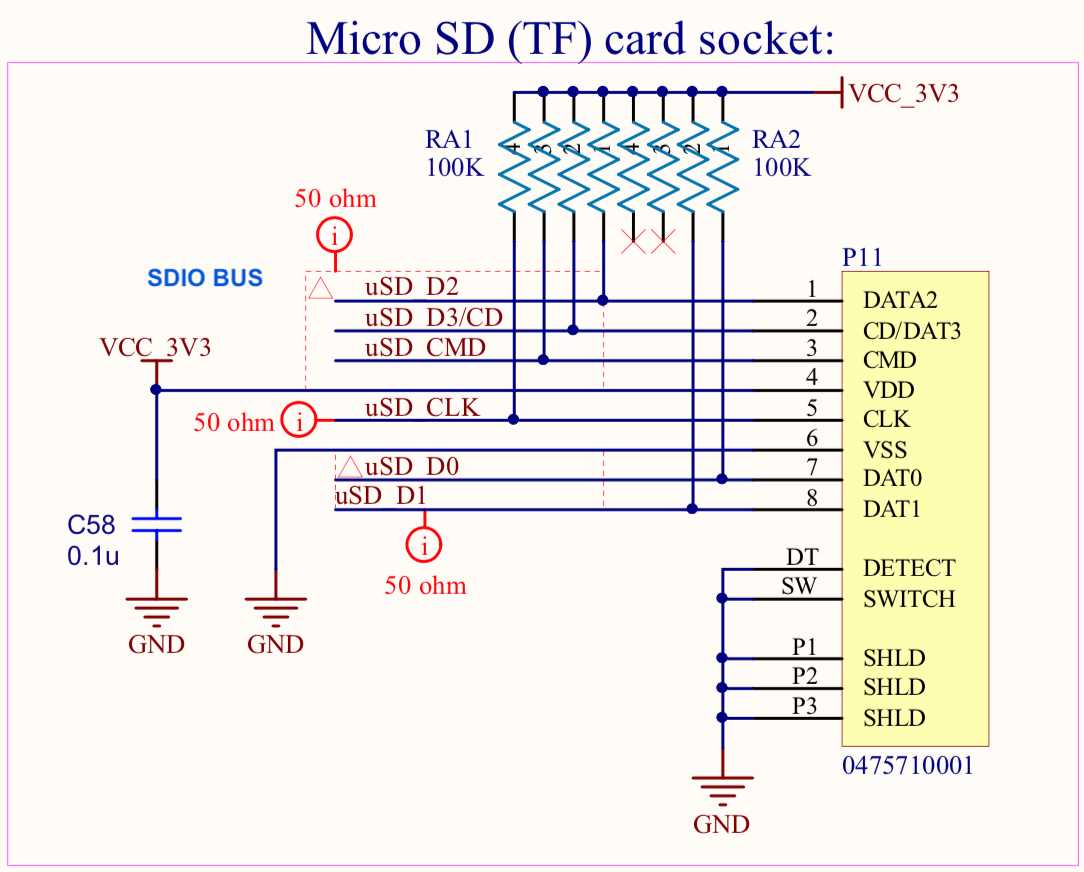

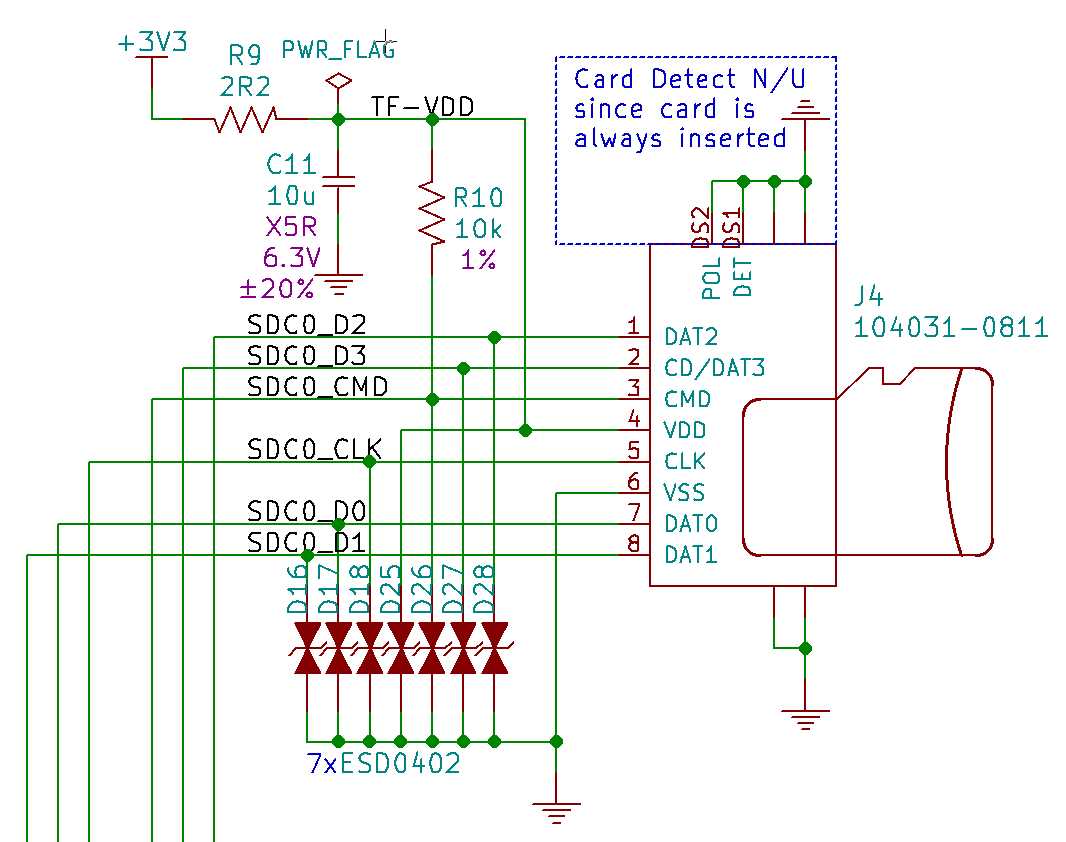

Use a 4-bit bus configuration for optimal throughput in high-speed designs. Connect pin 2 (DAT0) to a 10kΩ pull-up resistor to VCC (3.3V), ensuring stable initialization. Pins 1 (CD/DAT3), 7 (DAT1), and 8 (DAT2) should follow the same pull-up requirement if unused–floating inputs may cause erratic behavior. For supply decoupling, place a 0.1µF ceramic capacitor in parallel with a 10µF tantalum capacitor as close as possible to the power pin (VCC, pin 4). Ground pins 3 (VSS1) and 6 (VSS2) directly to the PCB’s ground plane through separate vias to minimize noise interference.

Route control lines CLK (pin 5) and CMD (pin 9) with impedance-matched traces, targeting 50Ω for signal integrity. Keep trace lengths under 25mm to prevent clock skew and reflections. If SPI mode is required, repurpose DAT1 (pin 7) as chip select (CS) and pull it low to enter alternate communication protocol. Avoid daisy-chaining–each slot needs dedicated CS lines. Test for signal integrity with a 200MHz oscilloscope before finalizing PCB layout.

Key Components of a Flash Memory Card Circuit Layout

Prioritize impedance-controlled traces for data lines (CLK, CMD, DAT0-DAT3) to prevent signal degradation. Keep trace lengths matched within ±5 mm for high-speed modes (SDR104, DDR50) to maintain timing integrity. Use a ground plane directly beneath these traces to minimize crosstalk and electromagnetic interference.

Implement a 0.1 µF decoupling capacitor for the VDD pin placed no further than 2 mm from the connector. For designs with multiple power domains, add a ferrite bead between VDD and host-side supply to filter high-frequency noise, particularly in noisy environments like embedded systems.

Select a 9-pin ultra-low-profile connector with gold-plated contacts for reliable mating cycles. Verify the connector’s pitch (typically 0.4 mm) aligns with the host PCB’s footprint pads. Ensure mechanical stability by reinforcing the connector area with vias tied to the ground plane to distribute stress during insertion/removal.

Include series resistors (22–33 Ω) on control and data lines to dampen reflections and reduce overshoot. For CMD and DAT traces, route signals away from high-current paths (e.g., motor drivers or switching regulators) to avoid induced noise. Maintain a clearance of at least 0.3 mm between these traces and adjacent signals.

Design the card detection circuit (CD) using a pull-up resistor (10–100 kΩ) to VDD and a mechanical switch or GPIO detector. Avoid relying solely on software detection, as hardware-based CD ensures faster response times and prevents false positives during unexpected disconnections.

For write-protect (WP) functionality, integrate a physical switch or solder jumper to ground, tied to a pull-up resistor. If hardware write protection is unnecessary, leave the pin floating or connect it to VDD via a 10 kΩ resistor to avoid accidental logic conflicts.

Test trace continuity and signal integrity using a time-domain reflectometer (TDR) for lengths exceeding 50 mm. For designs operating above 50 MHz, validate the layout with an eye diagram to confirm compliance with the JEDEC standard (e.g., UHS-I for speeds ≥104 MB/s). Adjust trace widths (typically 0.1–0.15 mm) based on PCB stack-up and impedance requirements.

Host Interface Considerations

Isolate the host controller’s power domain from the memory card’s VDD using a dedicated LDO or buck converter, especially if the host operates at 3.3 V while the card requires 1.8 V for UHS modes. Add a 0.47 µF bulk capacitor near the regulator output to handle transient current demands during read/write operations. Verify thermal dissipation if the regulator supplies multiple peripherals.

Implement a soft-start mechanism for power sequencing to prevent inrush current from damaging the card’s internal circuitry. Use a P-channel MOSFET or enable pin on the regulator, controlled by a delayed GPIO from the host, to ramp voltage gradually over 5–10 ms. This reduces the risk of latch-up during hot insertion.

Step-by-Step Wiring Guide for Secure Digital Storage Interfaces

Connect the card’s VDD pin to a stable 3.3V supply with a decoupling capacitor (0.1µF) placed as close to the pin as possible–this prevents voltage spikes during read/write operations.

Route the clock (CLK) line directly from the host controller to the storage module’s CLK pad, keeping the trace shorter than 5 cm to minimize signal degradation. Use 33Ω series resistors on CLK and data lines if the bus length exceeds 3 cm to reduce ringing.

Essential Data Line Practices

Attach the command (CMD) and four data (DAT0–DAT3) lines with pull-up resistors (10kΩ–47kΩ) to 3.3V–this ensures idle-high logic levels and prevents floating inputs. Avoid vias on these traces; if unavoidable, place vias near the connector pad to maintain signal integrity.

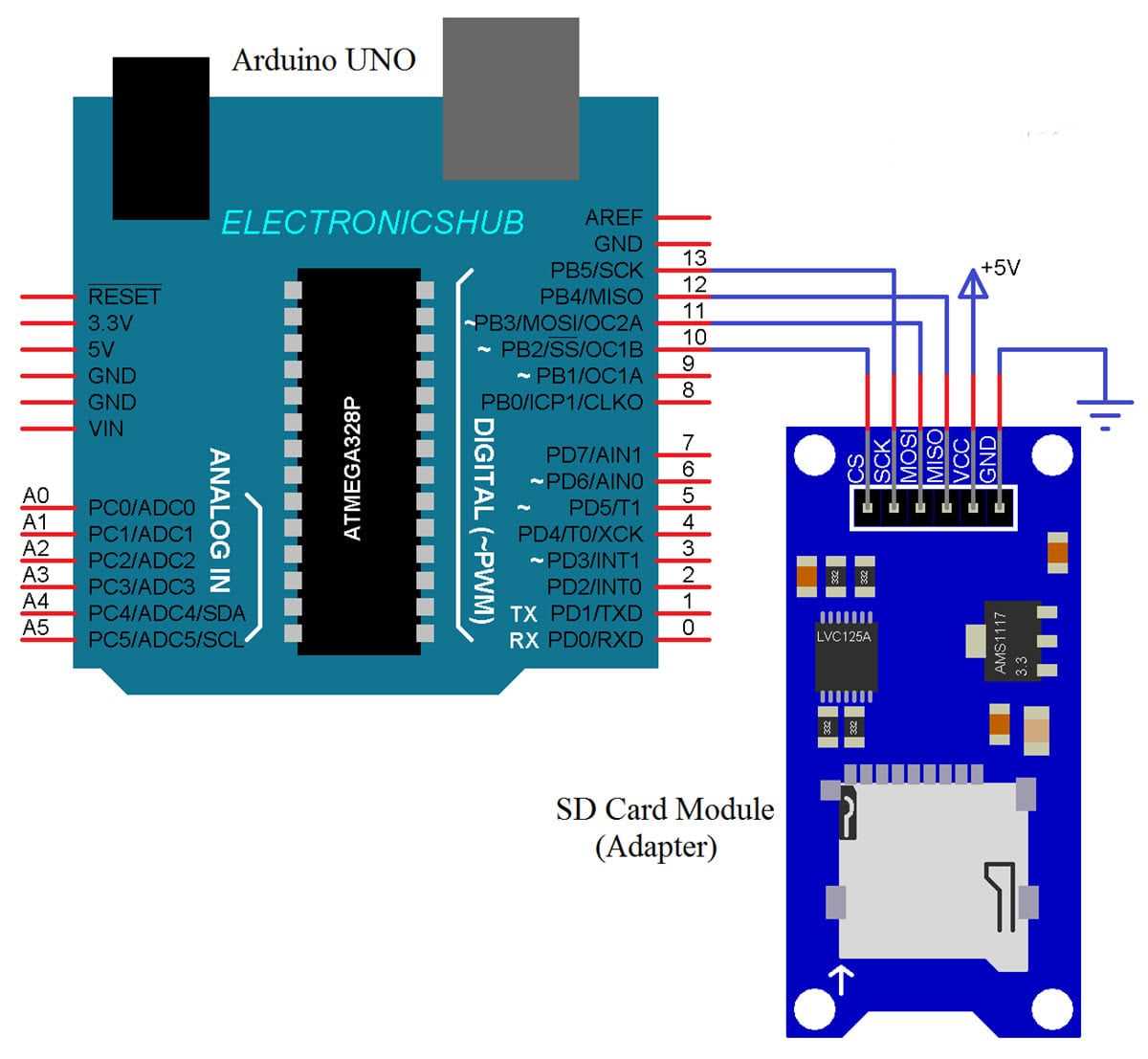

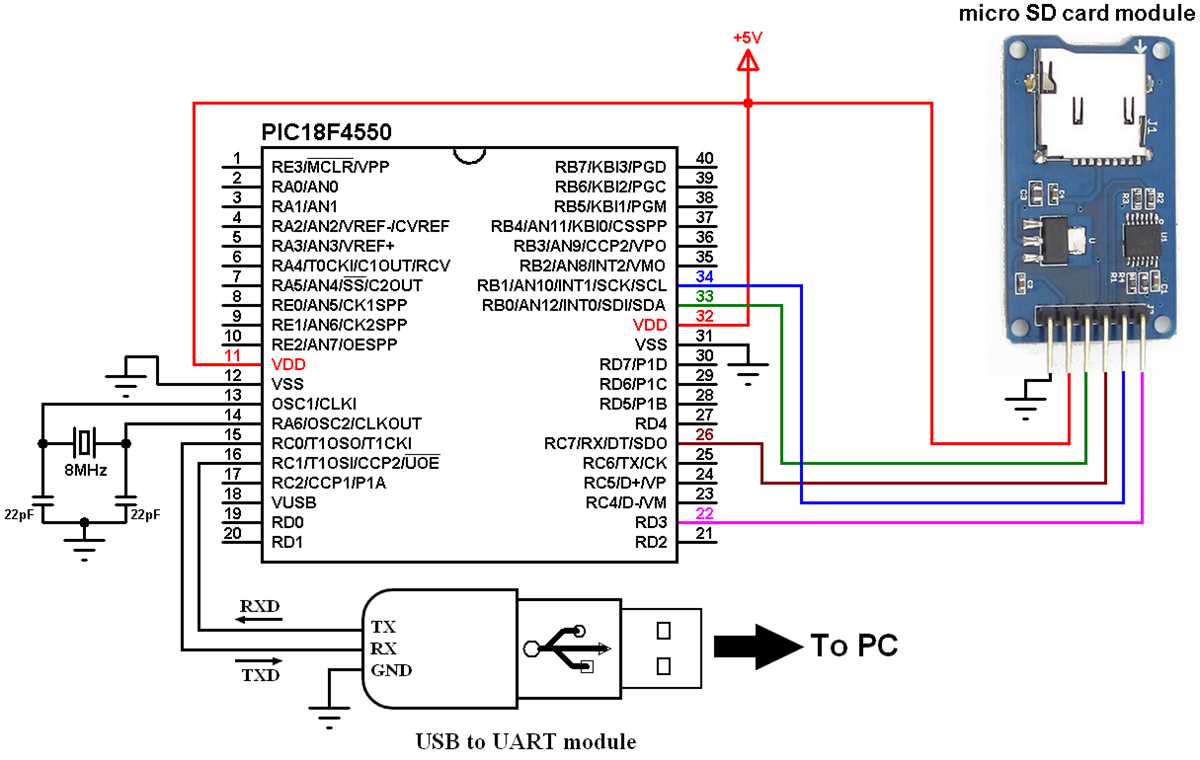

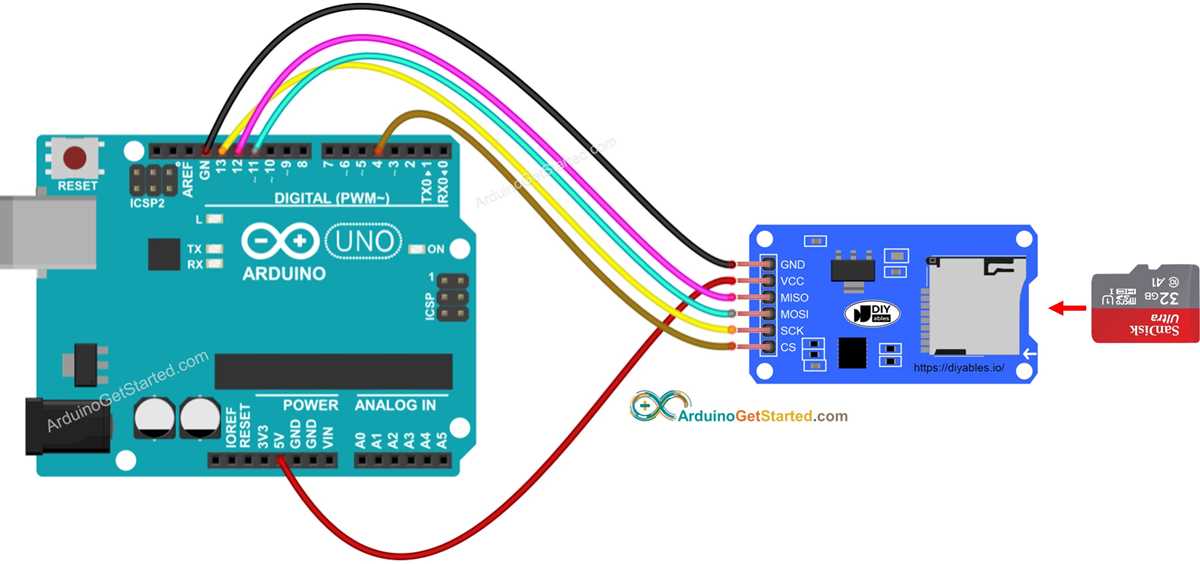

For SPI mode, wire DAT0 (MOSI), DAT3 (CS), CLK, and CMD (MISO) to the host’s SPI bus, ensuring CS is pulled high when inactive. Verify SPI timing with an oscilloscope: CS setup/hold time must be ≥ 5 ns relative to CLK edges.

Grounding and Layout Recommendations

Connect all ground pins (GND) to a solid ground plane with vias clustering near the storage slot–this reduces EMI and thermal resistance. For high-speed modes (UHS-I), keep signal traces impedance-controlled (50Ω ±10%) and match trace lengths within ±2 mm to prevent timing skew.

When using a voltage translator (e.g., TXB0104), place it ≤ 1 cm from the slot, decouple its VCCA/VCCB pins with 1µF capacitors, and ensure the host-side logic level matches the translator’s input requirements (1.8V or 3.3V).

Test continuity before powering on: probe each pad with a multimeter–resistance between VDD/GND should read

Common Pinout Configurations and Signal Assignments

Adopt the standard 9-pin interface for compact flash storage modules to ensure compatibility with most host controllers. Pins 1 through 4 handle data transfer–DAT0 to DAT3–while CMD (pin 2) manages command signals. Assign CLK (pin 5) strictly to clock input, maintaining a 0–50 MHz range for stable synchronization. Ground (GND) must occupy pin 6, with pins 7–9 reserved for VDD at 3.3V, avoiding voltage fluctuations beyond ±5%.

• DAT0-DAT3: Bidirectional data lines for 1-bit or 4-bit modes. Pull-up resistors (10–50 kΩ) prevent floating states during initialization.
• CMD: Open-drain with a pull-up (10 kΩ) to VDD. Host must release the line within 2 µs after command completion.
• CLK: Schottky diode clamp recommended if host clock edge exceeds 25 MHz to suppress overshoot.

For high-speed modes (SDR104/UHS-I), isolate DAT lines with series resistors (22–33 Ω) to dampen reflections. Place capacitors (0.1 µF) near VDD pins to filter noise, especially if sharing power rails with other peripherals. Avoid routing clock traces adjacent to data lines–minimize crosstalk by maintaining ≥0.5 mm spacing or using a ground plane between them.

Pin 8 (DAT1) doubles as an interrupt signal in SPI mode. If unused, tie it to VDD via a 10 kΩ resistor to prevent false interrupts. Pin 9 (DAT2) serves as chip select (CS) in SPI; leave it unconnected during native protocol operation. Always verify power-on timing: VDD must stabilize within 100 ms, and CLK should remain low until initialization completes.

1. Initialize with CMD0 (GO_IDLE_STATE) to reset the module. Assert CS low (SPI) or hold CMD low (native) for ≥74 cycles before sending.
2. Avoid exceeding 4.0V on VDD; use a 3.3V LDO with ≤1% ripple for embedded applications.
3. In 8-bit mode, DAT4-DAT7 require separate pull-ups (47 kΩ) if the host supports extended data width.

ESD protection diodes (e.g., SOD-323) should clamp DAT and CMD lines to both VDD and GND. For long traces (>15 cm), add series ferrite beads (600 Ω @ 100 MHz) to suppress EMI. Verify signal integrity with an oscilloscope: CLK rise/fall times must be ≤10 ns, and DAT lines should exhibit ≤0.4V undershoot.

When designing for dual-voltage modules (1.8V/3.3V), include a level translator for CMD and DAT lines if the host operates at 1.8V. Signal assignments for embedded slots differ from removable configurations–pin 3 (DAT1) becomes CD/DAT3 in some form factors, requiring rework if repurposing footprints. Always consult the module’s datasheet for variant-specific pinouts; deviations risk permanent damage to I/O cells.
