Complete Wiring Guide for Minn Kota 36 Volt Trolling Motor Step-by-Step Diagram
For a 36-ampere-hour propulsion unit, begin with a dedicated 100-amp fuse installed within 7 inches of the battery terminal. This prevents overheating in the event of a short circuit, reducing fire risk. Use 4 AWG marine-grade tinned copper cable for all primary connections–standard automotive wire lacks corrosion resistance and will fail after 12–18 months in saltwater conditions.
Route the positive lead directly to the battery’s positive post, avoiding connection to auxiliary circuits. Ground the negative terminal to the engine block or hull using a minimum 5/16-inch stainless steel bolt, ensuring a clean, paint-free contact surface. Improper grounding leads to voltage drop, erratic performance, and premature wear on thrust bearings.
Install a bilge-mounted battery disconnect switch rated for 200 amps continuous load. Position it above the waterline but below the hatch to prevent accidental engagement from bilge water. Label all terminals with engraved brass tags–ink or adhesive labels degrade within weeks under UV exposure and engine vibrations.
For twin-battery setups, use a voltage-sensing relay (VSR) with a 14.4V activation threshold. This ensures balanced charging without manual intervention, critical for lithium-iron-phosphate (LiFePO4) batteries where overcharging damages cells irreparably. Verify relay compatibility with your charger’s float voltage–most onboard chargers output 14.6V, but some European models reach 14.8V.
Test all connections with a milliohm meter before final assembly. A reading above 0.5 milliohms indicates insufficient torque on terminals or concealed corrosion–retighten to 120 inch-pounds or replace the fastener. Document resistance values for future troubleshooting; seasonal temperature fluctuations cause terminal oxidation, altering readings by up to 30%.
Electrical Hookup Guide for 3-Battery Marine Propulsion Systems

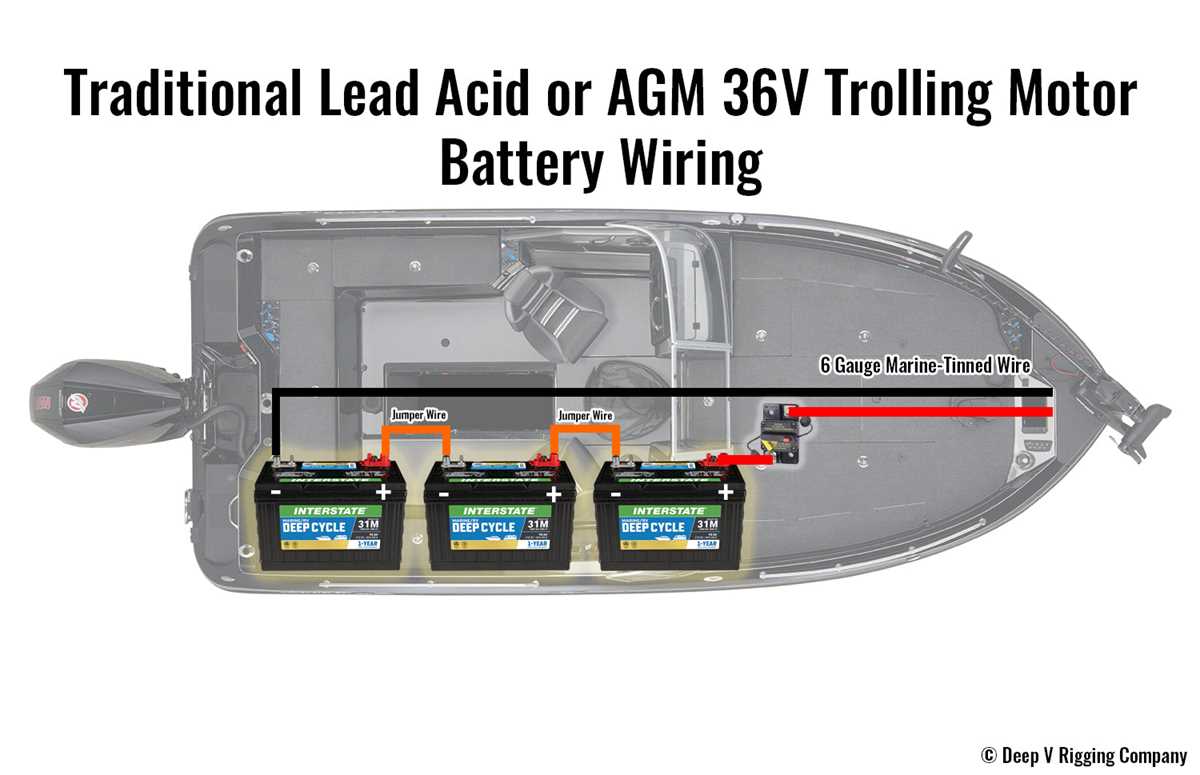

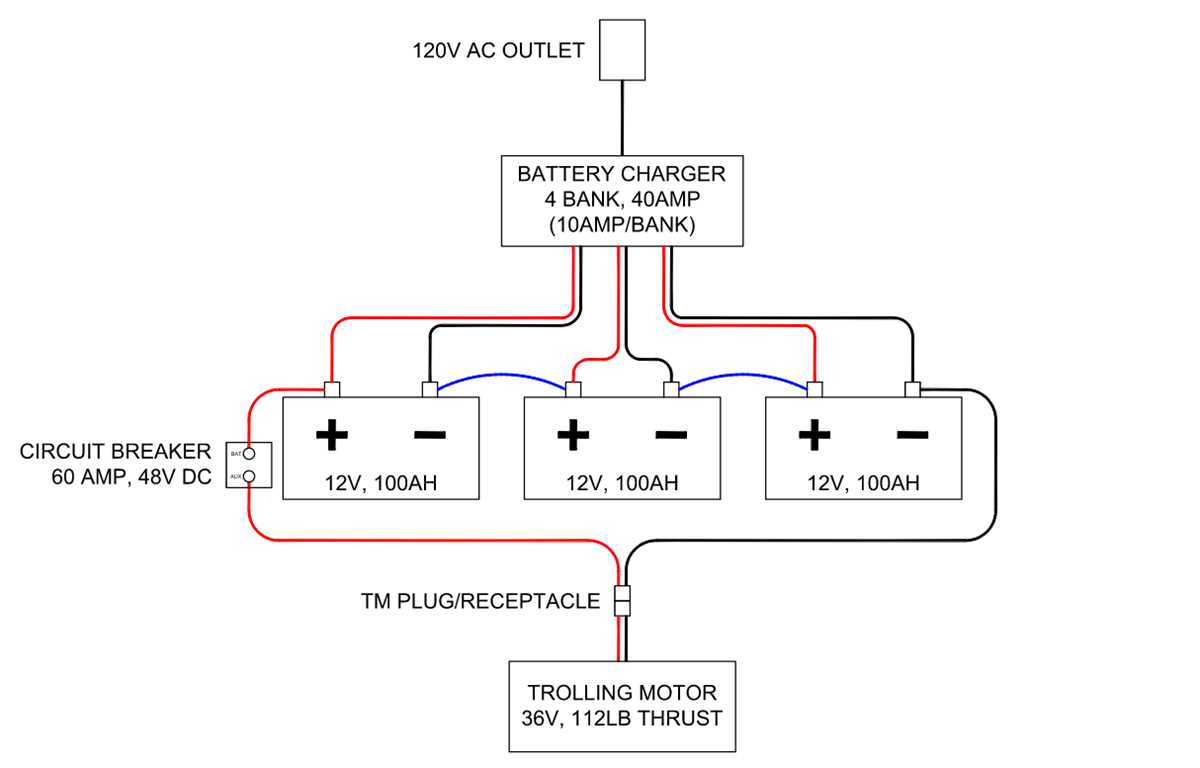

Connect the 12-cell power source in series for optimal performance by linking the positive terminal of the first battery to the negative of the second, repeating with the third unit. This configuration ensures consistent output for your propulsion device, preventing voltage drops during prolonged use. Verify each connection with a multimeter–readings should show 36V total across the terminals when properly aligned.
Use 4 AWG marine-grade cables to handle the current load without overheating. Standard automotive wiring risks corrosion and electrical failure under saltwater conditions. Secure connections with heat-shrink tubing or dielectric grease to protect against moisture ingress, extending the lifespan of your setup by preventing oxidation at contact points.
Battery Selection and Maintenance
Opt for deep-cycle units rated for at least 100Ah to maintain power delivery during extended trips. Group 27 or 31 sizes offer the best balance between capacity and weight for most fishing vessels. Test electrolyte levels every 30 days–top off with distilled water if plates are exposed, but avoid overfilling to prevent acid leakage.
Charge the system with a 3-stage marine charger set to 36V output. Match the charger’s amperage to 10–20% of your battery bank’s total Ah rating (e.g., a 20A charger for 200Ah banks). This prevents sulfation buildup, which reduces capacity and shortens battery life. Never mix battery types or ages in series–imbalance causes premature failure of weaker cells.
Install a circuit breaker rated for 80–100A between the power source and propulsion unit, mounted within 7 inches of the first battery’s positive terminal. This acts as a critical fail-safe, disconnecting automatically during overloads. Choose a manual-reset model for easy troubleshooting, but ensure it’s accessible yet protected from water splashes.
Ground the system to the vessel’s engine block or a dedicated grounding plate submerged in water. This creates a low-resistance return path, improving efficiency and reducing stray current corrosion. Use a 2/0 AWG cable for the grounding link–thinner cables risk voltage drop, especially in saltwater environments where conductivity degrades over time.
Label all cables at both ends with heat-resistant tags to simplify future diagnostics. Include the circuit’s function (e.g., “Pos Lead – Bat 1 → Bat 2”) and wire gauge. Store spares (6–12 inches of 4 AWG cable, crimp connectors, and heat shrink) onboard–repairs at sea require quick, accurate replacements. Test the entire hookup under controlled conditions before deploying, simulating full throttle for at least 10 minutes to confirm stability.
Essential Gear and Supplies for Connecting Your 36-Electron Outboard Propulsion System
Start with marine-grade primary conductors rated for at least 4 AWG. Copper wiring with tinned strands prevents corrosion in wet environments–standard automotive or household cables fail within months. Look for cables labeled “UL 1426” or “BC-5W2” to ensure compliance with marine electrical standards. Avoid aluminum wires; they expand and contract with temperature changes, loosening connections over time.
- Battery interconnection leads: Pre-assembled 2/0 AWG copper connectors with heat-shrink tubing (minimum 6 inches long)
- Crimping tool: Hydraulic or ratcheting model designed for battery terminals (avoid pliers or generic crimpers)
- Heat gun: Industrial-grade, 500°F minimum, for shrinking dual-wall adhesive-lined tubing
- Multimeter: Digital model with 0.1-ohm resolution to verify connections–cheap analog units lack precision
Use only sealed, deep-cycle batteries with at least 100Ah capacity. Flooded lead-acid types require regular electrolyte checks but offer the lowest upfront cost. AGM batteries handle deeper discharges without maintenance, while lithium iron phosphate options weigh 60% less but demand a dedicated charger. Never mix battery chemistries or brands in a series hookup; mismatched internal resistance causes uneven charging and premature failure.
Mount a 60-amp marine circuit breaker within 7 inches of the battery bank. This protects the system from short circuits while serving as an emergency disconnect. Install the breaker in a waterproof enclosure with IP67 rating–exposed breakers corrode rapidly in saltwater environments. For lithium setups, use a breaker with a higher interrupt rating (100A minimum) to handle the lower internal resistance.
- Terminal connectors: 3/8″ or 5/16″ tin-plated copper lugs (never solder alone–crimp first)
- Bus bar: 100-amp copper bar with insulated standoffs for clean power distribution
- Voltage regulator: Smart charger with 3-stage charging (bulk, absorption, float) matched to battery chemistry
- Fuse holder: Waterproof ANL fuse block with 60A or 100A elements (depending on system draw)
Apply dielectric grease to all connections before tightening. This prevents oxidation and ensures consistent conductivity over time. For terminal bolts, use stainless steel hardware (grade 316) torqued to 8-10 ft-lbs–overtightening cracks battery posts, while undertightening causes voltage drops. Label every cable with heat-shrink tubing markers to simplify troubleshooting later.

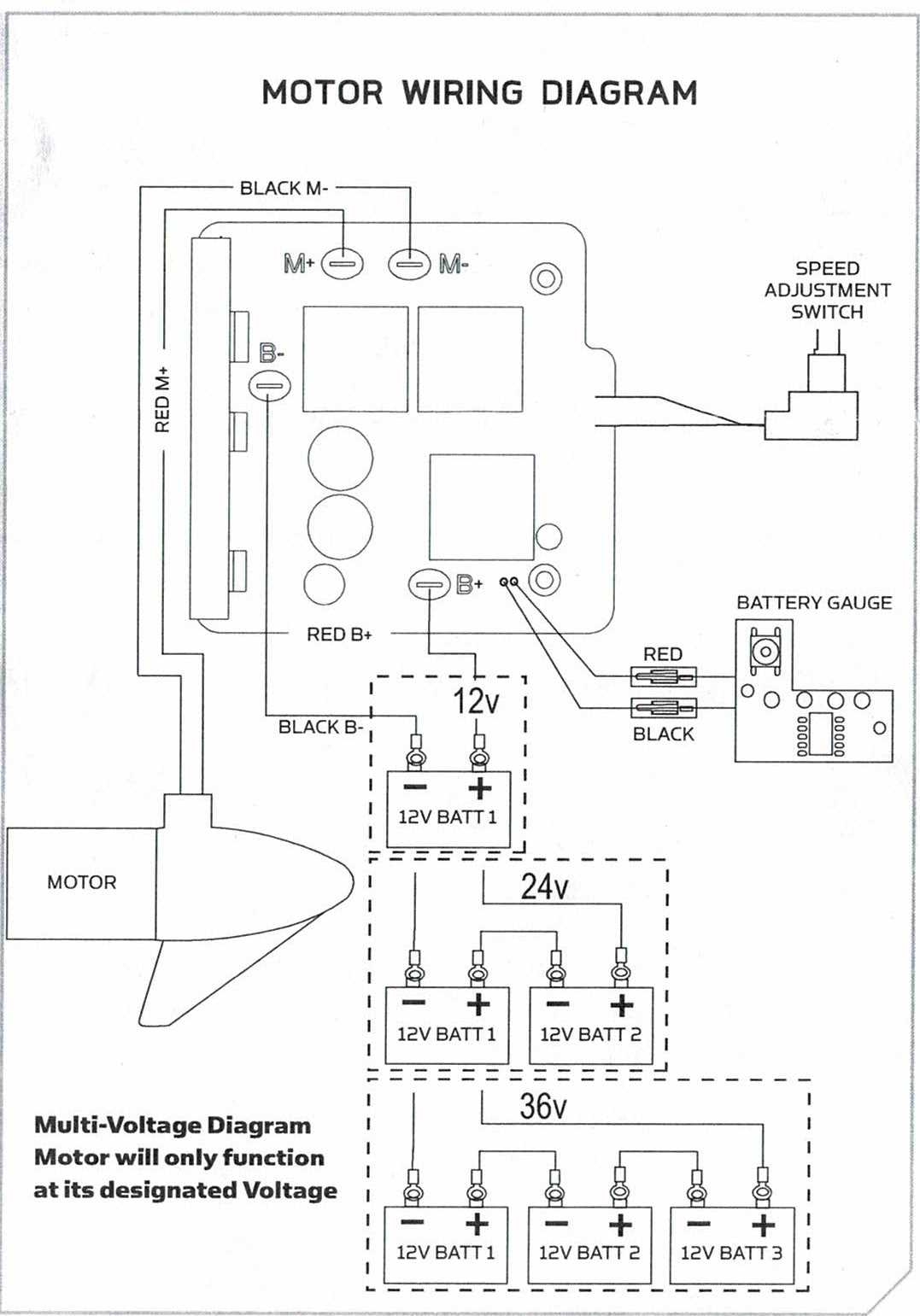

Step-by-Step Guide to Connecting Battery Banks for a 36V Electrical Setup
Start with three identical 12V deep-cycle batteries–AGM, lithium, or flooded–rated for at least 50Ah each. Match capacity precisely; mismatched cells reduce lifespan. Verify terminals are clean and corrosion-free before proceeding. Use a multimeter to confirm each battery reads 12.6V or higher when fully charged.
Label the batteries sequentially: Bank 1, Bank 2, Bank 3. Connect Bank 1’s positive terminal to Bank 2’s negative terminal using a 4 AWG marine-grade cable, minimum 18 inches long. Tighten connections with a torque wrench set to 10 Nm to prevent arching. Repeat for Bank 2 to Bank 3–positive to negative–completing the series chain.
Avoid parallel connections unless expanding capacity later; series is mandatory for 36V output. Insulate exposed terminals with adhesive-lined heat shrink or terminal boots immediately after securing. Check total voltage across Bank 1’s negative and Bank 3’s positive–it must read 37.8V ±0.5V. Readings outside this range indicate a faulty battery or connection.
For grounding, attach Bank 1’s negative terminal to the vessel’s common ground busbar using the same 4 AWG cable. Keep this run under 3 feet to minimize resistance. If no busbar exists, bolt directly to the engine block or a dedicated stainless steel plate mounted below the waterline. Never ground to aluminum or painted surfaces.
| Component | Cable Gauge | Torque (Nm) | Recommended Material |
|---|---|---|---|
| Battery interconnects | 4 AWG | 10 | Tinned copper |
| Positive output | 2 AWG | 12 | Marine-grade |
| Ground run | 4 AWG | 10 | Tinned copper |
Route the positive output cable from Bank 3’s positive terminal to the propulsion control unit using 2 AWG cable. Secure with snap-in clamps every 12 inches to prevent chafing against metal hulls. Install a 150A Class T fuse within 7 inches of Bank 3’s terminal–mandatory for ABYC compliance and short-circuit protection.
Test under load: activate the thrust control at 50% power for 30 seconds. Monitor voltage drop–it should not exceed 0.5V from idle to loaded state. If drop exceeds tolerance, recheck connections for resistance with a clamp meter. Final step: coat all terminals with dielectric grease and secure battery hold-downs to withstand 3G forces.
Troubleshooting Immediate Issues
If voltage sags below 36V during operation, isolate using a multimeter: disconnect output cable from Bank 3’s positive, then measure each battery individually. A single cell below 12.3V indicates failure. Reseat all connections and retest; persistent issues require individual battery load testing with a carbon pile tester.
