Complete Audio Mixer Circuit Design with PCB Layout Guide

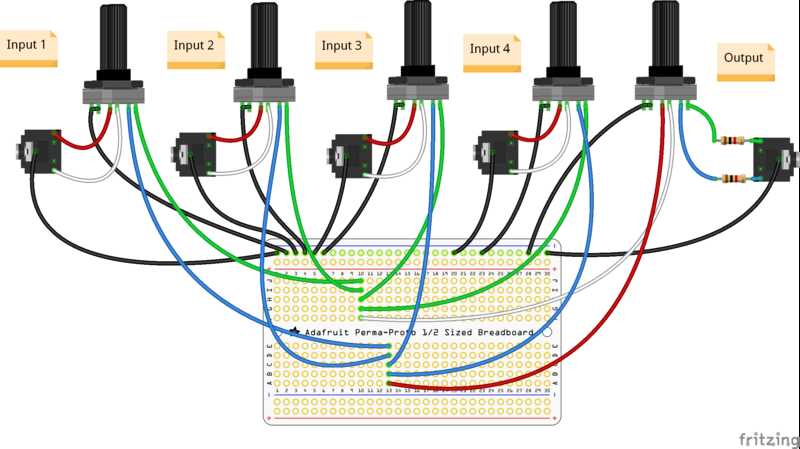

Start by selecting active components with low noise figures–operational amplifiers like the TL072 or OPA2134 deliver clean gain while minimizing hiss. Configure each stage with a gain of 2x to 5x to avoid clipping; higher values risk signal degradation. Use 1% tolerance resistors for consistent performance, pairing them with 10μF film capacitors to block DC offsets without phase distortion.

Grounding demands isolation–separate analog and digital grounds, tying them at a single star point near the power supply. Route high-impedance inputs (10kΩ–100kΩ) with short traces to prevent capacitive coupling. For power rails, include 100nF decoupling capacitors close to each IC, supplemented by 10μF electrolytics for low-frequency stability. Avoid vias under sensitive traces; they introduce parasitic inductance.

Potentiometers should be logarithmic (audio taper) for smooth adjustment. Place them at least 5mm from high-current paths to reduce crosstalk. For PCB traces carrying audio signals, maintain a minimum width of 0.25mm; wider traces (0.5mm) reduce resistance but increase parasitic capacitance. Panel-mounted components (jacks, switches) require 0.1” (2.54mm) pitch for standard connectors.

Test each stage with a 1kHz sine wave at -10dBV. Verify distortion levels below 0.1% before cascading sections. For digital control (e.g., LED meters), isolate lines with optocouplers or buffer ICs like the 74HC4050. Finalize the board with a silkscreen layer labeling all components for ease of troubleshooting.

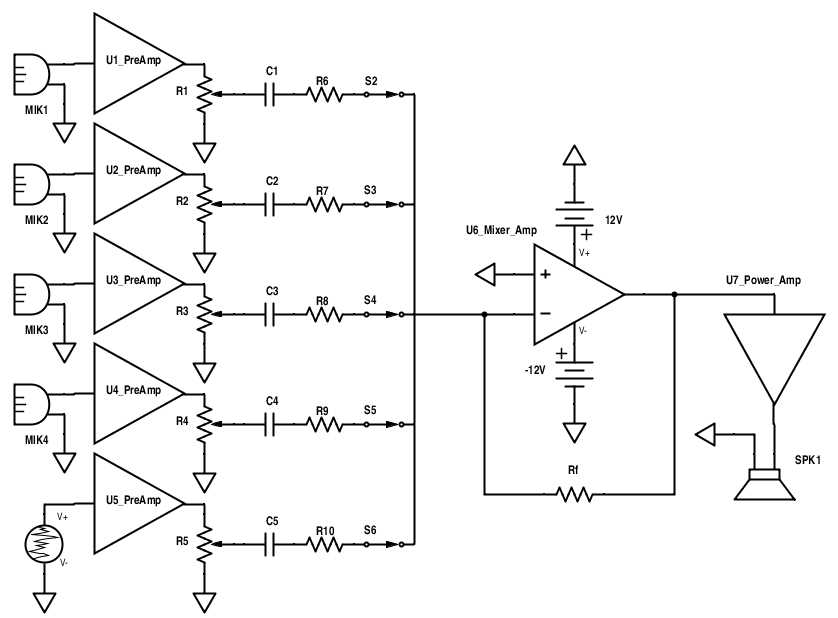

Designing Audio Signal Blending Circuits and Board Planning

Place operational amplifiers as close as possible to input connectors to minimize noise pickup on high-impedance lines. Use a ground plane split technique–separate analog and digital grounds, connecting them at a single point near the power supply. For 4-layer boards, dedicate the second layer exclusively to ground to reduce interference between signal paths.

Route high-frequency control lines (e.g., SPI or I²C buses) perpendicular to sensitive analog traces to prevent crosstalk. Keep traces under 10mm wherever practical; longer runs should follow a serpentine pattern to equalize propagation delays. Avoid sharp 90° angles–replace with 45° bends to reduce reflections and maintain signal integrity at speeds above 1MHz.

Critical components placement checklist:

• Potentiometers centered within 15mm of edge connectors
• Decoupling capacitors mounted ≤2mm from IC power pins
• Ferrite beads installed on power lines entering analog sections
• Pull-up resistors on open-drain outputs positioned near the driving IC

Signal Flow Optimization

Group gain stages sequentially along the signal path–preamps first, then filters, summing nodes last. Position feed-forward capacitors across gain resistors to stabilize frequency response. For stereo circuits, mirror placement on both channels ensures matched phase response; verify with

Use staggered component heights: tall electrolytic capacitors on the top, low-profile SMD resistors on the bottom layer. This allows dual-sided assembly without shorting risks. For boards thicker than 1.6mm, increase via drill diameter to 0.45mm to prevent plating voids during through-hole filling.

Manufacturing Considerations

Export Gerber files with embedded drill coordinates in Excellon-2 format to eliminate alignment errors. Specify 0.2mm annular ring tolerance for vias connecting power planes. For gold-plated edge connectors, apply 3μm nickel underplating before 0.05μm hard gold coating to prevent diffusion.

Verify solder mask openings with 0.1mm clearance around pad edges. Use LPI solder mask with ≥90% solids content to prevent silkscreen bleeding. For reflow profiles, adhere to J-STD-020D for Pb-free solder–preheat at 150°C for 90 seconds before peak temperature of 245°C ±5°C.

1. Generate netlist from schematic capture software–validate against original circuit before layout
2. Assign virtual traces for critical signals during placement to guide autorouter
3. Run DRC with manufacturer-specific constraints before final Gerber output
4. Prototype first board on 2oz copper for improved heat dissipation

Key Components Selection for Audio Signal Processing Boards

Opt for operational amplifiers (op-amps) with low noise figures below 2.5 nV/√Hz and a gain-bandwidth product of at least 10 MHz. The NE5532 and OPA2134 deliver THD+N values under 0.0005% at 1 kHz, outperforming generic TL072 variants by a factor of three. For active EQ stages, use polyester film capacitors in the 100 nF to 1 µF range–MKT types exhibit leakage currents below 10 nA, while ceramic X7R alternatives introduce microphonic artifacts upwards of 5 mV under mechanical stress.

Component	Part Number	Critical Specification	Tolerance/Note
Op-Amp	OPA2134	THD+N < 0.0005%	±0.1 dB gain flatness to 20 kHz
Film Capacitor	WIMA MKS2	Leakage < 10 nA	Dielectric absorption < 0.01%
Potentiometer	Bourns 3590S	10-turn, 5% linearity	Contact resistance < 1 Ω
Resistor	Caddock TF series	TCR < 25 ppm/°C	Power rating ≥ 0.5 W

Linear taper potentiometers in 10 kΩ to 50 kΩ values reduce logarithmic taper distortion in level controls; Bourns’ conductive plastic 3590S series maintains channel-tracking errors under 1% across a 270° sweep. Wire-wound resistors introduce parasitic inductance above 100 kHz–specify Caddock TF series for feedback networks, where TCR stability below 25 ppm/°C prevents drift in gain structure. Ground plane star topology minimizes crosstalk: keep analog traces under 1.5 mm width, separated by ≥ 3 mm from digital lines, using ferrite beads on +5 V supply rails to suppress HF noise above 100 MHz.

Crafting Circuit Blueprints in KiCad or Altium: Practical Workflow

Begin in KiCad by launching Eeschema and selecting the Place Symbol tool (hotkey ‘A’). Use the built-in library manager to drag components like TL072 op-amps or 1N4148 diodes directly onto the sheet–avoid generic placeholders. For Altium, activate Place → Part and filter the Manufacturer Part Search panel to insert validated models (e.g., Murata GRM series capacitors) with correct footprints pre-assigned. Both tools allow parameter bulk-editing: in KiCad, press ‘E’ on a symbol to modify fields like value or reference designator; in Altium, use SCH Inspector to update attributes simultaneously across multiple instances.

Route signal paths with clarity: KiCad’s Net Label (hotkey ‘L’) enforces hierarchical naming conventions, while Altium’s Port and Off-Sheet Connector tools maintain consistency in multi-sheet designs. Anchor critical nodes–power rails (e.g., ±12V), ground references–with global labels early to prevent netlist errors. For noisy circuits, segregate analog and digital grounds by assigning separate nets (e.g., GND_ANALOG, GND_DIGITAL) and merge them at a single star point later. Verify connectivity with the Electrical Rules Check (ERC) in both tools: KiCad flags unconnected pins with yellow warnings, while Altium’s Design Rule Check (DRC) highlights violations in the Messages panel–address false positives by annotating no-connect flags (hotkey ‘Q’ in KiCad, Place → No ERC in Altium).

Optimize component placement by exporting the netlist before finalizing the board–KiCad’s Tools → Generate Netlist supports multiple formats (e.g., .net for PcbNew), whereas Altium syncs via Design → Update PCB. Prioritize decoupling: position 0.1µF X7R ceramics within 2mm of op-amp power pins and pair with 10µF tantalum capacitors for low-frequency stability. Label all passives with tolerances (e.g., 10kΩ ±1%) and specify voltage ratings for electrolytics (e.g., 47µF 25V) to avoid in-circuit failures. Store frequently used parts in project-specific libraries: KiCad’s Symbol Editor allows template creation, while Altium’s Vault or SVNDB enables team-wide access to vetted footprints like SOT-23-6 or TO-92.

Grounding and Signal Flow Optimization Techniques

Separate analog and digital ground planes with a single connection point at the power source to prevent high-frequency interference from corrupting low-level inputs. Use star grounding for sensitive circuits, routing each ground trace back to a central node rather than daisy-chaining, which introduces voltage drops and noise.

Isolate power delivery networks for audio, control, and digital sections by employing dedicated voltage regulators for each functional block. Place decoupling capacitors (0.1µF ceramic) as close as possible to every IC power pin, with additional bulk capacitance (10µF tantalum) near power entry points to suppress transients.

Minimize ground loop formation by keeping signal paths short and direct, avoiding loops that act as antennas. Route high-impedance traces (>10kΩ) on inner layers between ground planes to shield them from external noise while maintaining trace impedance below 50Ω where signal integrity matters.

Implement a hybrid grounding strategy combining analog ground for low-level signals and chassis ground for mechanical shielding. Connect chassis to analog ground at a single point near the power supply to eliminate ground bounce, ensuring all metal enclosures are tied to this reference without creating multiple return paths.

Use differential signaling for critical interfaces, routing pairs with balanced impedance (100Ω±10%) and matched lengths (±5 mils). Terminate differential pairs with series resistors (22Ω–100Ω) at both ends to prevent reflections, particularly in high-speed digital control lines.

Prioritize return path planning for every signal trace, ensuring the return current flows directly beneath the signal conductor. Avoid referencing signals to multiple grounds, which creates unintended return paths and introduces crosstalk between channels.

Reduce electromagnetic coupling by maintaining a clearance of >20H (where H is the dielectric height) between adjacent traces carrying disparate signals. For mixed-signal boards, position analog components first, followed by digital, with a physical separation zone populated only by passive filtering elements.

Verify grounding effectiveness by measuring AC impedance between key nodes (<0.1Ω at 1kHz). Use a spectrum analyzer to confirm noise suppression across the audio bandwidth (20Hz–20kHz) remains below -90dBu at sensitive inputs, adjusting trace geometry or adding ferrite beads where necessary.
