Understanding Mobile Phone Mainboard Circuit Layouts and Key Components

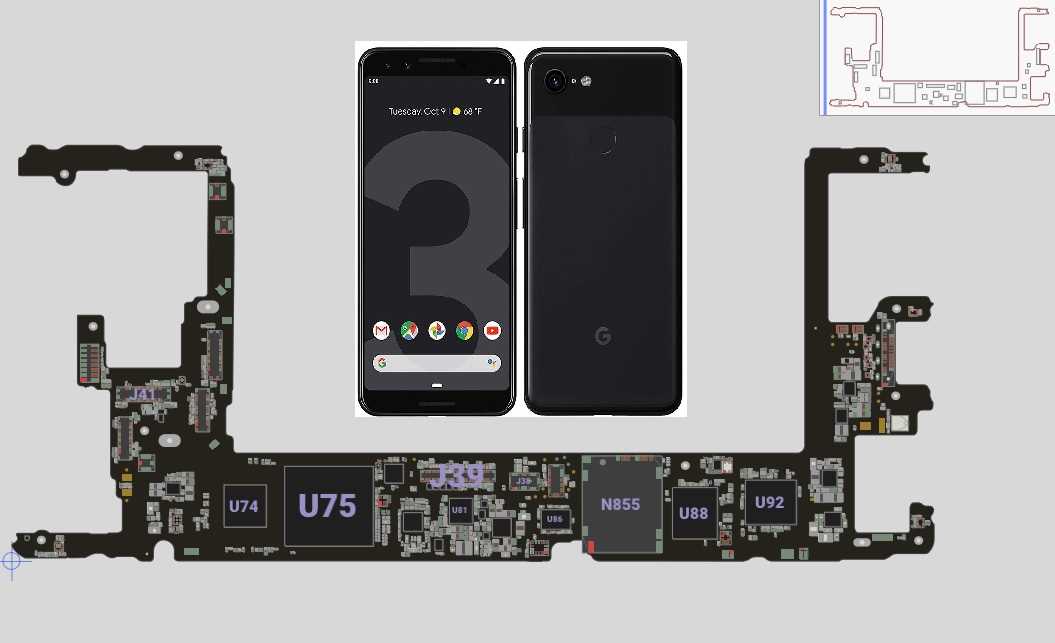

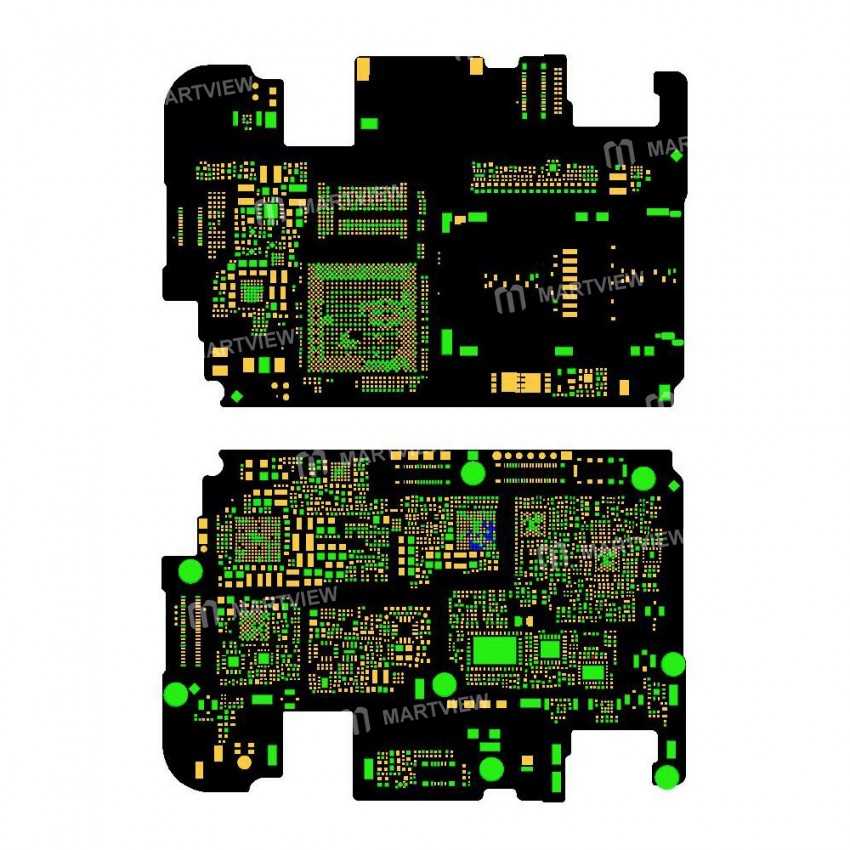

Begin by isolating power delivery networks on the PCB layout. High-current traces–typically 30+ mils wide–connect the battery connector to voltage regulators. Identify these paths first: they’re often marked in red or thick copper fills. Measure resistance between the main power line and ground–values below 0.5Ω indicate a healthy path. Anything above suggests corroded vias or defective solder joints.

Locate the CPU and PMIC footprints next. The PMIC usually sits adjacent to the CPU, linked via BGA pads or fine-pitch QFN packages. Check interconnections using a multimeter in continuity mode; missing continuity between PMIC output and CPU input capacitors confirms an open circuit. Flash a known-good firmware via ISP or JTAG–if the device powers on briefly then shuts down, suspect power sequence errors or shorted decoupling caps.

Trace signal pathways for common interfaces like Wi-Fi, LTE, and display connectors. LVDS or MIPI lines run in differential pairs, spaced 6 mils apart with controlled impedance of 50Ω ± 10%. Use an oscilloscope to verify signal integrity: clean square waves at clock frequencies (19.2 MHz for Qualcomm, 26 MHz for MediaTek). Distorted waveforms signal insufficient termination resistors or broken flex cables.

Examine antenna feeds last. NFC and primary cellular antennas typically terminate in U.FL connectors or laser-direct-structuring traces. Perform VSWR tests: a ratio above 2:1 indicates detuned circuits. Replace broken antennas with identical models–aftermarket parts with mismatched frequency bands will degrade reception, even if they fit mechanically.

Understanding Portable Computing Core Circuit Plans

Begin by locating the PMIC (Power Management Integrated Circuit) on the board layout–it coordinates voltage regulation for subsystems like the CPU, GPU, and memory. Trace its output lines to identify buck converters (typically labeled “BUCK” or “SW”) responsible for stepping down battery voltage to stable 1.1V–1.8V rails. Each rail should have decoupling capacitors (0402 or 0201 size, 0.1µF–10µF) placed within 2mm of the load to suppress noise; missing or improperly sized caps cause intermittent failures or thermal shutdowns.

Examine the SoC (System on Chip) interconnects: ball grid array (BGA) escape patterns must align with via-in-pad designs to avoid signal integrity issues. High-speed interfaces like DDR4 or LPDDR5 require impedance-controlled traces (typically 40Ω–60Ω single-ended) and length-matched pairs (±5 mil tolerance) to prevent timing skew. Reference the die pinout–critical pins like `VDD_CORE`, `VDD_IO`, and `VREF` must connect directly to dedicated power planes with minimal stubs to reduce parasitic inductance.

For the RF section, isolate analog and digital ground planes beneath components like the transceiver and PA (Power Amplifier) to prevent crosstalk. Matching networks for antenna traces use precise LC components (e.g., 2.4GHz paths with 1.5nH inductors and 0.8pF capacitors) tuned to the target frequency; deviations as small as 5% can degrade signal strength by 10dB. Debug unstable power delivery by probing test points with an oscilloscope (100MHz bandwidth minimum) to verify ripple below 30mVpp under load.

Critical Parts in Handheld Logic Board Blueprints

Trace the power management unit (PMU) first–it regulates voltage for every subsystem, directly impacting battery life and thermal stability. Locate the buck converters feeding the application processor (AP) and memory clusters, typically marked as U_SMPS_AP or VDD_CORE. Verify capacitance values around these nodes; deviations above 20% from the reference design indicate degraded efficiency. Check inductors for DC resistance (DCR); ideal ranges hover between 0.5–2Ω for high-current rails. Isolate the PMU’s enable pins–accidental grounding during power sequencing can trigger catastrophic shutdown.

• AP core rail (VDD_CPU): 0.8–1.2V, 5–15A load
• Memory rail (VDD_DDR): 1.1–1.5V, 2–6A
• GPU rail: 0.9–1.3V, tolerates ±3% ripple
• I/O rail (VDD_IO): 1.8–3.3V, serving peripherals

Test each rail with an oscilloscope; spikes exceeding 50mV peak-to-peak suggest inadequate decoupling or faulty PMU firmware. Replace ceramic capacitors rated below X5R/X7R–they lose capacitance under temperature stress, risking voltage droop. Probe the PMU’s thermal diode; sustained readings above 85°C mandate heat-spreading redesigns.

Identify the RF transceiver cluster–separate from the AP’s digital domain by shielding layers and ferrite beads. Confirm antenna matching networks: L-C pairs tuned to the target band (e.g., 2.4GHz Wi-Fi: 1.5nH + 1.0pF). Locate the SAW/BAW filters; corrupted signals originate from cracked dielectric or solder bridges. Check PA bias circuits: temperature-compensated current mirrors should hover near 50mA under load. Validate clock distribution trees: crystal oscillators (XTAL) feed both AP and modem; skew above 20ppm disrupts data throughput.

Examine the baseband processor’s memory interface–DDR traces require matched impedance (±10Ω) and length-constrained routing (≤0.1mm delta). Disable write protection on flash chips (EMMC/SPI_NAND) during firmware updates; corrupted bootloaders render the device inoperable. Scan for via-in-pad defects: acid traps beneath BGAs induce electromigration failures. Trace the USB-C controller (CC_PHY); improper pull-up resistor values prevent high-speed handshake, dropping bandwidth to USB 2.0 rates. Verify ESD diodes on all I/O ports; omissions turn electrostatic discharge into soft errors, corrupting volatile registers.

How to Read Voltage Regulation Circuits on a PCB Blueprint

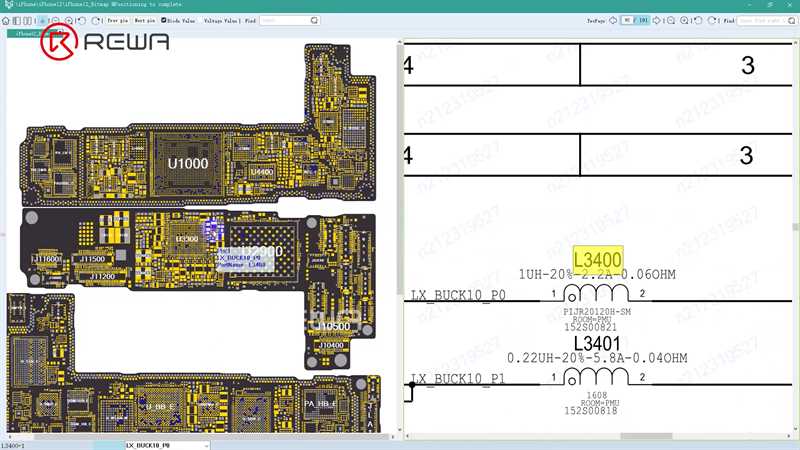

Locate the PMIC (Power Management IC) first–it’s the central hub for voltage rails. Trace incoming voltage lines from the battery or power source to the PMIC’s input pins. Compare pin labels on the PMIC datasheet with the board layout to confirm their roles (e.g., VIN, EN, FB). Most PMICs use inductor-based buck converters; identify the inductors (marked “L” with a coil symbol) downstream of the PMIC.

Follow the feedback loop: the output voltage (VOUT) from the inductor splits–one line powers components, the other loops back to the PMIC’s feedback (FB) pin via a resistor divider. Check for two resistors labeled R1 (upper) and R2 (lower) between VOUT and ground. Calculate the output voltage using VOUT = VREF × (1 + R1/R2), where VREF is typically 0.6V–1.2V (check the PMIC datasheet).

Examine compensation networks–critical for stable voltage. Look for RC pairs (resistor-capacitor) connected to the COMP pin of the PMIC. Values usually range from 10kΩ–100kΩ for resistors and 1nF–100nF for capacitors. These stabilize the control loop; incorrect values cause oscillations or slow transient response.

Common Voltage Regulator Configurations

Type	Key Components	Typical Output (V)	Signs of Failure
Buck Converter	PMIC, Inductor (L), Capacitor (C), Feedback Resistors (R1/R2)	0.8–3.3	Overheating inductor, unstable VOUT (±20% ripple)
LDO (Low-Dropout)	Pass transistor, Input/Output Caps, Feedback Resistors	1.0–5.0	High dropout voltage, ground shift noise
Switched Capacitor	Switching IC, Flying Caps, Output Capacitor	1.8–12 (doubled/halved)	Capacitor leakage, low efficiency at high load

Verify enable signals (EN pins) on the PMIC. These are often tied to GPIO pins on the main processor or a supervisor IC. A missing EN signal keeps the rail off; check for pull-up resistors (10kΩ–100kΩ) to VIN if the pin floats. Also, probe for soft-start capacitors (10nF–1µF) between SS pin and ground–these ramp voltage gradually to avoid inrush current.

Check for protection components: overcurrent sense resistors (shunt, ~10mΩ–50mΩ) in series with VOUT, or MOSFETs acting as switches for load management. Overvoltage clamps (zener diodes, TVS) may be placed near sensitive ICs. For troubleshooting, measure voltage at the inductor’s output node–normal operation shows 20% indicates failed regulation.

Debugging Workflow

1. Measure VIN at PMIC input–must match battery voltage (

2. Check EN pin–high (1.8V+) enables output, low disables.

3. Probe VOUT at inductor–compare with calculated value (VOUT = VREF × (1 + R1/R2)).

4. Monitor ripple with oscilloscope–excessive noise suggests bad caps or feedback network.

5. Test load transient–dynamic current should recover VOUT within 1–10µs; slower response indicates compensation issues.

Diagnosing Signal Flow Issues with Circuit Blueprints

Begin by isolating the faulty trace using a multimeter in continuity mode. Probe both ends of the suspected path–start at the signal source (e.g., processor output pin) and follow the line to its destination (sensor, power IC, or connector). Voltage readings should match the reference values marked near test points; discrepancies often pinpoint corrosion, cold solder, or broken vias. For high-frequency lines (MIPI, RF), a spectrum analyzer set to peak hold will reveal signal attenuation or reflections.

Check decoupling capacitors adjacent to critical components. A failed 0.1µF ceramic near a CPU core can cause intermittent hangs–swap it with a known-good part and monitor stability. For layers buried beneath the board, thermal imaging helps detect hotspots where resistive faults generate excess heat. Infrared cameras with 50µm resolution expose defective vias invisible to the naked eye.

Reverse-engineer the netlist from the circuit blueprint if documentation is missing. Trace each signal’s path backward from the load to its origin, noting series resistors (typically 22Ω–100Ω) and pull-ups/downs (1kΩ–10kΩ). Faulty pull-ups cause unresponsive buttons or erratic I²C communication; measure resistance to ground to confirm. For differential pairs, ensure both traces maintain equal length (use a time-domain reflectometer for precision).

Inspect power rails first when dealing with intermittent failures. A 3.3V line drooping under load often indicates a cracked inductor or shorted boost converter. Use a DC power supply with current limit set to 300mA to avoid damaging adjacent circuitry while testing suspicious sections. Probe the gate voltages on MOSFETs controlling the rail; incorrect drive signals (below 1.8V) suggest a corrupted firmware or failed power IC.

For audio paths, inject a 1kHz sine wave at the CODEC’s output and follow the signal through amplifiers and filters. Distortion or clipping at op-amp stages usually stems from dried-out electrolytics–replace them with low-ESR equivalents. On Bluetooth/Wi-Fi sections, verify antenna matching networks by measuring return loss (

Document every measurement against the expected values in the service manual. Annotate deviations directly on a printed trace layout for future reference. High-impedance nodes require ESD-safe probes; avoid touching exposed pads with bare hands to prevent false readings from skin oils. When all else fails, apply controlled heat (60°C–70°C) to the board while monitoring–thermal expansion often reveals marginal joints not detectable at room temperature.
