DIY Guide to Building a Model Railway Controller Circuit Step-by-Step

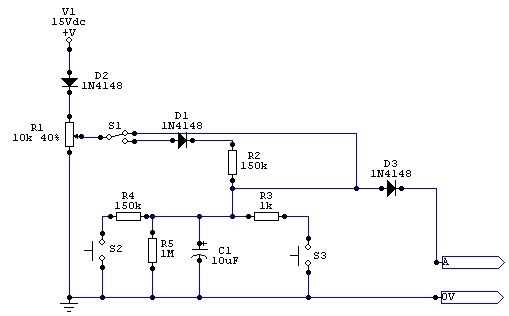

Start by integrating a PWM-based speed regulator with a 12V DC motor driver using an L298N or DRV8833 IC. These modules handle bidirectional current flow, allowing smooth acceleration and deceleration. Wire the motor outputs directly to the track terminals, ensuring minimal voltage drop–use 16-gauge stranded copper wire for reliability on longer runs. Add a 10µF electrolytic capacitor across the motor terminals to suppress electrical noise.

For digital control, connect an Arduino Nano or STM32 Blue Pill via optocouplers (e.g., PC817) to isolate logic signals from high-current tracks. Use PWM pins (timer-based for precision) to modulate speed, and digital I/O for direction switching. Include a 5V linear regulator (LM7805) if powering from a shared 12V supply–avoid relying on USB power for stability.

Isolate track sections with relays or MOSFETs (IRFZ44N) to prevent short circuits during transitions. For occupancy detection, deploy current-sensing resistors (0.1Ω, 1W) paired with an LM358 op-amp to monitor circuit load. Calibrate thresholds to distinguish between locomotives and rolling stock–ideal range is 50mV–500mV for HO scale.

Add a rotary encoder (ALPS EC11) or potentiometer (10kΩ linear) for manual speed adjustment. Secure all connections with soldered joints and heat-shrink tubing to prevent oxidation. Test under load–verify PID tuning (if using closed-loop control) to eliminate overshoot at low speeds.

Designing a Train Set Power Regulator Layout

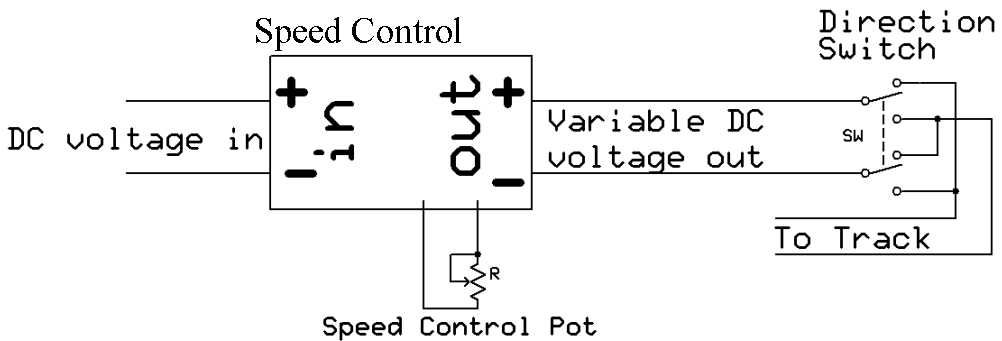

Begin with a LM317 adjustable voltage regulator for consistent track voltage. Use a 12V DC input from a wall adapter or sealed lead-acid battery, ensuring a minimum 2A current rating. Connect a 240Ω resistor between the LM317’s output and adjustment pins, and pair it with a 5kΩ potentiometer to fine-tune voltage between 3V and 12V. This setup prevents motor stalling and overheating in locomotives.

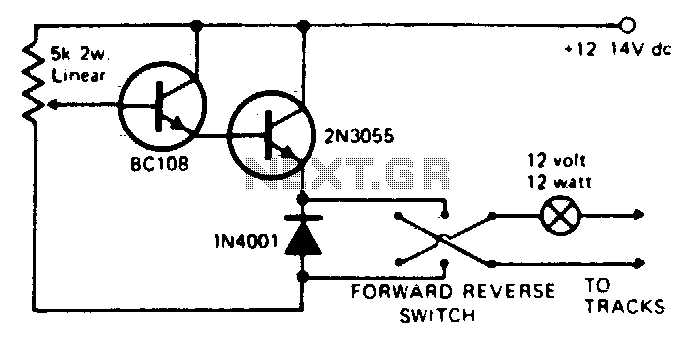

For direction control, integrate a DPDT switch with a 10A rating to handle inrush currents. Wire the switch so the two outer terminals connect to the track rails, while the inner terminals link to the LM317 output. Add diode protection (1N4007) across the switch contacts to suppress voltage spikes caused by motor brush arcing.

Consider a current-limiting resistor (0.1Ω, 5W) in series with the track to detect short circuits. A small LED (forward voltage ~2V) with a 1kΩ resistor in parallel to the shunt will light up during overloads, signaling faults without disrupting operation. This method avoids the complexity of dedicated short-circuit detectors.

For lighting and accessories, dedicate a separate 7805 regulator to supply 5V. Use this line for LED signals, station lights, or relays, preventing voltage drops that affect train speed. Add a 1000µF capacitor across the regulator’s input and output to smooth fluctuations from accessory loads.

Use banana plugs or screw terminals for track connections to simplify disassembly. Label each terminal with polarity markers (+/-) and voltage ranges (e.g., “Main Line 8V”) to prevent miswiring. For modular setups, add quick-disconnect connectors rated for 10A to segment the layout into zones.

Safety and Expansion Add-Ons

Incorporate a 2A fuse immediately after the power input to protect the entire system from catastrophic failures. For layouts exceeding 3 meters, use a relay-driven zone control board (e.g., Arduino with MOSFETs) to isolate sections, reducing voltage sag and improving responsiveness.

For digital command control (DCC) compatibility, replace the LM317 with a H-bridge driver (L298N) and a microcontroller (ATTiny85). Program PWM signals for proportional speed control and direction switching, adding optical isolation (PC817) between the logic and power circuits to block interference.

Selecting Parts for a Simple DC Traction System Setup

Begin with a 2N2222A transistor or TIP120 Darlington pair for switching. The 2N2222A handles up to 800 mA, sufficient for small-scale motors under 12 V. For heavier loads, the TIP120 supports 5 A continuous current, eliminating the need for parallel arrangements. Avoid generic substitutes–spec sheets must confirm current ratings match the motor’s stall current plus a 20% safety margin.

Power supply selection: Use a regulated DC source with voltage matching the motor’s nominal rating. A 12 V motor typically requires a 12 V supply, but check for voltage drop under load–linear regulators like the LM7812 introduce 1.5–2 V loss. For variable speed, a buck converter module (e.g., LM2596) maintains efficiency at lower voltages without excessive heat dissipation.

• Flyback diode: A 1N4007 or Schottky diode (1N5822) clamps inductive spikes when the motor de-energizes. Position it cathode-to-positive, anode-to-ground, as close to the motor terminals as possible. Omitting this risks transistor failure within seconds.
• Base resistor: Calculate using R = (V_in – V_be) / I_b, where V_be ≈ 0.7 V (silicon) or 1.4 V (Darlington). For a 5 V microcontroller signal and 100 mA motor current, I_b ≈ I_c/h_FE yields ≈1 mA (assuming h_FE = 100). Use a 4.3 kΩ resistor; round to 4.7 kΩ for standard values.

For speed modulation, a PWM signal from a microcontroller (e.g., Arduino) or 555 timer IC works best. Set frequency between 1–5 kHz to balance torque smoothness and switching losses. Below 1 kHz, audible whine occurs; above 10 kHz, transistor switching losses dominate. Use a 100 nF ceramic capacitor across the motor terminals to reduce RF interference.

Wiring considerations: Keep high-current paths short and thick (18–20 AWG for ≤3 A, 14 AWG for ≥5 A). Twist motor leads to reduce magnetic interference. For reversible operation, add an H-bridge IC (L298N or TB6612FNG)–this avoids manual relay switching and handles bidirectional current flow without arcing.

Test components incrementally: verify transistor saturation (V_ce ≤ 0.5 V) at no load, confirm power supply voltage under full load (no more than 5% sag), and check for excessive thermal rise. If temperatures exceed 60°C, add a small heatsink or reconsider component ratings. For prototyping, breadboard-compatible modules simplify assembly, but solder traces for permanent installations.

Constructing a Pulse-Width Modulation Speed Adjuster for Miniature Locomotives

Select a MOSFET with a current rating at least 1.5 times the stall current of your engine–common values range from 10A to 30A for N-channel IRF540N or IRLZ44N variants. Avoid cheaper logic-level FETs unless driving low-voltage motors (under 9V), as their gate threshold often exceeds 4V, causing inconsistent performance at typical 12V layouts.

Wire the power stage with 18AWG stranded copper cable directly from the supply to the motor terminals, bypassing the board traces entirely for layouts above 2A. Solder the MOSFET drain to the negative rail, source to the motor’s negative lead, and gate through a 220Ω resistor to the microcontroller pin. Add a flyback diode (1N4007) across the motor terminals, cathode to the positive lead, to suppress voltage spikes exceeding 50V during rapid deceleration–omitting this risks FET failure within minutes at high loads.

Implement a 5V logic supply for the microcontroller separate from the track power to prevent ground loops. Use a 7805 regulator with a 1μF tantalum input capacitor and 10μF electrolytic output capacitor, ensuring the heatsink can dissipate at least 1W at 12V input. For adjustable speed ranges, program the PWM frequency between 50Hz and 1kHz–lower frequencies cause audible motor whine, while higher frequencies reduce torque efficiency by 15-20% due to increased switching losses in the FET.

• 10kΩ pull-down resistor on the MOSFET gate prevents unintended activation during power-up.
• 0.1μF ceramic capacitor across the microcontroller VCC and GND filters high-frequency noise.
• Opto-isolator (PC817) between the throttle signal and track power eliminates back-EMF interference with DCC decoders.

Calibrate the throttle response curve using a potentiometer or ADC input mapped logarithmically to match the motor’s torque curve. Most DC engines exhibit nonlinear speed vs. PWM duty cycle, peaking at 70-85% before torque drops sharply. Precompute a 16-entry lookup table to linearize control feel, storing values in EEPROM to retain settings between power cycles.

For layouts with multiple trains on the same power bus, add a 10μF electrolytic capacitor to each engine’s pickup shoes to stabilize voltage during sudden direction changes. Without this, voltage dips of 3V or more occur during acceleration, causing erratic speed fluctuations. Test stability by running two engines simultaneously on a 3m loop–observable jerking indicates insufficient capacitance or high track resistance.

Isolate the speed adjuster’s ground plane from auxiliary lighting or sound modules using a star topology. Route the ground return for the motor directly to the power supply’s negative terminal, not through the microcontroller board. This prevents conducted EMI from corrupting throttle signals, especially critical in scales above HO where current draw exceeds 500mA per locomotive.

1. Measure stall current with a multimeter: connect motor directly to 12V, rotate shaft by hand until stalled–record the value.
2. Size the FET’s heatsink for this current at 60% PWM duty cycle, assuming 1.5°C/W thermal resistance.
3. Verify PWM output with an oscilloscope: a clean square wave with rise/fall times under 50ns ensures minimal switching losses.
4. Adjust the microcontroller’s dead-time setting to 2μs to prevent shoot-through if using an H-bridge configuration.
