Schematic Design and Key Components of Monitor Circuit Boards Explained

Start with a linear regulator for stable voltage supply–LM7805 tolerates 7-20V input while outputting 5V ±2%. Add a 100nF ceramic capacitor between input/output and ground, placed within 2mm of the regulator pins to suppress transient spikes. For backlight control, a TPS61040 boost converter allows dimming via PWM, accepting signals from 1.8V to 5.5V logic levels.

Use a TFT controller IC like ILI9341 for 240×320 resolution panels–connect SPI pins (SCL, SDA) with 4.7kΩ pull-up resistors to ensure clean signal transmission. Route ground traces 1mm wide for current return paths, avoiding loops that pick up EMI. For touch input, integrate an XPT2046 resistive interface with a 10kΩ series resistor on signal lines to prevent electrostatic damage.

Clock signals demand strict impedance matching: keep traces ≤15cm for 10MHz SPI, using 90Ω differential pairs if extending beyond. Store firmware on a W25Q128JV 16MB flash chip, connecting CS, CLK, and IO pins with 33pF decoupling caps at the IC pads. Power sequencing matters–enable the backlight after panel initialization to avoid inrush currents tripping undervoltage locks.

Test signal integrity with a 50MHz oscilloscope: ripple on 3.3V rails should stay , or add an LC filter (10µH inductor + 100µF capacitor). For ESD protection, place TVS diodes (SMBJ5.0A) across data lines, clamping at 6V. Document every connection in KiCad with explicit net labels–avoid generic names like “VCC” or “GND” to prevent mistakes during assembly.

Understanding Display Electronics Schematics

Begin by identifying the power delivery network–typically marked with thick traces leading to capacitors ranked by voltage ratings (e.g., 470μF/25V, 1000μF/16V). Primary rails like 12V, 5V, and 3.3V supply backlight drivers, scaler ICs, and microcontrollers respectively. Verify these paths with a multimeter in continuity mode to confirm zero resistance between the adapter input and downstream components.

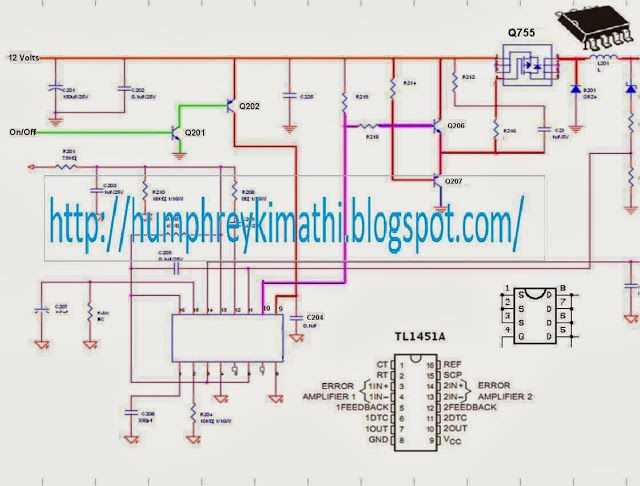

Locate the backlight inverter section–often a separate board near the LCD panel edges. Key components include a boost converter coil (labeled “L” followed by a number), MOSFETs (e.g., AO4468), and current-sense resistors (typically 0.1Ω–1Ω). Check the PWM input pin on the inverter controller (common models: OZ9938, TL494) for a 1kHz–100kHz signal; absence indicates a failed gate driver or shorted transformer.

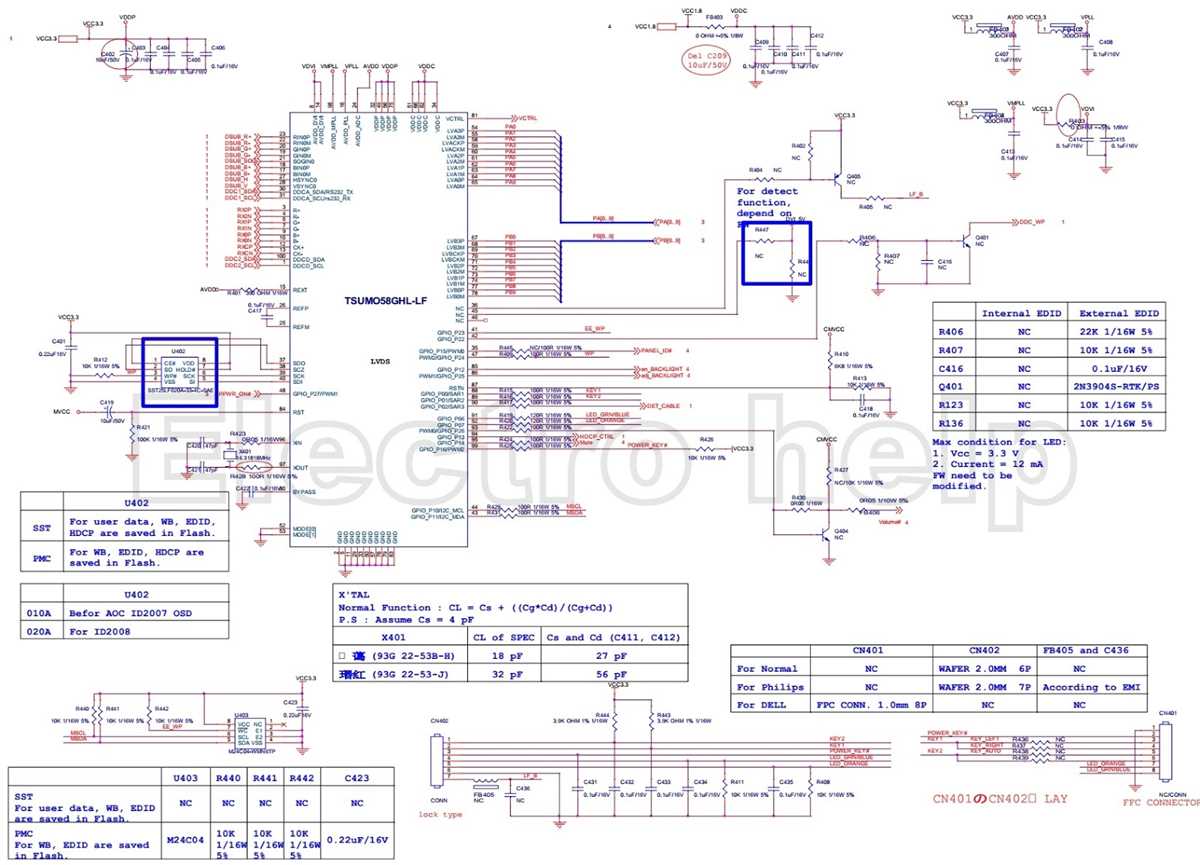

Examine the timing controller (TCON) board, usually a small PCB on the panel’s reverse side. Look for LVDS interconnects–pairs of thin traces routing to the LCD glass–each carrying differential signals (350mVpp typical). Trace these to the scaler chip (e.g., MST9U88, RTD2662), confirming signal integrity with an oscilloscope; degraded signals create horizontal banding or ghosting.

Inspect the EEPROM chip (e.g., 24LC16) storing calibration data like gamma curves, EDID, and color temperature settings. Corrupted EEPROM manifests as incorrect color output or resolution mismatches. Use an I²C programmer (bus pirate or CH341A) to back up original firmware before attempting rewrites–factory defaults rarely optimize for panel-specific quirks.

Check the high-voltage section feeding the panel’s CCFL or LED strings. For CCFL setups, locate the filament transformer–typically a high-turns-ratio coil with HV capacitors (e.g., 0.1μF/2kV). LED variants use buck regulators (e.g., LM3405) with series resistors (1Ω–5Ω) to balance string currents; unequal resistance introduces backlight hotspots or flicker.

Analyze signal input paths–HDMI/DisplayPort/VGA transceivers parse video formats before routing to the scaler. HDMI uses TMDS pairs (100Ω impedance), while DisplayPort employs auxiliary channels (AC-coupled). Verify termination resistors (50Ω) at each end of differential pairs; missing resistors cause signal reflection and artifacts like pixelation or timing desync.

Review protection components: Polyfuses (e.g., MF-R110) on USB/peripheral ports, TVS diodes (P6KE200A) on power lines, and ESD suppressors near connectors. Overvoltage events often destroy these first–replace blown fuses with exact equivalents only after confirming no downstream shorts (use thermal imaging to locate hotspots).

For troubleshooting, prioritize component heat signatures–scalers running above 60°C indicate improper cooling or Vcore issues, while overcurrent MOSFETs may exceed 85°C. Use a non-contact thermometer for quick scans; precision heat maps from thermal cameras reveal poor solder joints or cracked traces masked by conformal coating.

Critical Elements in a Traditional Cathode-Ray Tube Display Schematic

Begin by locating the high-voltage transformer section–typically marked with “flyback” or “LOPT”–as it generates the 20–30 kV needed for the electron gun. Verify the diode stack (often a multi-section component) connected to its secondary winding; failure here disrupts beam acceleration and causes screen dimming or shutdowns. Use an oscilloscope to check for clean 15–25 kHz waveforms at the primary.

The electron beam control assembly centers around three key signal chains: vertical deflection, horizontal deflection, and video amplification. Prioritize testing the horizontal output transistor (usually a BU2520 or equivalent) with a multimeter in diode mode; it must show ~0.7V drop between base and emitter. Replace if readings exceed ±10% of this value.

• Yoke coils: Measure inductance (typically 1–3 mH for horizontal, 10–50 mH for vertical); deviations indicate shorted turns or corrosion.
• Focus and screen voltage dividers: Probe the adjustable pots (commonly labeled “FOCUS” and “SCREEN”) for 4–8 kV (screen) and 2–5 kV (focus)–settings drift over time, causing blurry edges.
• Neck board: Inspect the CRT socket for carbon tracking; clean with isopropyl alcohol (99%) if necessary before reapplying dielectric grease.

Video processing starts at the RGB preamps, identifiable by their ICs (e.g., LM1203) or discrete transistor arrays. Trace signals from the input connectors to these stages, ensuring DC biases align with datasheet specs (usually 2–3V at inputs, 5–7V at outputs). Attenuation or noise here indicates failing resistors (look for discolored 1/4W types) or leaky capacitors (replace all electrolytics near heat sources, especially 100µF/16V types).

Power regulation is handled by a standby supply (often a UC3842-based SMPS) and a main switch-mode circuit (typically using a TEA2261 or similar). Check the startup resistor (usually 100–220 kΩ) connected to the primary DC bus (300V); open circuits here prevent power-up entirely. Secondary rails (+5V, +12V, +80V) must stabilize within 5% of nominal; use an ESR meter on output capacitors (commonly 1000µF/16V) to detect high-impedance failures.

Safety mechanisms include the X-ray protection circuit, which trips at ~32 kV exceeding nominal levels. Locate the threshold components–a zener diode (often 6.2V) and a transistor (e.g., 2SC1815)–and verify they clamp the feedback loop before the horizontal driver IC. Test by temporarily reducing the screen voltage; if the display cuts off at ~4–5 kV above normal, the circuit functions correctly.

Convergence adjustments rely on purity coils and degaussing circuitry. The degauss relay (often a small PCB-mounted type) should click within 1 second of power-on; manual degaussing is ineffective if its thermistor (commonly a 50 mA PTC) fails open. For purity, use a dot generator and tweak the magnets near the yoke until raster colors align within 1 mm across the entire screen; misalignment here suggests cracked ferrite cores.

Lastly, verify the ABL (Automatic Beam Limiting) network, typically a chain of resistors (100 kΩ × 2) and diodes feeding back from the high-voltage section to the video preamps. Measure the voltage at the ABL node–it should swing between +0.5V and +2.5V depending on brightness. If fixed at either extreme, check for shorted video output transistors (common in Sony Trinitron designs) or open 1 MΩ resistors linking the ABL to the HV return.

Step-by-Step Assembly of a TFT-LCD Display Power Supply Board

Begin by securing the main PCB to a static-free workspace. Use an anti-static mat and wrist strap to prevent ESD damage to sensitive components. Verify the board layout against the schematic–identify key areas: input filtering, voltage regulation stages, backlight inverter connections, and logic supply outputs. Label all connectors with masking tape to avoid miswiring during assembly.

Solder the primary power input components first. Install the fuse holder at the designated location, selecting a fuse rated for 250V/2A based on typical TFT-LCD requirements. Follow with the EMI filter capacitors (typically 0.1µF and 0.01µF X/Y-rated) and common-mode choke. Check polarity for electrolytic capacitors–reverse connection will cause immediate failure. Use a multimeter in continuity mode to confirm proper seating of components before applying power.

Assemble the DC-DC conversion stage next. For a 12V input board, install the buck converter IC (e.g., MP2451, LM2596) and supporting components: input capacitor (22µF/50V), output capacitor (470µF/25V), inductor (10µH/2A), and feedback resistors. Refer to the datasheet for exact values–even a 5% deviation can destabilize output voltage. Use a precision resistor kit for feedback resistors to ensure tight regulation (typically 1.0% tolerance).

Component	Typical Value	Function
Buck Converter IC	MP2451/LM2596	Step-down regulation
Input Capacitor	22µF/50V	Suppresses input ripple
Output Capacitor	470µF/25V	Stabilizes output voltage
Feedback Resistors	10kΩ + 3.3kΩ (1%)	Sets output voltage (e.g., 5V)

After soldering, power the board via a current-limited bench supply at 12V/500mA. Measure output voltage at the designated test points–expect ±2% deviation (e.g., 4.90V–5.10V). If output exceeds limits, recheck feedback resistor values. For boards with adjustable regulators, use a 10-turn trimpot to fine-tune voltage while monitoring with a scope for ripple (target

Proceed to the backlight inverter section. Install the PWM controller (e.g., OZ9910, TL5001) and high-voltage transformer. Use a high-voltage probe to verify transformer winding ratios before soldering–improper winding can damage the panel. For CCFL backlights, add the strike voltage capacitor (0.47µF/630V) and ballast capacitors (1nF/3kV) near the lamp connectors. Test with a dummy load (1kΩ/5W resistor) before connecting to the panel to avoid arcing.

Finalize logic supply connections. Solder the 3.3V LDO regulator (e.g., AMS1117) with input/output capacitors (10µF tantalum). Route traces carefully–keep output capacitors close to the IC to prevent oscillation. Add transient protection diodes (e.g., P6KE6.8CA) on data lines to suppress voltage spikes. Before full assembly, perform a functional test: power the board, observe LED indicators (if present), and measure all outputs (5V, 12V, 3.3V) with a load (e.g., 10Ω/5W resistor).

Mount the completed board into the chassis, securing it with standoffs. Recheck all connectors–misaligned pins in FFC/FPC connectors cause intermittent failures. Apply conformal coating to exposed SMT components if operating in high-humidity environments. Document assembly notes (e.g., voltage measurements, firmware revisions) directly on the board silk-screen for future troubleshooting.
