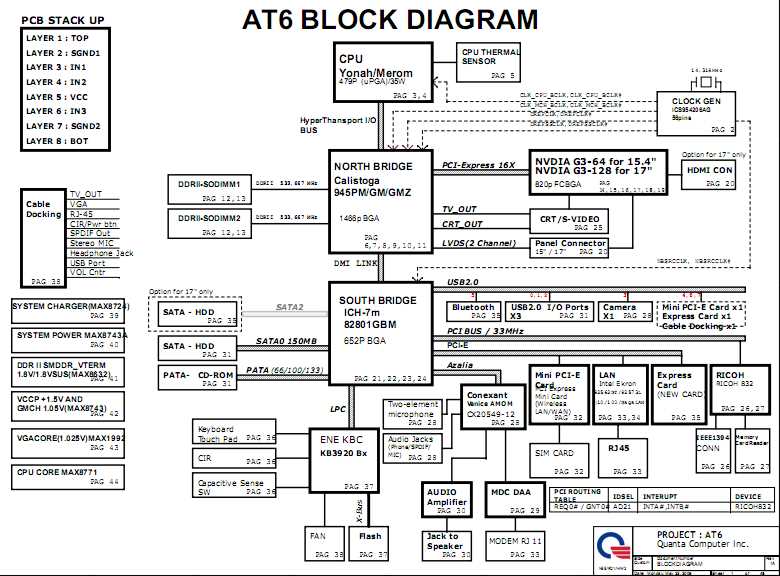

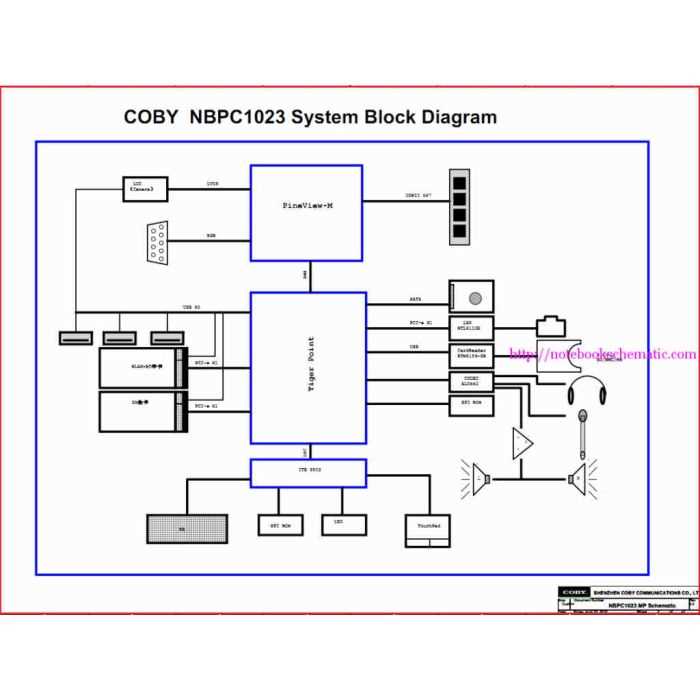

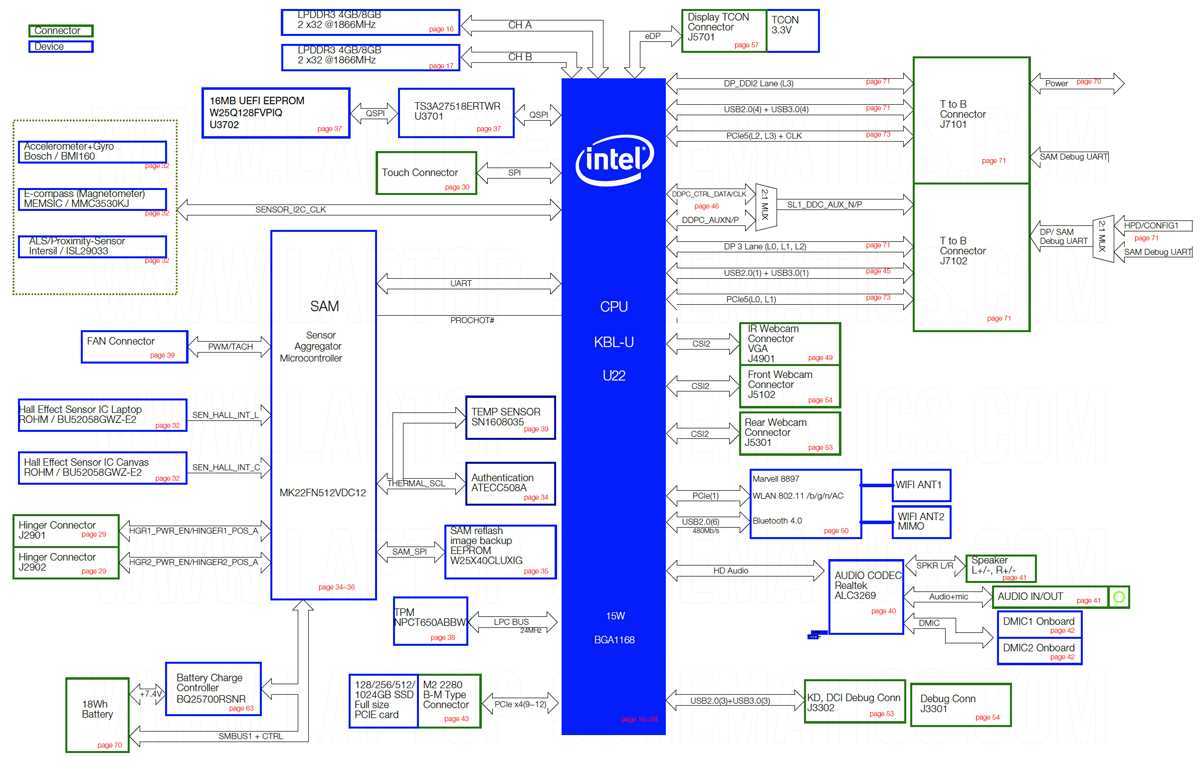

Understanding Motherboard Architecture Core Circuit and Block Diagrams

Begin analysis by isolating the voltage regulation module (VRM) section–the most frequent source of design flaws. Trace power rails from the 24-pin ATX connector through choke coils, MOSFET arrays, and bulk capacitors to the CPU socket. Verify that each phase delivers uniform load balancing; discrepancies above ±5% ripple at 3.3VSB or 5V rails indicate poor layout choices or undersized components. Use a bench multimeter in AC-coupled mode to measure noise–values exceeding 50mV peak-to-peak suggest insufficient decoupling.

Examine high-speed signal lanes next. PCIe Gen 5 traces require impedance control at 85Ω ±10%; deviations increase jitter. Identify length-matched pairs: for DDR5, skew must remain below ±0.15mm between data lines. Cross-reference the reference designator map for termination resistors–missing or incorrect values on DQ/DQS groups cause training failures. Probe clock signals at the source and load: a sinusoidal waveform instead of clean square edges points to missing series damping or stub reflections.

Locate the Super I/O controller–usually near LPC or eSPI headers. Confirm that all serial buses (SATA, USB, TPM) share a common ground plane split; violating this rule introduces ground bounce. Check fan speed outputs: PWM signals must switch between 0V and 3.3V without ringing. If thermal readings fluctuate erratically, inspect the temperature diode bias circuit–the 10kΩ pull-up resistor is a common failure point.

Trace the management engine firmware pathway. The HECI bus should show recurring 7-byte handshake packets on a logic analyzer. Absent communication here bricks the entire platform; reprogramming requires exact binary matching against the vendor’s Intel-specific descriptor region. Finally, validate EMI compliance by testing radiated emissions in a near-field chamber: frequencies above 3GHz revealing harmonics demand additional stitching vias or shield cans on RF modules.

Understanding PC Baseplate Electrical Layouts and Functional Maps

Start by locating the VRM section in your main assembly’s electrical plan–most layouts place it near the CPU socket. Verify the phase count: high-end boards typically use 12+2 or 16-phase designs, while budget models may opt for 4+1 configurations to reduce costs without drastic performance loss.

Examine the chipset heat spreader connection points; modern mid-to-high-range systems integrate direct thermal pads between the chipset and spreader for passive cooling efficiency. Ensure your documentation specifies pad thickness–typically 0.5mm to 1.2mm–critical for proper heat transfer and avoiding void gaps during installation.

Trace the PCIe lane distribution: x16 slots usually connect directly to the processor, while x1 and x4 slots often route through the PCH (Platform Controller Hub). Cross-reference lane assignments with NVMe M.2 slot layouts–some boards split x4 lanes into two x2 slots for additional storage devices, impacting throughput.

Check the BIOS flashback circuit if present–identify the dedicated header and trace its connection to the SPI flash memory chip. This feature requires a 3.3V standby power rail, often indicated by a separate fuse or resistor marking in the electrical plan; omit this phase risks bricking during firmware updates.

Analyze power delivery for DDR memory: most modern systems employ on-DIMM PMICs (Power Management ICs) to regulate voltage, reducing trace congestion on the baseplate. Older designs use motherboard-based VRMs, requiring thicker power planes to handle current spikes during memory training.

Review the audio codec section–look for isolated ground zones and EMI shielding via copper pours around the codec and headphone amplifier. High-quality layouts implement dedicated linear regulators for analog signals, minimizing digital noise interference on audio outputs.

Map the USB and SATA controllers, confirming dual-purpose ports (e.g., USB 2.0 headers combined with internal headers). Check for dedicated power rails on USB 3.2 Gen 2×2 ports, as some boards share power delivery circuits, leading to potential instability during high-current device attachment.

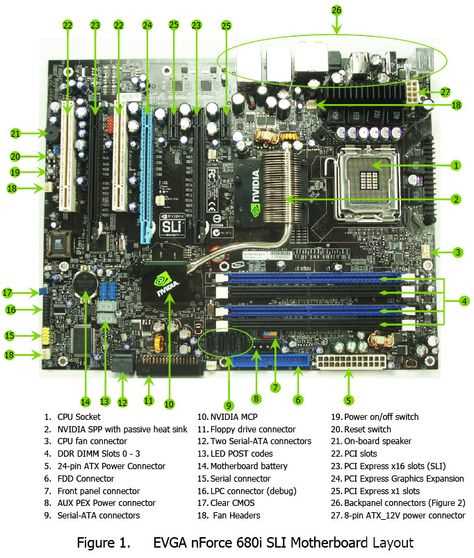

Key Components Illustrated in Mainboard Circuit Layouts

Prioritize identifying the VRM (Voltage Regulator Module) in printed layouts–its position relative to the CPU socket dictates thermal management and power delivery efficiency. Examine the phase count and MOSFET arrangement; configurations like 12+2, 8+3, or 6+2 directly correlate with overclocking potential. Cross-reference solid-state chokes and capacitors (e.g., Nichicon, Rubycon, or Panasonic) with manufacturer specifications to spot counterfeit components.

• Locate the chipset heatsink; high-end variants (e.g., Z790, X670E) often integrate heat pipes linking it to M.2 slots for passive cooling.
• Trace the BIOS chip (typically a Winbond or Macronix 32MB+ SPI flash) near the edge connector–its proximity to the southbridge affects recovery accessibility.
• Verify PCIe lane routing; primary x16 slots should connect directly to the CPU (AM5/LGA1700), while secondary lanes may stem from the chipset with reduced bandwidth.

Critical pathways include the DDR memory traces–length matching within ±5 mils ensures signal integrity. Check for Ohmite, Vishay, or KOA termination resistors in series with data lines to suppress reflections. On multi-channel boards, confirm trace coupling via serpentine routing patterns near the DIMM slots.

1. Inspect the SATA controller (ASMedia ASM106x or Marvell 88SE) placement–its distance from SATA ports impacts bulk storage latency.
2. Look for USB power delivery components (e.g., TPS6598x PD controller) near Type-C headers; inadequate decoupling (10μF ceramic caps) causes disconnects under load.
3. Analyze fan header distribution–PWM controllers (e.g., ITE IT87xx) should cluster near the I/O shield for sensor accuracy.

Hidden layers reveal embedded controllers (Super I/O chips like Nuvoton NCT6799D)–these manage keyboard wake, hardware monitoring, and legacy interfaces. Check for test points (TPxxx labels) used in factory diagnostics; shorting adjacent pads may reset BIOS or trigger firmware recovery modes. For DIY repairs, note vias connecting front-panel connectors to the southbridge–corroded pads here often cause POST failures.

Decoding Power Distribution Layouts in Mainboard Design

Identify the VRM phases first–each represented by paired MOSFETs, an inductor, and a capacitor array near the CPU socket. Solid lines from the PWM controller denote phase control signals; dashed lines indicate power rails delivering 12V, 5V, or 3.3V. Trace the high-side MOSFET gate drivers back to their controller IC–common models like Richtek RT8894 or Infineon IR35201 typically include current sensing pins (IS+ or VO). Phase count correlates with load capacity: 8+ phases handle 150W TDP CPUs, below 6 suggests lower-power designs.

Check for input capacitors–ceramic (rated 50V+) placed adjacent to the 12V input connector reduce ripple before entering buck converters. Inductor saturation values (commonly 40A per phase) determine maximum sustained current; verify with datasheets if markings are absent. Thermal vias beneath power stages enhance cooling–spacing under 0.5mm signals high-wattage designs. Test points labeled “VCORE” or “VCCIN” confirm voltage domains–measure these with a multimeter to validate schematic alignment during debugging.

Chipset Communication Paths in System Layouts Decoded

Prioritize direct pathways between northbridge components and CPU interfaces–most modern printed circuit boards integrate memory controllers within the processor itself. This eliminates intermediate buses, reducing latency to near-zero for DDR RAM channels. When mapping interconnections, trace each signal line from origin to endpoint: PCIe lanes typically route directly from CPU sockets to expansion slots, while SATA ports often stem from southbridge hubs via dedicated controllers.

Key Interface Protocols and Their Roles

Interface	Primary Devices Connected	Bandwidth (Typical)	Critical Path Notes
PCIe 4.0 x16	GPUs, NVMe SSDs	31.5 GB/s	Avoid bifurcation unless unavoidable; bifurcated lanes halve per-device bandwidth
DMI 3.0	Northbridge to southbridge hub	7.88 GB/s	Shared resource; heavy southbridge traffic creates bottlenecks
SATA 3.0	Storage drives, optical media	600 MB/s per port	Group ports by controller; mixing controllers increases latency
USB 3.2 Gen 2×2	External storage, peripherals	20 Gbps	Host controllers demand dedicated power delivery paths

Configure interrupt request lines strategically–cluster high-priority devices like network adapters and graphics cards on separate IRQ channels. Southbridge-attached peripherals, such as legacy USB 2.0 ports, rely on slower LPC buses; document these auxiliary links even if labeled “secondary” to expose potential choke points during troubleshooting.

Voltage regulation modules feed distinct rails to chipset domains–isolate analog power paths for PLLs and reference clocks from noisy digital rails. Use decoupling capacitors near every power pin of complex I/O hubs; absence visible in layouts often correlates with unstable USB or Ethernet performance. Verify trace widths for critical data lanes: PCIe lanes require 5 mil traces for signal integrity, while memory traces demand strict length matching within 5 mil tolerances.

Optimizing Traffic Flow Between Domains

For multi-CPU configurations, examine NUMA node affiliations–memory controllers tied to specific sockets must retain proximity to their paired processors. Cross-socket communication relies on QPI or UPI links; these high-speed intermachine buses consume significant power and silica area, so minimize hops by grouping related memory channels. Hard reset signals warrant dedicated non-maskable lines, partitioned from standard GPIO to prevent accidental triggers during voltage spikes.
