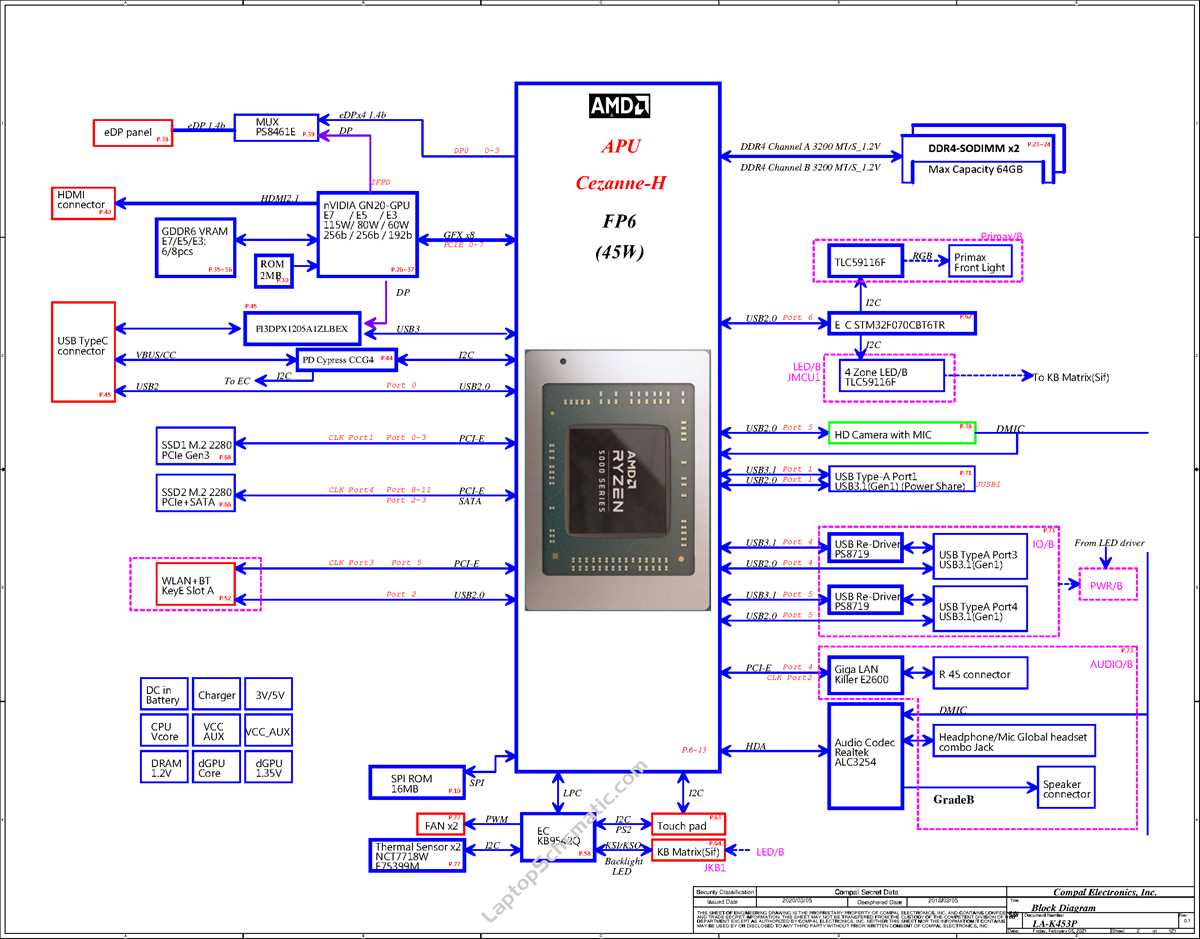

Understanding Key Components of a Motherboard Circuit Layout

Begin by securing a PDF or high-resolution vector file of the PCB’s electrical blueprint from the manufacturer’s developer portal. Avoid third-party diagrams–verified sources like ASUS, MSI, or Gigabyte technical libraries maintain precision for voltage lines, signal paths, and ground planes. Cross-reference the silkscreen labels with the physical board using a multimeter in continuity mode to confirm power delivery to the VRM cluster, memory slots, and CPU socket. This step eliminates guesswork when tracing faults or modifying firmware settings.

Identify these critical zones immediately:

• Power delivery network (12V/5V/3.3V rails) feeding the main chipset via thick copper pours.
• Boot flash IC (usually SPI NOR flash, 8–64MB capacity) tied to the chipset’s firmware hub.
• Clock generator (crystal oscillator near the primary processor) distributing timing signals across PCIe lanes.
• Reset circuit (often a single transistor or supervisor IC) that holds peripherals in a known state during POST.

Errors in these regions cause instant boot failures, erratic behavior, or thermal throttling before BIOS execution.

Use a thermal camera or Flir One attachment to spot voltage drops across the PCB. Hotspots near capacitors or MOSFETs indicate excessive resistance–compare against the impedance values in the electrical blueprint (typically <0.1Ω for high-current paths). Replace blown fuses (polyfuses or resettable PTCs) only after confirming the downstream load is not shorted to ground.

Examine the layer stackup (usually 4–8 layers) revealed in Gerber files. Inner layers often carry high-speed signals (PCIe 4.0/5.0, DDR5 traces) with controlled impedance (85–100Ω differential). Use an oscilloscope with a differential probe to verify signal integrity–deviation from the expected eye pattern suggests damaged traces or incorrect termination resistors. For DIY repairs, apply jumper wires only when the original trace width matches; narrow shortcuts will overheat under load.

Isolate firmware issues by reprogramming the boot ROM with an external programmer like CH341A. Ensure the binary file matches the exact board revision (check the PCB’s silkscreen variant marking). The electrical blueprint often includes memory-mapped address ranges for BIOS regions–alter only these sectors during reflashes to avoid bricking the EC (Embedded Controller).

For power sequencing verification, monitor the EN (enable) pins on buck converters during startup. The electrical blueprint specifies timing delays (usually 5–20ms between Vcore and chipset rails). Out-of-order activation causes brownouts; adjust delays via I2C or GPIO manipulation if modifying fan control or undervolting circuits.

Understanding PCB Circuit Layouts for Hardware Engineers

Start by identifying key voltage rails on the board–3.3V, 5V, and 12V paths must be traced first. Use a multimeter in continuity mode to verify connections between power regulators, capacitors, and the main IC. Pay special attention to decoupling capacitors near processor pins; missing or misplaced components here cause intermittent failures under load. For ATX-based designs, locate the 24-pin connector’s pinout: pin 1 (3.3V), pin 10 (12V), and pin 13 (ground) are critical checkpoints before proceeding.

Signal Trace Analysis and Common Pitfalls

Prioritize high-speed lanes like PCIe, DDR, and SATA by measuring impedance–target 85-100 ohms for differential pairs. Layer transitions in multilayer boards often hide vias; use a thermal camera to spot overheating traces that indicate poor soldering or broken connections. For USB 3.0/USB-C ports, confirm the TX/RX pairs’ length matching within ±5 mils to avoid signal degradation. If debugging a non-booting system, probe the PCH’s PLTRST# signal–it should pulse low for 100ms after power-on before stabilizing high.

When reverse-engineering, document resistor and capacitor values directly on the layout using a CAD tool like KiCad–even small SMD codes like “102” (1nF) or “473” (47kΩ) matter. For Gigabit Ethernet, verify the transformer center-taps and magnetics termination; incorrect values here cause packet loss at full duplex. Always cross-reference the bill of materials with the layout file–discrepancies in part numbers (e.g., replacing a Murata BLM18PG with a generic ferrite bead) often explain EMI issues.

How to Identify Component Symbols in a PCB Blueprint

Begin by locating the reference designators–alphanumeric labels like R102, C45, or U7–next to each symbol. These indicate the type and sequence of parts: R for resistors, C for capacitors, U or IC for integrated circuits, L for inductors, D for diodes, and Q for transistors. Manufacturers often follow IPC standards, ensuring consistency across most layouts.

Resistors appear as straight lines with zigzag patterns or rectangles. Check the resistance value (e.g., 1k or 47R) printed adjacent to the symbol. Tolerance (e.g., ±5%) and wattage (if specified) help distinguish high-power variants from signal-level components. Some blueprints use color-coded fill inside the rectangle for quick visual identification.

Key Symbol-Shapes for Active Components

• Diodes: Triangle pointing toward a vertical line. Schottky diodes include an S suffix, Zener diodes show voltage ratings (e.g., 3V3). LED variants lack the line but add two short parallel arrows.
• Transistors (BJT/FET): Bipolar junction types display three terminals labeled E, B, C. MOSFETs use G, D, S and often add a horizontal line separating source/drain. Look for body diode symbols in power MOSFETs.
• ICs: Rectangular blocks with numbered pins. Microcontrollers typically cluster power pins (VDD/GND) at corners. Memory ICs may label address/data buses (A0-A15, D0-D7), while voltage regulators show VIN/VOUT and enable pins.

Passive filters combine inductors (curved or spiral shapes) and capacitors (parallel lines). Ferrite beads use a solid rectangle with a dashed outline, often labeled FB. Bulk storage capacitors–marked with 100µF or higher–sit near voltage rails, while decoupling caps in the 0.1µF range cluster around ICs to suppress noise.

Power delivery symbols stand out due to thicker lines and higher current ratings. Switching regulators (buck/boost) show switching nodes (SW) with an inductor-diode-capacitor trio. Linear regulators include IN/OUT/GND and a thermal pad symbol. Check for parallel capacitors labeled CIN/COUT to confirm input/output smoothing.

Netlist Clues and Hidden Annotations

1. Trace signal nets to differentiate clock lines (CLK), reset (RSTn), and data lanes (USB_D+/D-). Differential pairs appear as mirrored lines with ± identifiers.
2. Look for dotted or dashed connections: these often represent multi-layer vias or test points (TP201). Pull-up/pull-down resistors link nets to VCC or GND explicitly.
3. Crystals and oscillators use two parallel lines for the resonator and symbolize load capacitors (CL) nearby. Match the frequency annotation (e.g., 25MHz) to the main CPU or chipset specs.

Cross-reference symbols against manufacturer datasheets. For example, a transistor marked 2N3904 matches the TO-92 package footprint. If a symbol lacks a reference value, measure PCB traces: resistors typically sit at 0402/0603 pads, while transistors use SOT-23 or TO-220 packages. Silkscreen labels on the physical board often duplicate reference designators for verification.

Step-by-Step Guide to Tracing Power Delivery on a PCB Blueprint

Begin by locating the voltage regulator module (VRM) area–identify the input power rails (usually marked as +12V, +5V, or +3.3V) from the main connector (e.g., 24-pin ATX). Use a multimeter in continuity mode to verify connections between the power pins and the VRM’s input capacitors, ensuring no broken traces or cold solder joints. Highlight these paths on a printed copy of the layout for reference.

Trace the power lines from the VRM’s output inductors to the load points (CPU socket, memory slots, or PCIe lanes). Look for annotations like “VCORE,” “VDIMM,” or “VCCSA” near these components. Cross-check the schematic’s component designators (e.g., L1, C2) with the physical board–misalignment here often causes power delivery failures. Measure resistance between the output and ground to confirm no unintended shorts.

Analyzing Control Signals

Find the pulse-width modulation (PWM) controller IC, typically labeled with part numbers like “ISL6366” or “RT8894.” Examine its enable pins (e.g., “EN,” “PGOOD”)–these must connect to the system management IC or BIOS via pull-up resistors. If tracing manually, follow the thin control lines back to their source, noting any series resistors or capacitors that might filter noise or delay signals.

Follow the feedback loops from the VRM’s output to the PWM controller’s “FB” or “VSENSE” pins. These lines sample output voltage and adjust switching accordingly. On the layout, verify that feedback traces run directly from the load (e.g., CPU socket pads) to the controller without branching–any intermediate resistance or inductance can destabilize regulation. Use an oscilloscope to measure ripple at these points if instability is suspected.

Inspect the gate drivers for the MOSFETs; these are often discrete transistors or integrated into the PWM controller. Confirm that gate signals (labeled “UGATE,” “LGATE”) connect to the MOSFET gates via low-resistance paths. Check for series gate resistors (e.g., 10Ω–50Ω), which protect against ringing. Missing or damaged traces here can lead to MOSFET failure under load.

Final Validation

Revisit the ground paths–power planes should connect to the VRM’s output capacitors and load grounds with minimal impedance. Use the schematic’s net names (e.g., “GND,” “PGND”) to cross-reference physical vias or copper pours. If debugging a dead board, inject 1V–2V at the input rails and measure propagation to verify no open circuits. Document discrepancies between the blueprint and physical board, as these often point to manufacturing defects or design flaws.
