Complete Guide to Wiring Motion Detector Lights Step by Step

Start by identifying the power source–most residential setups use a 120V AC line, while commercial or outdoor units may require 240V. Check the sensor’s specifications for voltage tolerance; exceeding limits risks damaging the unit or reducing its lifespan. For standard installations, three wires are typical: hot (black), neutral (white), and ground (green or bare). Always confirm wire colors match local electrical codes–some regions use brown, blue, and green-yellow instead.

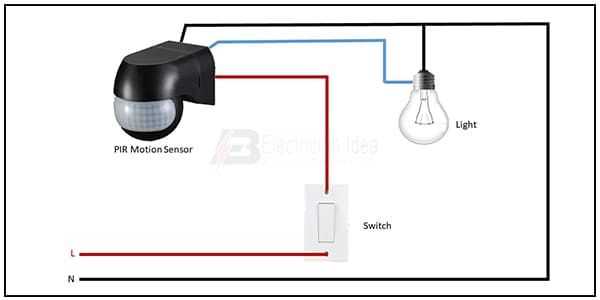

For single-pole connections, connect the hot wire from the breaker to the sensor’s input terminal, then route the output hot wire to the fixture. Neutral should bypass the sensor and connect directly to the light unless the device requires it–some models integrate load-sensing circuits that need neutral to function. Ground must bond to both the sensor and fixture for safety. Use solid 14-12 AWG copper wire; stranded wire can loosen under terminal screws over time.

Troubleshoot false triggers by positioning the sensor away from vents, moving trees, or heat sources. Adjust the lux threshold to prevent daytime activation–most units default to 3-5 lux but can be tuned via a dial or app. For multi-sensor networks, wire in parallel, ensuring each unit shares the same hot and neutral lines. Label connections with heat-shrink tubing or colored tape to simplify future maintenance.

Test installations with a non-contact voltage tester before energizing. A faulty ground can cause erratic behavior; verify continuity with a multimeter. For low-voltage systems (12V-24V), use a compatible transformer–mixing AC and DC components will damage electronics. Replace aging sensors showing delayed response or flickering, as these indicate internal degradation.

How to Connect Automated Illumination Sensors Correctly

Begin by identifying the load, neutral, and hot wires in your setup. Most occupancy-triggered fixtures require a 120V or 240V supply, depending on regional standards. Cut power at the breaker–never rely on wall switches alone. Strip 1/2 inch of insulation from each conductor, then match colors: black to black (hot), white to white (neutral), green or bare to grounding screw. For models with separate control units, connect the sensor’s output wire (often red) to the fixture’s input terminal. Always secure connections with wire nuts rated for copper conductors and wrap with electrical tape for added safety.

Key Variations by Installation Type

• Wall-mounted devices: Run conduit from the junction box to the sensor’s location. Use THWN-2 copper wires (minimum 14 AWG for 15A circuits). Some units integrate the switch and sensor–follow the manufacturer’s color-coding for internal wiring (e.g., blue for trigger outputs).
• Ceiling-installed units: Ensure junction boxes are UL-listed for ceiling fans if mounting weight exceeds 35 lbs. Feed wires through flexible metal conduit if distance >6 feet. For dual-sensor systems, link parallel using piggyback terminals–never exceed the sensor’s maximum load (typically 500W for residential).
• Hardwired flood beams: Use waterproof wire connectors (e.g., 3M DBY-R6) outdoors. Extend neutral wires in UF-B cable if burying–minimum 18-inch depth for direct burial. For 3-way setups, connect the sensor’s common terminal to the traveller wire at the switch box.

Test the circuit before finalizing. Restore power and trigger the sensor–verify the luminaire illuminates within 2–5 seconds and stays on for the programmed duration (usually 1–30 minutes). If malfunctioning, check for reverse polarity on neutral/hot or a tripped breaker. For LED-compatible models, ensure the sensor’s low-voltage cutoff aligns with the fixture’s wattage (minimum 40W equivalent for reliable operation). Hide exposed wires in LB conduit bodies for aesthetic exterior setups.

Key Parts of an Automatic Illumination System Setup

Begin by identifying the three core elements in any sensor-activated fixture: the power source, the activation module, and the luminaire itself. The power source typically consists of a live (hot) wire, a neutral wire, and a ground wire–label them immediately to prevent errors. For most residential setups in North America, use 14-gauge wire for 15-amp circuits or 12-gauge for 20-amp circuits to handle the load safely. The activation module, often a small rectangular unit, requires direct connection to the live and neutral wires; any deviation risks false triggers or complete failure. Ensure the ground wire connects to a dedicated screw or clamp on the module–never omit this, as it protects against voltage surges.

Select a luminaire compatible with your activation module’s voltage rating–most modern units operate on 120V, but some outdoor flood fixtures require 240V. Verify the module’s detection angle and range before mounting; a 180-degree field of view is standard for wall-mounted units, while ceiling installations may need a 360-degree model to cover the area effectively. Securely fasten all connections with wire nuts rated for outdoor use if applicable, then wrap each nut with electrical tape to guard against moisture. For outdoor installations, use weatherproof junction boxes and seal entry points with silicone caulk to prevent corrosion over time.

Test the setup before finalizing installation by temporarily energizing the circuit. If the fixture fails to activate, check for reversed polarity–swapping live and neutral wires is a common mistake. If the unit triggers erratically, adjust the sensitivity dial on the module, typically marked with a sun/moon symbol, to reduce false positives caused by wind-blown debris or small animals. Once stable, set the auto-shutoff timer to your preferred duration, usually between 1 and 10 minutes, to balance energy efficiency with convenience.

How to Install a Standalone Sensor-Controlled Illuminator: A Practical Walkthrough

Switch off the power at the circuit breaker before handling any connections–skipping this step risks electric shock even with low-voltage lines. Use a non-contact voltage tester to confirm the circuit is dead; probe all wires and terminals individually before proceeding. If the breaker panel lacks clear labels, trace the line with a multimeter set to AC voltage mode, identifying the correct breaker by elimination.

Mount the fixture’s junction box to a structural stud or crossbeam using screws rated for outdoor weight if installing externally–standard drywall anchors won’t support dynamic wind loads. For inline models spliced mid-circuit, use a weatherproof conduit body (type LB or LR) to shield splices from moisture. Pull the supply cable through the conduit, leaving 8 inches of slack for clean termination; stripping more risks exposed conductors after sealing.

Connect the hot (black/red) lead to the sensor’s L terminal, neutral (white) to N, and ground (bare/green) to the grounding screw–polarity matters for proper operation. If the fixture lacks a dedicated ground wire, bond it to the junction box using a green grounding pigtail. For 3-way sensor setups, pair the red traveler wire with the fixture’s corresponding terminal and cap unused travelers with wire nuts rated for 600V; mismatched caps compromise insulation.

Adjust the sensor’s range and delay settings before finalizing mounts–factory defaults rarely suit real-world conditions. For expansive areas, position the unit at 8–10 feet to maximize coverage without triggering false positives from distant movement (e.g., trees). Test sensitivity by walking perpendicular to the detection zone at varying distances; recalibrate if the illuminator flickers or fails to engage consistently.

Seal all entry points with silicone-based caulk (100% pure) to prevent water ingress–acrylic caulk degrades under UV exposure within months. Use dielectric grease on wire nuts to inhibit corrosion, especially in coastal or high-humidity zones. Restore power after verifying all connections with a torque screwdriver (set to manufacturer specs, typically 0.5–0.8 Nm); improper torque causes overheating or intermittent faults.

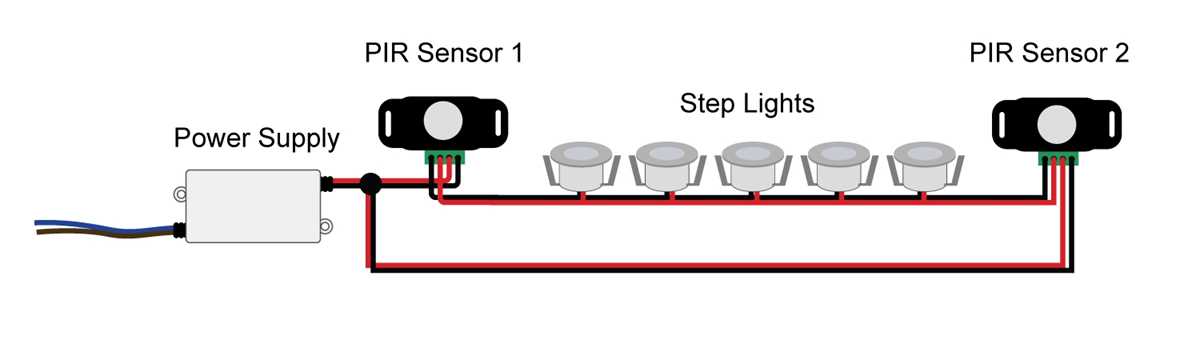

Parallel Installation Guide for Multiple Alert-Driven Illuminators

Identify the main power feed–typically a dedicated circuit breaker rated for the combined load of all units. Verify voltage (120V or 240V) matches the specifications printed on each fixture’s label. Use a multimeter to confirm live conductors before handling any exposed contacts.

Run a shared supply cable (12-2 gauge Romex or equivalent) from the circuit breaker to the first sensing device’s location. Ensure the conductor size accommodates the total amperage draw; for five 30W spotlights, calculate 150W ÷ 120V = 1.25A, then apply a 1.25 safety factor, requiring 14 AWG minimum.

Strip ¾ inch of insulation from each conductor end at every junction box. Connect the incoming live (black) wire to the fixture’s terminal labeled “Line” or “+.” Attach the neutral (white) to the corresponding terminal, ensuring no exposed copper extends beyond the clamp.

From each unit’s “Load” or “-” terminal, run a separate 14 AWG jumper to the next sensor’s matching input. Maintain consistent polarity throughout–swapping live and neutral at any point will disable all downstream devices. Secure connections with insulated wire nuts, wrapping them clockwise before capping.

Ground all metallic housings by attaching the bare or green ground conductor to the fixture’s grounding screw or designated terminal. For outdoor installations, use pigtails bonded to a copper ground rod driven 8 feet into damp soil, avoiding rocky substrates.

Test each device individually before energizing the entire chain. Trigger one sensor; the corresponding illuminator should activate within 1.5 seconds. If latency exceeds this threshold, inspect for loose connections or incorrect jumper routing.

Adjust sensor range and dusk-to-dawn settings per manufacturer guidelines–most units default to a 90° coverage span and 30-foot detection radius. Fine-tune using the onboard dials to minimize false triggers from foliage or passing traffic.

Load Balancing Considerations

Avoid exceeding 80% of the circuit breaker’s capacity. For ten 40W units on a 20A breaker, total load equals 400W ÷ 120V = 3.33A, leaving ample headroom for inrush current during simultaneous activation.

Common Pitfalls

Crossed neutral-to-ground connections will trip GFCI-protected circuits instantly. Confine neutral returns to the shared bus; never splice them to grounding conductors. Use ultrasound testing to detect high-resistance joints if flickering persists.
