Step-by-Step Guide to Building a Motion Sensor Alarm Electrical Schematic
Start with a passive infrared detector (PIR) rated for 3–7 meters–models like HC-SR501 or Parallax 555-28027 offer adjustable sensitivity and a wide 110-degree detection arc. Pair it with a 5V relay module to handle inductive loads up to 10A without back EMF damaging the logic board. A microcontroller isn’t mandatory; a transistor switch using an NPN BC547 will suffice, driven by the detector’s 3.3V logic output.
Power the system with a 9V adapter feeding a 7805 voltage regulator to deliver clean 5V across the detector and relay coil. Add a 1000µF electrolytic capacitor at the regulator’s output to absorb voltage spikes from the relay activation. For immediate audible feedback, wire a piezo buzzer in parallel with the relay coil, controlled by a 1kΩ resistor to limit current. Alternatively, use an 8Ω speaker with a 2N3904 emitter follower for 5W output.
Mount the detector at 2–2.5 meters, angled downward to cover entry points. Secure the relay to an aluminum heatsink if switching AC loads above 50W–use a flyback diode (1N4007) across the coil to protect the transistor. For tamper resistance, add a normally closed reed switch in series with the power input; opening the enclosure disables the system. Test with a multimeter: the relay should click within 2–5 seconds of detection, and the buzzer should emit a 2kHz tone at 85dB.
Label every wire connection with heat-shrink tubing–color-code red for power, black for ground, yellow for signal. Use AWG-22 solid-core wire for short runs (
For battery backup, connect two 18650 lithium cells in series, regulated to 5V via an MP1584 buck converter set to output 3A. Include a 1N4148 diode on the input to prevent reverse current during charging. The entire assembly should draw
Creating a Reliable Intruder Detection System Blueprint
Select a passive infrared detector (PIR) with a detection range of at least 5 meters and a 110-degree field of view, such as the HC-SR501, for optimal coverage without blind spots. Wire it directly to a 5V-12V power source, ensuring stable voltage to prevent false triggers caused by electrical noise.

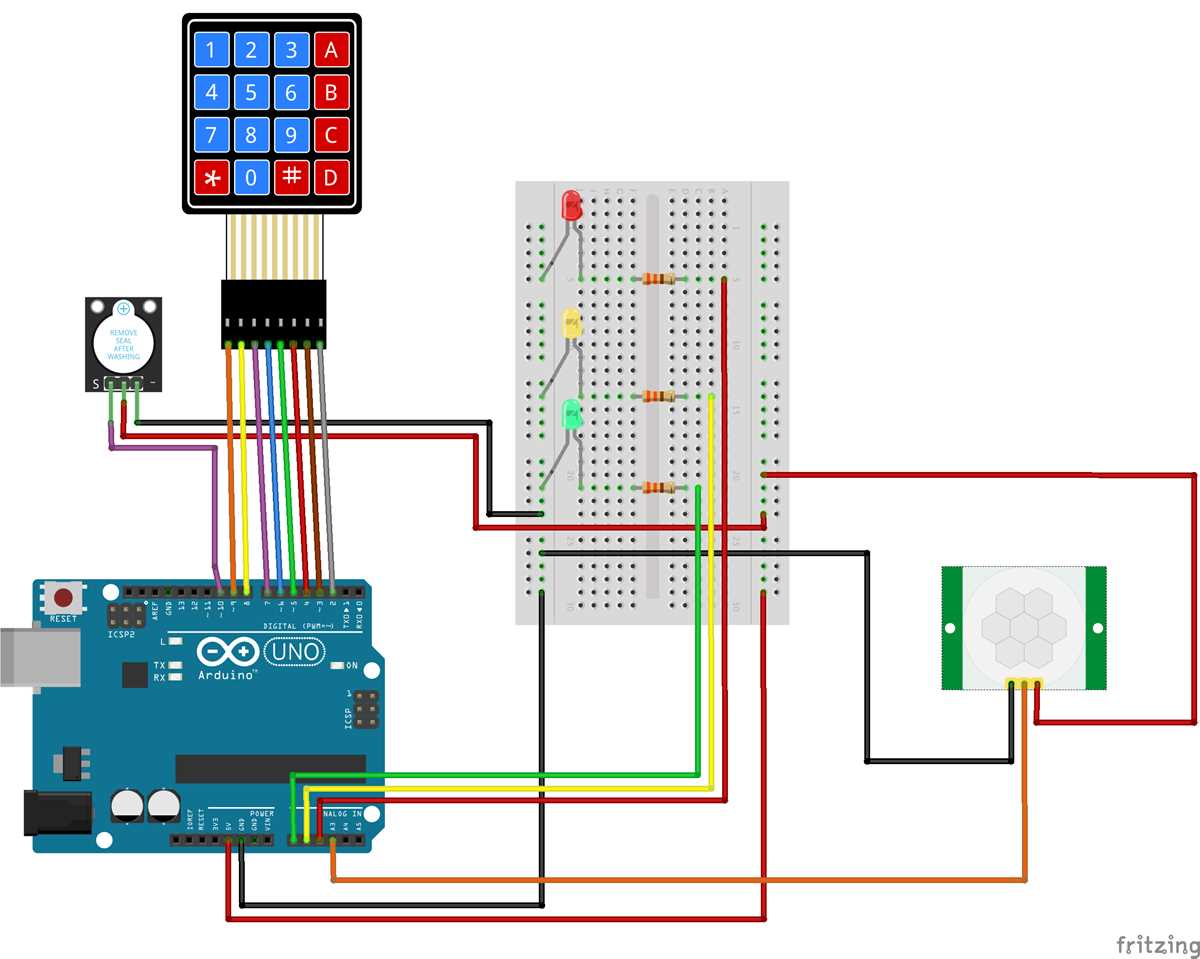

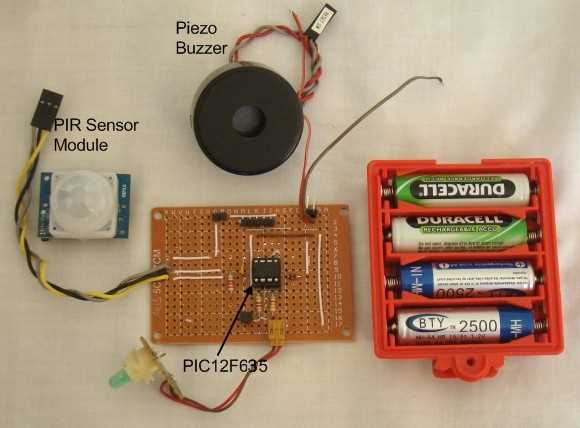

Integrate a microcontroller like the Arduino Uno or ESP8266 to process signals efficiently. Connect the PIR’s output pin to a digital input on the board, then program it to activate a high-decibel buzzer or strobe light after a 2-second confirmation delay–this minimizes false alarms from brief disturbances like pets or drafts.
Use a relay module rated for 10A at 250V to control external devices, such as sirens or lights, without overloading the microcontroller’s pins. Opt for a solid-state relay if silent operation is needed, but ensure it matches the load requirements of your warning device.
Add a tamper-resistant enclosure with a cutoff switch that disables the system if the cover is removed. This prevents bypassing the setup by simply opening the housing. Use a normally closed (NC) switch wired in series with the power supply for immediate interruption.
Power the entire setup with a 12V lead-acid battery or a dedicated 220V-to-12V adapter for uninterrupted operation. Include a low-dropout regulator (LDO) to maintain consistent voltage during transients, especially if the battery discharges below 11V.
Include a delay-on feature in the firmware to allow a 30-second exit window after arming, preventing immediate triggering. Use non-volatile memory (EEPROM or flash) to store settings if the system loses power, ensuring quick reconfiguration without manual input.
Test the installation under varied conditions: dim light, moving foliage, and temperature fluctuations. Adjust the PIR’s sensitivity potentiometer to balance responsiveness and false positives. For outdoor use, shield the detector with a waterproof housing while leaving the lens exposed, or use a Fresnel lens cover to focus infrared signatures effectively.
Choosing Optimal Parts for a Security Detection System
Start with a PIR detector rated for 5–12 meters detection range with a 110°–180° field of view; models like the HC-SR501 consume 50 µA in standby mode, extending battery life. Match it to a microcontroller with low-power modes–an ATtiny85 draws 0.1 µA in sleep, ideal for battery-powered setups. Pair with a solid-state relay or a mechanical buzzer (85 dB at 10 cm) for audible alerts, ensuring the relay can handle 2–3 A for connecting strobes or locks. For wireless setups, a nRF24L01+ transceiver (2.4 GHz) achieves 100-meter range with proper antenna orientation, drawing 12 mA in active mode.
- Voltage regulator: LM2596 (adjustable 1.23–37 V, 3 A) or AMS1117 (fixed 5 V, 1 A) for stable power delivery.
- Power source: 9 V alkaline battery (500 mAh) for portable units, or a 12 V 2 A wall adapter for permanent installations.
- Passive components: 10 kΩ pull-down resistors for PIR output, 10 µF electrolytic capacitors for noise suppression near the power input.
- Enclosure: IP65-rated polycarbonate casing if outdoor use is intended, with a 1 mm mesh grille covering the detector window to prevent insect interference.
- Adjustment potentiometers (if included): Set 3–5 second trigger delay on the PIR to reduce false positives from ambient temperature shifts.
Step-by-Step Wiring Guide for a Passive Infrared Detector
Disconnect power from the power supply before handling any wiring to prevent short circuits or electrical shocks. Use a multimeter to verify the output voltage matches the detector’s requirements–typically 5V to 12V DC for most models. Select a regulated power source to avoid voltage spikes that could damage the unit.
Identify the detector’s three terminals: power (+), ground (-), and output. The output terminal sends a signal when triggered, usually a high pulse (3.3V or 5V) lasting 2-5 seconds. Consult the device datasheet for exact specifications, as some units may require pull-down resistors or have reversed polarity.
Preparing Connections
Strip 5-7mm of insulation from the ends of the wires connected to the detector. For solid connections, twist the exposed strands tightly and apply a small amount of solder if working in a high-vibration environment. Cover each joint with heat-shrink tubing or electrical tape to prevent shorts.
Connect the power terminal to the positive lead of your supply, ensuring the voltage is stable. For battery-operated setups, use a capacitor (100µF or higher) across the power terminals to smooth fluctuations. Ground the detector’s negative terminal to a common ground point in the system to avoid noise interference.
Integrating the Trigger Mechanism
Attach the detector’s output terminal to a relay module or control input of your alert device (e.g., buzzer, LED, or transmitter). If using a relay, select one with a coil voltage matching the detector’s output–most require 5V or 12V coils. Add a flyback diode (1N4007) across the relay coil to protect the detector from voltage spikes when the relay de-energizes.
For direct LED activation, calculate the current-limiting resistor using Ohm’s Law: R = (Vsource – VLED) / ILED. A 220Ω resistor works for a standard 5mm red LED operating at 20mA. Connect the anode to the output terminal and the cathode to ground.
Test the setup by restoring power and triggering the detector. Observe the output behavior–some units have adjustable delay pots (marked “Time”) that control how long the output stays active after detection. Adjust the sensitivity knob (usually “Sens” or “Range”) to balance responsiveness and false triggers.
Mount the detector in its final position, ensuring no obstructions block the detection zone. Avoid placing it near heat sources (e.g., sunlight, HVAC vents), as these can cause erratic triggering. Secure the wiring with cable ties or conduit to prevent accidental disconnections in active environments.
Fine-Tuning Detection Parameters for Optimal Performance
Locate the potentiometer labeled “VR1” on your detector board–common values range from 10KΩ to 100KΩ–and use a small screwdriver to adjust resistance. Clockwise rotations decrease reactivity radius, tightening detection to 2–3 meters, while counterclockwise turns expand coverage up to 12 meters. For indoor use, set VR1 between 30–50% of its full range to avoid false triggers from pets or curtains.
| Environment | Recommended VR1 Setting | Expected Detection Radius | Common Interference Sources |
|---|---|---|---|
| Narrow hallway | 20–30% | 2–4 meters | Ceiling fans, door drafts |
| Open living room | 50–70% | 6–9 meters | Sunlight through windows, heating vents |
| Outdoor patio | 80–100% | 10–12 meters | Tree branches, small animals |
Replace the default Fresnel lens with a segmented variant to alter angular coverage. Standard lenses offer 90-degree cones; segmented options reduce angles to 45 degrees but sharpen focus to 15 meters with ±0.5° precision. For multi-zone setups, stack two detectors with 45-degree lenses at opposite corners, overlapping cones by 20% to eliminate blind spots. Calibrate each zone independently by testing with a 0.5-meter movement at varying distances–record response times in a log to identify latency patterns.
Enhancing Detection Systems with Audible and Visual Indicators
Connect a piezoelectric buzzer between the output trigger and ground with a current-limiting resistor in series–typically 220Ω for 5V systems–to prevent damage. Select a buzzer rated for 3–12V DC; lower voltages reduce volume but extend battery life in portable setups.
- Active buzzers generate sound immediately when voltage is applied; passive types require an oscillating signal (e.g., 2–5 kHz) for activation.
- For 12V circuits, omit the resistor or use a 1kΩ value to maintain volume without overheating.
- Place the buzzer at least 30 cm away from the detection module to avoid interference with calibration.
LEDs serve as immediate visual confirmations, especially useful in noisy environments. Use a 5mm red or amber LED with a forward voltage of 1.8–2.2V and a 330Ω resistor for 5V logic. Calculate resistor value via: R = (Vsource - VLED) / ILED, where ILED should not exceed 20 mA.
- For high-brightness LEDs, decrease the resistor to 150Ω but monitor heat dissipation.
- Multi-color LEDs (e.g., RGB) allow prioritization: green for standby, red for triggers.
- Surface-mount LEDs reduce space but require soldering directly to the board; through-hole types offer easier prototyping.
Combine both alerts for redundancy. Wire the buzzer and LED in parallel to the same output pin, ensuring the total current draw remains below the pin’s maximum (e.g., 20 mA for most microcontrollers). Use a transistor (NPN like 2N3904) as a switch if current exceeds limits–base resistor: 1kΩ; collector to the load; emitter to ground.

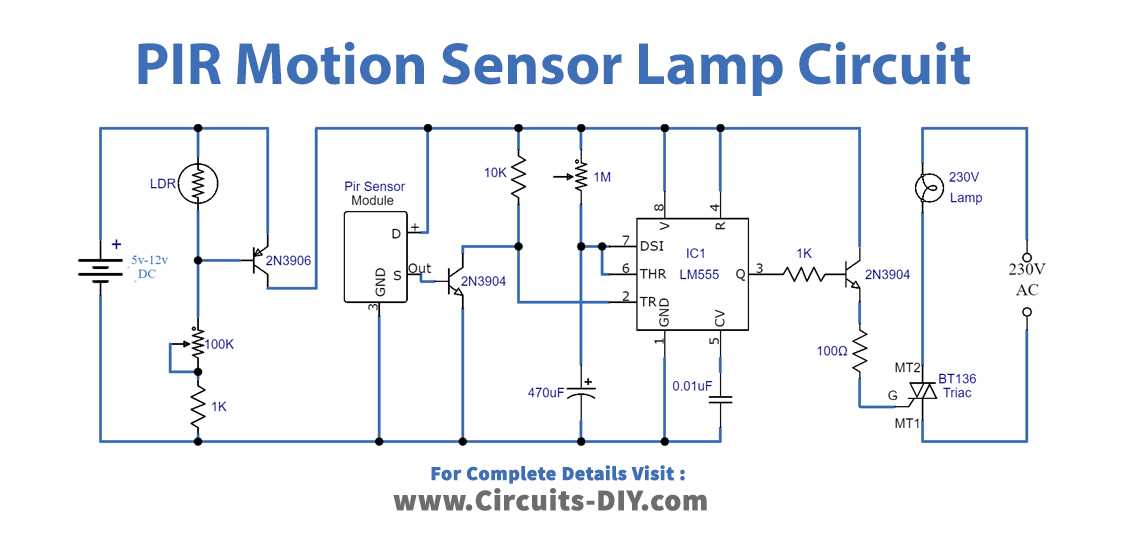

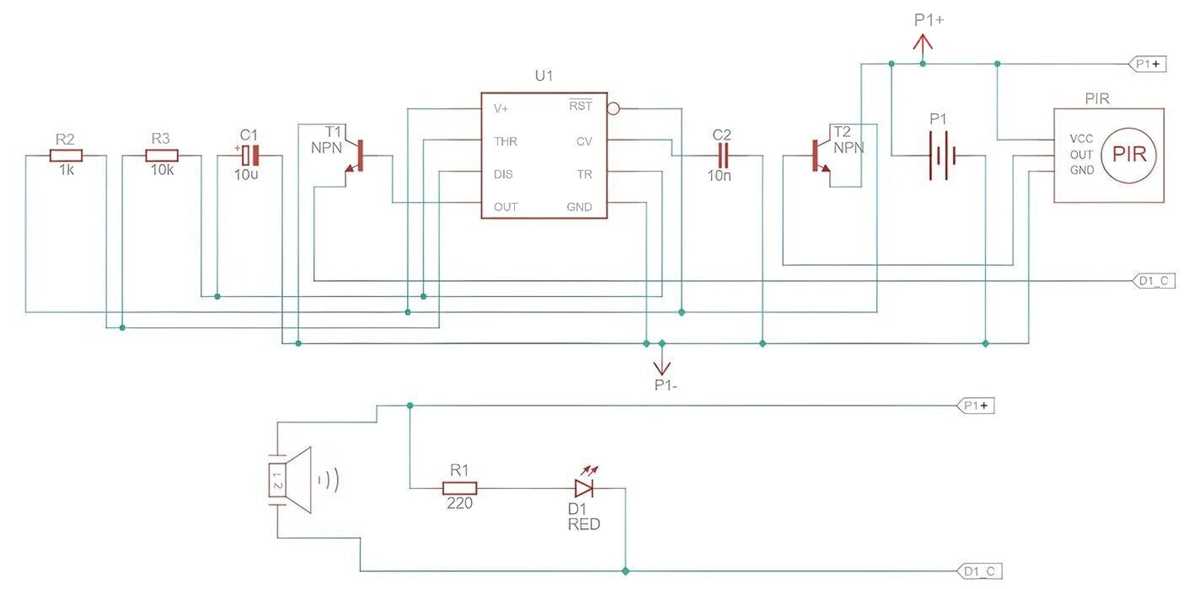

Adjust alert duration with a monostable multivibrator (e.g., 555 timer) or microcontroller code. A 2-second pulse prevents false positives; extend to 5 seconds for critical zones. For the 555 timer configuration: T = 1.1 * R * C, where R is in ohms and C in farads. Example: R = 1MΩ, C = 1µF yields ~1.1 seconds.
- For adjustable volume, replace the fixed resistor with a 10kΩ potentiometer in series with the buzzer.
- Optocouplers (e.g., PC817) isolate alerts from sensitive logic, preventing voltage spikes.
- Test alert components independently before integration–buzzers may require polarity; LEDs are directional.
Power considerations: alkaline batteries deplete faster with continuous buzzer use; lithium cells tolerate pulsed loads better. For 24/7 operation, add a 1000µF smoothing capacitor across the power rails to stabilize voltage during buzzer activation.
Debugging: if the LED flickers but the buzzer stays silent, check for incorrect polarity or a blown component. Use a multimeter to verify voltage at the buzzer terminals–absence of voltage points to a wiring error or faulty output stage. For non-responsive LEDs, verify resistor values and ensure the anode connects to the positive leg.
