Step-by-Step Motorhome Inverter Installation and Wiring Guide

Install a 2000W pure sine unit with a 50A circuit breaker on the DC input side, connecting directly to the auxiliary battery bank via 2/0 AWG cables. This prevents voltage drop during high-demand operations–such as microwave or induction cooktop use–where a 1% drop at 12V equals a 10% loss in power delivery. Position the breaker no farther than 18 inches from the battery terminals to minimize resistance.

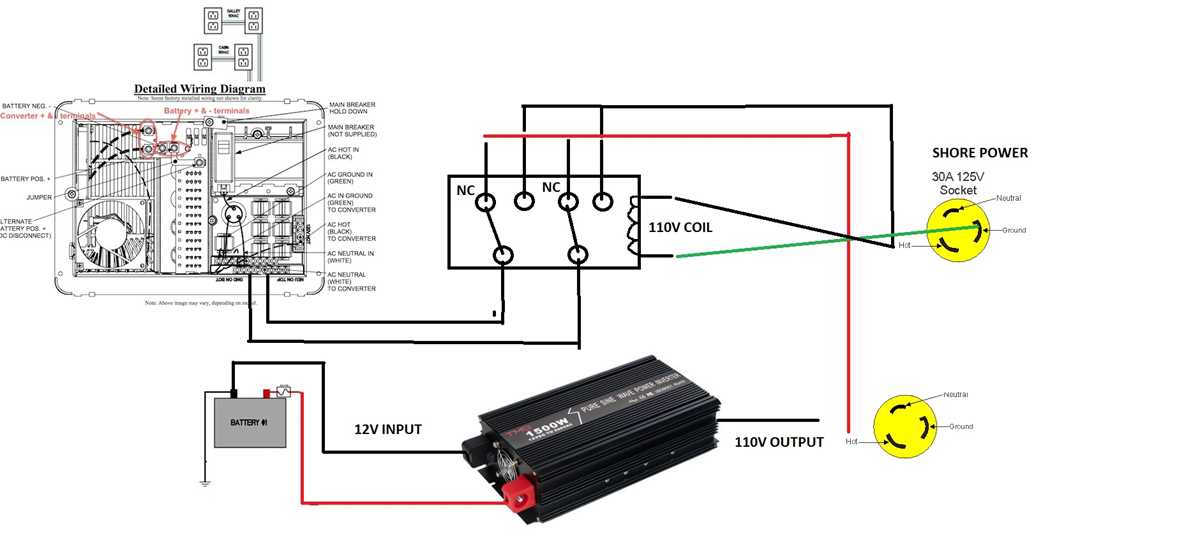

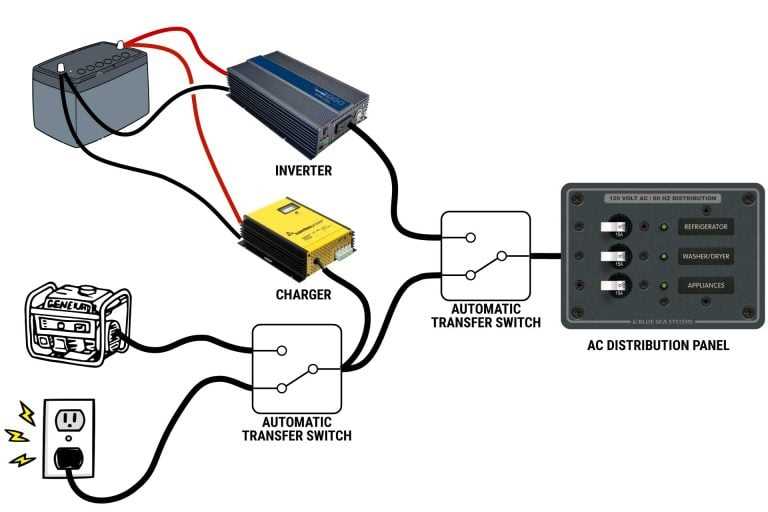

Isolate the AC output with a dedicated 30A transfer switch if integrating shore or generator power. This eliminates backfeed risks and ensures seamless transitions between sources. Use 10 AWG wires for the outlet loops, but upgrade to 8 AWG if running more than three outlets or a high-wattage appliance like a mini-split AC. Anchor wires every 12 inches with nylon clamps to prevent chafing against metal framing.

Ground the system through a 4 AWG copper wire to the vehicle’s chassis, avoiding connection to the RV’s negative bus bar. Test continuity with a multimeter–resistance should not exceed 0.2 ohms between the ground point and the battery’s negative terminal. Include a 150A fuse on the positive cable between the battery and converter within 7 inches of the terminal to protect against short circuits.

For lithium-based setups, add a battery management system (BMS) between the pack and inverter input. This regulates charging currents and prevents over-discharge, critical for maintaining cell balance. Use an Anderson SB50 connector for the primary DC link to enable quick disconnects during maintenance or emergencies.

Label all cables at both ends with heat-shrink markers–indicate voltage (12V DC / 120V AC), amperage rating, and destination. This accelerates troubleshooting and compliance with RV electrical standards (NEC 551, NFPA 1192). Verify polarity with a non-contact tester before energizing the system for the first time.

Installing Power Conversion Systems in Recreational Vehicles

Connect the DC input directly to the house battery bank using 2/0 AWG cable for systems up to 2000W, increasing to 4/0 AWG for 3000W models to prevent voltage drop. Secure crimp terminals with hydraulic crimping tools and cover connections with adhesive-lined heat shrink tubing rated for outdoor use. Route cables away from exhaust components and sharp edges, fastening every 18 inches with nylon straps to avoid chafing.

Mount the energy converter in a well-ventilated compartment with at least 3 inches of clearance on all sides for airflow. Aluminum enclosures with thermal paste between the device and mounting surface improve heat dissipation. Install a 150A class T fuse within 7 inches of the battery positive terminal to protect against shorts. For lithium battery setups, add a 100A circuit breaker between the battery and converter to isolate power during maintenance.

AC Output Configuration

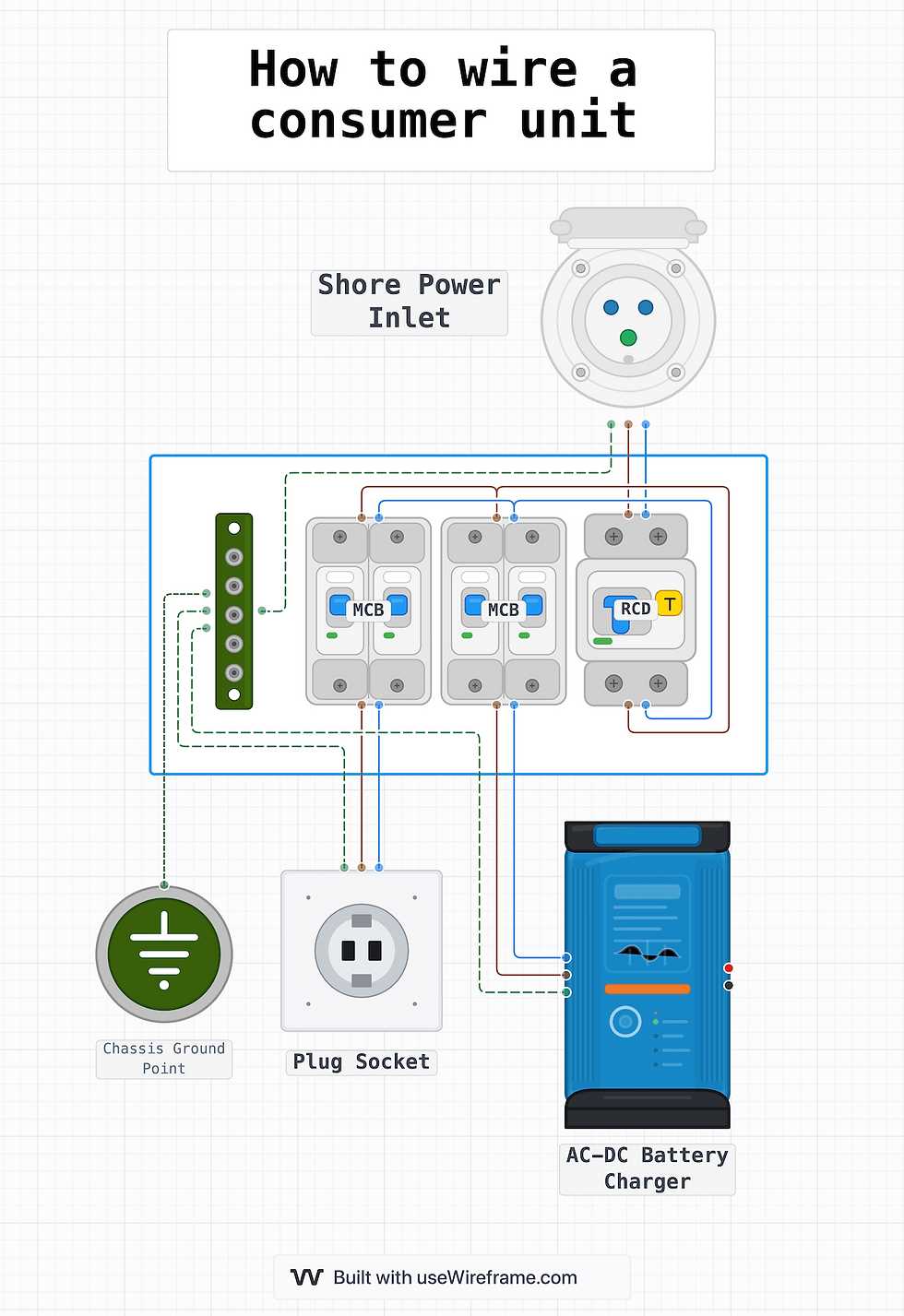

Wire the AC output to a dedicated subpanel using 10 AWG copper wire for circuits under 20A. Label each breaker clearly, grouping loads by priority–critical appliances on one leg and non-essentials on another. Test polarity with a multimeter before energizing; reverse connections can damage sensitive devices. Surge protectors rated for outdoor use should be installed at the subpanel to shield against transient spikes during generator transitions or shore power fluctuations.

Grounding requires a separate 6 AWG copper wire bonded to the vehicle chassis at a single point, avoiding daisy-chain connections that create ground loops. Connect the converter’s grounding lug to this point with star washers to ensure a low-resistance path. For off-grid setups, install a 6-foot copper ground rod driven into damp soil, linked to the chassis with 4 AWG wire. Verify ground resistance under 5 ohms using a clamp meter before finalizing the installation.

Load Management and Safety Checks

Start with minimal loads–activate the converter, then add appliances one at a time, monitoring voltage at the battery and AC outlets with a multimeter. Voltage should stabilize within 0.5V of nominal. Avoid running high-draw devices like microwaves and air conditioners simultaneously; staggered use prevents nuisance trips. For extended dry camping, pair the system with a 300W solar array and MPPT controller to maintain battery charge without generator use. Replace the converter’s cooling fan if noise exceeds the manufacturer’s specified decibel level.

Selecting the Optimal Power Converter Capacity for Your Camper’s Energy Demands

Base your choice on the continuous wattage draw of all devices you plan to run simultaneously. A 2,000-watt unit suffices for most setups, handling a microwave (1,200W), fridge (300W), and lights (150W) concurrently. For high-demand appliances like induction cooktops (1,800W+), opt for 3,000W models to avoid overload trips. Verify surge capacity–at least 2x the continuous rating–to accommodate startup spikes (e.g., compressors in AC units).

Calculate daily energy consumption in amp-hours (Ah) to size auxiliary batteries. A 2,000W converter at 12V draws ~167A; ensure your battery bank delivers 200Ah+ to sustain usage without deep discharge (below 50%). Lithium batteries (LiFePO4) offer higher efficiency (95% vs. 80% for AGM) and faster recharge cycles. Match the converter’s input voltage (12V/24V/48V) to your battery system to prevent voltage mismatches.

• Common device loads:
  • Laptop: 60–90W
  • LED TV: 80–150W
  • Electric kettle: 1,500W
  • Water pump: 100–200W
• Key rules:
  • Avoid running converters at >80% capacity for prolonged periods.
  • Pure sine wave models prevent damage to sensitive electronics (e.g., CPAP machines).
  • Hardwired units (vs. portable) reduce voltage drop over long cable runs.

Solar integration cuts generator reliance. A 400W solar array (with MPPT controller) can offset ~1,200Wh/day in ideal conditions–enough to recharge batteries for a 2,000W converter’s 4-hour runtime at 70% load. Prioritize low-power alternatives: propane fridges (50W fan vs. 300W electric), 12V DC appliances, and LED lighting. Monitor energy usage via shunt-based meters to adjust habits (e.g., running high-draw devices sequentially, not simultaneously).

Step-by-Step Guide to Linking a Power Converter to Auxiliary Power Cells

Select cables with a cross-section of at least 35 mm² for the primary connections between the energy storage units and the conversion device. This thickness prevents voltage drop over distances exceeding 1.5 meters–common in compact living spaces–and ensures stable current flow at peak loads up to 1500W. Use tinned copper strands to minimize corrosion from ambient moisture, securing strands in hydraulic crimping lugs rated for 100A continuous duty. Label each end immediately after crimping to avoid confusion during final assembly.

Mount a 150A class T fuse within 15 cm of the positive terminal on the battery bank. This positioning protects the entire circuit from short-circuit currents while allowing the fuse to clear faults before cable insulation reaches its thermal limit (typically 90°C). For lithium iron phosphate cells, integrate a 100A DC disconnect switch in line with the fuse to enable safe isolation before performing any maintenance–never rely solely on the device’s internal switch for safety disconnects.

Connect the negative conductor directly to the chassis ground only if the vehicle or structure’s grounding system is isolated from shore power; otherwise, establish a dedicated ground bus bar using 25 mm² cable to prevent galvanic corrosion between dissimilar metals. Verify all connections with a digital multimeter set to DC voltage mode–measure 12.6V (or 13.2V for LiFePO4) across the terminals before energizing. After confirmation, apply a thin layer of dielectric grease to lugs and expose copper to inhibit oxidation in humid environments.

Critical Fuse and Breaker Locations for Fault Protection

Install a Class T fuse rated at 150–300% of the continuous load current directly at the power source’s positive terminal–no further than 7 inches from the battery or lithium bank. For lithium systems under 200Ah, use a 250A fuse; for 200–400Ah, upgrade to 400A. Mount the fuse holder in a dry, ventilated area with a minimum IP65 rating, secured to a non-conductive surface at least 2 inches from combustible materials. Extend the same requirement to circuit breakers: position them at the origin of each high-current branch, such as solar charge controllers, DC-DC converters, and any 12V/24V distribution panels. Manual reset breakers (like the Blue Sea 187-Series) should replace fuses in circuits prone to frequent surges, but only where human intervention is feasible–never in inaccessible compartments.

Connect all grounding paths to a single 4/0 AWG copper busbar bonded to the chassis within 18 inches of the main fuse or breaker. Avoid daisy-chaining grounds; each component must terminate independently at the busbar. For branch circuits under 30A, use 10 AWG wire with ATO/ATC blade fuses sized to 125% of the wire’s ampacity (e.g., 25A fuse for 10 AWG). Label every protective device with its function, amperage, and wire gauge using heat-resistant, self-laminating tags. Test all connections with a thermal camera after 1 hour of full load; hot spots exceeding 60°C indicate undersized conductors or loose terminals.

Combining Power Conversion with Photovoltaic Setups for Autonomous Energy

Match the DC-to-AC converter’s continuous wattage rating to the total surge amperage of your solar array plus battery bank–exceed this by 20% minimum. For a 12V system, a 2000W converter (167A) pairs with 400W solar panels (22A at 18V each) wired in parallel; use a 40A MPPT charge controller to prevent overload during peak sunlight. Install an 80A fuse between the battery and converter input, and a 60A fuse on the PV side to isolate faults. Use 4 AWG copper wire for runs under 3m; switch to 2 AWG for distances up to 6m to minimize voltage drop–calculate losses with a 3% tolerance (Vdrop = I × R, where R = 0.004 Ω/m for 4 AWG).

Component Compatibility Reference

Photovoltaic Capacity	Converter Size	Charge Controller	Battery Bank (AGM)	Wire Gauge (Battery to Converter)
300W (12V)	1500W	30A PWM	100Ah	6 AWG
600W (24V)	3000W	40A MPPT	200Ah	4 AWG
800W (48V)	5000W	60A MPPT	300Ah	2 AWG

Ground the converter chassis to the vehicle frame using a dedicated 6 AWG wire, bonding it to the solar negative busbar at a single point to avoid loop currents. Mount the converter within 1m of the battery bank; heat dissipation requires a 15cm clearance on all sides. For lithium batteries, enable the converter’s low-voltage cutoff at 11.5V (LiFePO4) or 12.0V (LTO) to prevent deep discharge. Test the setup with a 500W resistive load (e.g., space heater) for 2 hours before connecting inductive loads (fridge, microwave), verifying stable output at 120V/230V ±5%.
