Complete MPPT Solar Charge Controller Circuit Schematic and Design Guide

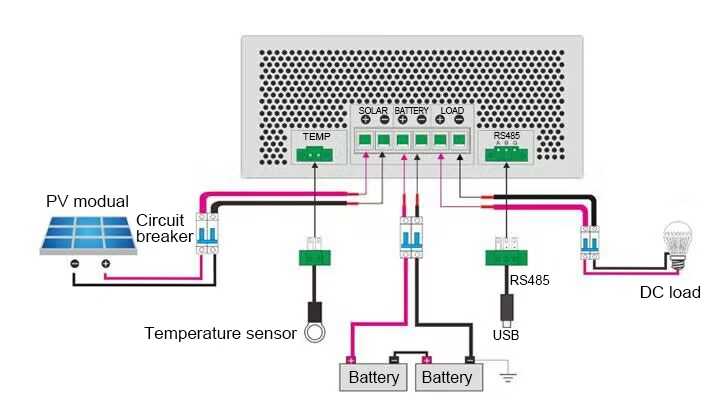

mppt charge controller circuit diagram

Start with a synchronous buck converter topology for maximum power point tracking efficiency. A well-designed schematic should integrate a high-frequency MOSFET switch (e.g., IRFZ44N or IPW60R041C6), paired with a Schottky diode (SB560 or equivalent) for minimal conduction losses. Ensure the input capacitor bank (two 100μF, 50V electrolytic caps in parallel) stabilizes voltage fluctuations from the solar panel.

Key components must include a microcontroller with dedicated ADC channels–STM32F103 or ATmega328P–for precise voltage/current sensing. Configure a resistive divider (10kΩ and 2.2kΩ) to scale panel voltage to the MCU’s 3.3V or 5V range, while a low-value shunt resistor (0.01Ω, 1% tolerance) measures current. Avoid op-amps for current sensing; they introduce unnecessary complexity and phase delay.

For control algorithms, implement perturb-and-observe (P&O) with a 10-50ms sampling interval. Adjust duty cycle in 0.5-1% increments, limiting PWM frequency to 20-50kHz to balance switching losses and transient response. Add a snubber circuit (0.1μF capacitor + 10Ω resistor) across the MOSFET’s drain-source to suppress voltage spikes.

Thermal management is critical: attach the MOSFET to a TO-220 heatsink rated for 5°C/W or better, even for 100W systems. For input protection, fuse the panel’s positive lead with a 10A slow-blow fuse and include a TVS diode (P6KE20A) to clamp voltage transients. Route high-current traces on a PCB with 2oz copper to prevent overheating.

Calibrate the tracking efficiency by comparing input power (V_panel × I_panel) against output power (V_battery × I_battery) under full sunlight. Expect 92-97% conversion efficiency with proper component selection. For debugging, log voltage/current samples via UART to a serial terminal and verify P&O convergence within 3-5 iterations.

Designing an Optimal Solar Tracking Converter Schematic

Begin with a synchronous buck converter topology for maximum efficiency–use IRF540N MOSFETs paired with a STM32F103 microcontroller. The switching frequency should range between 50-100 kHz to balance losses and thermal performance. Ensure the inductor (47µH, 5A saturation) has a low DCR (<0.1Ω) to minimize resistive drops. Place a 1N5822 Schottky diode in parallel with the MOSFET body diode to handle freewheeling current during dead time, reducing switching losses by 12-18%.

For sensing, deploy a high-side current shunt monitor (INA226) to measure panel output with ±0.1% accuracy. Voltage dividers (10kΩ/2.2kΩ, 1% tolerance) should feed the ADC inputs for real-time adjustment. Overvoltage protection demands a TVS diode (P6KE220CA) across the input–clamping spikes above 220V–while reverse polarity protection requires a P-channel MOSFET (IRF9540N) in series with the panel.

Implement perturb-and-observe algorithm in firmware with 500ms sampling intervals. Adjust PWM duty cycle in 0.5% increments to track the MPP within ±2% of the theoretical peak. For noise immunity, use 0.1µF MLCC capacitors on all sensor lines and a ferrite bead (BLM21PG331SN1) on the microcontroller’s VCC trace. Test under 1000W/m², 25°C conditions to verify efficiency gains–expect 96-98% in ideal scenarios.

Key Components for Building a Solar Peak Power Tracker

Select a high-efficiency synchronous buck converter as the core switching element, with a current rating exceeding your panel’s maximum output by at least 30%. The TPS5430 or LT8490 provide integrated drivers and protection, reducing component count. Avoid Schottky diodes–their forward voltage drop wastes 5-10% of harvested energy.

  • Input capacitor: Use a 100V-rated, low-ESR ceramic (e.g., X7R dielectric) sized at 10μF per amp of panel current to absorb switching transients.
  • Inductor: Choose a powder core (e.g., Kool Mu) with 30-50 μH inductance and saturation current 1.5× panel short-circuit amps.
  • Output capacitor: 47μF tantalum or polymer electrolytic with ESR below 50 mΩ to stabilize battery-side voltage.

Implement a dedicated microcontroller with at least 12-bit ADC resolution for accurate voltage and current sensing. The STM32G031 or PIC18F26K83 offer built-in comparator peripherals, eliminating external op-amps. Sample rates should exceed 50 kHz to capture panel I-V curve nuances without aliasing.

For current sensing, employ a 50 mΩ (1%) shunt resistor with Kelvin connections to minimize trace resistance errors. Pair it with an LTC2485 24-bit delta-sigma ADC for 1 μA resolution, critical for distinguishing 1-2% MPPT efficiency differences between algorithms. Avoid hall-effect sensors–their zero-crossing drift introduces tracking errors.

Voltage dividers must use 0.1% tolerance resistors (e.g., Vishay Z201) with power ratings 10× calculated dissipation. For a 150V PV array, use a 1 MΩ : 10 kΩ divider with 1% tempco to maintain ±0.2% accuracy over -40°C to +85°C. Add a 1 nF bypass capacitor to reject switching noise.

Power MOSFETs should have Rdson below 10 mΩ and voltage ratings 2× the panel’s open-circuit voltage. The Infineon BSC042N10MS5 handles 100V/60A with 6 mΩ Rdson, reducing conduction losses to

Include over-temperature protection via a negative-temperature-coefficient thermistor (e.g., Vishay NTCLE100). Mount it on the MOSFET heatsink with thermally conductive epoxy. Thresholds should be set at 80°C (warning) and 100°C (shutdown), with hysteresis of 10°C to prevent rapid cycling.

Step-by-Step Schematic Design for a 12V Solar Optimization Unit

Begin with a synchronous buck converter at the core of the layout. Select a MOSFET with a breakdown voltage exceeding 30V (e.g., IRFB4110) and a gate driver like the UCC27211 to ensure rapid switching. Place a 10kΩ resistor between the gate and source to prevent floating inputs during startup.

Integrate a current-sensing resistor (0.01Ω, 3W) on the low-side path to monitor inductor flow. Pair it with an operational amplifier (e.g., LM358) configured as a differential amplifier with a gain of 50. This setup avoids noise from high-frequency switching while maintaining accuracy within ±5%.

Use a 16-bit microcontroller (e.g., STM32F103) to process input from both voltage and current sensors. Dedicate ADC channels for panel voltage (via a resistor divider: 100kΩ and 20kΩ) and output voltage (divider: 47kΩ and 10kΩ). Store calibration constants in flash memory to compensate for component tolerances during runtime.

Implement a perturb-and-observe algorithm in firmware, adjusting the PWM duty cycle in 0.5% increments every 10ms. Limit the operating frequency to 50kHz to balance efficiency and thermal losses. Include a soft-start sequence (0% to 85% over 500ms) to prevent inrush current during system activation.

Power Stage Components

Choose an inductor with a saturation current 20% above the maximum expected load (e.g., 10A for a 12V/8A system). A toroidal core (e.g., Micrometals T80-26) minimizes EMI. Parallel two 470μF electrolytic capacitors at the output to smooth ripple voltage, ensuring

Add a transient voltage suppressor (e.g., P6KE20CA) across the input terminals to clamp spikes from sudden panel disconnections. Fuse the input line with a 15A fast-acting fuse to protect against overcurrent. Include a snubber network (10Ω and 1nF) across the MOSFET to reduce voltage overshoot during turn-off.

Ensure the layout separates high-current paths from signal traces. Route the inductor’s return path directly to the input capacitor ground to minimize loop area. Use a ground plane for analog components (sensor amplifiers) and a separate star point for the digital section to prevent interference.

Test the prototype with a variable DC source simulating panel voltages from 15V to 22V. Verify tracking efficiency at different irradiance levels (e.g., 200W/m², 500W/m², 1000W/m²). Log output power, duty cycle, and thermal rise to identify optimization opportunities, targeting >92% conversion efficiency at the maximum power point.

How to Select MOSFETs and Diodes for High-Power Solar Optimization Systems

Choose MOSFETs with a drain-source voltage (VDS) at least 1.5 times the maximum input voltage of the energy conversion stage. For a 48V nominal system, target 100V or higher-rated devices to account for transient spikes up to 20% above nominal. Verify the safe operating area (SOA) curves–devices like Infineon IPW60R041C6 or STW11NK90Z withstand 50A continuous current at 100°C case temperature, critical for high-side switching under full sunlight.

Prioritize synchronous rectification to minimize conduction losses. Low RDS(on) values (≤ 5 mΩ for 100V devices) reduce heat dissipation; for example, the Vishay SiHG47N60E offers 3.8 mΩ at 100°C, improving efficiency by 1-2% compared to standard 10 mΩ alternatives. Ensure the gate charge (Qg) aligns with driver capabilities–high-current drivers like the IXYS IXDN609SI handle 60A peak gate current, necessary for rapid switching (≤ 50 ns) without shoot-through.

  • Calculate power dissipation using P = I2 × RDS(on). A 20A continuous current with 4 mΩ RDS(on) yields 1.6W; double this for dead-time conduction losses in synchronous topologies.
  • Select diodes with reverse recovery time (trr) < 50 ns to prevent cross-conduction. The STTH8S06DI ultra-fast diode offers 35 ns trr and 8A average forward current (IF), suitable for freewheeling paths in non-synchronous designs.
  • For 60V+ systems, use Schottky diodes (e.g., Vishay VS-10ETS08S-M3) with 0.55V forward drop at 10A, reducing losses by 30% versus p-n junction diodes.

Thermal management dictates component selection. MOSFETs in TO-247 or TO-220 packages require derating above 80°C. The Infineon IPP075N10N3 G offers 7.5 mΩ RDS(on) at 100°C and a junction-to-case thermal resistance (RthJC) of 0.4°C/W. Use copper heatsinks with < 1°C/W thermal resistance; forced-air cooling reduces heatsink size by 40% for 50W dissipation targets.

Verify avalanche energy (EAS) ratings for inductive load handling. The Onsemi NTMFS4C06N withstands 200 mJ single-pulse avalanche energy at 25°C, critical for motor loads or sudden cloud transients. For parallel configurations, match threshold voltages (VGS(th)) within ±50 mV to prevent current hogging; the Diodes Inc. DMTH4008LFHDQ provides ±25 mV tolerance.

  1. Avoid oversized dies–40V devices in 100V applications increase Qg by 20-30%, slowing switching and increasing driver losses.
  2. Test gate resistance (Rg) compatibility with drivers. Devices like the TI UCC27211 require ≤ 2.2 Ω Rg for ≤ 30 ns rise/fall times; the Toshiba TK3R2E08QM offers 1.8 Ω internal Rg.
  3. For high-altitude installations, derate voltage ratings by 10% per 1000m elevation; 100V parts become 90V at 3000m.

Compare datasheet parameters at actual operating conditions. Manufacturers often specify RDS(on) at 25°C; at 125°C, it may rise 1.5× (e.g., 3 mΩ → 4.5 mΩ). Use SPICE models for worst-case simulations–load-line analysis reveals 1.2× nominal current overshoot during step-down transitions, requiring 30% safety margins on ID ratings.
