Complete Guide to MSD Wiring Diagrams for Ignition System Setup

Start by identifying the primary ignition control unit’s power input terminals–typically labeled +12V and ground. Verify the voltage at these points with a multimeter; readings below 11.5V indicate a weak battery or corroded connections. Replace aged crimp connectors with soldered joints for long-term reliability, especially in high-vibration environments like turbocharged engines.

Trace the trigger signal path from the distributor or crank sensor to the ignition module. Hall-effect sensors require a clean 5V reference while magnetic pickups operate on induced AC voltage (0.5–2V peak-to-peak). For aftermarket setups, use shielded twisted-pair wiring for sensor leads to prevent RF interference–ground the shield only at one end.

Route high-voltage leads away from fuel lines, ECU wiring, and alternator outputs. Use silicone-insulated wires rated for 40kV+ and keep bends above 3-inch radius to prevent insulation breakdown. For multi-coil systems, confirm each coil’s dwell time matches the manufacturer’s specifications–adjust via the ignition control unit’s programming interface if available.

Grounding is critical: connect all components to a single star point on the chassis, not the battery negative terminal. Use 10-gauge or thicker wire for common grounds to avoid voltage drop under load. Test continuity between the ignition control unit’s ground and the engine block–resistance should read less than 0.1 ohms.

For forced-induction applications, add a 20A relay to power the ignition system directly from the battery, bypassing the ignition switch to prevent voltage sag during cranking. Monitor ignition timing with a strobe light: mechanical advance should track within ±2 degrees of the factory curve at 3000 RPM.

Electronic Ignition System Connection Schematics

Begin by grounding the ignition control box directly to the engine block using a minimum 10-gauge wire–bypass the chassis ground to eliminate voltage drop. Route the main power cable from the battery’s positive terminal through a 30-amp fuse within 6 inches of the terminal, then connect to the box’s primary input. Avoid wire runs parallel to high-voltage sources like alternator leads; maintain at least 3 inches of clearance to prevent interference.

Signal input connections require shielded cable for the magnetic pickup: solder the white wire to the positive coil terminal, leaving the blue wire connected to the ignition module’s sensor input. For Hall-effect sensors, verify polarity by matching the purple wire to the distributor’s positive trigger lead–misalignment causes timing drift. Use dielectric grease on all plug connections to prevent corrosion in high-humidity environments.

For multi-spark configurations, set the rev limiter by adjusting the module’s rotary dial: each click increments the cut-off RPM by 100, starting at 3,000. If using a tach output, connect the green wire to the tachometer’s signal terminal–do not splice into the coil’s negative terminal, as this disrupts dwell accuracy. Test voltage at the coil’s primary terminals: expect 13.8–14.4V during engine operation; readings below 13.5V indicate resistance in the power delivery circuit.

Heat management demands insulating the ignition module with a non-conductive pad if mounting near exhaust manifolds–operating temperatures above 180°F degrade performance. For turbocharged applications, add a ballast resistor rated at 0.4 ohms to stabilize voltage under boost, preventing coil saturation. Always disconnect battery ground before servicing; failure to do so risks damaging the microprocessor.

Interpreting Ignition Schematic Guides for Varied Spark Systems

Locate the coil connector first–pin assignments typically follow a standard layout: 12V power on the left, ground on the right, and trigger input centered. Verify polarity with a multimeter if the manual omits this detail; reversed connections on capacitive-discharge units can destroy internal circuitry. For multi-coil setups, trace each line to its distributor terminal, noting color-coding discrepancies between OEM and aftermarket harnesses.

Distinguish between single-stage and multi-stage rev limiters by examining the control module’s edge connector. Single-stage uses two wires (ground and tach output), while multi-stage adds a third for shift-point adjustment. High-output coils require dedicated 8-gauge cables directly from the battery, bypassing the ignition switch to prevent voltage drop under load–ignore this and risk erratic spark delivery at 6,000 RPM.

Key Symbols in Schematic Documentation

Solid lines indicate primary current paths; dashed lines mark sensor inputs or auxiliary circuits. Arrows on trigger wires show signal flow direction–reversing these leads to backfire or no-start conditions. Diodes placed near relays prevent voltage spikes; omit them and risk ECU damage during solenoid operation.

For distributor-based systems, match the schematic’s firing order to the engine’s cylinder numbering. Rotating housing distributors invert the sequence; static housings retain it. Adjustable timing curves require a dual-channel oscilloscope–one channel on the trigger wire, the other on the coil negative–to verify advance rates before road testing.

Always cross-reference the component layout with the bill of materials. Aftermarket pickups often require different resistor values than OEM setups–installing a 500-ohm resistor in place of a 1,000-ohm unit results in hard starting. Ground all modules to the engine block, not chassis, to avoid radio-frequency interference corrupting sensor data.

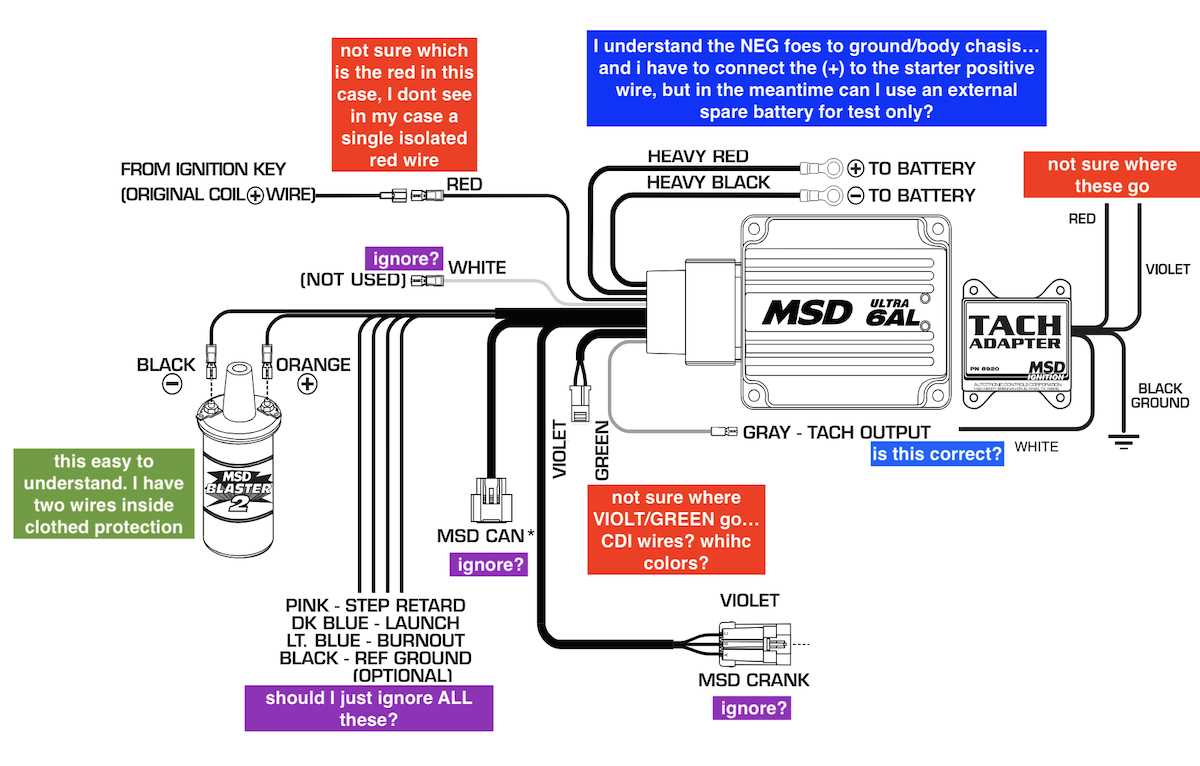

How to Connect an Ignition Control Unit to a Factory Coil: Detailed Procedure

Disconnect the battery negative terminal before starting any electrical modifications to prevent short circuits. Locate the ignition control module (labeled “6AL” or similar) and verify its mounting position–ensure it’s secured away from excessive heat sources like exhaust manifolds or turbochargers.

Identify the factory coil’s primary connections. Most stock coils have two small spade terminals: one marked “+” (positive) and one unmarked or “-” (negative). Confirm these with a multimeter in ohmmeter mode–resistance between terminals should read 0.5–1.5 ohms. If readings exceed 2 ohms, replace the coil.

Run a 14-gauge wire from the ignition control’s “TACH” output (usually a tan or yellow wire) directly to the coil’s negative terminal. Avoid splicing into existing factory harnesses unless absolutely necessary–factory circuits often carry interference that disrupts spark performance. Secure the connection with a crimp connector and solder it for reliability.

• Strip 6mm of insulation from both ends of the wire.
• Slide a heat-shrink tube over one end before crimping.
• Crimp the connector, solder the joint, then slide the tube over and heat it.

Attach the coil’s positive terminal to a switched 12V source–preferably the same circuit powering the ignition control. Use a 10-amp fuse inline, placed within 15cm of the power source. For vehicles with resistor wires in the harness (common in pre-1985 models), bypass them by connecting directly to the ignition switch output.

Ground the ignition control unit via its dedicated ground stud (typically labeled “GND” or marked in black). Use an 8-gauge wire or thicker, terminating to a clean, bare-metal chassis point. Avoid powder-coated or painted surfaces–they create high-resistance paths that cause voltage drops. Test the ground path with a voltmeter; readings should show less than 0.1V drop under load.

Reconnect the battery and verify operation. Crank the engine briefly–if the tachometer jumps erratically or the engine misfires, recheck all connections for loose crimps or reversed polarity. Adjust the ignition timing to 10° BTDC before revving past 2,500 RPM; most control units require this baseline setting to trigger the rev limiter and multiple-spark functions correctly.

Insulate all exposed terminals with high-temperature silicone tape or dielectric grease. Route wires away from moving parts (steering columns, throttle linkages) and hot surfaces. Zip-tie harnesses every 15cm to prevent vibrations from loosening connections. If installing in a forced-induction application, mount the control unit 30cm or farther from the turbocharger to avoid thermal damage.

Frequent Ignition System Connection Errors and Resolving Them

Reverse polarity on the control box input terminals causes immediate failure. Verify the positive lead connects to the marked “+” side and the negative to ground. Swapping these fries the circuit board; check continuity with a multimeter before powering up. If resistance reads zero between input and ground after swapping, the unit is permanently damaged.

Missing or corroded ground paths create intermittent misfires. Attach a minimum 10-gauge cable directly to the engine block, avoiding painted surfaces. Sand the contact area clean and coat with dielectric grease. A weak ground forces current through signal wires, leading to erratic timing. Test resistance between chassis and battery negative–values above 0.5 ohms require reconnection.

Avoiding Signal Wire Interference

Route trigger cables at least 12 inches from spark plug wires and coil outputs. Twisting leads reduces electromagnetic noise pickup that skews advance curves. Bundle them loosely rather than tight–taut bundles amplify vibration-induced shorts. If RPM readings jump randomly, replace the trigger wire with shielded 2-conductor automotive cable, grounding the shield at one end only.

Improper ballast resistor integration drops voltage below 9V at idle, stalling the engine. Use a 1.5-ohm, 10W ceramic resistor in series with the ignition feed if the system lacks built-in ballasting. Measure voltage at the coil positive terminal–values below 10V at 2,000 RPM confirm a missing or undersized resistor. Swap the resistor before diagnosing further; bypassing it on modern setups causes pre-ignition.

Incorrect timing settings from faulty bench sync procedures void distributor warranties. Set static timing 10° before TDC when the rotor points to the number-1 terminal. Dynamic timing requires a strobe light locked to initial advance specs–factory values differ by 4-6° between models. If base timing won’t hold, the mechanical advance mechanism is binding; disassemble and clean weights and pivots with brake cleaner.

Diagnosing Power Relay Failures

Solid-state relays fail from voltage spikes if wired without a flyback diode. Install a 1N4007 diode across the coil terminals, cathode to positive. Test relay operation by back-probing the output terminal–voltage should drop to near zero when energized. If the relay buzzes but doesn’t switch, replace it immediately; intermittent operation overheats the control module.
