Structured Network Wiring Diagrams and Schematics for Reliable Infrastructure
Begin by isolating critical segments of your infrastructure prior to drafting any visual representation. Segment fiber backbone runs from copper drops, label patch panels numerically from top-left, and assign color codes to cross-connects based on service type: red for VoIP, blue for data, green for security. Document each port’s function in a spreadsheet–avoid relying on memory or temporary notes. Use T568A for horizontal cabling unless building codes or existing installations mandate T568B; consistency prevents transmission errors.
Mark termination points on floor plans at 1:50 scale. Indicate cable pathways with dashed lines, highlight riser shafts with bold arrows, and note vertical clearances–minimum 3 inches for bundled cables to comply with NEC Article 770. Place wall jacks 12–18 inches above finished floor; avoid locations behind furniture or near water sources. Include a legend listing symbols: triangles for switches, circles for workstations, squares for servers, and hexagons for intermediate distribution frames.
Specify cable types in the margin: Cat6 for 10GBASE-T up to 55m, OM4 for 100G multimode, single-mode for distances exceeding 300m. Annotate bend radii–no tighter than 4x cable diameter for copper, 10x for fiber–and identify splice points with a double slash. Integrate power distribution units into the layout, ensuring no data cable crosses AC lines within 12 inches unless shielded. Add surge suppressors to PoE circuits rated above 30W.
Embed revocation clauses: update drawings within 48 hours of any alteration, stamp each revision with date and technician initials, archive obsolete versions for six months minimum. Store digital copies in a version-controlled repository, encrypt sensitive topologies, and restrict access to roles responsible for maintenance. Validate the diagram against live cable tests using a tone generator–verify continuity, impedance, and crosstalk at 100MHz intervals.
Structured Cabling Blueprint Essentials
Start by labeling every termination point with unique identifiers matching physical labels on patch panels and wall jacks. Use alphanumeric codes (e.g., IDF-01-A-05 for Intermediate Distribution Frame port) to prevent connection errors when tracing lines.
Select cables based on transmission requirements:
- Cat 6 for 1 Gbps over 100m (sufficient for most office deployments)
- Cat 6a for 10 Gbps up to 55m (avoids alien crosstalk)
- OM3/OM4 fiber for vertical runs exceeding 100m or high-noise environments
Include color-coding for cable types in your visual representation. Standard conventions:
- Orange – Voice/data horizontal runs
- Blue – Data connections
- Green – Demarcation points (ISP handoffs)
- Brown – Cross-connects between floors
Document exact cable lengths between nodes, adding 10% buffer for service loops. For example, 32m horizontal run + 3.2m slack = record 35m on the plan. This prevents underestimation during installation.
Specify connector types for each segment:
- RJ45/Cat 5e+ – Copper horizontal runs
- LC/PC – Fiber backbone connections
- 110 blocks – Voice termination (avoid for data)
Map logical topology separate from physical pathways. Show VLAN assignments (e.g., VLAN 10 – Guest Wi-Fi) with dashed lines, while solid lines represent copper/fiber runs. Include port densities for switches (e.g., 24x1G + 2x10G SFP+).
Add redundancy paths using ring or mesh configurations for critical routes. Label backup conduits on the layout, showing alternate routes between MDF (Main Distribution Frame) and IDFs. For example, mark “Fiber Route B – Emergency Path via Conduit C-4” with a red dashed line.
Varieties of Infrastructure Schematics and Their Operational Roles
Opt for physical layout illustrations when precision in spatial arrangement of cables, switches, and endpoints is critical. These visual representations pinpoint exact locations, distances, and connections between hardware components. Facilities managers use them to plan cable runs through conduits, walls, or raised floors, ensuring compliance with building codes and avoiding signal interference. Include annotations for termination points, patch panel numbers, and rack elevations to minimize errors during installation. Physical schematics serve as blueprints for structured cabling projects, cutting troubleshooting time by up to 40% compared to relying on memory or verbal instructions.

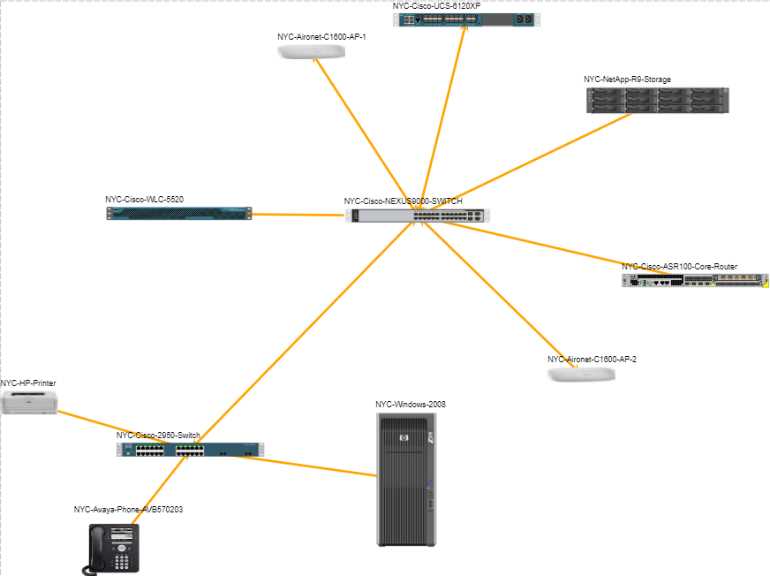

Logical connectivity charts distill operational dependencies without geographic constraints. They map how data flows between routers, servers, and user devices, clarifying protocols, IP assignments, and VLAN segmentation. Use these charts to document failover routes, QoS priorities, or firewall rules, ensuring seamless redundancy. For instance, a hospital’s logical chart would highlight how bedside monitors connect to central databases, exposing potential single points of failure. Include timestamped versioning for changes, as even minor adjustments–like altering subnet masks–can disrupt service if undocumented.
Deployment architects rely on hierarchical topologies to scale systems efficiently. These depict layers–core, distribution, access–revealing bottlenecks before physical rollout. A three-tier model, for example, isolates chokepoints in high-traffic networks by segregating switches: access-layer devices handle edge connections, distribution aggregates traffic, while the core layer focuses on speed. Use color-coding to differentiate bandwidth tiers (e.g., red for 1 Gbps uplinks, green for 10 Gbps), aligning hardware procurement with actual demand. Mistaking access-layer congestion for core-layer capacity issues wastes resources; hierarchical charts prevent such errors.
| Schematic Type | Primary Use Case | Key Metrics Tracked | Avoidable Pitfalls |
|---|---|---|---|
| Physical layout | Structured cabling projects | Cable length, termination points, rack U-space | Signal attenuation from poor bend radii |
| Logical chart | Firewall rule validation | Port assignments, VLAN IDs, protocol paths | Misconfigured NAT causing service drops |
| Hierarchical topology | Data center expansion | Throughput per layer, uplink redundancy | Underpowered distribution switches |
Patch management visuals streamline routine maintenance by isolating devices requiring updates or reconfigurations. Unlike broad-stroke schematics, these highlight specific ports, labeling firmware versions, MAC addresses, and service tags. A university’s patch chart, for instance, would group lecture hall projectors, ensuring bulk updates don’t interrupt exams. Annotate scheduled downtime windows directly on the chart to coordinate IT teams with facility usage calendars. Without this focus, patchwork fixes often create compatibility gaps–like a VLAN compatible with firmware 2.1 suddenly requiring 3.0 after an overlooked switch reboot.
Interactive diagnostic maps integrate live telemetry, replacing static diagrams with real-time alerts. These overlay latency spikes, packet loss, or port errors onto the baseline layout, letting engineers correlate hardware faults with performance dips. A financial trading firm might use such tools to flag when a switch in rack B4 exceeds 70°C, triggering preemptive cooling measures before thermal shutdowns. Implement SNMP or NetFlow integrations with thresholds (e.g., 80% interface utilization) to automate notifications. Static schematics alone leave teams reactive; interactive variants reduce mean time to resolution by 65%.
Step-by-Step Guide to Drafting a Structured Cable Blueprint
Begin by measuring the installation area precisely. Use a laser distance meter for accuracy–recording wall lengths, ceiling heights, and pathway obstructions like pillars or ductwork. Document these metrics in a grid format, noting elevation changes or uneven surfaces that may affect conduit placement. For example, a drop ceiling requires 2–3 inches of clearance for horizontal runs; mark these constraints directly on your sketch.
Identify critical endpoints before mapping pathways. Label each wall jack, patch panel port, and telecom room location with alphanumeric codes (e.g., “TR-A-01” for the first rack in Telecom Room A). Standardize naming conventions–use ANSI/TIA-606-B guidelines for consistency. Assign each endpoint a unique identifier linked to its physical address, such as floor, room number, and position (e.g., “3FL-102-NE” for northeast corner of room 102 on the third floor).
Divide the layout into zones based on cable type. Separate voice, data, and fiber conduits into distinct layers on your draft. Use color-coding: blue for Cat6, red for multimode fiber, and green for power-over-Ethernet lines. For each zone, calculate cable length with a 10% buffer for slack–fiber tolerates tighter bends (R=10×diameter) than copper (R=4×diameter). Plot vertical risers first; minimize splices by aligning distribution rooms vertically across floors.
Select cable pathways based on environmental factors. Avoid parallel runs with electrical wires unless separated by 12 inches (NEC 800.133(A)(2)). In plenum spaces, use CMP-rated cables; for outdoor runs, opt for gel-filled or UV-resistant jackets. Designate accessible termination points every 90–100 meters for copper, and 300–500 meters for fiber, to comply with TIA/EIA-568-D performance standards. Document pathway materials–EMT conduit for exposed runs, PVC for buried, and cable trays for overhead.
Testing and Validation
Simulate signal integrity before finalizing the layout. For copper, verify insertion loss (≤23.2 dB @ 250 MHz for Cat6) and NEXT (≥39.9 dB) using a field tester. Fiber requires OTDR testing; ensure ≤0.3 dB/km attenuation for single-mode. Annotate test points on the draft, including reference values and acceptable tolerances. Cross-reference with manufacturer specifications–some cables degrade performance at temperatures above 60°C.
Finalize the blueprint with labeling conventions. Use 6-point font for labels, engraved or printed on adhesive tags (TIA-606-B requires durable, non-fading identifiers). Include a legend detailing cable types, termination standards (T568A/T568B), and installation notes (e.g., “Maintain 3-inch bend radius”). Export the layout in vector format (DXF or SVG) for scalability, and include a bill of materials listing part numbers, quantities, and compliance certifications (UL, RoHS).
