Complete Wiring Guide for Nordyne Furnace Installation and Troubleshooting

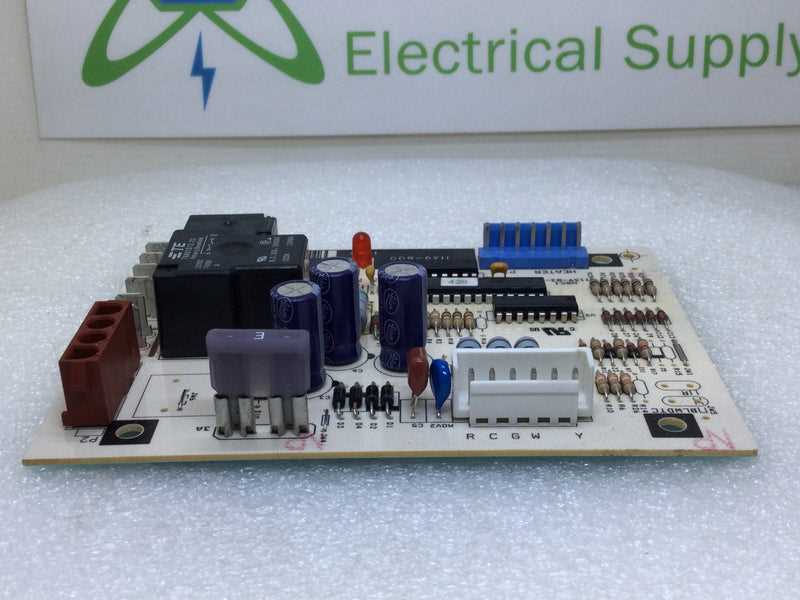

Check the control board’s labeled terminals first–most manufacturers follow a standard layout, but discrepancies exist. For models built after 2015, locate the 24V common (C) and R (power) terminals immediately. These two points deliver low-voltage power to the thermostat and blower relay. If voltage readings between them show less than 23VAC, replace the transformer before proceeding. Older units may lack a dedicated C-terminal; trace the secondary winding wires back to the transformer’s output lugs instead.

Identify the blower motor leads next–typically marked BRN (cool) and WHT (heat). Connect these directly to the motor speed taps without relying on color-coding alone, as splice points can degrade over time. Use a multimeter to confirm each tap’s resistance: high-heat speed should read ~50-70 ohms, while low-heat speed ranges between 120-150 ohms. Swap any tap showing infinite resistance or zero ohms, indicating an open or shorted winding.

Verify the limit switch circuit last. Locate the NC (normally closed) contacts on the safety chain–these must interrupt the gas valve solenoid when overheating occurs. Bypass testing requires jumpering the switch’s terminals temporarily; if the burner ignites, the switch is faulty. Replace switches with manual-reset types only–auto-reset models violate most building codes for combustion appliances.

Ground the chassis at two points: the blower assembly and the combustion chamber housing. Use 10-gauge copper wire for runs under 10 feet, upgrading to 8-gauge for longer distances. Loose grounds cause phantom voltage fluctuations, leading to erratic thermostat cycling. Secure all connections with flame-retardant ring terminals, torqued to 8-10 in-lbs–over-tightening cracks the plating, while under-tightening invites arcing.

Test the induced draft motor separately. Disconnect its leads from the control board and apply 120VAC directly. The motor should ramp to full speed within 3-5 seconds. If it hums but doesn’t spin, replace the run capacitor–typical values are 4-6 µF for single-speed units, 8-12 µF for variable-speed models. Capacitors with bulging tops or leaking electrolyte fail silently but trigger intermittent blower failures.

HVAC System Electrical Schema Reference

Check the model number on the interior panel before handling any connections–specific layouts vary by series. For E2EB/W and M2-series units, locate terminals L1, L2, and C at the control board base. Connect 120V supply wires to L1 (hot) and N (neutral) only after verifying polarity with a multimeter.

Use color-coded conductors as follows: red for 24V control voltage, yellow for cooling call, white for heat call, green for fan relay. Strip 3/8″ of insulation; secure strands with wire nuts rated for minimum 20A current. Avoid twisting more than four wires per nut to prevent overheating.

Component	Terminal Label	Wire Gauge	Max Load (A)
Blower motor	BKR	14	12
Ignition control	IGC	18	5
Flame sensor	FLS	18	2

Route low-voltage conductors through 1/2″ flexible conduit to prevent pinching against metal edges. Keep paths at least 6″ away from high-voltage lines to minimize interference. Label each wire at both ends with heat-shrink tags before finalizing connections.

Test thermostat operation in heating mode first–close R to W, then verify igniter glow within 15 seconds. If delay exceeds 20 seconds, inspect flame sensor alignment; clean surface with 400-grit sandpaper if corrosion is visible. Replace sensor if resistance reads above 1.5 ohms.

Secure ground wire directly to the chassis using a star washer; crimp ring terminal to end of 10-gauge bare copper. Tighten to 18 in-lbs torque–loose connections create intermittent faults during startup cycles.

After restoring power, monitor initial ignition sequence. Listen for consistent burner ignition; erratic flame indicates gas valve solenoid issues. Use a clamp meter to verify current draw on the inducer motor–normal range is 0.4–0.6A. Readings outside this range suggest wheel obstruction or bearing wear.

Document all adjustments with timestamped notes–include voltage readings at L1-L2 and control board input. Store records inside the unit’s service panel for future reference. Replace access door only after confirming no loose conductors are exposed.

Finding the Right Schematic for Your HVAC Unit

Check the data plate on the interior side panel of your heating system–this metal or sticker tag lists the exact series number (e.g., N3H336AK, E2E48J). Cross-reference this identifier with the manufacturer’s official resource portal: enter the digits into the search field at norteksupport.com under “Technical Documents.” If the label is illegible, remove the blower door and inspect the control board for a white barcode label; the first eight alphanumeric characters typically match the required schematic key.

For units manufactured between 1998 and 2015, use the paper manual included in the original packaging. If misplaced, download a replacement from the same portal by filtering for “Legacy Models” and then selecting the correct BTU rating (common sizes: 60K, 80K, 100K). Systems built after 2016 often embed the guide inside the access panel door–flip the plastic flap to reveal a QR code linking directly to the PDF.

Verify compatibility by comparing terminal connections on the schematic against the actual board layout before energizing; note terminal P1 pin count and color code sequences. Discrepancies indicate a mismatch–reconfirm the series number, installation year, and voltage rating (e.g., 115V vs. 24V) to avoid incorrect circuit mapping.

How to Decode Heating System Connection Schematics

Identify the thermostat cables first–typically marked R (red), W (white), G (green), Y (yellow), and sometimes C (blue) for common. Trace each strand from the control board to its termination point. Red delivers power; white signals heat demand. Green manages fan operation, while yellow triggers cooling if integrated. Blue completes the circuit for smart thermostats.

Examine the ignition module–look for labeled terminals like HSI, IGN, FLAME, or SENS. The HSI (Hot Surface Igniter) wire will be thick, often orange or gray, handling high current. IGN connects to the spark electrode in older models, usually thin and coated in ceramic. Verify flame sensor wiring–a thin, straight rod with a single white or purple conductor leading to the control unit.

Locate the blower motor leads: NEUTRAL (white), LINE (black/red), and sometimes LOW SPEED or HIGH SPEED (blue, brown). Check for a capacitor–a small cylindrical component with two or three terminals. If present, one wire attaches to the motor’s start winding, the other to run winding. Mismatched colors here indicate aftermarket replacements; refer to original schematics.

Safety switches include limit controls and pressure tabs. The rollout switch (often red) has two spade connectors; tripped, it cuts gas supply. The flame rollout sensor wires in series–any break disrupts operation. Draft inducer wires (usually orange, pink) link directly to the combustion chamber; check for debris if airflow seems restricted.

Compare all markings to the system’s legend. If labels are faded, use a multimeter in continuity mode to trace circuits. Never assume color consistency–cross-reference with the manufacturer’s reference guide. For dual-fuel systems, the emergency heat relay (pink/black) will engage electric backup if the primary fails. Document each connection with a camera before disconnecting anything.

Key Terminal Pairings for Climate Control and Energy Input in Heating Systems

Connect the low-voltage control board’s R (power) terminal to the thermostat’s Rh or Rc terminal, ensuring a 24VAC feed. For dual-transformer setups, link Rc to cooling and Rh to heating circuits separately. Gauge the wire thickness–minimum 18 AWG for runs under 50 feet, 16 AWG for longer distances to prevent voltage drop.

Common configurations include W (heat relay) paired with the control’s W1, Y (cooling call) to Y1, and G (fan activation) to G. For staged heating, add W2 to the second-stage terminal. Verify jumper placements–remove if the system lacks separate cooling power, or retain for combined Rh/Rc setups. Label each lead with its function before securing connections with wire nuts rated for 600V.

Safety and Troubleshooting Checks

Measure voltage across R and C (common) terminals–readings should stabilize at 22–26VAC. If below 20V, inspect the transformer’s primary (120/240V) side for loose connections or blown fuses. Lock out the power supply before probing terminals to avoid short circuits. For intermittent failures, test continuity between the thermostat subbase and the control board using a multimeter’s ohm setting (expected:

Resolving Air Handler Motor Connection Problems

Inspect the capacitor first–if the blower fails to start, a swollen or leaking capacitor often signals failure. Test with a multimeter: disconnect power, discharge the capacitor safely, then measure microfarads; values below 10% of the rating (e.g., 5 μF for a 50 μF unit) confirm replacement need. Check the run winding resistance next–expect 1-4 ohms between common and run terminals; infinite resistance indicates an open winding. For intermittent operation, examine the thermal limit switch: locate it near the heat exchanger, press the reset button once, and verify airflow clearance around the unit (minimum 24” unobstructed space).

Common faults and remedies:

• Humming without rotation: Remove the blower cage, spin the shaft by hand–if stiff, lubricate bearings with SAE 20 oil or replace the motor if seized.
• Rapid cycling: Clean the evaporator coil (use coil cleaner, 1:16 dilution) and verify the condensate drain (6’ PVC, ¼” per foot slope).
• Erratic speed: Confirm the control board’s 24V signal at the motor relay (pin 2 to neutral); if unstable, replace the board or speed control module (part #904457 for single-stage units).
• Burnt odor: Inspect the motor winding for discoloration (dark brown/black = overheating); check amperage draw with a clamp meter–max 7.2A for ½ HP motors at 120V.

Avoid jumper wires for testing–use the schematic’s color codes: red (24V), yellow (common), blue/black (fan speed taps). If replacing the motor, match RPM (±10%) and frame size (48YZ or 51DP standard).
