How to Build and Analyze an Op-Amp Circuit with Schematic Examples
Choose a non-inverting gain stage when input impedance and minimal loading are critical. Place a 10 kΩ resistor in the feedback loop paired with a 1 kΩ resistor from the inverting input to ground; this yields a stable 11× voltage gain with less than 0.1 % error at 1 MHz for any rail-to-rail device powered from ±12 V. Decouple both supplies with 0.1 µF X7R ceramics directly at the package pins–spacing greater than 3 mm creates measurable ringing on fast edges.
For wide-bandwidth buffers, replace the classic unity-gain follower with a 100 kΩ resistor in series with the output before the load; this prevents oscillation caused by capacitive loads above 10 pF. Verify stability on a 100 MHz scope with a 1 Vpp square-wave input; overshoot must stay below 5 % to keep harmonic distortion under −80 dBc at 1 kHz.
When interfacing with high-impedance sensors, bias the non-inverting input at midscale using two matched 1 MΩ resistors from each supply; this sets the input common-mode voltage at VCC/2, allowing single-supply operation down to 2.7 V without clipping. Select devices whose input bias current is below 10 pA to keep offset voltages under 50 µV across −40 °C to +85 °C.
In current-to-voltage converters, use a 100 kΩ feedback resistor and a 1 pF NP0 capacitor in parallel to roll off noise above 10 kHz while maintaining 0.5 µs settling time. Avoid soldering the feedback resistor more than 5 mm from the inverting pin; stray capacitance from the PCB trace adds an unwanted pole that degrades phase margin.
Before finalizing any board, simulate the network with SPICE models that include package parasitics (0.2 nH bond wires, 1 Ω lead resistance). Check open-loop gain and phase response at the intended closed-loop gain; a phase margin of 60° ensures that the transient response remains critically damped even with ±10 % supply variation.
Building High-Gain Active Networks: Schematic Essentials
Start with a precision differential pair–bias the input stage using matched BJTs or FETs with less than 0.1% mismatch to minimize offset drift. Use a current mirror (e.g., Wilson or cascode configuration) to ensure symmetrical input impedance above 1MΩ while maintaining CMRR above 90dB. For stability, introduce a small compensation capacitor (10–30pF) between the output and the inverting input, adjusting bandwidth trade-offs per application–20kHz for audio, 1MHz for general-purpose.
Ground reference the non-inverting input through a 1kΩ resistor to prevent latch-up, especially in single-supply designs where input voltages may swing below ground. Decouple the power rails with 0.1µF X7R ceramic capacitors placed within 2mm of the IC pins to suppress high-frequency noise. For rail-to-rail output stages, use complementary emitter-followers or push-pull pairs with base-stopper resistors (100–200Ω) to prevent crossover distortion at output currents above 50mA.
Label every component with designators (R1, C2, Q3) and specify values in EIA-96 or IEC 60062 format–e.g., “4R7” for 4.7Ω, “2N2222A” for transistors–on the schematic layer, not silkscreen. Include a BOM note for critical parts: low-noise op-amps (e.g., LT1028) require thermal pads and vias under the package to dissipate 50mW/°C. Verify layout with a SPICE transient simulation before prototyping, targeting
Key Elements and Notation in Analog Signal Processing Blocks

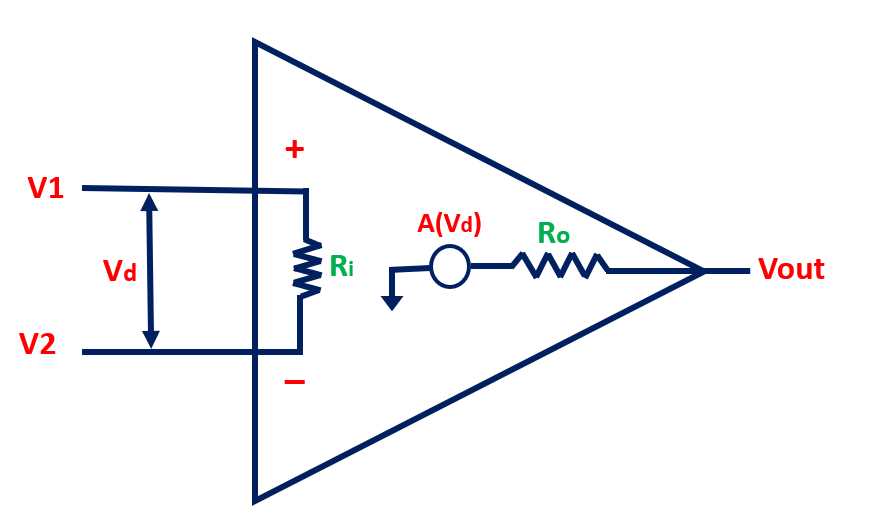

Begin by identifying the three-terminal core in any gain stage schematic: the inverting input (−), non-inverting input (+), and output node. Mark the inverting input with a minus sign inside a triangle–this pin dictates negative feedback topology. Place the non-inverting input at the opposite triangle vertex; its signal dictates the phase of the amplified waveform. Ensure the triangle’s flat base always faces the output; this orientation prevents misinterpretation during layout.
Attach precise resistor values directly beside each symbol to eliminate guesswork in impedance balancing. Use
- Rf: feedback resistor, typically 10 kΩ to 1 MΩ for unity-gain stability;
- Rg: gain-setting resistor, sized according to Av = 1 + (Rf/Rg);
- Rl: load resistor, minimum 2 kΩ to avoid output stage saturation.
Label each resistor with clear, non-italicized text; position labels horizontally above the component to avoid overlapping nodes.
Include decoupling capacitors within 5 mm of the power pins; 0.1 μF ceramic capacitors filter high-frequency noise, while 10 μF electrolytic capacitors stabilize low-frequency drift. Place the negative capacitor lead facing the ground rail–never reverse polarity on electrolytic types. Use ground symbols where rails converge; triangle symbols denote true ground, squares indicate chassis ground.
Voltage rails require distinct annotation: VCC for positive supply, VEE for negative supply. Both should terminate in circles with arrowheads pointing outward. Specify rail voltages adjacent to symbols; standard dual ±12 V rails suffice for most linear stages, while single 5 V rails suit low-power designs but limit output swing to 3 V peak-to-peak.
Feedback Network Layout
Connect feedback resistors in a straight path from output to inverting input–avoid right angles that introduce parasitic capacitance. For non-inverting stages, insert Rg between input signal and non-inverting pin; connect Rf from output to inverting pin, then ground inverting pin via Rg. Verify loop stability by ensuring feedback path delays less than 1 ns; exceeding this threshold risks oscillation.
Limit input impedance to 10 kΩ–100 kΩ for instrumentation front-ends. Lower values introduce signal attenuation, higher values foster noise coupling. For differential pairs, use matched resistor pairs within 1% tolerance; imbalance exceeding 5% degrades common-mode rejection ratio below 80 dB. When cascading multiple stages, isolate each gain block with series 1 kΩ resistors to prevent inter-stage loading.
Step-by-Step Assembly for a Signal-Reversing Gain Stage
Begin by placing the active component on a breadboard, ensuring pin 1 aligns with the marked notch or dot. Connect the negative input (pin 2) to a 1kΩ resistor leading from the signal source. This node defines the stage’s behavior–any mismatch here skews output precision.
Link the feedback path from the output (pin 6) back to the negative input through a 10kΩ resistor. This 10:1 ratio between feedback and input resistors sets a fixed gain of -10, inverting while scaling the signal. Swap values to -4.7 or -20 for alternative scaling.
Ground the positive input (pin 3) directly to the reference plane. Even minor parasitics here introduce offset voltages, so keep traces short and solder joints clean. Omit decoupling capacitors at this stage only for testing–ignoring them invites high-frequency noise.
Power the chip with ±12V rails, ensuring the ground node ties to the midpoint of the supply. Polarity reversal instantly destroys the chip; verify connections with a multimeter before applying power. A 10µF bypass cap across each rail suppresses supply ripple.
Attach the input signal through a 1µF coupling capacitor if DC offset must be blocked. Without it, any DC shift on the input propagates, saturating the output. Test with a 1kHz sine wave–output should mirror the shape but inverted and tenfold larger.
Add a 10kΩ resistor from the positive input to ground to balance input bias currents. Skipping this adds microvolt-level offset, visible as a DC drift at the output. Measure with an oscilloscope; trim with a 1kΩ pot if precise nulling is critical.
For breadboard prototypes, twist resistor leads and keep traces under 5cm to minimize stray capacitance. Layout optimizations matter more at frequencies above 10kHz–expect phase shifts if leads exceed 1cm. Use shielded cables for signals spanning more than 10cm.
Finalize by adding a 100nF ceramic cap across the rails adjacent to the pin headers. Transient currents from switching logistics create spikes; this cap filters them locally. Replace the cap with a tantalum type if prolonged stability is needed in high-humidity environments.
Step-by-Step Guide to Configuring a Non-Inverting Signal Booster with Feedback Components
Select a precision IC like the LM358 or TL072 for consistent gain stability across frequencies. Verify the device’s supply voltage limits–most tolerate ±15V, but low-power variants may require ±5V or less. Connect the power rails first to prevent latch-up: positive voltage to the V+ pin and negative (or ground) to V−. Use decoupling capacitors (0.1µF ceramic) near the power pins to suppress high-frequency noise.
Identify the input node–the IC pin labeled “+” or “Non-inverting.” Connect your signal source directly here, ensuring the source impedance is below 1kΩ to minimize gain errors. For high-impedance sources, buffer the signal with a unity-gain buffer or use a 10kΩ resistor to ground at the input to stabilize bias currents.
Choose feedback resistors based on your target gain: G = 1 + (Rf / Rg). For G=10, use Rf=90kΩ and Rg=10kΩ; for G=2, use Rf=10kΩ and Rg=10kΩ. Prioritize 1% tolerance metal-film resistors to reduce gain drift over temperature. Avoid values below 1kΩ to prevent excessive power draw from the IC’s output stage.
Wire the feedback network by connecting Rf between the IC’s output pin and its inverting input (“−” pin). Ground Rg via a direct connection or through a small capacitor (100pF) for AC stability. For DC signals, omit the capacitor to prevent offset errors. Verify the IC’s maximum output swing–clipping occurs if the amplified signal exceeds ±12V on a ±15V supply.
- For audio applications, add a 1kΩ resistor in series with the output to drive capacitive loads (e.g., cables) without oscillation.
- Test gain linearity using a 1kHz sine wave at 100mVpp; measure output amplitude and phase shift with an oscilloscope. Ideal phase shift is 0° at low frequencies.
- If noise is critical, shield input cables and place a 10nF capacitor across Rf to roll off high-frequency interference.
Adjust compensation if the IC lacks internal stability. Most modern devices are unity-gain stable, but older models (e.g., 741) may need a small capacitor (10–30pF) in parallel with Rf to prevent ringing. Use a 10kHz square wave test to check for overshoot; a clean waveform confirms proper compensation.
For single-supply operation, set the IC’s negative rail to ground. Bias the non-inverting input at half-supply (e.g., +2.5V for a +5V rail) using a resistor divider (two 10kΩ resistors) to allow symmetrical signal swing. Couple the input and output via capacitors (10µF tantalum) to block DC offsets while passing AC signals.
Common Pitfalls
- Thermal drift: Replace carbon resistors with metal-film if ambient temperature varies >±20°C.
- Output saturation: Ensure Rf and Rg values don’t demand more current than the IC can supply (typical limit: ±20mA).
- Ground loops: Use a single ground point for all return paths to avoid hum; star-ground the feedback network if multiple supplies are involved.
