Understanding Phasor Diagrams Step-by-Step Guide for AC Circuit Analysis

Begin by plotting instantaneous values of voltage and current on a polar coordinate plane. Align the reference axis with the voltage vector to simplify phase angle calculations–this reduces trial-and-error adjustments in reactive component sizing. For inductive loads, rotate the current vector clockwise by the phase difference (θ), where θ = arctan(X_L/R). Keep vectors proportional to RMS amplitudes to maintain dimensional consistency across impedance calculations.

Use the parallelogram method to resolve composite signals when analyzing parallel branches. Draw vectors for each branch current, then sum them geometrically to obtain the total current vector. Verify magnitudes against calculated values using I_total = √(I₁² + I₂² + 2I₁I₂cos(θ₁-θ₂)). This reveals hidden power losses in mismatched phase conditions.

For transient analysis, superimpose decaying exponential envelopes on rotating vectors to model damping in RLC networks. The envelope’s time constant (τ = 2L/R for series circuits) dictates how quickly vectors shrink toward the origin. Plot decay curves at 5τ intervals to capture 99% of transient behavior without oversampling.

Scale vectors logarithmically when comparing signals across orders of magnitude (e.g., pA leakage currents vs. mA load currents). This prevents distortion in angular relationships while preserving waveform fidelity. Use distinct colors–or dashed lines for monochrome–to differentiate active, reactive, and apparent power vectors in energy studies.

Cross-check graphical solutions with analytical methods for precision. Example: If a vector’s angle measures 30° but impedance calculations yield 28.6°, recalibrate protractor alignment or re-examine component tolerances. Document all construction steps to replicate findings under varying source frequencies.

Visualizing Electrical Phase Relationships in AC Systems

Begin by plotting the reference vector horizontally at 0°–this simplifies comparisons for resistive, inductive, and capacitive elements. For inductive loads, extend the vector upward at +90°, ensuring its length matches the reactive current magnitude. Capacitive components require a downward projection at -90°, proportional to their susceptance. Combine these vectors geometrically to derive the total impedance angle, which must align with measured phase shifts within ±2° for accuracy.

Key Rules for Vector Construction

• Use a fixed scale: 1 cm = 10 A or 10 V, adapted to the system’s rated values.
• Rotate clockwise for lagging currents, counterclockwise for leading currents.
• Sum series components tip-to-tail; parallel branches via scalar addition of real/imaginary parts.
• Validate with a power analyzer: discrepancies >5% indicate misplaced angles or incorrect magnitudes.

For mixed RLC networks, decompose each branch’s response first. Example: A 120 V, 60 Hz source with R=8 Ω, L=0.03 H, and C=150 μF yields a net angle of -32°–confirm by calculating 58° (inductive) and adding 90° (capacitive). Cross-check with θ = tan⁻¹(XL–XC/R). Avoid rounding intermediate steps; retain at least three decimal places.

Dynamic adjustments demand real-time scaling. Monitor load fluctuations via:

1. Instantaneous current probes (Hall effect sensors).
2. Dual-channel oscilloscopes for voltage/current phase comparison.
3. Embedded microcontrollers sampling at ≥1 kHz to avoid aliasing.

Store vectors as polar coordinates (magnitude, angle) in 32-bit floating-point arrays for minimal quantization error. For transient analysis, overlay snapshots at 10 ms intervals–sudden angle deviations >10° signal potential faults.

Building a Vector Representation for Resistor-Inductor-Capacitor Networks

Start with a sinusoidal voltage source of known amplitude and angular frequency. Measure peak values of current and voltage across each component using an oscilloscope or simulation tool–record magnitudes and phase relationships relative to the source.

Draw the reference axis horizontally, representing the source voltage vector at zero degrees. Scale the length to match its peak amplitude, ensuring consistent units for all subsequent measurements.

For the resistor, plot its voltage vector along the same axis as the reference–pure resistance introduces no phase shift. The length should equal the measured peak voltage across it.

The inductor’s voltage leads the current by 90 degrees. Rotate its vector counterclockwise from the reference axis by a quarter-cycle, scaling the length to the inductor’s peak voltage. This aligns with Faraday’s law of inductive reactance.

The capacitor’s voltage lags the current by 90 degrees. Rotate its vector clockwise from the reference axis, again scaling to the peak voltage across it. Confirm the angle matches the 90-degree phase difference introduced by capacitive effects.

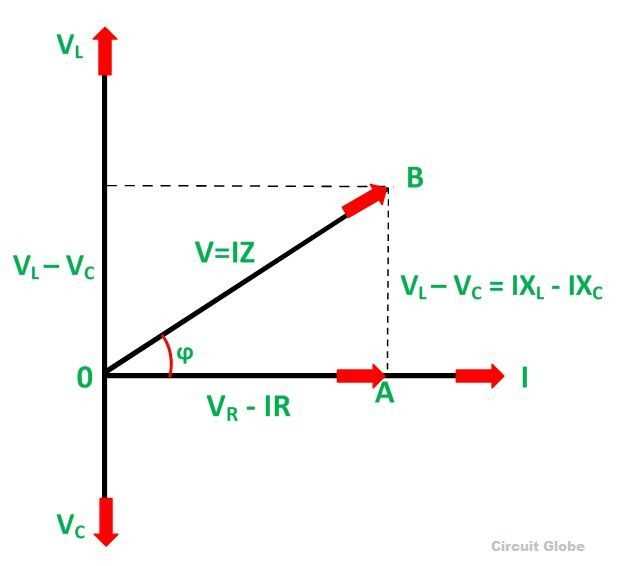

Add the three component vectors tip-to-tail to find the total voltage across the series combination. The resultant vector’s magnitude should closely match the source voltage if measurements are precise–discrepancies reveal parasitic effects or measurement errors.

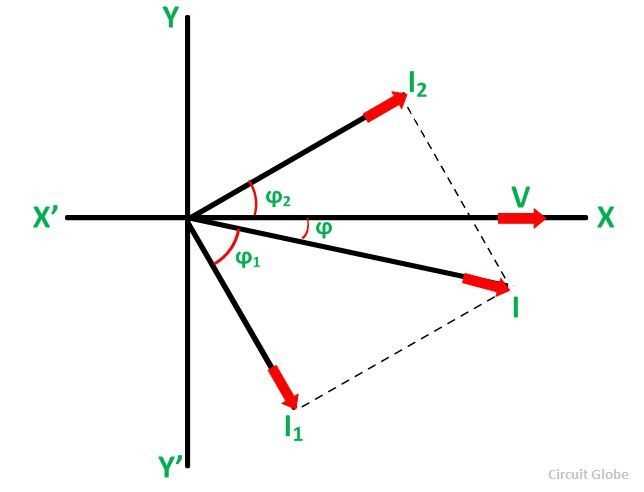

For parallel configurations, build each branch’s current vector separately. The resistor’s current aligns with the reference, while inductor and capacitor currents rotate counterclockwise and clockwise by 90 degrees, respectively. Sum the currents vectorially to verify Kirchhoff’s current law.

Adjust vectors for non-ideal components by accounting for stray resistance or phase shifts deviating from the ideal 90 degrees. Use complex impedance calculations (Z = R + jX) to refine angles and magnitudes before finalizing the plot, ensuring consistency with Ohm’s law at the operating frequency.

Step-by-Step Guide for Plotting Vector Representations of Voltage and Current Across Varying Impedances

Begin by calculating the magnitude and phase angle of the supply voltage using V = V_m∠θ, where V_m is the peak amplitude (RMS if specified) and θ the reference angle, typically 0° for voltage sources in steady-state AC analysis. For resistive loads, current aligns perfectly with voltage–both vectors overlap on the complex plane, sharing identical phase angles (± rounding errors in manual calculations). Use I = V / R to determine the current magnitude, ensuring unit consistency (amps, not milliamps). Plot both vectors originating from the same point, marking the voltage along the real axis (baseline), and current coinciding directly atop it, scaled proportionally to maintain clarity at any load value.

Mapping Reactive and Combined Load Scenarios

Load Type	Current-Voltage Angle (°)	Key Calculation	Plotting Technique
Purely Inductive (L)	90° lagging	XL = 2πfL, I = V / XL	Rotate current vector 90° clockwise from voltage baseline; maintain equal lengths if XL equals reference impedance.
Purely Capacitive (C)	90° leading	XC = 1 / (2πfC), I = V / XC	Rotate current vector 90° counterclockwise; label phasor tips with I and V for distinction.
RL Series	θ = arctan(XL / R)	Z = √(R² + XL²), I = V / Z	Resolve voltage into orthogonal components: VR in-phase with current, VL perpendicular. Use parallelogram method or tip-to-tail addition to form resultant vector.
RC Series	θ = arctan(XC / R)	Z = √(R² + XC²), I = V / Z	Decompose voltage into VR (in-phase) and VC (quadrature). Current leads voltage; plot accordingly.

For mixed loads (RLC), compute total impedance Z = √(R² + (X_L – X_C)²) and phase angle θ = arctan((X_L – X_C) / R). Measure θ from the voltage baseline–positive θ indicates current lag, negative θ indicates lead. Scale vectors to fit a standardized grid (e.g., 1 cm = 10V/1A) to prevent distortion. Verify plotted length and angle using inverse trigonometric functions: θ = arccos(V_R / V) and V_R = V cos θ, ensuring consistency within 1% tolerance for engineering precision.

Measuring Phase Displacements in Alternating Current Systems with Vector Representations

To detect angular deviations between voltage and current in AC networks, plot the amplitude-time projections on a complex plane. Align the reference axis (typically voltage) along the horizontal line, then position the secondary waveform (current) at its calculated angle. For inductive loads, expect the current vector to lag behind the voltage by 0° to 90°, while capacitive elements create leading angles within the same range. Use a protractor or polar grid overlay to quantify the displacement directly–accuracy improves when vectors are normalized to identical magnitudes before measurement.

When analyzing series RLC arrangements, the cumulative phase shift equals the sum of individual element displacements. Resistors contribute 0°, inductors add +arctan(X_L/R), and capacitors subtract -arctan(X_C/R). Measure each segment’s angle relative to the total impedance vector, not the source voltage. For parallel branches, calculate the net displacement by resolving branch currents into orthogonal components and comparing their resultant angle to the applied voltage.

Oscilloscope readings confirm vector-derived angles: a 1 kHz sinusoid with 50 µs delay between peaks corresponds to a 18° lead or lag. Convert temporal offsets to angular values using θ = (Δt/T) × 360°, where T equals the period. Maintain consistent time-base settings across channels to avoid scaling errors. For distorted waveforms, apply Fourier transform to isolate fundamental components before angular assessment.

Phase-sensitive instruments like lock-in amplifiers extract angular offsets by mixing input signals with a reference oscillator. The X-output correlates to magnitude, while Y-output directly indicates phase disparity in volts per degree. Calibrate these devices against known resistive, inductive, and capacitive loads to establish baseline offsets. For three-phase systems, measure line-to-neutral angles first, then derive line-to-line displacements through vector subtraction–expect 120° separations with balanced loads and smaller discrepancies under imbalance.
