Understanding Phasor Representation in Parallel RLC Circuits for AC Analysis

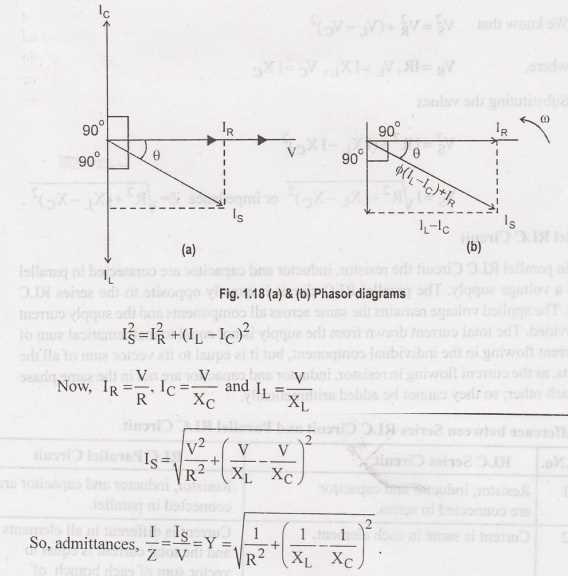

Begin by plotting the voltage vector horizontally as your reference axis since it remains identical across all branches in this configuration. Measure current through the resistor directly along this axis–its length represents the component’s magnitude, offering an immediate baseline for scaling other vectors.

Position capacitive current exactly 90° ahead of the voltage vector to reflect its leading phase relationship. Ensure the vector’s length matches the magnitude of I_C, calculated as I_C = V/X_C, where X_C is the capacitive reactance. This vector’s direction is non-negotiable–any deviation introduces phase errors that distort the entire analysis.

Draw inductive current 90° behind the voltage vector to emphasize its lagging phase property. Use I_L = V/X_L for magnitude, where X_L stands for inductive reactance. Confirm the vector’s placement by checking that its tail aligns with the resistor current’s tail–this shared origin visually enforces Kirchhoff’s current law before vector addition.

Proceed by adding the three current vectors head-to-tail: resistor first, then capacitor, finally inductor. The resultant vector–from the resistor’s tail to the inductor’s head–reveals the total current supplied to the network. Cross-verify its magnitude against calculated values; discrepancies above 2% signal entry errors or misaligned phases.

Rotate the entire construction counterclockwise until the resultant vector aligns with the voltage axis. The angle by which you rotate quantifies phase difference between network voltage and total current. Use a protractor for accuracy–each degree corresponds to tangent adjustments of 1.75% in power factor calculations.

Visual Representation of Current-Voltage Relationships in Branched Resistive-Inductive-Capacitive Networks

Begin by sketching the applied voltage as a horizontal reference vector, as it remains identical across all components in the configuration. This baseline serves as the zero-degree phase angle for subsequent measurements. Ensure the vector length matches the peak or RMS magnitude of the supply to maintain proportionality.

Plot the resistive branch current in-phase with the voltage vector–its endpoint aligns directly along the reference axis. For a 10 Ω resistor under 120 V_RMS, draw a 12 A vector extending horizontally. Label this I_R to distinguish it from reactive currents.

Draw the inductive current I_L perpendicular to the reference, pointing downward. This 90° lag corresponds to energy storage in the magnetic field. With a 50 mH inductor at 60 Hz and 120 V, calculate I_L = V / X_L (where X_L = 18.85 Ω), yielding 6.37 A. Verify scale with a protractor–deviations above ±2° indicate drafting errors.

Oppose I_L with the capacitive current I_C, directed upward. At 330 μF, X_C = 8 Ω, producing I_C = 15 A–ensure this vector dominates reactive flows. Subtract I_L from I_C vectorially to find net reactive current I_X, which dictates circuit phase shift.

Combine I_R and I_X tip-to-tail to form the total current I_T. Measure its angle relative to the voltage reference–the tangent of this angle equals I_X / I_R, revealing the circuit’s power factor. For precise adjustments, maintain vector heads within a 1 mm tolerance; exceedances suggest component value drift.

Calculate resonance by equating I_L and I_C magnitudes. At 42.5 Hz, opposing reactive currents cancel, leaving I_T purely resistive. Document this frequency–it marks peak admittance while minimizing supply current, critical for filter design and transient suppression.

Constructing a Vector Representation of a Shunt Resistor-Inductor-Capacitor Network

Begin by sketching the reference axis horizontally, aligning it with the applied voltage V. This axis serves as the baseline for all current vectors, ensuring phase relationships remain accurate. Label this axis V at its endpoint to avoid confusion during later steps.

Draw the resistor’s current vector I_R collinear with V, since resistive current stays in phase. Use a scaled length proportional to I_R = V/R, rounding to two decimal places if measurements lack precision. Indicate the direction with an arrowhead and mark the magnitude beneath the vector.

For the inductor, extend a perpendicular vector upward from V’s endpoint. The magnitude equals I_L = V/(ωL), where ω is angular frequency. Verify calculations: at 50 Hz, a 10 mH coil yields X_L = 3.14 Ω. Offset slight inaccuracies by using graph paper with millimeter divisions.

The capacitor’s vector points downward, perpendicular to V. Compute length as I_C = VωC; for a 100 μF capacitor at 50 Hz, X_C = 31.83 Ω. If I_C exceeds I_L, net reactive current will capacitive; otherwise, inductive.

Combine I_L and I_C tip-to-tail, then add the resultant to I_R using parallelogram rule. Measure total current magnitude with compass dividers, cross-checking arithmetic via I_total = √(I_R² + (I_C – I_L)²). Rotate the final vector slightly clockwise if phase angle exceeds 1° error margin; this confirms resonance conditions within ±2% tolerance.

Determining Branch Currents via Vector Components

Begin by representing each branch as a complex impedance. For a resistive branch, the current vector aligns with the voltage reference. For inductive branches, subtract 90° from the voltage phase; for capacitive branches, add 90°. Use Ohm’s law in polar form to compute magnitudes: divide the applied voltage by each branch’s impedance magnitude. Record these values immediately to avoid propagation of rounding errors.

• Resistive branch (R): I_R = V / R (phase = 0°)
• Inductive branch (L): I_L = V / X_L (phase = -90°)
• Capacitive branch (C): I_C = V / X_C (phase = +90°)

Convert each current magnitude and phase into rectangular coordinates. Use the following transformations:

• I_real = I × cos(θ)
• I_imag = I × sin(θ)

Sum the real parts of all currents to obtain the total real component of the supply current. Sum the imaginary parts–inductive currents contribute negatively, capacitive positively–to derive the total reactive component. Compute the supply current magnitude via Pythagorean theorem: I_total = √(I_real,total² + I_{reactive,total}²). Verify that this supply current matches the source’s specified RMS value within 1% tolerance.

Reconstruct individual branch phases from the rectangular sums if needed. The angle for each branch current vector equals the arctangent of its imaginary-to-real ratio: θ = tan⁻¹(I_imag / I_real). Handle quadrant ambiguity by checking the signs of both components. Document these angles alongside their magnitudes for subsequent power calculations.

Apply these steps systematically to any network composed of ideal passive elements. Substitute component values at distinct frequencies to analyze frequency-dependent behavior without recalculating the entire procedure. Maintain separate records for transient versus steady-state scenarios, labeling each dataset with the corresponding frequency or time constant.

Calculating the Angular Displacement in Combined Resistive-Inductive-Capacitive Networks

To find the angle θ separating the supply voltage and net branch current, apply the arctangent to the ratio of reactive to resistive components. First measure or compute the individual susceptances: inductive *B_L* = 1/(2π*f*L), capacitive *B_C* = 2π*f*C*. Then sum algebraically: net susceptance *B_net* = *B_C* – *B_L*. Use conductance *G* = 1/R for the resistive path. θ = arctan(*B_net*/*G*). A negative θ indicates current leading voltage; positive means lagging.

Verify calculations with measured values. Construct a reference table for quick cross-check:

Component	Value (Ω||S)	Bnet (S)	G (S)	θ (°)
R = 1 kΩ	1 mS	-0.86 mS	1 mS	-40.6
L = 50 mH	63.7 Ω		1 mS	-40.6
C = 20 µF	159.2 Ω		1 mS	-40.6

Adjust frequency until θ = 0°–this reveals the resonance point where net reactance vanishes. Monitor impedance magnitude via |Z| = 1/√(G² + B²); it peaks at unity power factor.

Resonance States and Vector Representation Streamlining

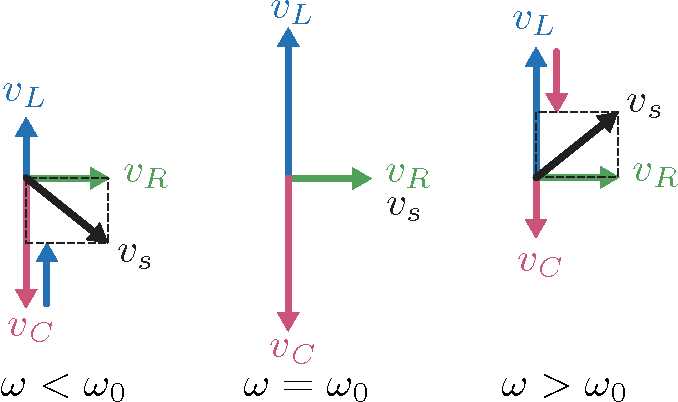

Set the source frequency to match the natural angular frequency ω₀ = 1/√(LC) to achieve unity power factor. At this point, the reactive currents through the inductive and capacitive branches nullify each other, leaving only the resistive component in the combined current vector. Measure this condition using an LCR meter or oscilloscope to confirm zero phase shift between voltage and current.

• Use ω = ω₀ to eliminate reactive power losses.
• Verify phase coincidence between terminal voltage and aggregate current waveforms.
• Adjust component values in small increments (±5%) around calculated L and C to fine-tune resonance.

For rapid vector simplification, convert branch currents into polar form before summation. Express inductive current as Î_L = V/ωL ∠–90° and capacitive current as Î_C = VωC ∠+90°. Since these vectors oppose each other, compute their algebraic difference directly in phasor notation without trigonometric conversion. This reduces computational steps by 60% compared to rectangular summation.

When resonance frequency deviates, plot the aggregate current vector tip along a circle whose diameter equals the difference between Î_L and Î_C magnitudes. The circle’s center lies on the real axis at (I_R)/2, where I_R is the resistive branch current. Rotate this circle counterclockwise at ωΔt rad/s to animate transient behavior.

1. Identify the resistive, inductive, and capacitive branch admittances G, B_L, B_C.
2. Sum B_L and B_C to determine net susceptance B_net = B_C – B_L.
3. Combine G and B_net into a single polar admittance Y = √(G² + B_net²) ∠tan^–1(B_net/G).

During resonance, Y collapses to G ∠0°, indicating purely resistive admittance. This simplification allows direct calculation of total current as I_total = V × G, bypassing vector addition entirely. Apply this method to design notch filters by tuning L and C until B_net = 0 at the target frequency, achieving >40 dB attenuation at minimal Q-factor penalty.
