Understanding Phasor Diagrams in AC Circuits Key Principles and Applications

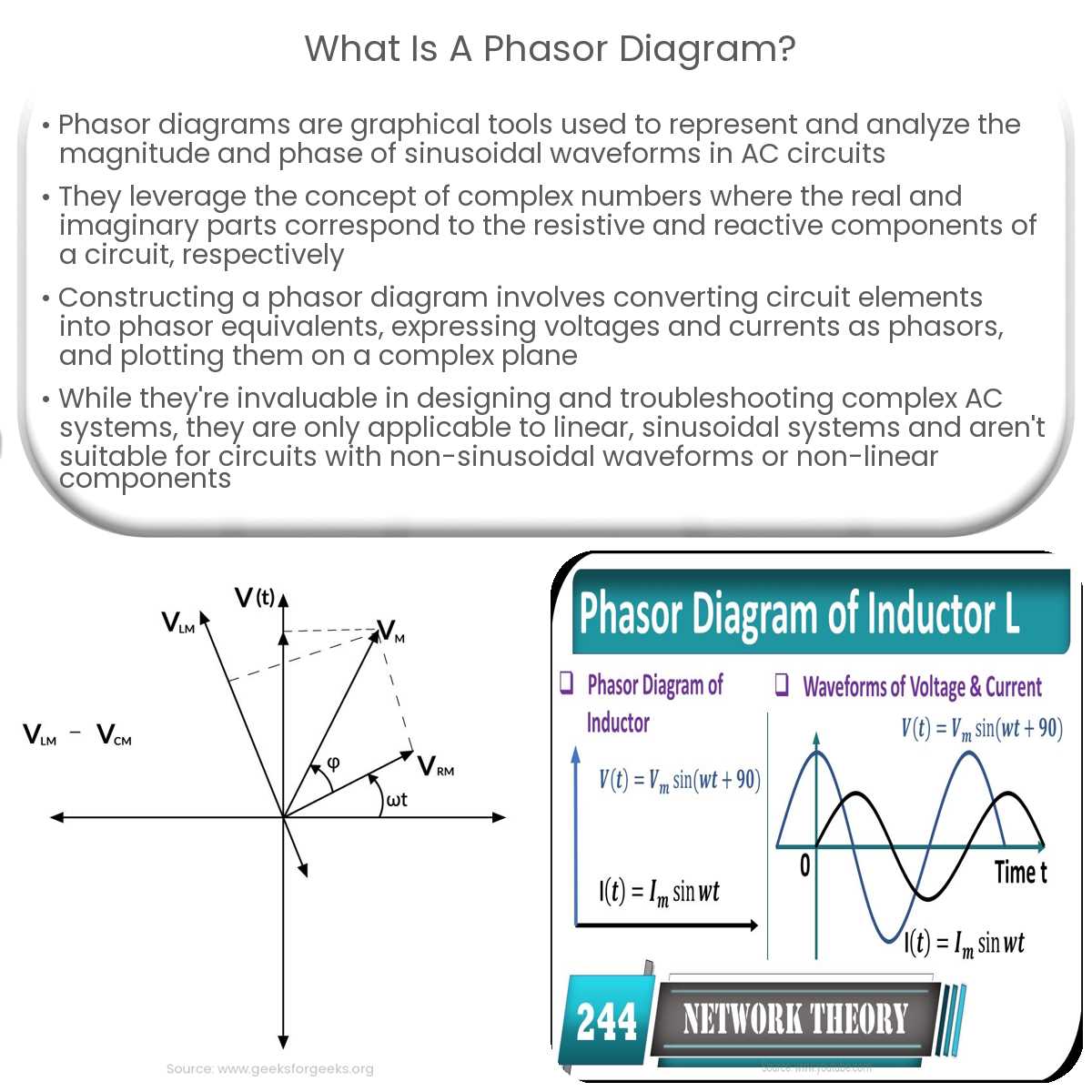

Start by visualizing sine waves as rotating vectors to simplify impedance calculations. For a purely resistive load, the current and voltage vectors align perfectly–no phase shift occurs. Introduce inductance, and the current vector lags the voltage by 90°, while capacitance forces it to lead by the same angle. Use these vector relationships to determine total impedance in series RLC configurations by applying Pythagoras’ theorem to the resistance and net reactance components.

Plot each vector with precise angles: 0° for resistance, +90° for inductive reactance, and -90° for capacitive reactance. The resultant vector’s magnitude gives the impedance, and its angle reveals the phase difference. For example, in a circuit with 3Ω resistance, 4Ω inductive reactance, and 2Ω capacitive reactance, the net reactance is 2Ω (inductive), yielding a total impedance of √(3² + 2²) = 3.61Ω with a phase angle of arctan(2/3) = 33.69°.

Verify calculations using complex numbers: Z = R + j(XL – XC). The real part is resistance; the imaginary part is net reactance. Convert between polar and rectangular forms to add impedances or compute current. In parallel branches, work with admittance (Y = 1/Z) instead–sum individual admittances and invert to find equivalent impedance.

Adjust vector lengths proportionally when currents or voltages differ. For instance, if voltage leads current by 45°, the angle between their vectors matches the phase shift. Use this diagram to troubleshoot: if measured phase shift deviates, trace discrepancies to incorrect component values or parasitic reactances.

Visual Representation of Alternating Current Behavior

Begin by plotting the reference vector horizontally for clarity. This establishes the baseline for comparing voltage and current relationships in resistive, inductive, and capacitive components. Example: a 50 Hz sine wave at 230V RMS should be drawn as a unit-length arrow pointing right, serving as the zero-degree phase reference.

Measure angles counterclockwise for consistency with mathematical conventions. Pure resistance aligns perfectly with the reference vector, while inductive loads lag by 90° (current trails voltage). Capacitive loads lead by 90° (current precedes voltage). For mixed loads, resolve components using vector addition–sum vertical (reactive) and horizontal (real) parts separately:

Component	Voltage-Current Angle	Impedance (Ω)
10Ω Resistor	0°	10∠0°
20mH Inductor (50Hz)	-90°	6.28∠-90°
100µF Capacitor (50Hz)	+90°	31.83∠+90°

Scale vectors proportionally to actual values–never use arbitrary lengths. A 30V peak across a capacitor should be represented as (30 / √2) = 21.21V RMS, plotted vertically upward. For series RLC combinations, calculate total impedance first: Z_total = √(R² + (X_L – X_C)²). The phase angle θ = arctan((X_L – X_C)/R) determines the vector orientation.

Use color coding for clarity: red for voltage, blue for current. Label magnitudes and angles directly on vectors, avoiding cramped annotations. Example: for a circuit with R=12Ω, L=38mH, C=150µF at 60Hz, total impedance is 18.8∠49.8°Ω–draw the resultant vector at 49.8° relative to the reference, with length proportional to 18.8Ω.

Verify diagrams against oscilloscope traces. Discrepancies often reveal calculation errors–double-check reactance values: X_L = 2πfL, X_C = 1/(2πfC). For parallel branches, plot individual vectors first, then find the geometric sum to determine total current magnitude and phase.

Rotate the entire plot to align problematic loads vertically if needed. This simplifies power factor correction analysis: pure inductive loads become upright vectors, making the compensating capacitive current (drawing downward) visually intuitive. Example: adding 80µF to a 20mH load at 50Hz shifts the net angle from -90° to -24.6°.

Constructing Vector Representations for Resistive, Inductive, and Capacitive Elements

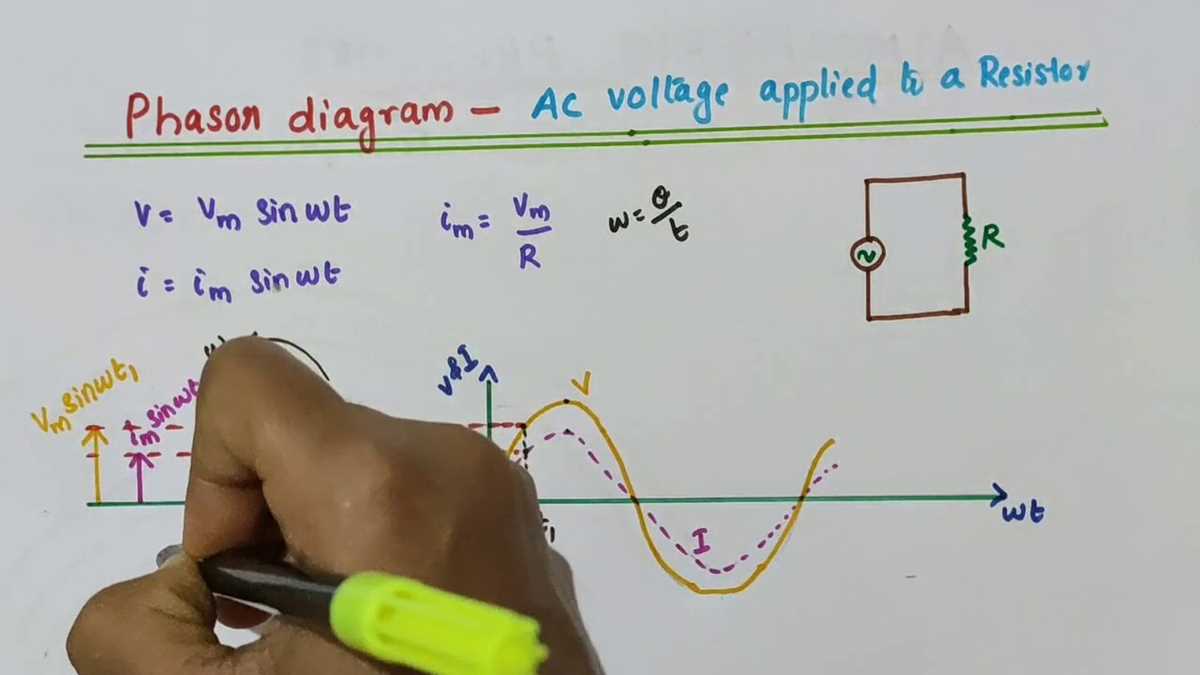

Begin by sketching a reference axis representing the voltage or current waveform of the source. Align the resistive element’s vector along this axis since voltage and current through a resistor maintain zero phase difference. Label this vector with its magnitude–either the RMS value of voltage (V_R) or current (I_R)–to establish scale for subsequent vectors.

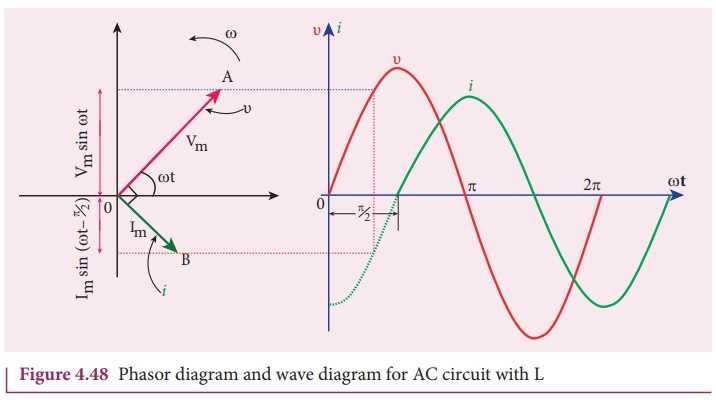

For inductive loads, draw a vector perpendicular to the reference axis, pointing upward. The length should equal the inductive reactance voltage (V_L = I × X_L) or current magnitude, depending on the chosen reference. This vector leads the resistive vector by 90° because current lags voltage in inductors. Ensure the angular separation is precise–use a protractor if drafting manually.

Capacitive elements require a vector perpendicular to the reference axis but pointing downward. Calculate its magnitude as V_C = I × X_C (or I_C if current is the reference). This vector trails the resistive vector by 90° since voltage lags current in capacitors. Verify magnitudes against computed reactance values (X_L = 2πfL, X_C = 1/(2πfC)) to avoid proportional distortion.

Key steps for accuracy:

• Select a consistent scale (e.g., 1 cm = 10 V or 1 A) to prevent visual misrepresentation.
• Use color-coding: red for resistive, blue for inductive, green for capacitive vectors.
• For series combinations, add vectors head-to-tail; for parallel, align tails at the origin.
• Rotate vectors counterclockwise for phase leads, clockwise for lags.
• Cross-check phase angles against impedance triangles (Z = √(R² + (X_L − X_C)²)).

When combining elements in series, sum the resistive vector with the net reactive vector (X = X_L − X_C). The resultant vector’s angle (θ) equals arctan(X/R), revealing the phase shift between total voltage and current. For parallel arrangements, sum current vectors instead, maintaining identical phase relationships. Always resolve vectors into horizontal (R) and vertical (X_L/X_C) components before calculating resultants.

Label all vectors with exact values and angles (e.g., 30 V @ +60°). Include the frequency (f) and component values (R, L, C) as annotations–these govern reactance magnitudes and phase shifts. For transient analysis, adjust vectors dynamically based on frequency sweeps; inductive reactance grows with f, while capacitive reactance shrinks. Use dotted lines for theoretical predictions and solid lines for measured data.

To validate the graphical representation, compute the power angles:

• Real power (P = VI cosθ) aligns with the resistive vector.
• Reactive power (Q = VI sinθ) aligns with the net reactive vector.
• Apparent power (S = √(P² + Q²)) matches the resultant vector’s magnitude.

Ensure the angle θ between S and P vectors visually matches the phase shift derived from the composite sketch. Discrepancies indicate calculation errors or drafting mistakes–re-examine reactance values and vector orientations.

Step-by-Step Method to Calculate Phase Angles in Series Alternating Current Networks

Begin by identifying the resistive (R), inductive (X_L), and capacitive (X_C) components in the series configuration. Record their values in ohms, ensuring all units are consistent–convert millihenries to henries and microfarads to farads if necessary. For example, a coil with 50 mH equals 0.05 H, and a capacitor rated at 220 µF equals 2.2 × 10^-4 F.

Compute the total reactance (X) using X = X_L − X_C. If X_L exceeds X_C, the net reactance is inductive; if X_C dominates, it becomes capacitive. A net reactance of zero indicates resonance, where voltage and current align in time. For instance, with X_L = 40 Ω and X_C = 15 Ω, X = 25 Ω (inductive).

Construct an impedance triangle with R as the base, X as the vertical leg, and the hypotenuse representing total impedance (Z). Calculate Z using Z = √(R² + X²). If R = 30 Ω and X = 25 Ω, then Z = √(30² + 25²) = 39.05 Ω. This triangle visually confirms the phase displacement between voltage and current.

Determine the phase angle (θ) using θ = tan^-1(X/R). A positive angle signifies current lagging voltage (inductive behavior), while a negative angle indicates current leading voltage (capacitive behavior). For the values above, θ = tan^-1(25/30) = 39.81°. Use a scientific calculator for inverse tangent precision, ensuring it is set to degrees, not radians.

Verify calculations by comparing measured values with theoretical predictions. Use an oscilloscope to observe waveform peaks–voltage peaks preceding current peaks in inductive loads, following in capacitive ones. Discrepancies often stem from component tolerance or parasitic elements; recheck initial values if the angle deviates more than ±2° from expected.

Repeat the process for varying frequencies to map behavior across the operational range. Record phase angles at multiple points–e.g., 50 Hz, 1 kHz, and 10 kHz–to identify frequency-dependent shifts. Plot these angles against frequency to visualize trends, such as resonance crossing zero displacement or phase inversion in RC-dominant networks.

Understanding Voltage and Current Phase Interactions in Side-by-Side Pathways

Begin by isolating each branch’s impedance: measure resistance, inductance, and capacitance to calculate the phase lag or lead between voltage and current. A purely resistive path exhibits zero phase shift, while inductive or capacitive branches introduce ±90° offsets. Record these angles for later comparison.

For parallel branches, the applied voltage remains identical across all pathways–this is your reference point. Align all current vectors relative to this voltage baseline. If one branch carries 5A with a +30° lead and another 3A with a -45° lag, sketch these quantities from the same origin to reveal their relative timing.

• Use a protractor or vector-capable calculator to verify angular separation between currents.
• Compare magnitudes alongside phase differences–dominant currents dictate overall behavior.
• Sum currents graphically or via trigonometric addition: break each into rectangular components (I cos θ + jI sin θ) and combine.

Inductive branches always lag the driving voltage, while capacitive paths lead it. When both exist in parallel, their currents oppose each other’s phase shift. For example, a 10Ω inductor and a 15Ω capacitor at 50Hz yield phase angles of +90° and -90° respectively–canceling effects if magnitudes match.

Check resonance conditions:_equal inductive and capacitive reactances nullify phase differences, leaving only resistive current. Verify by calculating net susceptance (B_L – B_C)–zero indicates ideal resonance.

In mixed branches (R-L-C parallel), compute individual current angles first, then find the resultant phase angle arctan((I_Lsin θ_L – I_Csin θ_C)/(I_R + I_Lcos θ_L + I_Ccos θ_C)). This angle shows the overall current’s timing relative to the shared voltage.

1. Measure branch currents with a true-RMS multimeter; phase angles require an oscilloscope.
2. Simplify analysis by converting all vectors to polar or rectangular form.
3. Avoid errors: confirm impedance calculations against actual component tolerances (±5% resistors, ±10% reactances).
