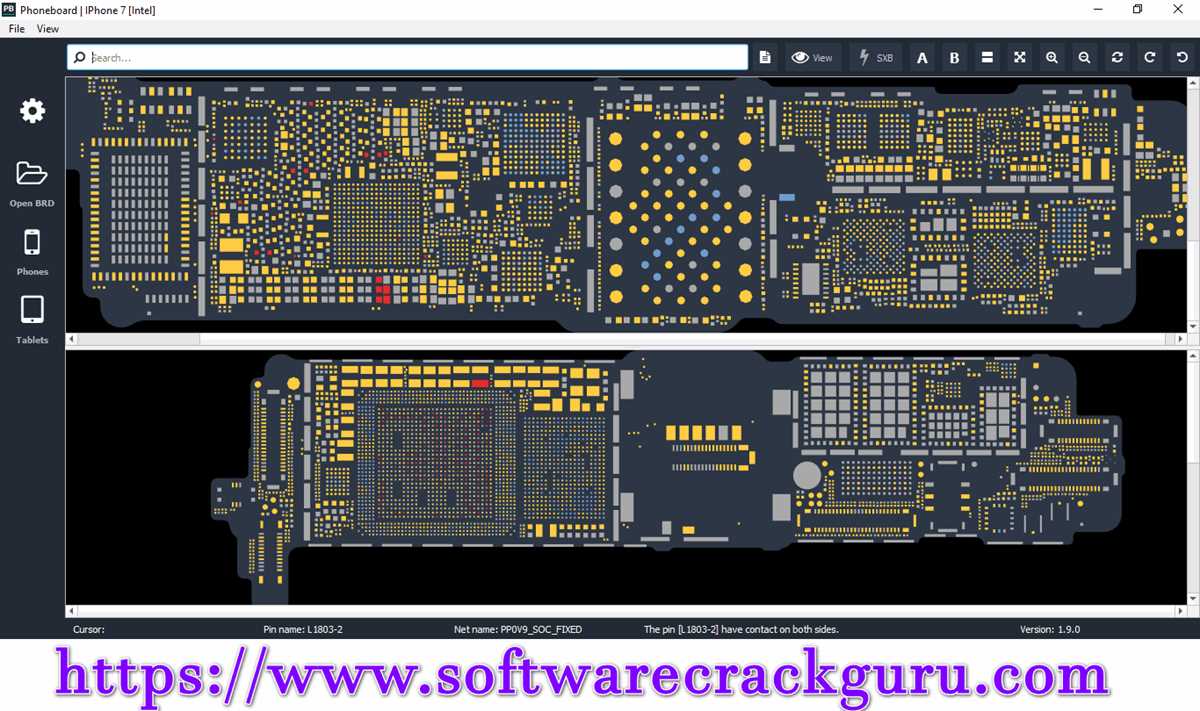

Understanding Smartphone Circuit Board Layouts and Key Components

Begin by identifying the power distribution network on the PCB layout. Trace lines from the battery connector to primary components like the PMIC (Power Management Integrated Circuit) and voltage regulators. Verify input/output voltages at each stage–typical values include 3.7V (raw battery), 3.3V (system logic), and 1.8V (RF modules). Use a multimeter in continuity mode to confirm paths before probing live circuits, as incorrect readings risk damaging sensitive parts.

Locate critical signal layers–GSM, Wi-Fi, and processor interfaces often occupy the top or bottom layers for thermal dissipation. HDI (High-Density Interconnect) designs bundle dense traces under BGAs (Ball Grid Arrays); expect 50–75 µm spacing. Cross-reference the CMOS image sensor connector with its VSYNC/HSYNC lines; improper grounding here causes artifacts in camera streams. For audio paths, check the CODEC’s I2S lanes–serial clock (SCLK) and left/right sync (LRCK) must align with the processor’s I2S peripheral specifications.

Decipher the embedded flash layout. eMMC or UFS storage typically connects via 8–11 data lanes (DAT0-DAT7), with CLK (clock) and CMD (command) lines. Boot failures often trace back to improper pull-up resistors on CMD (common: 22 kΩ to 1.8V). Inspect the DDR memory interface next–signal integrity demands matched trace lengths for data/address lines (

Examine RF pathways last. The antenna switch module routes signals to LTE, GPS, and Bluetooth front-ends. Trace the coaxial feed line from the RFIC to the antenna; impedance mismatches (>±10 Ω deviation) degrade signal strength. Look for low-pass filters on the receive path (typical cutoff: 800–900 MHz) to suppress harmonics. Ground vias around RF traces minimize EMI; omit them and risk desense in weak-signal areas.

Document each sub-circuit with annotations. Note component footprints: 0201 resistors for power decoupling, 0402 capacitors for analog filters. Record reference designators (e.g., C104, R207) alongside measured voltages. For debugging, prioritize hot-swap testing on power rails before diving into digital logic–overvoltage on a buck converter’s VOUT pin (e.g., 1.2V ±5%) can fry CPU cores silently.

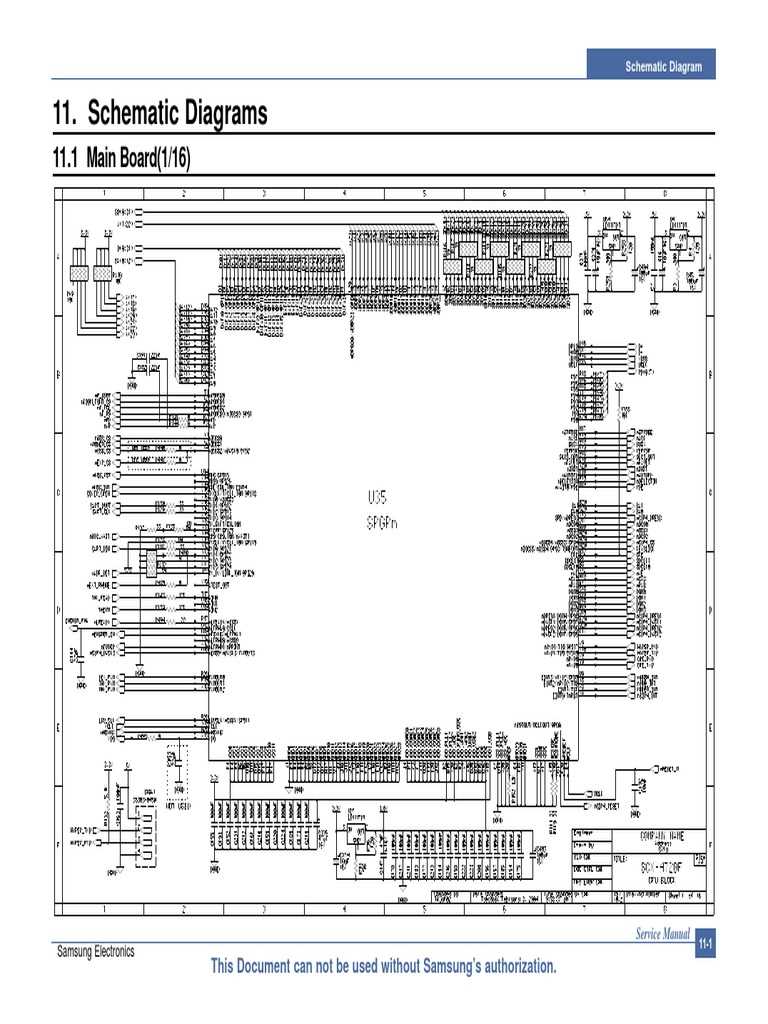

Understanding Mobile Device Circuit Layouts

Begin by identifying key power rails–VCC, VCORE, and VBAT–marked with solid red lines on most factory blueprints. Trace these lines backward to their sources: buck converters for VCC, linear regulators for low-noise rails like VCORE. Use a thermal camera to detect overheating on intricate multilayer PCBs; hotspots often correlate with failed inductors or blown capacitors near switching regulators. Measure resistance between ground and power nets with a precision multimeter–values below 1Ω typically indicate shorted MOSFETs, common in water-damaged units.

Critical Signal Paths and Debugging

Locate baseband processor and flash memory clusters via their distinctive BGA footprints; these components require reflow at 220°C for 30 seconds when replacing. Probe clock signals (CLK, MCLK) with an oscilloscope–clean square waves at 19.2 MHz confirm a stable crystal oscillator. Missing or distorted signals point to faulty PMIC outputs. Check antenna feeds with a network analyzer; return loss below -10 dB at 700 MHz and 2.4 GHz bands ensures proper RF tuning. For capacitance-sensitive traces, use a LCR meter at 1 kHz; deviations above 10% from nominal values signal failing filters or EMI shielding issues.

Document every test point (TP) label–TP_USB, TP_SIM, TP_CAM–using a high-resolution DSLR to capture silkscreen markings. Cross-reference these points against Gerber files to verify signal continuity. Replace cracked solder joints under BGAs with lead-free SAC305 alloy; preheat the PCB at 150°C for 5 minutes before reflow. For ESD-sensitive circuits like touchscreen controllers, ground wrist straps through a 1 MΩ resistor and store components in antistatic bags treated with nitrogen.

Automate netlist verification using Python scripts with KiCad’s API–compare extracted netlists against golden samples to catch open circuits in DDR traces. Use thermal vias filled with conductive epoxy under processors; skip this step and expect delamination after 100+ temperature cycles. For flex cables, crimp connectors with 0.3 Nm torque on the retaining screws; overtightening shears the copper traces. Keep spare parts organized in desiccant-filled boxes–humidity above 50% triggers corrosion on exposed gold fingers within 48 hours.

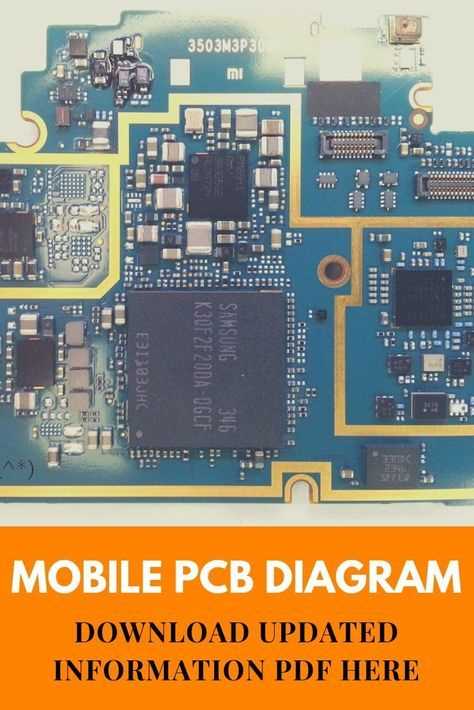

Key Components to Identify in a Mobile Device PCB Layout

Start by locating the application processor (AP), typically the largest BGA chip on the flex. Look for markers like AP, CPU, or manufacturer labels (e.g., Qualcomm Snapdragon, Apple A-series). Measure its pin pitch–common values are 0.4mm, 0.5mm, or 0.65mm–and count rows/columns to verify compatibility with datasheet specs. Trace nearby decoupling capacitors (often 0402/0603 size, 0.1µF–1µF), as their absence indicates poor power integrity. Check for EMI shields: if absent, RF sections may interfere with the AP’s operation.

• Power management IC (PMIC): Find a smaller BGA or QFN chip labeled PMIC, MT63xx, or MAXxxxx. Probe adjacent inductors (typically 2.2µH–4.7µH, marked with numeric codes) and output capacitors (2.2µF–10µF) to confirm buck converter stages. Missing inductors suggest a failed power rail.
• Flash storage: Identify NAND/NOR chips (e.g., Samsung KLMxG, Micron MT29F) via their ball grid arrays. Note the package type (BGA-153/169 for common mobile variants) and check for series resistors (10Ω–100Ω) on data lines, critical for signal integrity.
• RF front-end: Locate Skyworks, Qorvo, or Avago modules near antennas (coaxial cables or FPC pads). Verify low-pass filters (0Ω resistors or ferrite beads) on VBAT lines to prevent noise coupling into the transceiver.
• Sensors: Gyroscopes (STMicro LSM6DSL), accelerometers, and ambient light sensors often use LGA-10/12 packages. Trace their I2C/SPI lines; broken vias here cause calibration errors.

Step-by-Step Guide to Reading Power Delivery Traces

Locate the power rails on the circuit layout first–search for labels like “VBUS,” “VCC,” “5V,” or “Battery+”–and trace their path from the input connector to the primary switching regulator. Check for thick copper pours or wide conductive lines; these indicate high-current routes. Use a multimeter in continuity mode to confirm connections if the silkscreen is unclear.

Identify series components along the trace: inductors, capacitors (especially ceramic and electrolytic types), resistors (low-value shunts or sense resistors), and MOSFETs. Mark each component with its value and purpose–e.g., a 10µF capacitor near a buck converter is likely an input or output filter. Look for inductors with values between 1µH to 10µH, common in switch-mode regulators.

Examine the switching regulator IC–search for part numbers like “TPS62743,” “RT8204,” or “MP2315.” Cross-reference the datasheet to pinpoint the input (VIN), output (VOUT), enable (EN), and feedback (FB) pins. Draw a simplified block diagram of the regulator’s connections, noting how the feedback trace loops back from the load to the IC.

Check for current-sense resistors–these are often 0.01Ω to 0.1Ω smd parts. Measure voltage drop across them with an oscilloscope in DC mode to calculate current flow (I = V/R). Ensure the trace width matches the expected current; a 1A rail should have traces at least 0.5mm wide, while 3A rails require 2mm or more.

Look for transient suppression components: zener diodes, TVS diodes, or varistors near connectors. These protect against voltage spikes. Verify their breakdown voltage rating (e.g., 5.6V for a USB VBUS line). Trace the return path of the power delivery–ensure it connects to a solid ground plane without unnecessary vias.

Review thermal management: check for heatsinks or thermal vias under high-power ICs. Measure temperature rise with a thermal camera or thermocouple–anything above 85°C indicates potential inefficiency or inadequate cooling. Confirm that decoupling capacitors are placed within 5mm of the regulator’s input/output pins for stable operation.

Test dynamic behavior with a load step test: connect a programmable load and observe voltage ripple on an oscilloscope. Ideal ripple should remain below 50mV peak-to-peak. If ripple exceeds 100mV, increase output capacitance or reduce ESR. Document each step with annotated screenshots or hand-drawn traces for future reference.

Common Signal Lines and Their Functions in Mobile Hardware

Prioritize trace integrity for VBAT pathways–this primary power rail delivers unregulated voltage directly from the battery. Use 1-2 oz copper thickness for these traces to minimize resistive losses, especially in high-current scenarios like fast charging. Bypass capacitors (typically 10-47 μF) should be placed no farther than 2 mm from the power management IC to suppress transients.

VCC_MAIN supplies core logic at 3.3V or 3.8V–verify its stability under dynamic loads using an oscilloscope with 100 MHz bandwidth. If ripple exceeds 20 mVpp, add ferrite beads in series or increase bulk capacitance to 220 μF. Shield adjacent signal lines with ground pours to prevent crosstalk during peak current draws, such as RF transmission bursts.

Clock signals (CLK_32K, CLK_26M) require impedance-controlled routing to prevent skew. Maintain trace lengths under 50 mm for CLK_26M to avoid phase shifts that disrupt PLLs in application processors. Use daisy-chain topology instead of star configurations for clock distribution–ensure termination resistors (typically 22-50 Ω) are placed on each branch’s endpoint.

Data lines (MIPI_DSI, MIPI_CSI) demand differential pair routing with 90 Ω (±10%) controlled impedance. Keep intra-pair skew below 1 ps/mm by matching trace lengths to within 0.5 mm. Shield these pairs with ground on both sides, spacing guard traces at least 3x the signal trace width to reduce EMI susceptibility from nearby digital lines.

I2C bus traces (SCL/SDA) should be pulled up to 1.8V or 3.3V using 10 kΩ resistors–lower resistance (4.7 kΩ) accelerates rise times but increases power consumption. Route these lines away from high-speed signals; if unavoidable, insert shielding vias every 10 mm. Address conflicts by verifying slave device IDs during prototyping–enable I2C filtering in firmware to ignore spurious noise exceeding 50 ns.

Reset lines (NRESET) must beFiltered with a 0.1 μF capacitor to ground, positioned within 2 mm of the processor’s reset pin. Avoid shared ground returns for reset circuits–use a dedicated via to the ground plane to prevent false resets during transients. Test reset pulse widths with a logic analyzer; ensure they exceed 10 μs to guarantee reliable initialization.

Audio interfaces (MICBIAS, HPH_L/R) require separate ground returns for analog and digital sections. For MICBIAS, use a 2.2 μF capacitor to decouple noise from the power rail–failure to do so introduces audible artifacts when the microphone is active. Route headphone traces with 50 Ω impedance; keep them away from switching regulators to avoid inductive coupling.

Test points for critical signals should use 0.5 mm via holes–this size balances accessibility with minimal parasitic inductance. Document test point functions alongside the layout; annotate net names with silk-screen labels that survive reflow soldering. Use a four-wire Kelvin connection for precision measurements on power rails to eliminate probe resistance errors.
