PIC Microcontroller Circuit Design Guide with Detailed Schematic Examples

Start with a 16F877A or 18F452 for reliable prototyping–their pinouts simplify breadboard testing. Power the board with a regulated 5V DC source, ensuring decoupling capacitors (0.1µF ceramic) are placed within 2mm of each power pin to prevent voltage spikes. For clock signals, use a 20MHz crystal oscillator paired with two 22pF load capacitors–this configuration stabilizes timing for UART and ADC operations.

Connect the MCLR pin through a 10kΩ pull-up resistor to V_CC and add a push-button to ground for manual resets. When interfacing with sensors, assign analog inputs (AN0-AN7) to dedicated pins and disable digital buffers (CMCON = 0x07) to reduce noise. For ICSP, route V_PP, PGD, PGC to a 6-pin header, keeping traces short to avoid programming errors.

Optimize PCB layout by grouping power rails (V_CC, GND) into a star topology, separating analog and digital grounds at a single point–this minimizes crosstalk. Use 10µF tantalum capacitors near the power entry for bulk filtering. For debugging, allocate RB0/RB1 for in-circuit testing, enabling real-time monitoring without external tools. Avoid routing signals under oscillators or switching regulators to prevent EMI.

Verify connections with a logic analyzer before powering the board–check for 3.3V/5V compatibility on all I/O lines to prevent damage. Label test points (TP1, TP2) directly on the silkscreen for easier troubleshooting. If using SMD components, match trace widths to current demands: 0.5mm for signals, 2mm for power. Store firmware in EEPROM for non-volatile data, reserving flash memory for program code.

Designing Microcontroller Schematics for Precise Control

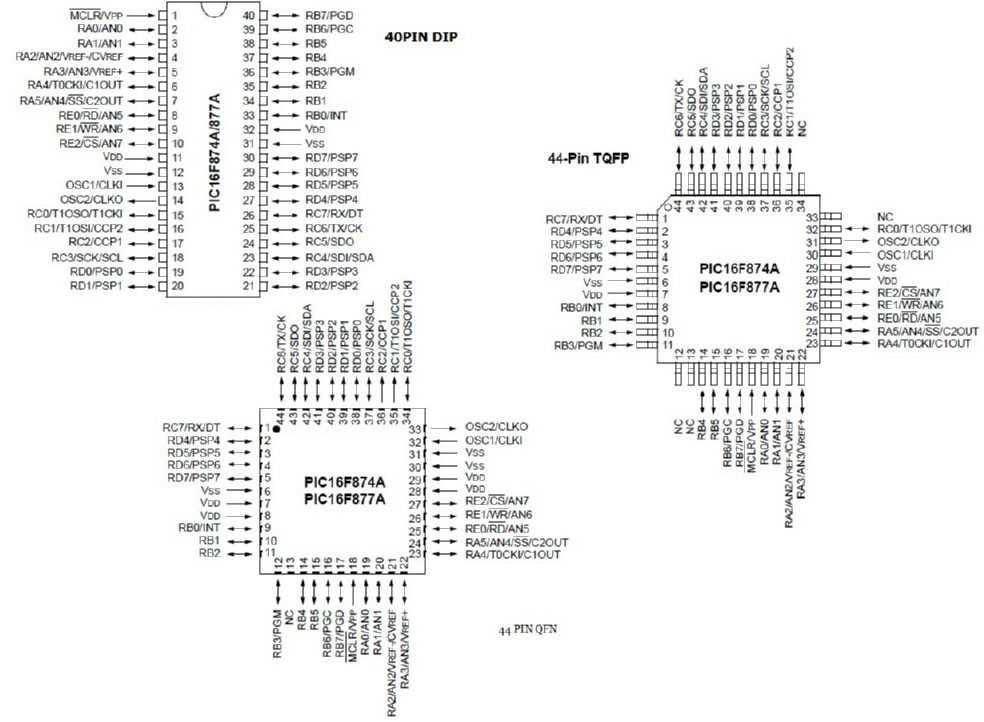

Begin with selecting a 16F877A or similar MCU variant–it supports 40 pins, includes 8 KB flash memory, and operates at 20 MHz. Power requirements demand a regulated 5V supply; use an LM7805 with input caps (0.33µF ceramic at Vin, 0.1µF at Vout) to prevent ripple exceeding 50 mV. Ground planes should be continuous beneath the MCU to reduce noise; isolate analog grounds with a single via near the ADC reference pin.

Clock configuration critically impacts execution speed. A 20 MHz external crystal needs two 22 pF load capacitors to the oscillator pins; stray capacitance above 7 pF risks unstable oscillation. Bypass capacitors (0.1 µF X7R) must sit within 2 mm of each power pin to suppress transient currents during instruction cycles. Program the watchdog timer for 2.3-second intervals if reset protection is needed.

Signal Routing and Peripheral Integration

Route GPIO traces away from high-current paths; traces wider than 0.25 mm reduce resistive drops in PWM outputs driving MOSFET gates. For UART communication, keep TX and RX traces under 15 cm and match impedances to 50 Ω by adjusting trace widths over ground plane thickness. Pull-up resistors on I²C lines should be 2.2 kΩ to ensure 3.3V logic compatibility while sourcing 1.5 mA.

Analog inputs tolerate leakage below 1 µA; tie unused ADC pins to ground via 10 kΩ resistors to prevent floating inputs. Store calibration values in EEPROM; erase-write cycles last 10 ms, plan firmware delays accordingly. Verify schematic symbols in KiCad by cross-referencing pin numbers with manufacturer datasheets–pin 13 misalignment causes accidental short circuits during assembly.

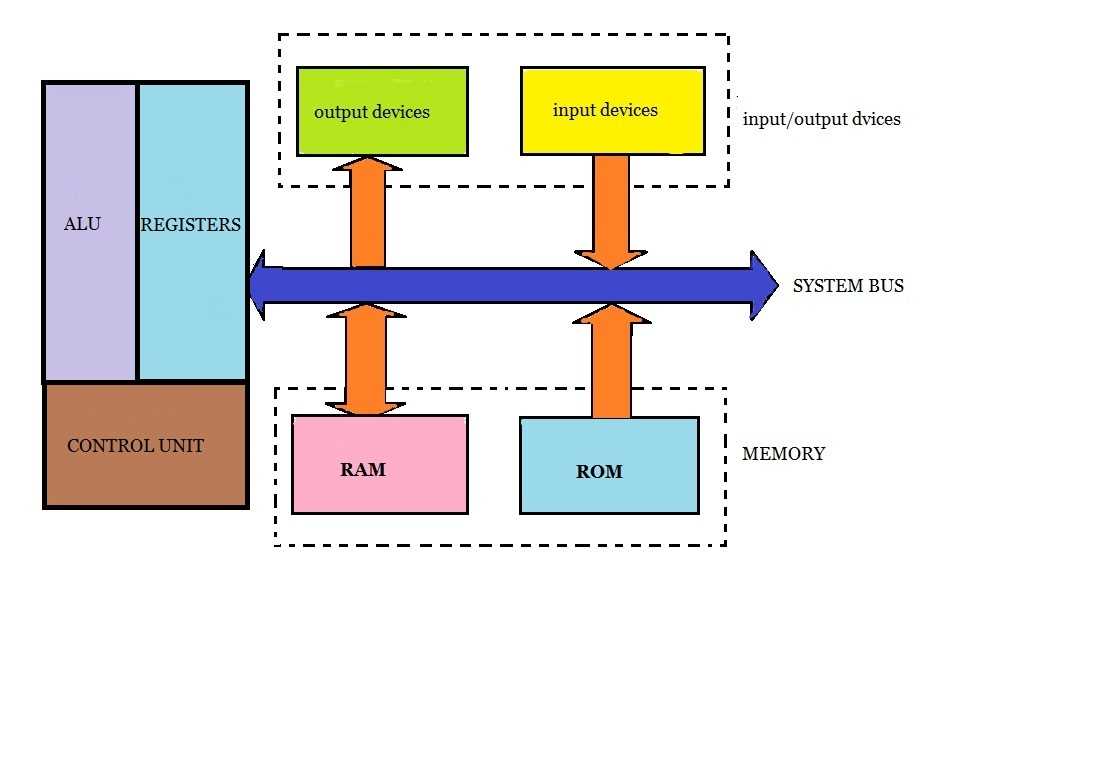

Core Elements for a Fundamental Microcontroller Setup

Select an 8-bit, 16-bit, or 32-bit microcontroller variant based on computational demands. The PIC16F877A (40-pin DIP) suits most low-power applications, while the PIC32MX series delivers 32-bit performance for complex tasks. Verify pin count, operating voltage (typically 2.0V–5.5V), and onboard peripherals like UART, SPI, or timers before procurement. Always cross-reference specifications with project requirements to avoid over-engineering.

Power regulation mandates a LM7805 linear voltage regulator for stable 5V output or a LM1117 for 3.3V systems. Input voltage ranges must align with the regulator’s dropout (e.g., 7–18V for 7805). Decoupling capacitors (0.1µF ceramic) near the microcontroller’s power pins suppress high-frequency noise, while bulk electrolytic capacitors (100µF) smooth low-frequency fluctuations. Skip these, and risk erratic reset behavior or ADC inaccuracies.

Crystal oscillators provide clock signals; 20MHz crystals paired with 15–30pF load capacitors are standard. For precision timing, a DS3231 real-time clock module compensates for temperature drift. Internal oscillators (e.g., 4MHz–8MHz RC) suffice for cost-sensitive designs but sacrifice accuracy. Ensure the chosen oscillator matches the microcontroller’s maximum rated frequency to prevent unintended latch-up or timing violations.

In-circuit programming relies on a 5-pin ICSP header (MCLR, VDD, GND, PGD, PGC). For development, a PICKit 3/4 or ICD 4 debugger interfaces directly with MPLAB X IDE. Avoid cheap clones–they corrupt firmware during voltage spikes. Include a 10kΩ pull-up resistor on MCLR to prevent spurious resets during serial communication. Jumper cables should be 22–26 AWG to minimize voltage drops.

Reset circuitry demands a tactile switch with a 10kΩ pull-up resistor to VDD. Adding a 100nF capacitor across the switch debounces contact bounce, critical for stable boot sequences. For noisy environments, a MAX811 supervisor IC monitors VDD and triggers a clean reset if voltage dips below 4.65V. Omit this, and risk corrupted EEPROM or flash memory.

Peripheral integration starts with current-limiting resistors (220Ω–1kΩ) for LEDs to avoid overloading GPIO pins (max 20mA per pin). For analog sensors, ensure ADC channels have a 10kΩ–100kΩ input impedance to prevent signal distortion. I2C devices require 4.7kΩ pull-ups to 3.3V/5V; omit them, and bus communication fails silently. Opto-isolators (e.g., PC817) separate high-voltage loads from the microcontroller to prevent ground loops.

Firmware development hinges on MPLAB X IDE for writing, compiling, and debugging code. Use XC8/XC16/XC32 compilers–each optimized for specific architectures. For low-level control, assembly language manipulates hardware registers directly, while C/C++ balances readability and performance. Always verify EEPROM data retention (typically 100K erase/write cycles) and allocate persistent storage variables accordingly to avoid premature wear.

Step-by-Step Wiring Guide for Microcontroller Power Supply Connections

Begin by identifying the voltage input pins on your controller board–often marked as VDD or VCC for logic supply and VSS for ground. Most 8-bit controllers require 2.0–5.5V, while 16/32-bit variants typically need 3.0–5.5V. Measure input voltage with a multimeter before proceeding; fluctuations outside ±5% of nominal value risk permanent damage.

Use a regulated DC source with at least 10% current overhead beyond the controller’s maximum rating. For example, a device drawing 200mA needs a 250mA supply minimum. Linear regulators (AMS1117, LM1086) suit low-noise applications, while switching regulators (LM2596, MP2307) handle higher currents but introduce switching noise. Select components based on load requirements:

Controller Type	Typical Current (mA)	Recommended Supply	Input Voltage Range (V)
Low-power (8-bit)	10–50	AP2112	2.5–5.5
Mid-range (16-bit)	50–200	AMS1117-3.3	4.5–12
High-performance (32-bit)	200–500	LT1086 or LM2596	6–20

Decouple the supply pins with ceramic capacitors (0.1µF) placed BLM18PG121SN1) or pi-filters.

Connect the primary power source to a dedicated VIN pin if available, bypassing onboard regulators. For battery-operated setups, use a Schottky diode (1N5817) to prevent reverse current. Inrush current during startup can exceed 1A; mitigate with soft-start circuits (MIC2779) or NTC thermistors.

Verify connections before applying power. Probe the VDD pin with an oscilloscope–ripple should not exceed 50mV_pp. If using USB power (5V), ensure compliance with USB specifications (4.75–5.25V); unstable sources may require a buck-boost converter (TPS63000). For automotive applications (6–24V), employ a TVS diode (SMAJ18A) to clamp voltage spikes.

Finalize wiring with stress relief–secure jumpers with heat-shrink tubing or strain-relief mounts. Avoid shared ground loops by separating digital/analog grounds and connecting them at a single star point. Test each segment sequentially: power rail → onboard regulator → controller pins. Record observed voltages and currents for troubleshooting.

Configuring Clock Sources and Initialization Pins on Microcontroller Boards

Start with an external crystal between 4 MHz and 20 MHz for stable timing; connect the primary oscillator input (OSC1) and output (OSC2) pins to the crystal leads via 15–22 pF load capacitors. For low-power designs, replace the crystal with a ceramic resonator, ensuring the capacitance matches the resonator’s specified load. Avoid wire runs longer than 20 mm without shielding–parasitic inductance distorts waveforms at higher frequencies.

• Use a 1 MΩ resistor across the crystal to prevent overtone oscillation in high-gain modes.
• Include a 0.1 µF decoupling cap within 5 mm of the V_DD and V_SS pins adjacent to the oscillator inputs.
• For internal RC oscillators, disable external clock sources to prevent phase conflicts–consult the datasheet for register bits (e.g., FOSC).

The reset pin (MCLR) must be pulled high to V_DD via a 10 kΩ resistor; connect a 0.1 µF cap in parallel to filter transients shorter than 1 µs. For manual reset, add a pushbutton between MCLR and ground–avoid direct shorting to prevent latch-up. In brown-out scenarios, pair the pull-up with a 5.1 V Zener diode to clamp overshoot during power dips. On 3.3 V systems, reduce resistor values to 4.7 kΩ to maintain valid logic levels when sourcing current through parasitic diodes.

For multi-rail designs, isolate the reset network from other power domains using a Schottky diode to prevent back-feeding. Measure reset pulse width with an oscilloscope–ensure it exceeds 2 µs after V_DD stabilizes to guarantee proper initialization. Disable internal pull-ups via configuration bits if external supervisor ICs (e.g., MCP130) are present; omit the resistor entirely when using such devices.
