How to Create and Interpret Schematic Diagram Visuals Step by Step
Select vector-based formats over raster images for technical illustrations. SVG or EPS files retain clarity when scaled, unlike PNG or JPEG, where edges degrade at higher resolutions. This distinction matters for printed circuit layouts, mechanical assembly guides, or wiring charts–precision determines usability. Open-source tools like Inkscape or KiCad export these formats natively; proprietary alternatives like Adobe Illustrator require manual adjustments to preserve line weights and anchor points.
Adopt a strict layering system when organizing visual blueprints. Separate power rails, signal paths, and annotations into distinct layers. In PCB design, for example, keep copper traces, silkscreen text, and drill holes isolated to prevent accidental edits. Most CAD software (Eagle, Altium, or Fusion 360) enforces this structure by default, but user-generated errors often stem from merged layers or mislabeled components.
Color-code critical paths for immediate recognition. Use red for high-voltage lines, blue for ground connections, and yellow for data buses. Avoid rainbow palettes–excessive hues complicate troubleshooting. Standardize these schemes across projects; inconsistency leads to misinterpretation. For monochrome prints, rely on line styles (dashed, solid, dotted) to distinguish paths instead of colors.
Annotate every connector, resistor, or switch with labels matching the bill of materials. Include reference designators (e.g., R1, C5) and component values (e.g., 10kΩ, 0.1µF) directly on the visual. Omitting these forces users to cross-reference documentation, increasing error risk. Automated tools like Fritzing or DipTrace generate these labels automatically; verify alignment manually to prevent overlapping text.
Optimize file sizes without sacrificing detail. For complex systems (e.g., industrial control panels), split visuals into modular blocks. A single 50MB file slows down editing and collaboration; dividing it into functional sections (power supply, microcontroller, sensors) improves performance. Use compression algorithms like ZIP for archives, but avoid lossy methods that corrupt text or lines.
Validate visual accuracy against physical prototypes. Cross-check pinouts, trace widths, and component placement against datasheets or measured outputs. A single misaligned trace in a switching regulator schematic can cause thermal failure. Digital simulators (LTspice, Proteus) help, but real-world testing is mandatory–software models may omit parasitic capacitance or thermal effects.

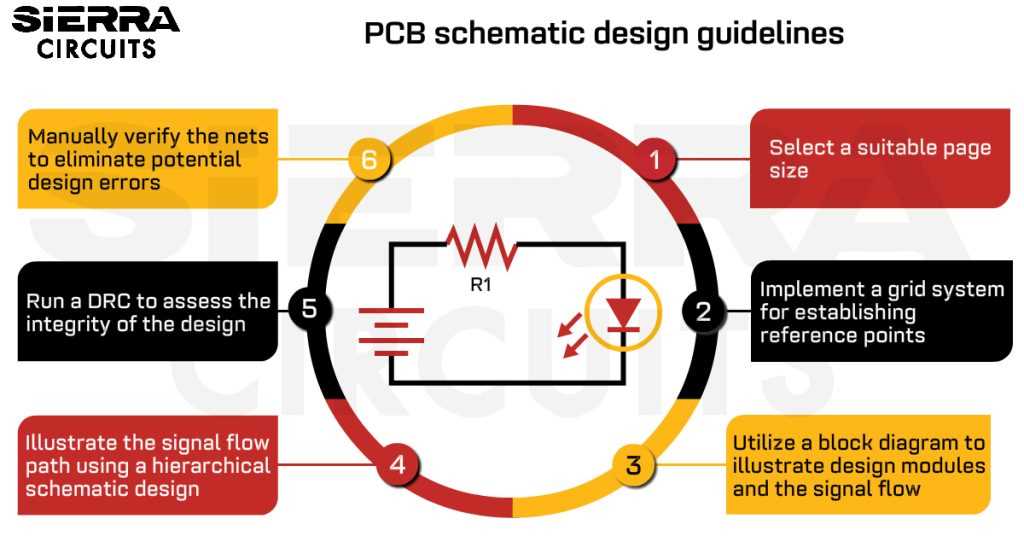

Visual Representations of Circuit Blueprints: Actionable Techniques
Start by selecting symbols that match industry standards–IEEE or IEC–to ensure immediate recognition. Use distinct shapes for resistors (rectangles), capacitors (parallel lines), and transistors (three-terminal symbols) without altering their proportions. Standardize line weights: 0.5mm for signal paths, 0.7mm for power rails, and 0.3mm for auxiliary connections. Avoid decorative elements like shadows or gradients, as they reduce clarity under magnification.
Group related components in modular blocks, labeling each with uppercase identifiers (e.g., “AMP1,” “PSU_CORE”). Place labels horizontally above or to the right of elements, using a sans-serif font (Arial or Helvetica) at 10-12pt for visibility. For dense layouts, employ a grid system with 2.5mm spacing to prevent crowding. Color-code functional sections: red for high-voltage, blue for logic, green for ground planes, but limit to three colors maximum to avoid confusion.
Tool-Specific Optimization
| Software | File Format | Resolution (DPI) | Layer Rules |
|---|---|---|---|
| KiCad | SVG | 300 | Separate layers for annotations |
| Altium | 600 | Disable mechanical layers in export | |
| Eagle | PNG | 400 | Use “monochrome” setting for line art |
Export outputs at 300-600 DPI for digital use and 1200 DPI for print. Use vector formats (SVG, PDF) for scalability; rasterize only when necessary. In Altium, disable “include reference zones” to eliminate extraneous borders. For multi-page designs, insert hyperlinked markers in PDFs to navigate between sheets without scrolling.
Validate clarity by printing a 1:1 scale prototype on standard A4 paper. Trace critical paths (e.g., clock signals, power distribution) with a colored pen–if the line isn’t visible through the paper, increase contrast or line weight. Test colorblind accessibility using tools like Color Oracle, ensuring red-green distinctions remain discernible.
Error-Proofing Layouts
Add a revision block in the lower-right corner with fields for version, date, and author initials. Include a legend for non-standard symbols (e.g., custom ICs) directly on the sheet. For PCB-derived visuals, overlay copper layers in 50% opacity gray to distinguish them from schematic lines. Cross-reference component IDs between bills of materials and layouts using automated tools–manually verifying 10% of entries catches 90% of mismatches.
Use junction dots at wire intersections (1.5x line thickness diameter) to indicate connections–omitting these causes ambiguity. For hierarchical designs, nest sub-circuits in dashed rectangles with labels identifying input/output ports. When documenting high-frequency nets, add transmission line specifications (e.g., “50Ω microstrip”) adjacent to the signal path.
Archive master files in uncompressed formats (e.g., ZIP for KiCad projects, .ADZ for Altium) with a SHA-256 checksum for integrity verification. Store backup copies on two physically separate media (e.g., NAS + cloud), updating them after every critical edit. For collaborative workflows, require pull requests with before/after comparison images to highlight changes.

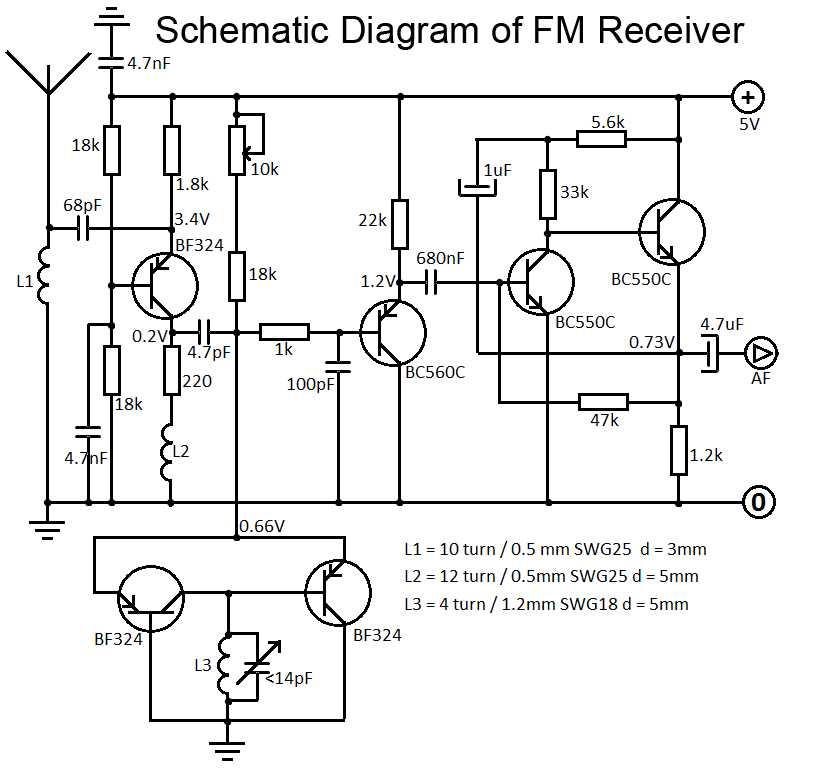

How to Identify Critical Elements in Circuit Representations
Begin by scanning the layout for standardized symbols: resistors appear as zigzag lines or rectangles labeled “R,” capacitors as parallel lines (polarized) or curved plates, and transistors as three-terminal devices with distinct emitter, base, and collector markings. Integrated circuits often display as rectangular blocks with numbered pins–compare pinouts to datasheets to confirm functionality. Power rails (VCC, GND) typically run horizontally or vertically with thicker lines, while signal paths use thinner traces; trace these connections to determine component roles within the system.

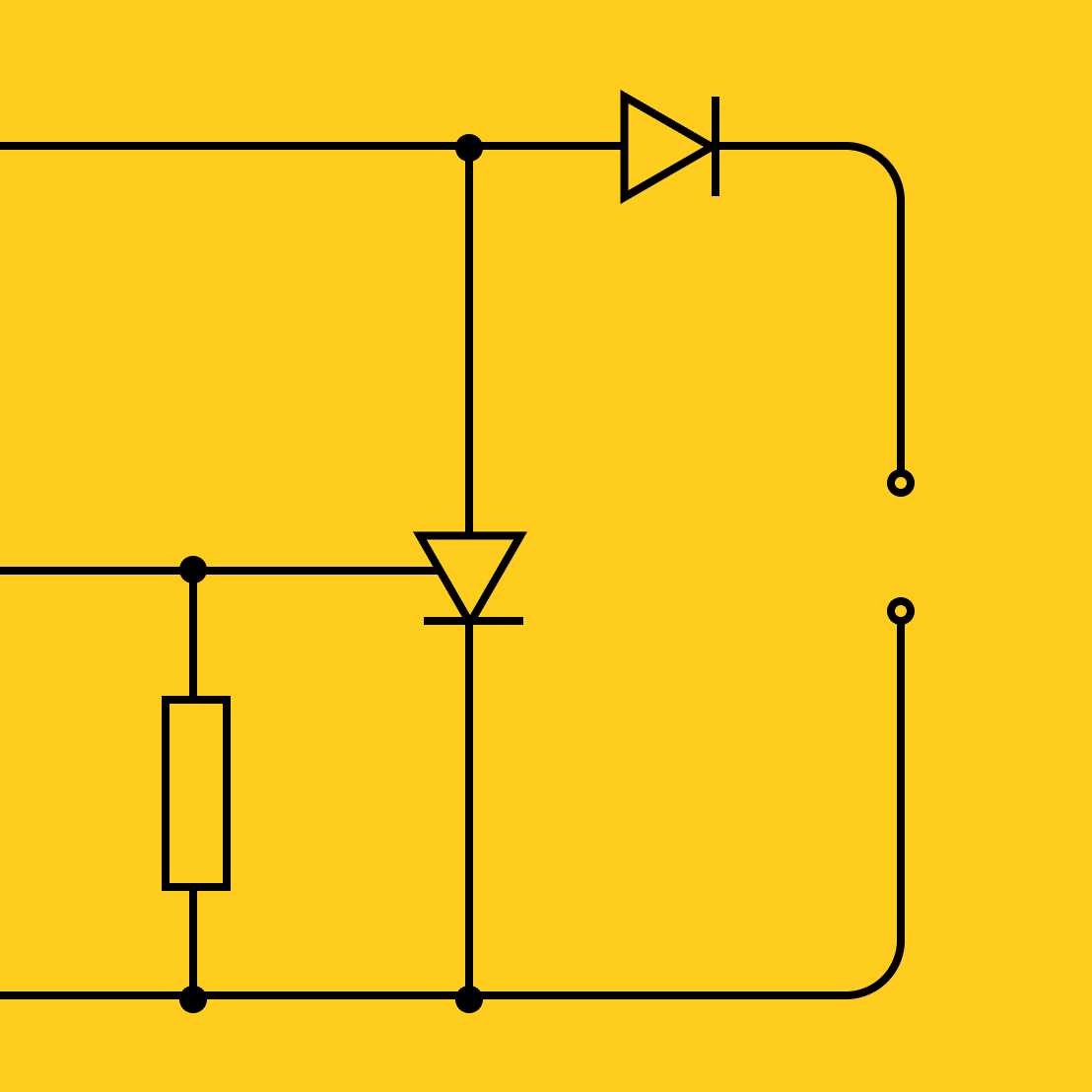

- Highlight passive elements first: inductors (coiled lines), diodes (triangles with a line), and transformers (interlinked coils) have unmistakable shapes. Note component values–these dictate behavior (e.g., 10kΩ resistors limit current, 10µF capacitors filter noise).

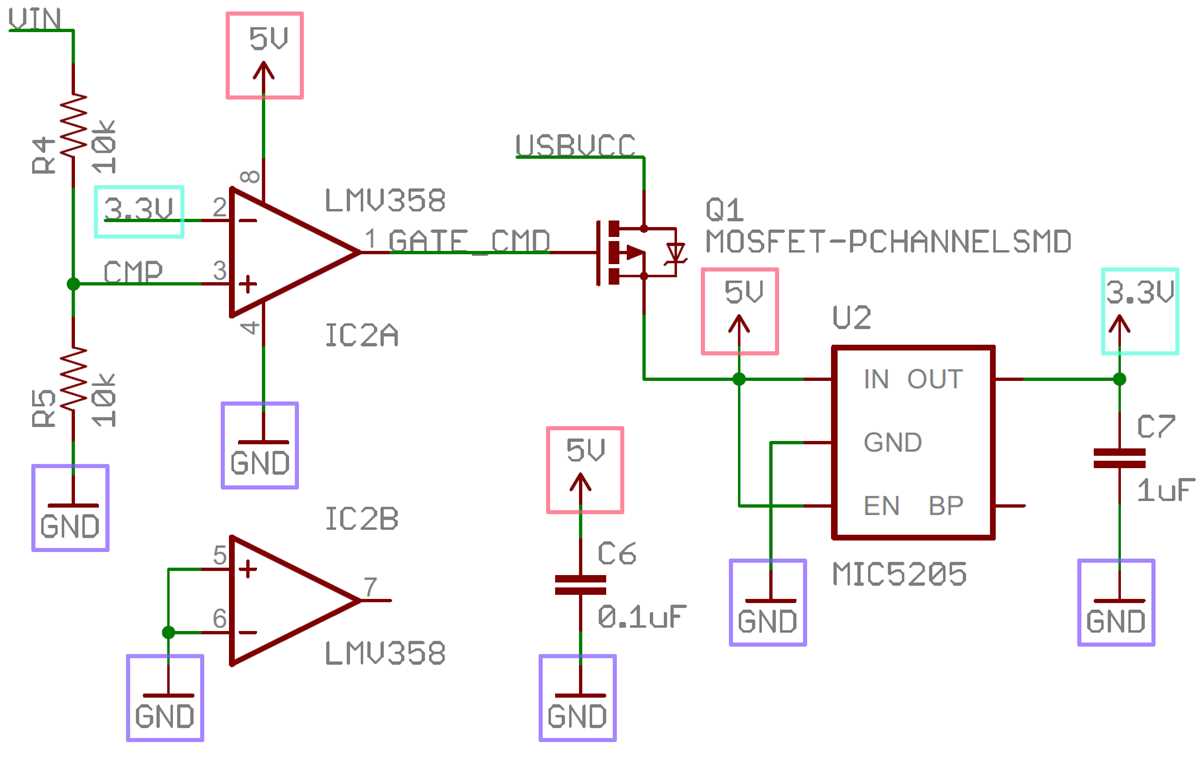

- Isolate active components: MOSFETs show three terminals (gate, source, drain) with optional body diodes, while op-amps appear as triangles with inverting/non-inverting inputs. Look for text annotations (e.g., “U1,” “Q2”)–these correlate to reference designators in bills of materials.
- Verify connections between ICs: address buses (A0-A15) and data buses (D0-D7) often run in parallel, while control lines (CS, WR, RD) branch off individually. Cross-reference these with microcontroller datasheets to identify memory mapping or peripheral interfaces.
Step-by-Step Process for Converting Hand-Drawn Drafts to Digital Files
Use a flatbed scanner set to 300–600 DPI monochrome or grayscale for line-based sketches. Ensure the scanner lid is closed tightly to avoid shadows, and crop the scan before export to eliminate edges. Save the raw scan as TIFF or PNG to preserve crisp edges–JPEG compression softens thin lines. For smartphone capture, position the sketch on a matte, evenly lit surface (e.g., 5000K LED lighting) and use gridlines in the camera app to avoid distortion. Shoot perpendicular to the paper; angled shots introduce keystone errors requiring later correction.
- Pre-process in raster software:
- Open the scan in GIMP/Photoshop. Use Levels (Ctrl+L) to stretch pixel values–drag the left slider to the first histogram peak, the right slider to the last peak.
- Apply Despeckle (Filters → Noise → Despeckle) with default settings to remove stray marks. For ink bleeds, use the Healing Brush (radius 3–5px) instead of the eraser.
- Thresholding: Convert to 1-bit (Image → Mode → Bitmap, threshold 50%) to separate strokes from background. Invert if strokes are light.
- Vectorize using Inkscape:
- Import the 1-bit image into Inkscape. Select Path → Trace Bitmap, use Brightness Cutoff preset, adjust threshold to 0.4–0.6.
- Delete the original raster layer. Ungroup paths (Ctrl+U) and remove redundant nodes: Select Path → Simplify (tolerance 0.5) or manually delete nodes at sharp corners.
- For curves, replace Bezier segments with arcs: Double-click a segment, click Insert New Node near the center, then drag until tangent matches. Delete intermediate nodes.
Optimization for Specific Outputs
For PCB layouts, export as DXF with Emulate PDF Text disabled. Mechanical drawings require precise scaling: measure a known dimension in Inkscape, then resize canvas (File → Document Properties) to exact mm/inch values. Electrical symbols should follow IEEE Std 315-1975–use Inkscape’s Align and Distribute panel (Shift+Ctrl+A) to standardize spacing (e.g., 5mm between pins, 10mm for grounds). For publication-ready files, export PDFs with subsets embedded; vector fonts ensure no rasterization at 600% zoom.
Friction pens (e.g., Sakura Micron 0.35mm) scan cleaner than ballpoints, but require 800 DPI to capture fine details. If redraw is necessary, lock the raster layer in Inkscape and trace on a new layer using Stroke (no fill), set to 0.3px width. Test exported SVGs in target software (KiCad, Fusion 360) immediately–unexpected scaling often occurs due to differing coordinate systems (e.g., Inkscape’s 96 DPI vs. Autodesk’s 72 DPI). Correct by applying scale(0.75) transform matrix in XML editor.
