DIY PID Temperature Controller Circuit Design and Wiring Guide

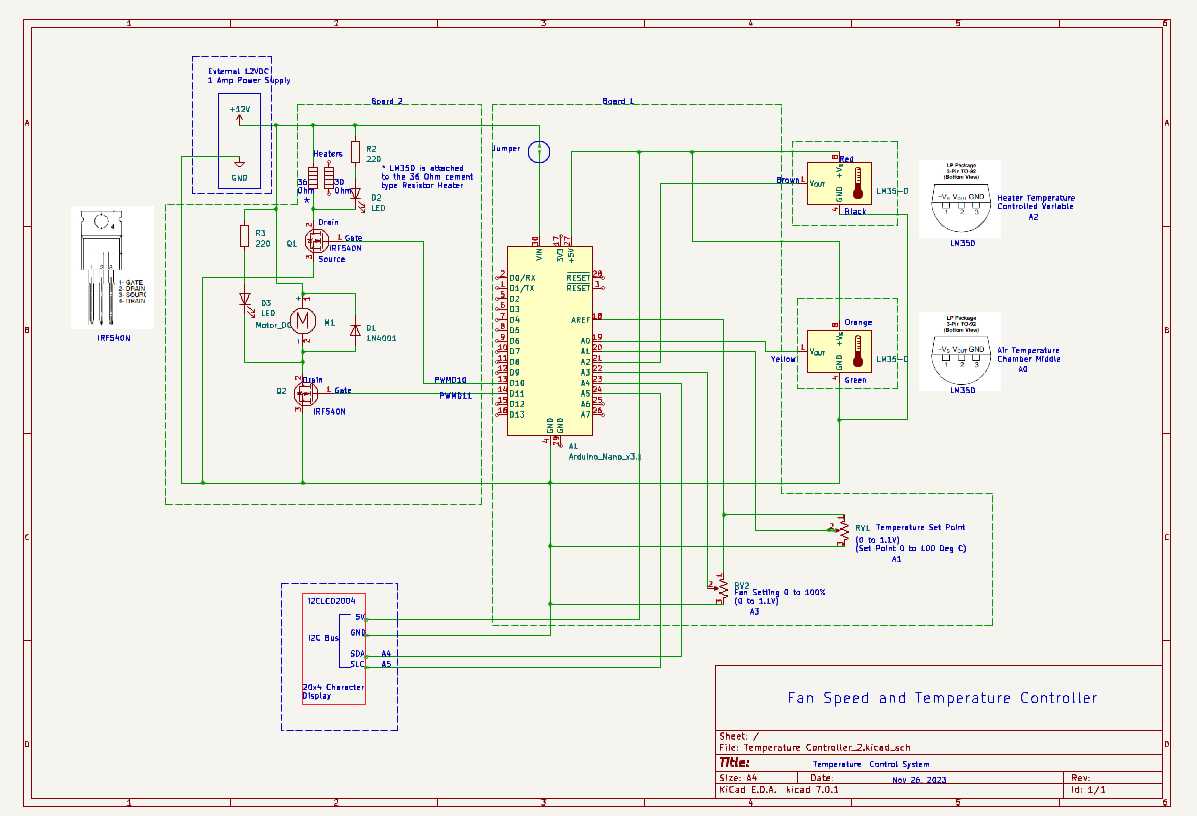

Start with a proportional-integral-derivative core implemented on a STM32F103 or ATmega328. Use 12-bit ADC sampling at 100 Hz to capture sensor data from a PT100 or K-type thermocouple with MAX6675 isolation. Ground the analog reference near the microcontroller to cut noise below 1 mV. Power the circuit from a 24V SMPS feeding a LM2596 buck converter for a clean 5V rail–avoid linear regulators due to thermal drift.
Wire the feedback loop through a TLC27L2 op-amp in non-inverting configuration with gain = 10 to boost the thermocouple signal to match 3.3V logic levels. Place a 100 nF capacitor between the op-amp output and inverting input to stabilize the derivative term; omit it if overshoot exceeds 2 °C. Output switching uses a IRF540N MOSFET driven by a TC4427 gate driver–optocoupler isolation is unnecessary if the load is resistive and under 10 A.
For tuning, run open-loop step tests at 50 %, 75 %, and 100 % duty cycle. Record the system’s rise time (typically 8-12 s for a 2 kW heater) and settling time (≤ 60 s). Use Ziegler-Nichols settings as starting points: Kp = 1.2 × (Trise / (L × A)), where L is dead time (≤ 2 s) and A is process gain. Reduce Ki by half if integral windup causes a 3 °C overshoot. Derivative action is optional for slow thermal systems–disable if fluctuations exceed 0.5 °C over 30 s intervals.
Mount the PT100 directly on the heater block with thermal epoxy; silicone paste introduces 5-7 °C hysteresis. Keep signal traces under 10 cm and away from PWM lines. Add a 10 kΩ pull-down on the MOSFET gate to prevent ghost switching during microcontroller reset. Log data via UART at 115200 baud to a host PC using a FT232RL converter–raw values should match ±0.2 °C when cross-validated with a Fluke 17B.
Designing a Precision Thermal Regulation Circuit Layout

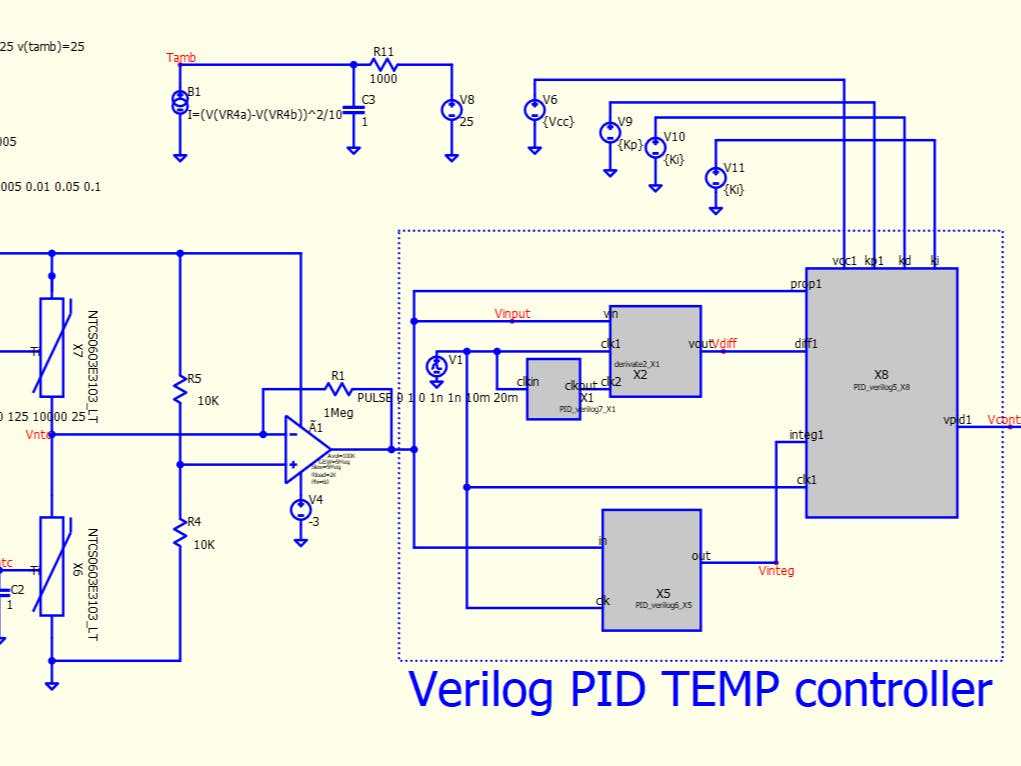

Start with a triode-based amplification stage using a low-noise op-amp like the LM358 to condition sensor signals before feeding them into the compensation network. Place a 10kΩ trimpot in series with the feedback loop to fine-tune proportional gain–this eliminates overshoot by allowing real-time adjustments during calibration.
For integral action, substitute a generic capacitor with a polypropylene film type (e.g., WIMA FKP1) that withstands temperature drift. Size it between 1µF and 10µF depending on the settling time requirements: smaller values respond faster but risk steady-state oscillations; larger values introduce sluggishness but stabilize output.
Derivative compensation demands a precision resistor-capacitor pair. Use a metal-film resistor (e.g., Vishay PR0300) with ±1% tolerance paired with a class-1 ceramic capacitor. Position this network directly at the op-amp’s inverting input to minimize noise pickup from adjacent traces–keep leads under 5mm in length.
Key layout considerations:
- Route high-current paths (heater drivers) on separate layers from analog sections.
- Use a star ground topology to prevent ground loops–connect all grounds at a single point near the power supply.
- Thermocouple wires must be twisted with a shield grounded at the measurement end only to avoid noise coupling.
- Isolate digital control lines (e.g., PWM outputs) from analog signals with guard traces connected to a quiet ground.
Power the circuit with a dual-rail supply (±12V) for op-amps and a single 5V rail for microcontroller logic. Decouple each rail with 0.1µF ceramics at every IC pin and bulk electrolytics (100µF) at the board entry point. For heat-generating components, mount TO-220 regulators on thermal vias connected to a copper pour that acts as a heatsink.
Test the assembled board with a dynamic load: attach a 10W ceramic resistor as a dummy load and monitor output stability using an oscilloscope. Adjust the trimpots in this sequence–first integral, then proportional, finally derivative–to achieve a critically damped response with less than 2% overshoot on a 0–100°C step input.
Key Components for Building a Precision Heat Regulation System
Begin with a high-accuracy sensor like the PT100 or thermocouple type K, ensuring linearity within ±0.1°C across the target range. Pair it with a precision instrumentation amplifier such as the AD8495 (for thermocouples) or MAX31865 (for RTDs) to convert low-level signals into a 0–5V or 4–20mA output with minimal noise. Avoid generic op-amps–thermal drift and input bias current will degrade performance below 1°C resolution.
Signal Conditioning and Isolation
Isolate the sensor frontend using an optocoupler or digital isolator (e.g., ISO7842) to block ground loops and high-voltage spikes from heating elements. Implement a 16-bit ADC (ADS1115) for sampling; lower resolution introduces quantisation errors visible as hysteresis. Place an anti-aliasing RC filter (fc = 10 Hz) before the ADC to reject 50/60 Hz mains interference–calculate R and C values using 1/(2πRC) to match the cutoff frequency.
Select a microcontroller with hardware PWM and sufficient clock speed (STM32F4 series or ESP32-C6) to execute the control loop in under 10 ms. Avoid software PWM; jitter causes output fluctuations above ±0.5°C. Flash a fixed-point PID routine using integer arithmetic–floating-point adds latency and non-deterministic execution times.
Drive the load via a solid-state relay (SSR) or IGBT module (e.g., MOC3041 + BTA41-600B) rated at twice the expected RMS current. For inductive loads, add a freewheeling diode and snubber network (47 Ω resistor + 0.1 µF capacitor) across the load terminals to suppress voltage transients. Heatsink the SSR according to dissipation curves–1 W per ampere without forced air, halved with a fan.
Power and Safety Circuits
Feed the control circuit from a dedicated 5 V/1 A SMPS–linear regulators introduce thermal coupling between sensor and actuator rails. Include a polyfuse (0.5 A) on the 24 V heater supply and a varistor (15V MOV) to clamp transients. Monitor supply voltage with a comparator circuit–dropout below 4.5 V triggers an immediate fail-safe shutdown to prevent runaway heating.

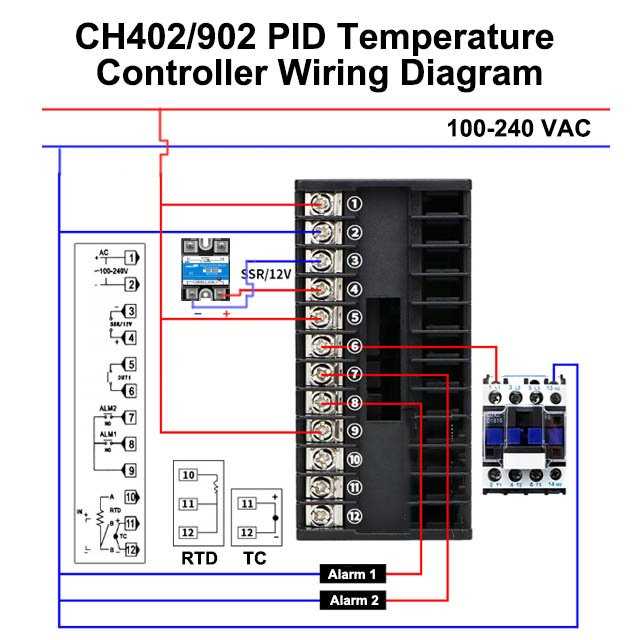

Step-by-Step Wiring Layout for a Precision Regulator and Heater
Begin by connecting the power supply to the primary switch. Use a 24V DC or 230V AC source, depending on the heater’s voltage rating–verify the manufacturer’s specifications to avoid mismatches. A 10A fuse should be placed in series with the live wire to prevent overcurrent damage. Route the fused line to the main relay coil input, ensuring the relay’s contact rating exceeds the heater’s peak wattage by at least 20%.
Attach the thermocouple or RTD sensor directly to the heater’s surface using thermal paste and mechanical clamping. K-type thermocouples (0–400°C) are ideal for most resistive heaters, while PT100 RTDs offer higher precision for low-temperature applications. Wire the sensor to the designated input terminals on the regulator, observing polarity–incorrect connections will cause erratic readings or failure to stabilize. For noisy environments, shield the sensor wires with braided copper and ground the shield at a single point to minimize interference.
Secure Interface Connections
Link the regulator’s output terminals to the relay’s coil, confirming the coil voltage matches the control signal (typically 5–24V DC). If the relay is solid-state, ensure it’s compatible with the heater’s AC/DC requirements–triacs handle AC loads, while MOSFETs or SSR outputs suit DC. For mechanical relays, add a flyback diode (1N4007) across the coil to suppress voltage spikes. Connect the relay’s common and normally open (NO) contacts in series with the heater’s power lead, isolating the control circuit from high-current paths.
Install a 10kΩ potentiometer or 0–10V/4–20mA signal source to set the target value. Calibrate the regulator’s span using the built-in setup menu: for a heater rated at 200°C, adjust the input range to 0–250°C to avoid saturation. If the device supports PID tuning, disable auto-tune and manually set proportional band (5–15%), integral time (2–10 seconds), and derivative time (0.5–2 seconds)–start conservatively to prevent overshoot. Test with a thermal camera or multimeter to verify steady-state error below ±2°C.
Final Safety and Validation Checks
Mount a thermal cutoff switch (e.g., Klixon 100°C) in series with the heater’s power line as a secondary failsafe. Integrate an LED indicator across the relay’s coil to confirm activation–use a 1kΩ resistor to limit current to 10mA. For inductive loads, install an RC snubber (0.1μF + 100Ω) across the relay contacts to reduce arcing. Document wire gauges: 18AWG for signal paths, 12AWG for heater circuits (up to 10A), and 10AWG for higher currents.
Before energizing, measure insulation resistance between all conductors and the chassis (minimum 1MΩ at 500V DC). Cycle the system through a full thermal range (ambient to max target) while monitoring for oscillations–adjust PID values if response exceeds ±5°C from setpoint. For dual-zone heaters, synchronize regulators using a 0–10V cascade signal, ensuring the slave unit’s integral term is 1.5× the master’s to avoid hunting.
Enclose the assembly in a ventilated IP65-rated enclosure if operating in humid or dusty environments. Label all terminals with heat-resistant tags, and use ferrules on stranded wires to prevent fraying. For extended cable runs (>5m), use twisted pairs and differential signaling to cancel noise. Perform a final load test at 110% of the heater’s rated power for 30 minutes–record voltage, current, and stability metrics to establish a baseline for future maintenance.
