PIR Motion Sensor Lighting Circuit Guide with Wiring Schematic
Start with a HC-SR501 sensor module–set its delay to 3–5 seconds via the onboard potentiometer. Lower values risk false triggers; higher values waste power. Connect the sensor’s VCC to 5V DC, ensuring stable voltage to avoid erratic detection. The OUT pin outputs a 3.3V logic signal when motion is detected–use this to switch a BC547 transistor directly, or opt for a MOSFET (IRFZ44N) for higher loads.
For LED arrays, wire the transistor’s collector to the positive side of the 12V strip, emitter to ground. Add a 1N4007 diode parallel to the LED string to suppress voltage spikes when switching inductive loads like relays. If dimming is needed, replace the transistor with a PWM-capable driver (e.g., ULN2003), but ensure the sensor’s supply remains isolated to prevent noise interference.
Ground loops often cause erratic behavior–tie all component grounds (sensor, transistor, load) to a single point near the power source. Use 18 AWG wire for sensor signals and 16 AWG for power lines to minimize voltage drop. Test the detection range with the sensor’s sensitivity screw–adjust to ±5 meters for indoor use, ±10 meters for outdoor applications with a fresnel lens.
For AC-powered lamps, isolate the low-voltage section with an optocoupler (PC817) before driving a 240V relay module. Keep high-voltage traces at least 3mm apart on protoboards to meet safety standards. Calibrate the sensor’s daylight cutoff (LDR or onboard ambient module) to avoid daytime activation–set it to trigger only below 5 lux for reliable operation.
Power efficiency drops if using linear regulators–swap for a buck converter (LM2596) to step 12V down to 5V with 90%+ efficiency. Add a 100µF capacitor across the sensor’s power pins to filter noise from long cable runs. Finalize with a 2-second debounce delay in firmware if using a microcontroller like Arduino to ignore transient flickers.
Building an Automated Motion-Triggered Illumination System: Key Steps
Select a 12V passive infrared sensor module with adjustable sensitivity and delay–opt for models like HC-SR501 or AM312, which offer 3.3–12V compatibility and 3m+ detection range. Pair it with a relay module rated for 10A at 250VAC to handle high-wattage bulbs without voltage drop. Wire the sensor’s output pin directly to the relay’s control input, ensuring the load connects to the relay’s common and normally open terminals. For power, use a 12V 2A adapter; avoid cheap wall-warts, as voltage fluctuations can cause false triggers or relay chatter.
Component Pairing and Troubleshooting
| Sensor Model | Recommended Relay | Max Load | Common Issues | Fixes |
|---|---|---|---|---|
| HC-SR501 | SRD-05VDC-SL-C | 200W (incandescent) | Random triggering at dusk | Add 10kΩ pull-down resistor on output pin |
| AM312 | HF46F-G | 50W (LED) | Flickering under AC load | Insert 1N4007 diode across relay coil |
| BISS0001 | G5LE-1 | 300W | Delayed response outdoors | Shield sensor with Fresnel lens cover |
Mount the detection module 1.8–2.2m above ground, angled downward 15–25° for optimal motion capture. Test coverage by walking parallel to the sensor axis–adjust range trimmer clockwise to narrow detection width or counterclockwise to expand it. For outdoor installations, seal all connections with heat-shrink tubing and apply dielectric grease to terminals to prevent corrosion from humidity or salt spray. If using LED strips, add a 220μF capacitor across the power input to smooth current surges that may reset the sensor.
Key Components for Building a Motion-Triggered Detection Setup
Select a passive infrared module with a detection range of at least 5 meters and a 60-110-degree field of view. Models like the HC-SR501 offer adjustable sensitivity and a built-in delay timer (3-300 seconds), while the AM312 consumes only 30µA in standby, ideal for battery-powered designs. Pair it with a low-noise, low-dropout regulator (e.g., AMS1117-5V) if powering from a 12V source–this prevents false triggers caused by voltage spikes. For outdoor use, ensure the sensor’s lens has a UV-resistant coating and is sealed against condensation; brands like Panasonic’s AMN3311 include these features.
Power Delivery and Switching Elements
Use a MOSFET (IRFZ44N) or a solid-state relay (SSR) to handle loads up to 20A–bipolar transistors (e.g., TIP120) may overheat with prolonged activation. For microcontroller integration, opt for a 3.3V-compatible unit with hysteresis (e.g., BIS0001 IC) to avoid rapid on/off cycling. Include a flyback diode (1N4007) across inductive loads (e.g., solenoids, relays) to suppress voltage spikes. If dimming is required, replace the MOSFET with a TRIAC (BT136) and pair it with an optocoupler (MOC3041) to isolate high-voltage AC circuits.

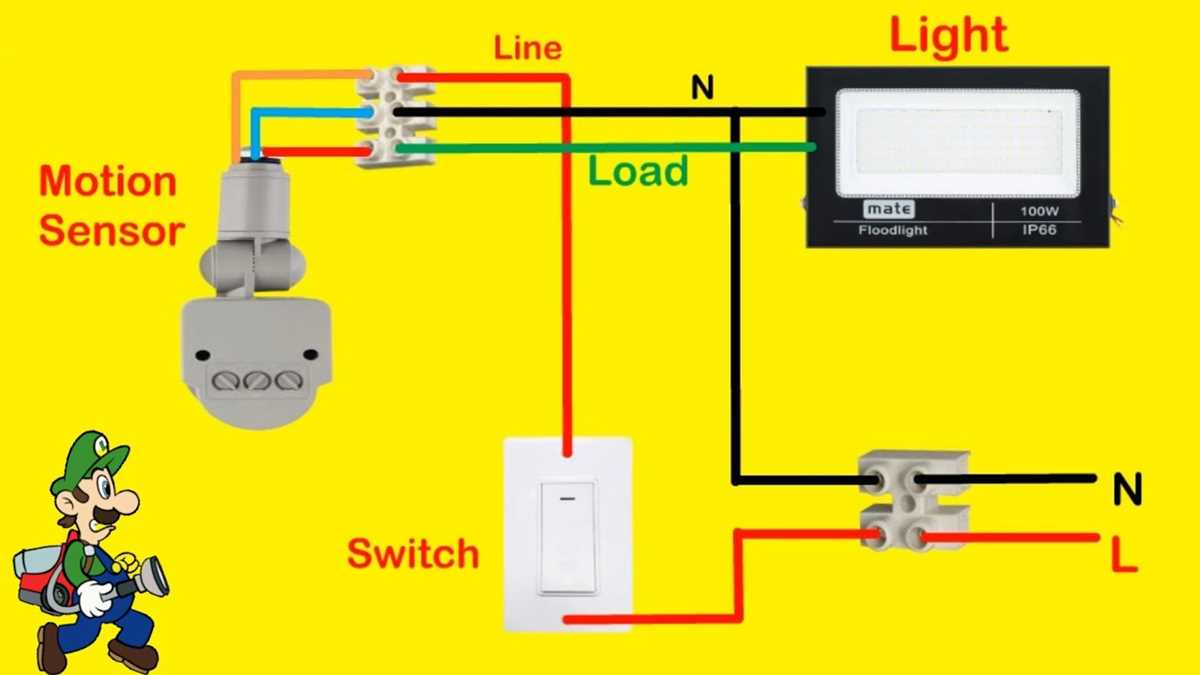

Step-by-Step Guide to Connecting a Motion Detector to a Switching Module and Bulb
Begin by stripping 5–7 mm of insulation from the ends of all wires to ensure clean contact. Secure the sensor module’s power input wires–typically red (+12V) and black (ground)–directly to a 12V DC power supply using soldered joints or screw terminals rated for at least 2A. Verify voltage stability with a multimeter; fluctuations above ±0.5V can cause false triggering or premature relay wear. Avoid connecting the sensor’s output (usually yellow) at this stage to prevent accidental short circuits during testing.

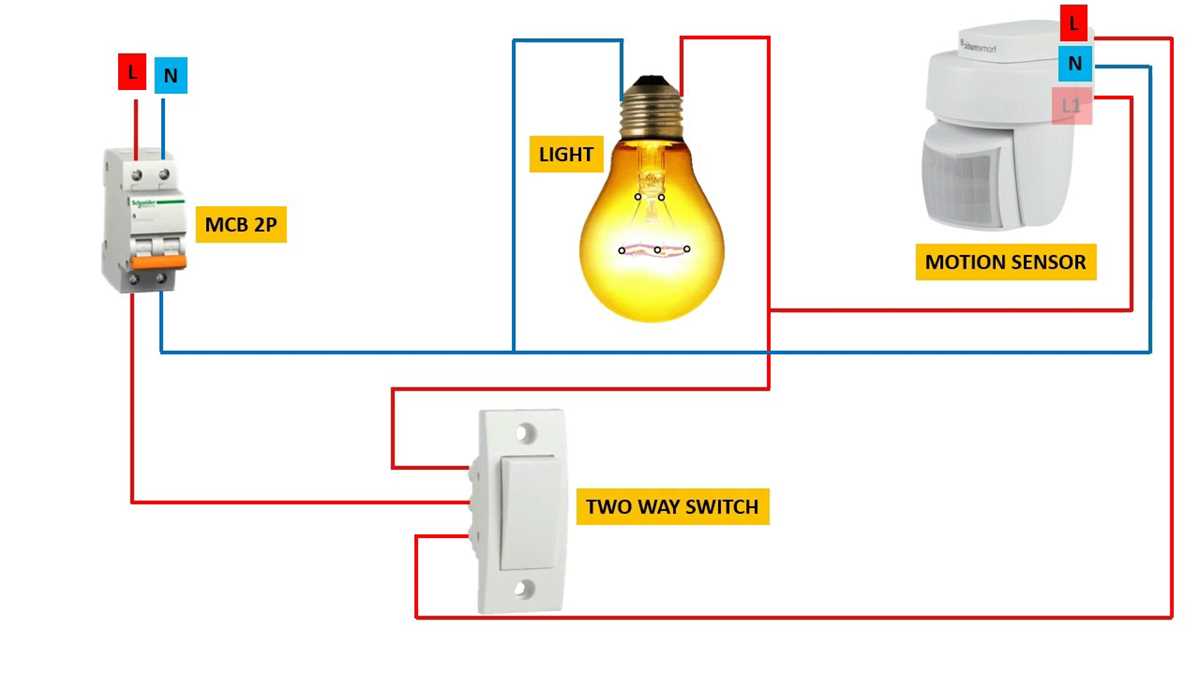

- Relay Integration: Choose a 5V or 12V mechanical relay with a coil current draw under 40mA to avoid overloading the sensor’s output. Connect the relay’s coil input to the sensor’s signal wire, inserting a 1N4007 diode in reverse polarity across the coil to suppress voltage spikes that damage the motion detector. For bulb compatibility, use a relay with contacts rated for 10A at 250VAC if connecting standard 60W lamps; exceed this rating only with inductive load precautions (e.g., RC snubber circuits).

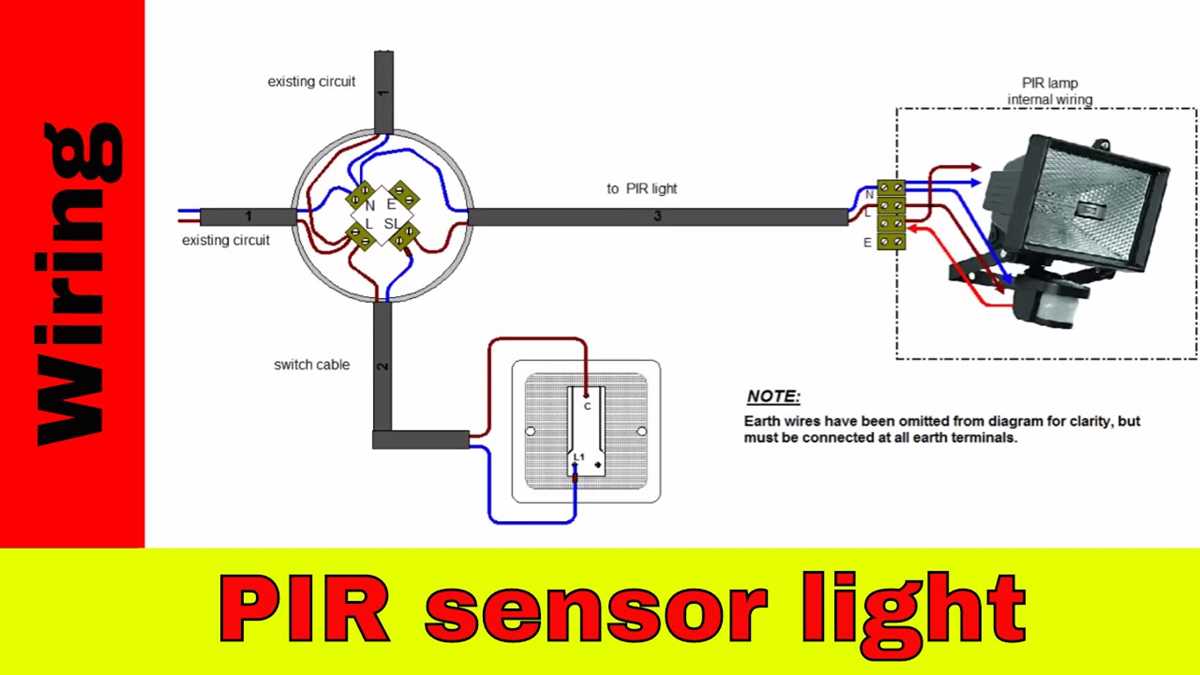

- Lamp Connection: Strip the bulb holder wires, twist them clockwise with the relay’s common (COM) and normally open (NO) contacts, then crimp with 16–14 AWG butt connectors for vibration resistance. Route all wires through conduit if mounting outdoors, ensuring junctions are sealed with heat-shrink tubing or IP65-rated junction boxes. Test continuity with a multimeter to confirm no loose strands bridge adjacent terminals.
- Grounding & Safety: Bond all exposed metal components–sensor casing, relay chassis, and bulb fixture–to a proper earth ground using 12 AWG green-insulated wire. In areas with frequent surges, install a varistor (e.g., 14mm MOV rated 275V) parallel to the relay contacts to absorb transients. Label all wires at both ends for maintenance; use heat-resistant sleeves on joints within 30 cm of halogen bulbs.
Finalize by setting the sensor’s sensitivity and timeout adjustments. Rotate the sensitivity potentiometer clockwise until the unit triggers reliably at 3–5 meters in complete darkness; excessive sensitivity risks false activations from insects or wind-blown objects. Set the timeout to 30–90 seconds for walkways, or 15–30 minutes for security applications–longer delays increase power consumption on battery-backed systems. If interference persists (e.g., flickering in fluorescent tubes), relocate the sensor module 1 meter from electrical noise sources or add a 0.1µF ceramic capacitor between the signal and ground wires.
Fine-Tuning Motion Sensor Responsiveness and Hold Duration
Most pre-assembled occupancy sensors include two adjustable trimmers labeled Sensitivity (or SENS) and Time (or TIMER). Start by setting both to their mid-points–typically marked by a white dot or notch–then verify performance before making further adjustments.
To raise responsiveness on a 3-pin module, turn the SENS trimmer clockwise. Each 10° rotation increases detection range by roughly 0.3 m; full clockwise yields approximately 7 m. Counter-clockwise rotation reduces coverage in equal steps. Avoid surpassing 80 % of the maximum rated distance to prevent false activations triggered by small animals or wind-blown debris.
- Indoor calibration: set trimmers at 50 % and monitor for 30 min in an empty room.
- Outdoor calibration: begin at 30 % sensitivity and extend only after confirming no stray triggers.
- Use a multimeter on the output pin to check pulse width; a steady 3.3 V or 5 V pulse indicates correct operation.
The TIMER trimmer governs the hold period–the interval the load remains energized after the last detected motion. Clockwise rotation adds 10 s per 15°; full travel reaches 240 s on most models. Counter-clockwise shortens the hold down to 2 s minimum. For corridors, set between 30–60 s; for storage rooms, 120–180 s ensures illumination during prolonged activity.
After rough settings, conduct a moving test: walk the detection perimeter at 0.5 m/s noting the point at which the module fails to trigger. Mark this boundary and adjust the SENS trimmer accordingly. Repeat the walk at the revised setting to confirm consistent triggering within the desired zone. Calibration should conclude within three iterations to avoid overcompensation.
For modules equipped with ambient light sensing, incorporate a Lux trimmer adjustment. Begin at 50 % (∼50 lux) and lower in 5 % increments if daylight activation is undesired. Re-check at dusk; ideal suppression prevents daytime operation while retaining nocturnal responsiveness.
Diagnosing Motion Sensor System Failures
Check the sensitivity adjustment if the detection component reacts unpredictably. Most units have a potentiometer labeled “Sens” or marked with a wave symbol; turning it counterclockwise reduces range while clockwise increases it. Factory defaults often overestimate sensitivity, causing false triggers from ambient heat sources like vents or sunlight reflecting through windows. Use a non-contact voltage tester to confirm power at the line terminals–absence of voltage suggests a tripped breaker, faulty wiring, or a blown fuse upstream.
Resolving Power Delivery Problems
Inspect the neutral connection if the assembly powers on but fails to activate. Weak or intermittent detection frequently stems from a loose neutral wire at the twist connector or terminal block. Remove the cover plate and tug each wire gently–any movement indicates improper termination. For units fed by DC transformers, measure output voltage under load (typically 12V or 24V); readings below 10V under load confirm transformer degradation or undersized conductors. Replace conductors with thicker gauge if voltage drop exceeds 5% over the run length.
Lens contamination blocking infrared signals mimics complete inoperation. Clean the Fresnel optics with isopropyl alcohol and a microfiber cloth–avoid abrasives that may scratch the grooves responsible for signal focusing. If the problem persists after cleaning, perform an alignment test using a heat source (e.g., a soldering iron) positioned 3-5 meters away; consistent non-triggering suggests internal sensor failure or damaged optics requiring unit replacement. Always disconnect mains power before disassembly to prevent high-voltage shock hazards.
