Complete Polaris RZR Electrical Wiring Diagram and Connection Guide
Begin with the factory service manual. It contains the precise voltage ratings, wire gauge specifications, and connector pinouts for every circuit in your machine. Ignore generic online schematics–they frequently omit critical details like fuse amperage or ground locations for auxiliary lighting. Locate the section labeled “electrical system” and cross-reference each wire color code with the physical harness under the dashboard or cargo bed. A multimeter set to continuity mode will confirm connections before disassembly.
Isolate the main power distribution panel first. This cluster, typically behind the driver’s seat or under the hood, houses relays, fuses, and bus bars that split current to subsystems. Label each connector with masking tape–note whether terminals serve the fuel pump, ignition coil, or ECU. Misrouting a single wire here can trigger error codes or prevent startup. Use a 12V test light to verify live circuits, but avoid probing active terminals without a load resistor to prevent shorting the battery.

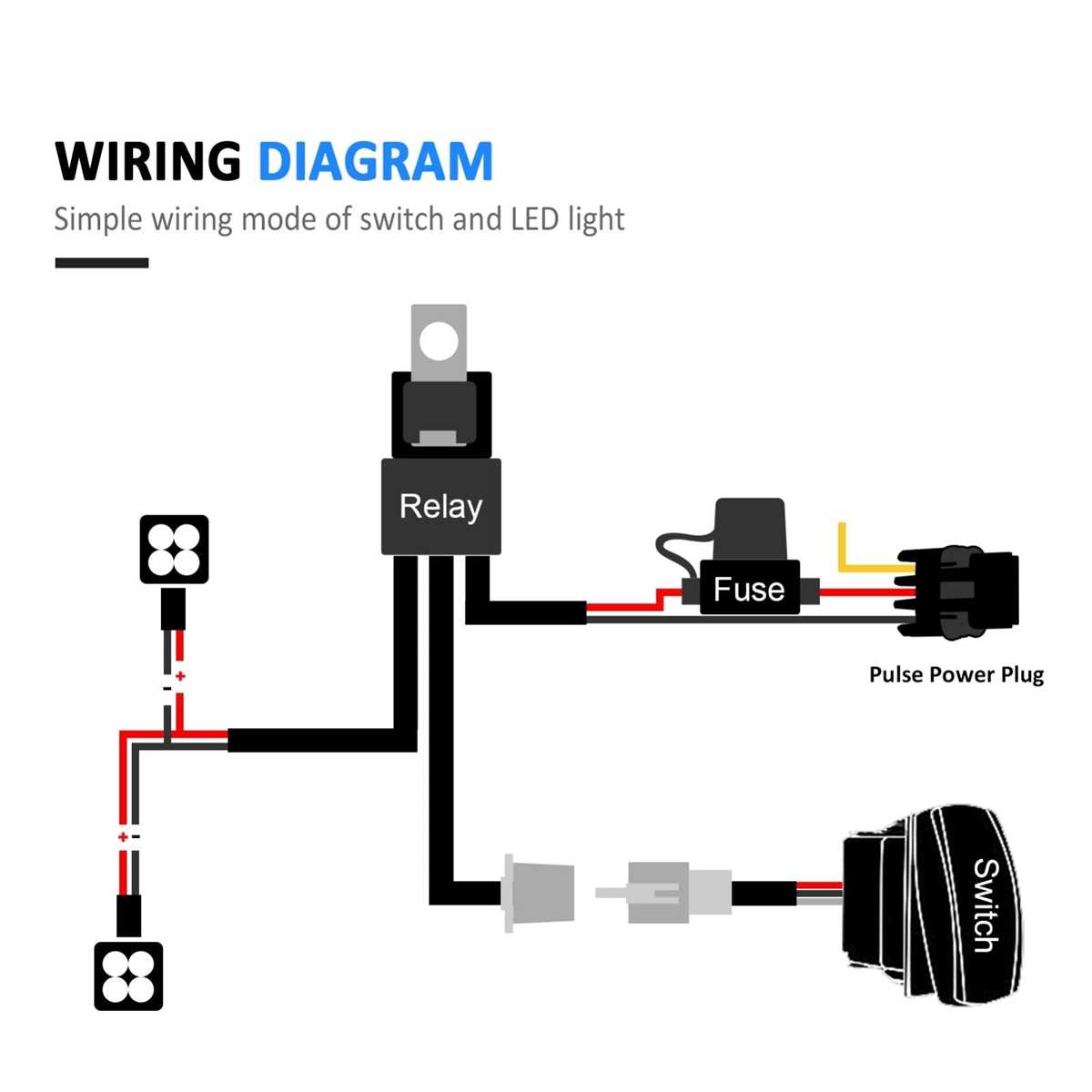

Trace the lighting and accessory circuits next. Off-road models often include dual-beam headlights, brake switches, and winch solenoids, each requiring distinct wiring paths. Use heat-shrink tubing over crimped connections to prevent corrosion from moisture or road debris. For aftermarket additions like LED light bars, consult the manufacturer’s pin diagram–reverse polarity is a common failure point. Solder joints should be reinforced with dielectric grease if exposed to vibration or extreme temperatures.
Grounding points demand special attention. Poor grounds are the leading cause of intermittent electrical failures. Clean mating surfaces with a wire brush and apply anti-oxidant paste to aluminum or steel mounts. Secure grounds with star washers to maintain contact under dynamic loads. For persistent issues, run a dedicated 4-gauge ground wire from the battery negative terminal to the chassis–this bypasses corroded factory paths and stabilizes voltage drops.
Document every modification. Sketch a revised schematic with wire lengths, splice locations, and component placements. Store this with your manual for future troubleshooting. If using diagnostic software, ensure the ECU firmware matches the wiring version–mismatches can corrupt sensor readings or disable safety features like traction control.
Understanding Off-Road Vehicle Electrical Schematics
Start by locating the main fuse block under the driver’s seat–it houses critical connections for ignition, lights, and accessories. Label each wire from the factory harness with numbered tags matching the service manual’s color codes (e.g., “ORG/WHT” for orange/white). Use a multimeter set to continuity mode to verify paths before disconnecting anything, preventing shorts or misroutes. A common mistake is overlooking ground points; ensure all black wires terminate at designated chassis points with clean, corrosion-free contact.
Trace power sources back to the battery’s positive terminal. The starter solenoid and winch relay share heavy-gauge cables–secure crimps with solder and heat-shrink tubing to handle vibration. Auxiliary circuits like heated grips or LED bars often draw from the accessory port; confirm maximum amperage ratings (typically 20A) to avoid overloads. For aftermarket additions, use relays instead of splicing directly into existing wires to maintain factory reliability.
Identify the ECU’s pinout by referencing the model-specific manual–the 2021 XP 1000, for example, uses a 68-pin connector with distinct voltage signals (5V for sensors, 12V for actuators). When troubleshooting erratic gauge behavior, test the CAN bus wires (green/yellow and green/white) with a scan tool for communication errors. Waterproof all connections with dielectric grease, especially for exposed harnesses near suspension arms or underbody panels.
RGB lighting systems require separate controller wiring–connect power via a fused circuit (10A minimum) and route ground to a dedicated bolt, not the frame. For audio upgrades, the amplifier’s remote turn-on wire ties into the ignition-switched circuit (red/pink on most models). Avoid daisy-chaining multiple devices; instead, install a distribution block rated for total current draw. Document every modification with photographs or sketches to simplify future diagnostics.
Inspect harness routing annually for chafing against sharp edges or moving parts–zip-ties every 4–6 inches secure sections prone to abrasion. Replace cracked or brittle insulation immediately with automotive-grade tape or split loom tubing. For persistent electrical gremlins, isolate sections: remove the seat, disconnect the battery, and systematically re-seat connectors. A flaky ignition often stems from a corroded key switch plug; clean contacts with electrical contact cleaner and a brass brush.
Finding the Primary Electrical Connector on Your Off-Road Vehicle
Begin by identifying the driver-side frame rail beneath the seat–this is where the main electrical bundle terminates. Look for a cylindrical black or gray junction box roughly 15 centimeters in diameter, secured with two T30 Torx screws. The connector housing will split into multiple color-coded leads extending toward the engine bay, dashboard, and rear lighting clusters.
Trace the largest loom exiting the battery tray forward along the chassis backbone. The bundle passes through a protective rubber grommet before branching near the steering column. Locate the 12-pin Deutsch connector here; it consolidates power distribution for fuel injection, ignition, and accessory circuits on most mid-sized recreation models manufactured after 2018.
For 2015–2017 variants, focus on the rear cargo area–remove the left storage panel to reveal a secondary junction hidden behind a foam pad. The primary harness enters this compartment through a firewall penetration, marked by a white plastic clip marked “MAIN PWR.” Disconnecting the 10-amp fuse link here isolates the entire system for safe inspection.
If trouble arises near instrument clusters, check the under-hood fuse panel first. The thickest red cable here should lead directly back to the main loom within 10 centimeters of the A-pillar. Cross-reference meter readings against the original factory schematic to confirm continuity before cutting into sheathing.
Step-by-Step Wire Color Coding for Off-Road Vehicle Electrical Networks
Locate the main harness near the battery terminal–this is your baseline. Trace the red (R) lead first; it delivers constant 12V power from the battery to critical modules. Use a multimeter to confirm voltage stability before proceeding. If readings fluctuate, inspect the fuse block under the seat for corrosion or blown 20A fuses, which are common failure points.
Identify black (BK) strands next. These serve as ground connections and must terminate directly to chassis points with minimal resistance. Avoid splices–clean the connection surface with a wire brush, apply dielectric grease, and secure with a #10 stainless steel bolt. Poor grounding causes intermittent faults that mimic sensor failures, leading to misdiagnosis.
Key Circuit Pathways
- Orange (O): Switched ignition input. Verify continuity at the ignition switch; loose contacts here strand ECUs and fuel pumps.
- Yellow (Y): Low-beam headlights. Check for voltage drop across the headlight relay–corroded sockets create dim lighting.
- Dark Green (DK GN): Brake light feed. Probe both tails of the brake switch; if voltage disappears when pressed, replace the switch.
- Light Blue (LT BLU): Turn signal flashers. Flickering indicates a weak flasher relay; test by swapping with the spare hazard relay.
- Gray (GY): Fuel pump trigger. Jumper this to 12V momentarily–if the pump primes, inspect the ECM for signal output issues.
For auxiliary circuits, prioritize white (W) (accessory power) and violet (V) (ECM communication). These often share a 10A fuse; a short here disables multiple systems simultaneously. Use a wiring pen to mark repaired sections with the circuit identifier–prevents reverse-engineering later. Record all meter readings; deviations above 0.5V suggest hidden resistance in connectors.
Common Faulty Connections and How to Trace Them in Off-Road Vehicle Electrical Systems
Start by inspecting the battery terminals–corrosion here mimics intermittent power loss. Use a multimeter to verify voltage drop between the terminal and cable; readings below 0.2V indicate resistance. Focus on the engine control module connector next: oxidized pins (visible as green/white crust) disrupt sensor signals. Clean with electrical contact cleaner and a fine brush, then apply dielectric grease before reattaching. Ground straps near the frame often fail due to rust–check continuity between the strap’s eyelet and chassis using the ohmmeter setting; replace if resistance exceeds 1Ω.
| Fault Location | Symptoms | Diagnostic Tool | Fix |
|---|---|---|---|
| Ignition switch harness | Engine cranks but stalls, accessory power cuts out | Test light at pin 30 (red) and 15 (black) | Replace pigtail if light flickers under vibration |
| Fuel pump relay socket | No start, pump silent during key-on | Connect probe to terminal 87 while cranking | Sand corroded socket terminals, reflow solder joints |
| Brake light switch plug | Reverse lights stay on, ABS fault codes | Back-probe yellow and grey wires at switch | Replace switch if voltage isn’t toggled between 0V and 12V |
For harness chafing, follow each loom’s path–rub points appear as shiny copper strands under worn insulation. Pay special attention behind panels near moving linkages; secure loose sections with adhesive-lined heat shrink. Throttle position sensor errors often stem from frayed wires at the connector–strip the harness back 3 cm, solder fresh 18-gauge wire, then seal with dual-wall shrink tubing. Always retest affected circuits after repairs to confirm no new shorts were introduced during service.
